Product Overview

Description

Product Description

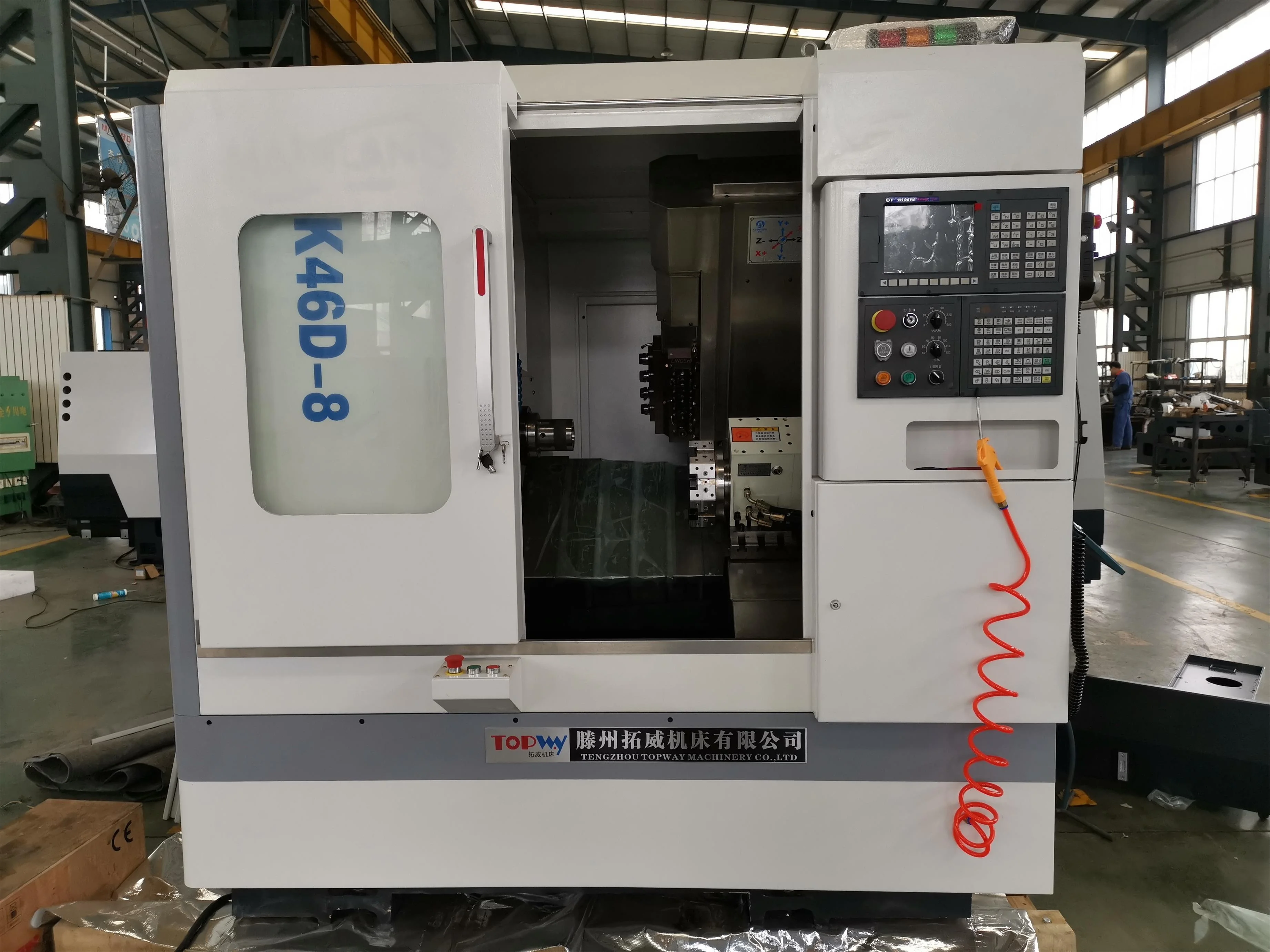

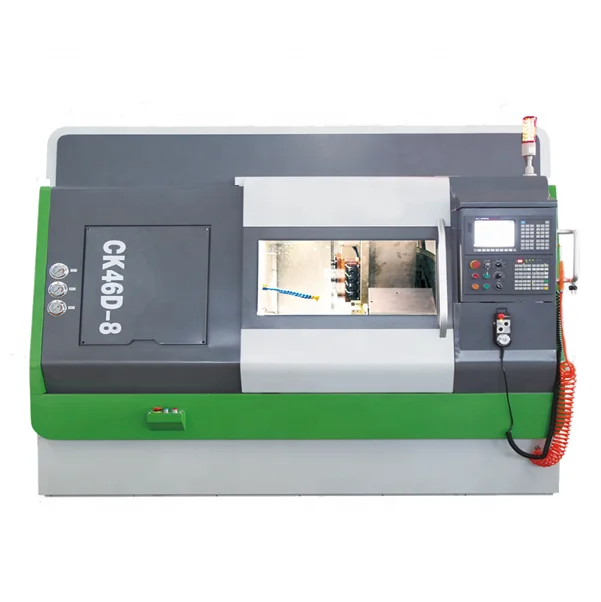

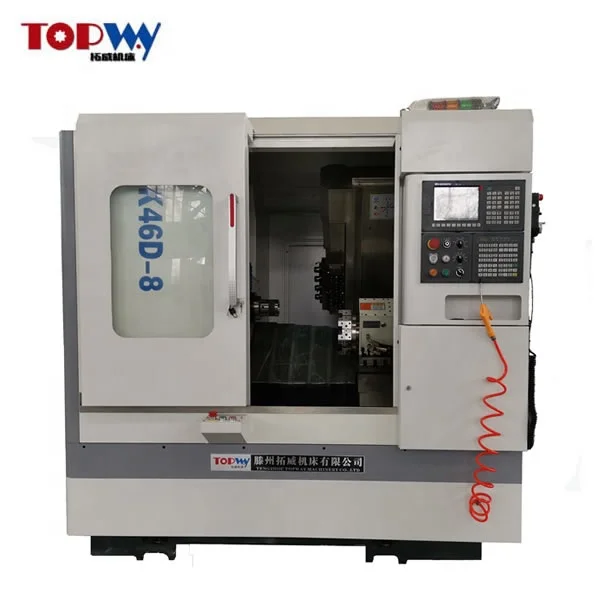

CK46D-8 CNC Turning-Milling Machine

The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinks processes. This machine is suitable to process small work piece in a high efficient.

SPECIFICATION OF CNC TURNING-MILLING MACHINE CK46D-8
Item
CK46D-8
Max. dia. swing over bed
450mm
Max. dia. Swing over carriage
160mm
Max. working length
450mm
Carriage length
780mm
Machine bed structure
30°Slant type
Carriage to spindle center distance
80mm
Spindle nose
A2-5
Spindle speed
50-4500r/min
Spindle bore
56mm
Main motor (C axis)
7.5kw
Living tool
Side 4+ End 4
Living tool power
2.3kw
Living tool speed
3000r/min
Living tool center distance
60mm
X/Y/Z axis Traverse
500450/240mm
Turret type
8 Hydraulic turret
X/Y/Z axis Rapid movement
24/24/15m/min
X/Y/Z positioning accuracy
0.006mm
X/Y/Z Repositioning accuracy
0.003mm
Spindle (C axis) indexing positioning accuracy
0.02"(70 arc-second)
Spindle (C axis) indexing repositioning accuracy
0.006"(20 arc-second)
Weight
3t
Machine size
2500X1800X1800mm

Standard Accessories:

X/Y/Z/A/B axis servo motor
Spindle (C axis) motor
X/Z axis screw adopts HIWIN or PMI 4010-C3 Ball screw;
X/Z axis linear guide way adopts HIWIN or PMI 30 linear guide way;
Spindle: Sleeve type spindle adopts NTN or NACHI spindle bearing;

Spindle clamping type: 42 mm collet chuck
Hydraulic cylinder: Taiwan;
Screw bearing:NTN or NACHI;
Living Tool: Side 4 living tools + End 4 living tools

Y axis living tool;

Optional Accessories

Feeding device
Taiwan 8-pcs Hydraulic Turret

Taiwan 8-pcs Servo Turret
Chip conveyor

Taiwan 6" hydraulic 3-jaw chuck

CNC Controller system:

GSK;  FANUC; Siemens

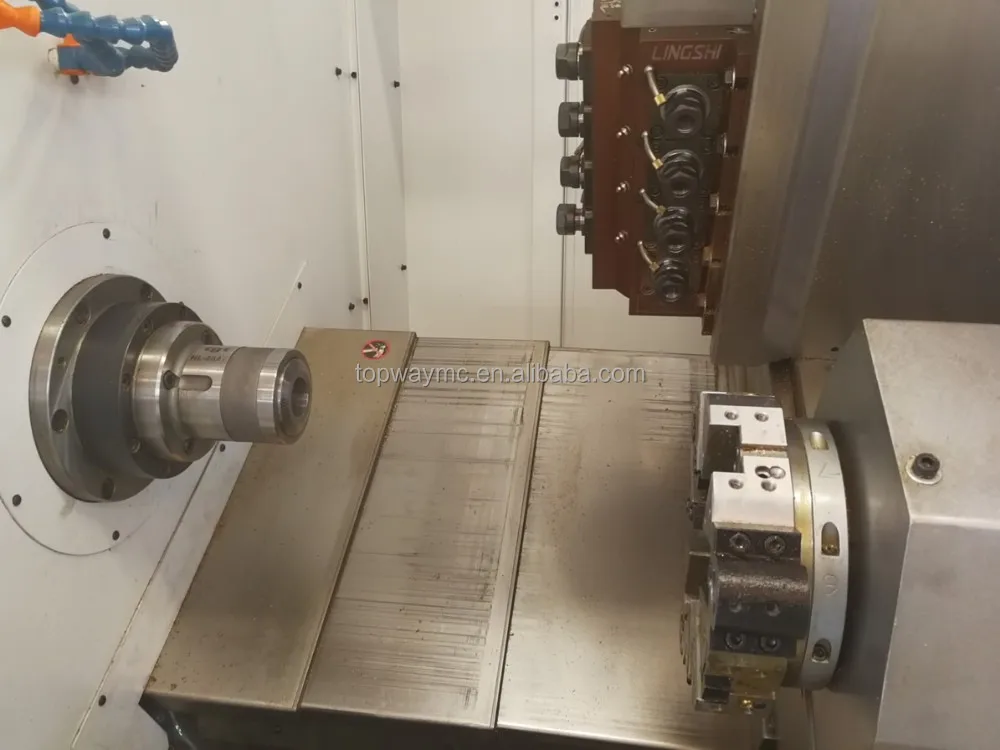

Machine Detail pictures:

Optional Accessories pictures:

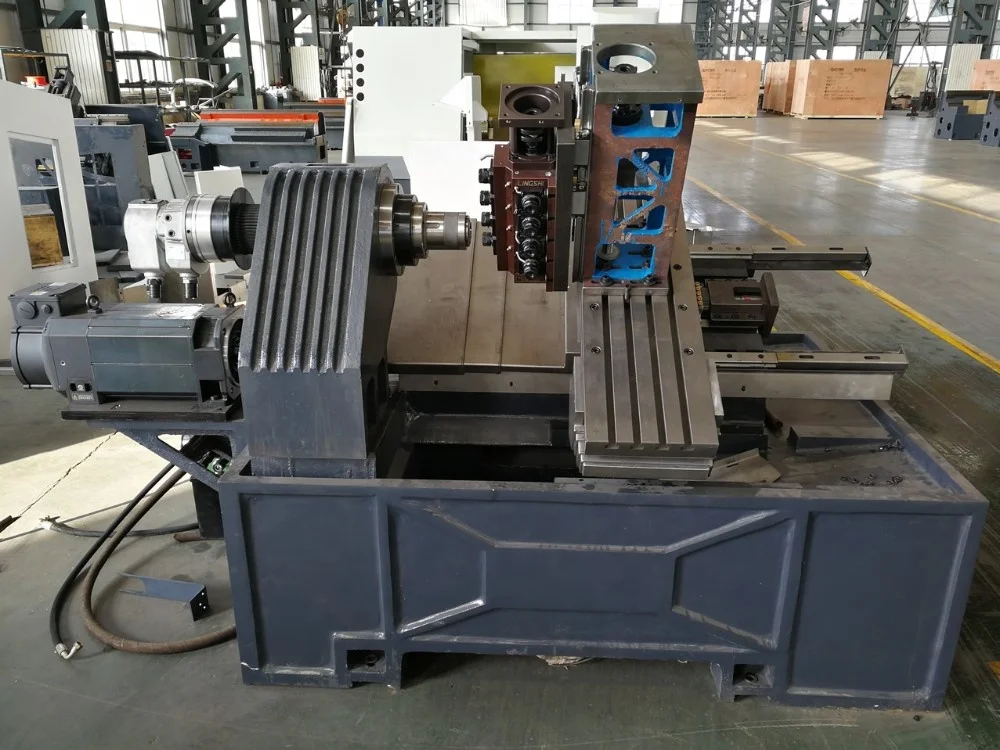

Casting Iron Detail

Hydraulic Chuck

Ball Screw

Linear Guideway

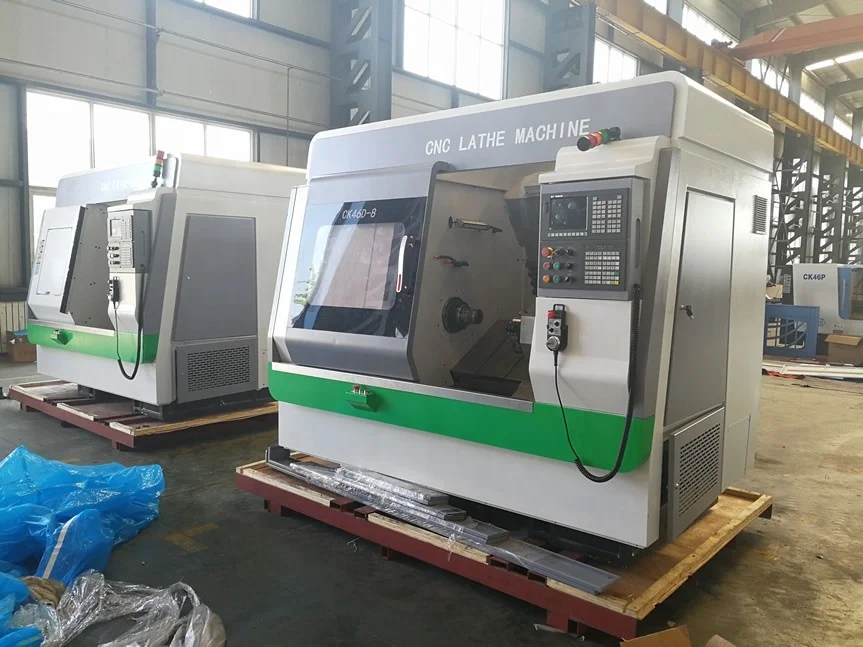

Packing & Delivery

All Machine are packed in export standard package PLYWOOD CASE
