JP6 7/250 , solar powered pool pump, solar water pump for swimming pools, dc motor water pump
- Category: Solar Applications >>>
- Supplier: Ningbo Cheers Water Pump Co. Ltd.
Share on (60295800677):
Product Overview
Description
solar powered pool pump
Warranty
Solar water pump: 2 years
MPPT controller: 2 years
Solar panels: 25 years
You can buy solar panels from us or just buy solar water pump and controller .
If the controller and motor damaged within 2 years, we will send you a new controller or motor for replacement.
If the impeller is damaged within 2 years, we will send you spare impellers for replacement.

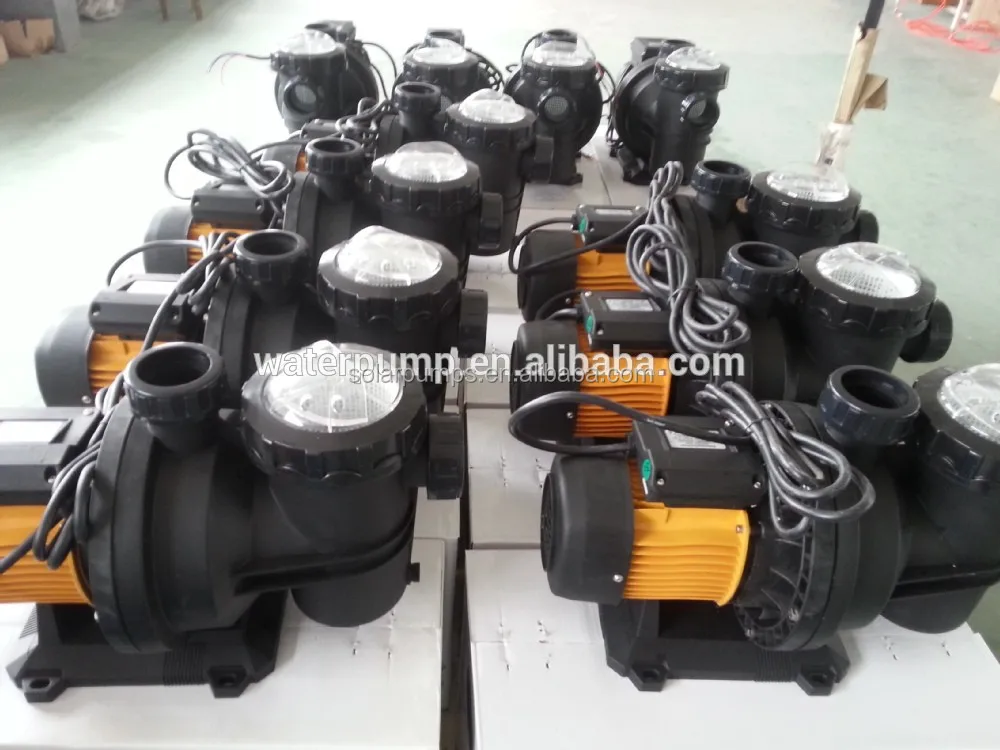

Finished Products

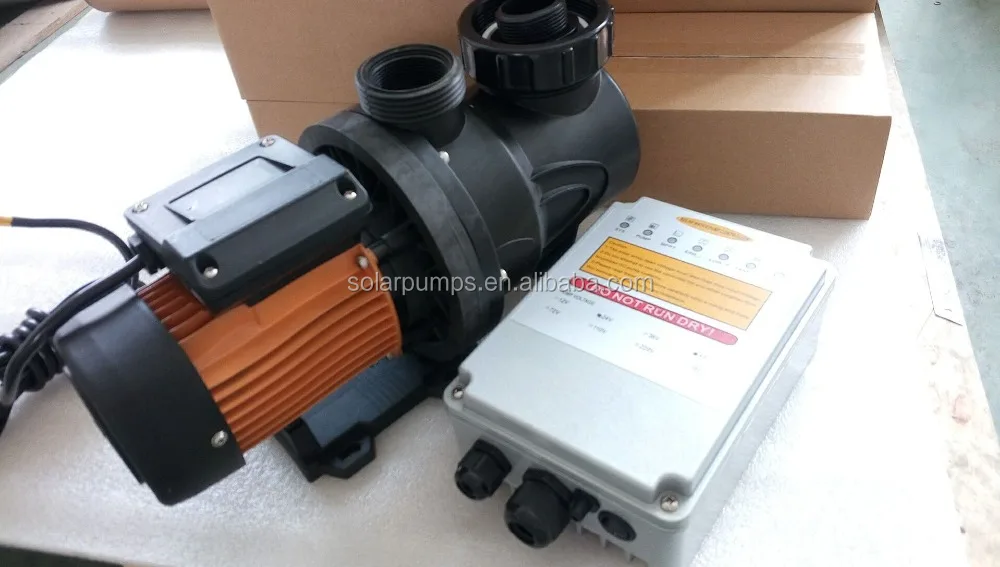

Solar Water Pump System Complete Set:
| 1. Solar pump with 3m cable, longer cable is available if required | ||||
| 2. Controller | ||||
| 3. Water level sensor or float switch:10meter cable, longer cable is available | ||||
| 4. Cable for solar panel: 6m, longer cable is available | ||||
| 5. Cable connector | ||||
| 6. Solar panels are option | ||||
| 7. Pipe connection | ||||
| 8. Installation Manual |
Buyer Feedback

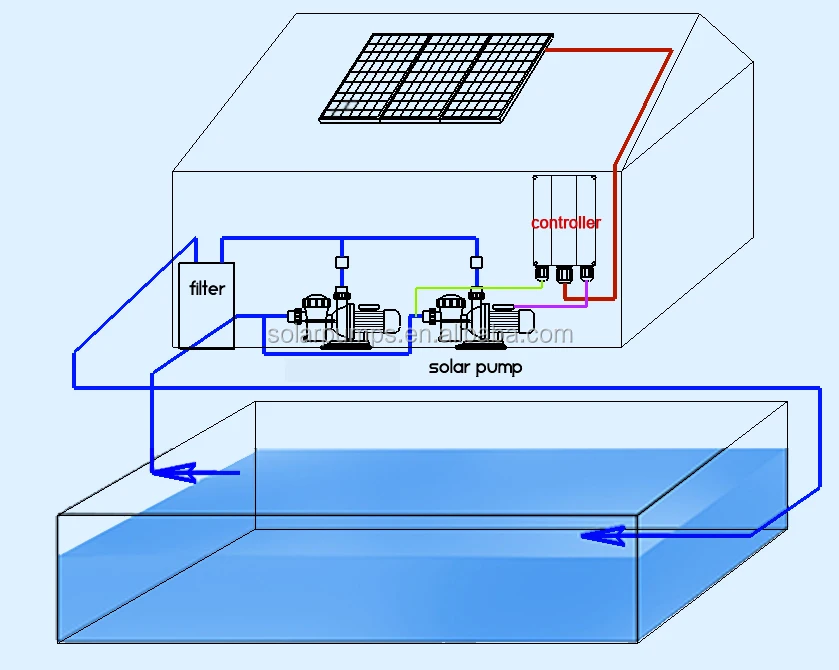

Application
Our solar powered water pumps are mainly used in:

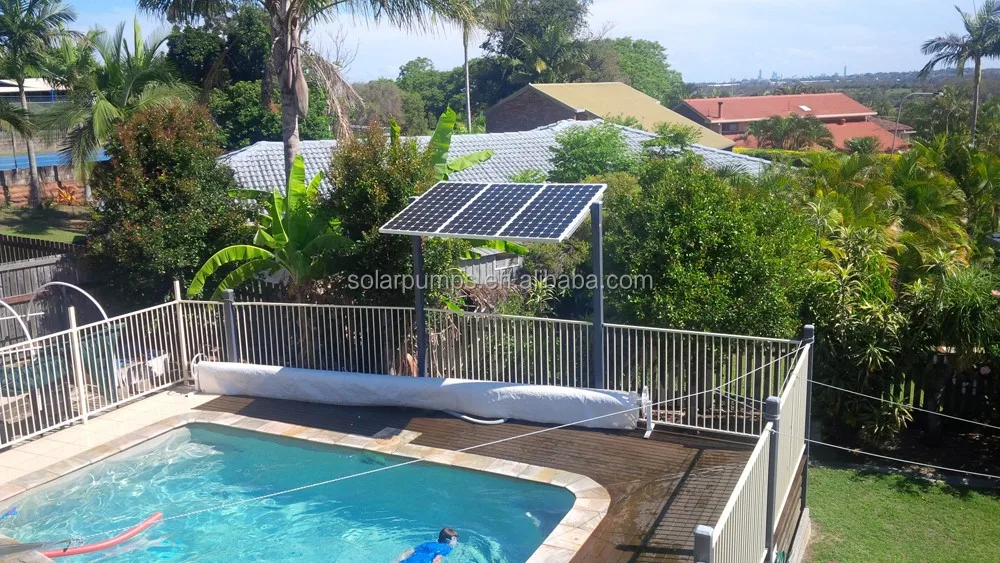

1. Swimming pool circulation
2. Irrigation of agricuture.
Technology
1.Application innovation
Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,
non-sensor motor.
non-sensor motor.
2.Technics innovation
Adopt double plastic package for rotor and stator,
motor insulation≥300MΩ,
the motor security was much improved.
Adopt double plastic package for rotor and stator,
motor insulation≥300MΩ,
the motor security was much improved.
3.Structure innovation
Oil filling,convenient installation and environmental protection.
Oil filling,convenient installation and environmental protection.
Performance Data:
Installation
SOLAR PANELS AND BATTERIES SELECTION:
- 1. The power of solar panel=power of pump X 1.3, the voltage of solar panel=the voltage of pump, the controller should be matched
- 2. Select the batteries according to the following fomulas: The use hour of Battery=The battery capacity÷(the machine power÷the battery voltage) X 0.6 . For example,the machine power is 200w,the battery capacity is 100AH,the voltage is 12V,and the battery is fully charged,then the use hour is 100÷(200/12) x 0.6=3.6housrs.
- 3. The battery capacity=the use hour÷0.6 x (the machine power÷the battery voltage) For example,the machine power is 200w,the battery capacity is 12V,and the battery need to be used for 3.6 hours,the the battery capacity is: 3.6÷0.6 x (200÷12)=100AH
