Single tank Thermoplastic Paint Melter

Product Overview

Description

Single-tank Thermoplastic Paint Melter



1.Brief introduction

  Single-tank Thermoplastic Paint Melter, the same as TW-Y Hydraulic double-cylinder Pre-heater, are one of the key machines for the construction of thermoplastic marking at present. With hydraulic drive as well as positive and reverse rotation controlled by multi-way reversing valve, the melting speed gets faster. It is mostly used in the construction of marking at the sites where fast melting is required such as freeway, State Highway, Provincial Highway etc.

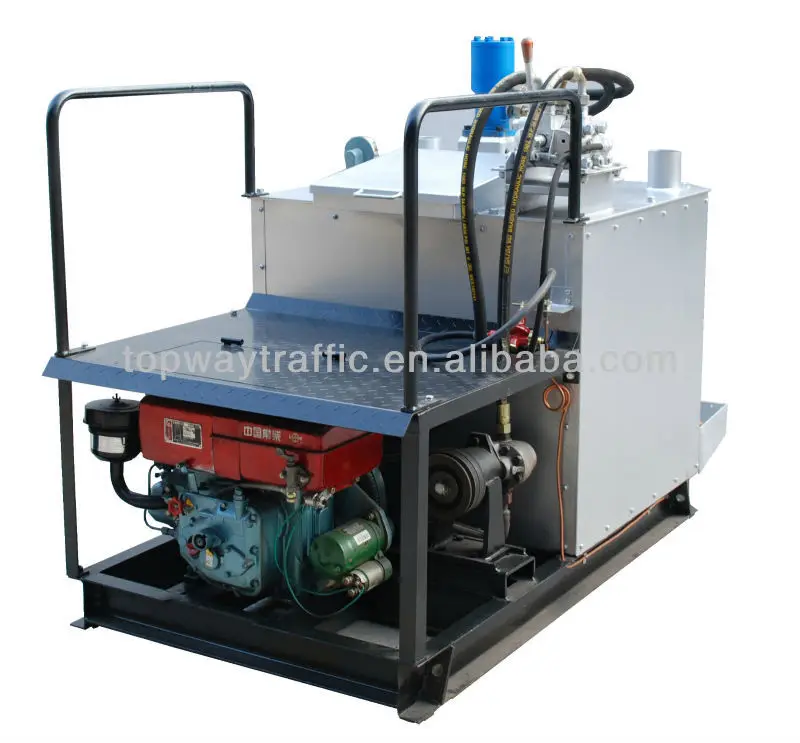

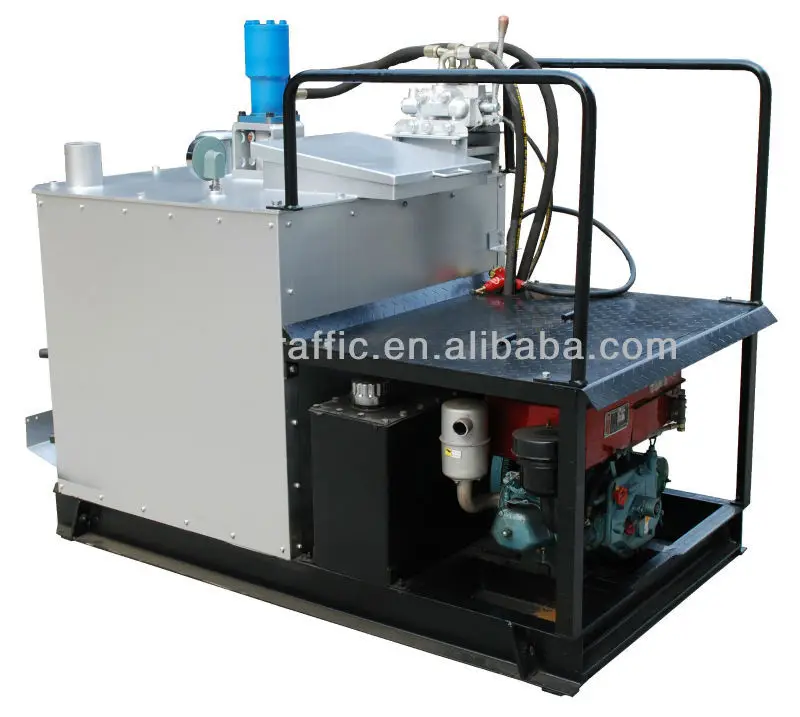

2. Product Images











3. Technical parameters



No.	Model	TW-YC	TW-YA	TW-YB1
1	Outer dimensions	1620*1620*1400mm	1400*1400*1350mm	750mm*1700mm*1370mm
2	Empty weight	850kg	550kg	350kg
3	Thickness of boiler bottom	8mm	8mm	8mm
	Diameter of boiler	700mm	550mm	600mm
	Height of boiler	550mm	550mm	550mm
	Capacity of paint	400kg*2	250kg*2	300kg
4	Agitator rotating speed	0-80r/min	0-80r/min	0-80r/min
5	Thickness of outer frame(stainless steel )	2mm	2mm	2mm
6	Capacity of hydraulic oil tank	60L	60L	60L
7	Diesel engine power	12KW (16HP)	7 HP	7 HP
8	Engine start method	Electrical(12V), Manual	Electrical(12V), Manual	Electrical(12V), Manual

It can be customized according to clients’requirements, such as the customization of materials (Steel plate, Stainless plate), overall dimension, capacity of kneader cylinder, and designated installation mode of diesel engine, and designated installation mode of diesel engine.



4. Three Hot Models

1)TW-YC(two cylinders,each one contain 400kg paint, for project of highway, street road)



2) TW-YA(two cylinders,each one contain 250kg paint, for project of parking lot, street road, shoter than TW-YC)



3) TW-YB1(one cylinder, capacity with 300kg, smalller, fit for concolorous line markings)





5. Components



Heat resisting pipe is used as hydraulic delivery.Two control handles change the speed and direction of agitator.





Boiler inside(8mm thickness of boiler bottom, short but long diameter, large heating area)







5. Tie-in machine

(paint preheater is for melting and mixing paint , so it needs to cooperate with light marking machine as following:)



  1) Automatic road marking machine(Reduce labor intensity,click picture,have more details)



2) Hand-push road marking machine(light in weight)



6. Working Spot
