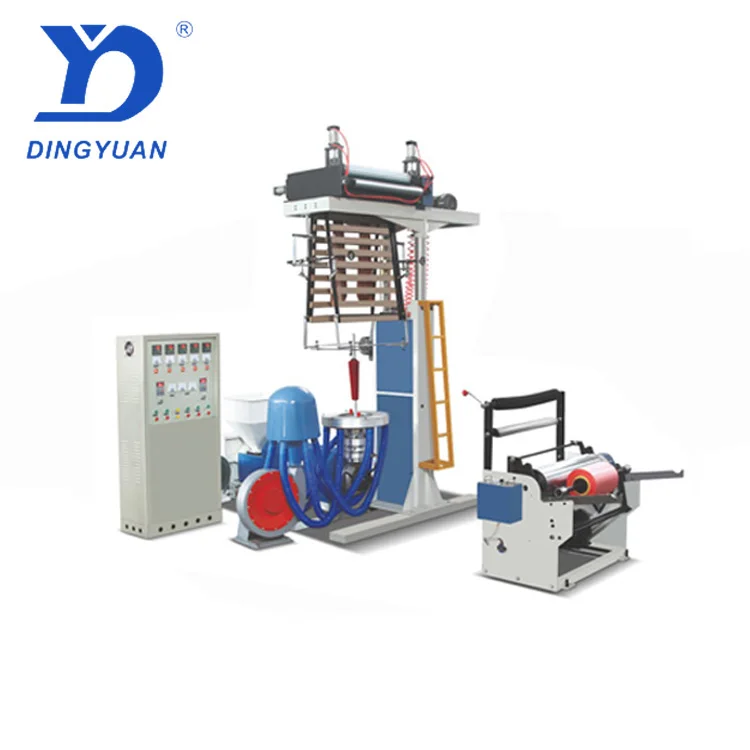

Высококачественная машина для выдувания пластиковой пленки SJ45 mini

Product Overview

Description

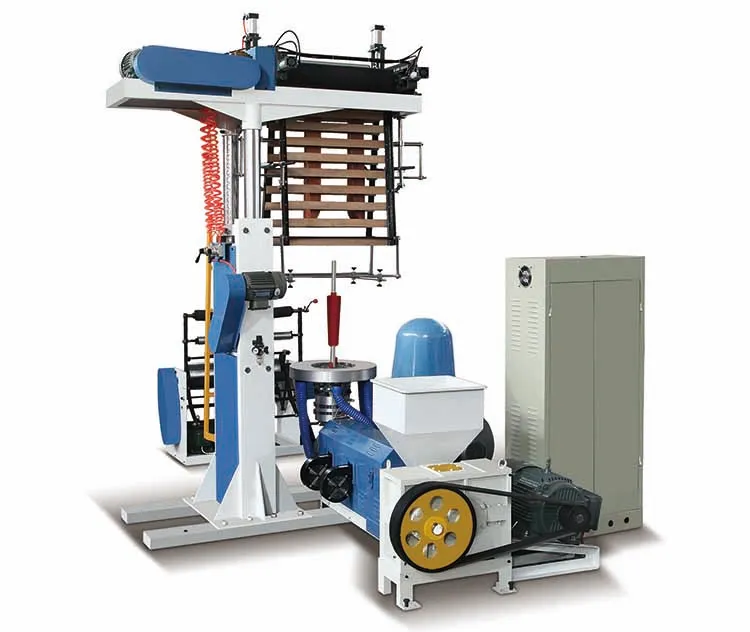

The High quality SJ45 mini plastic film blowing machine price



Product Description:

Application:

This film blowing machine is used for blowing the various plastic film of low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) etc, which are widely used for packing food, fruit, garments, textile, garbage bag and vest bag other civil and industrial products, etc and for vest bag.

Technical Features:

1. Screw and barrel:The screw and barrel are made of 38CRMOALA high quality alloy steel. It is after fine finishing and nitrogen treatment. It has high hardness, strong resistance to corrosion, durable service.

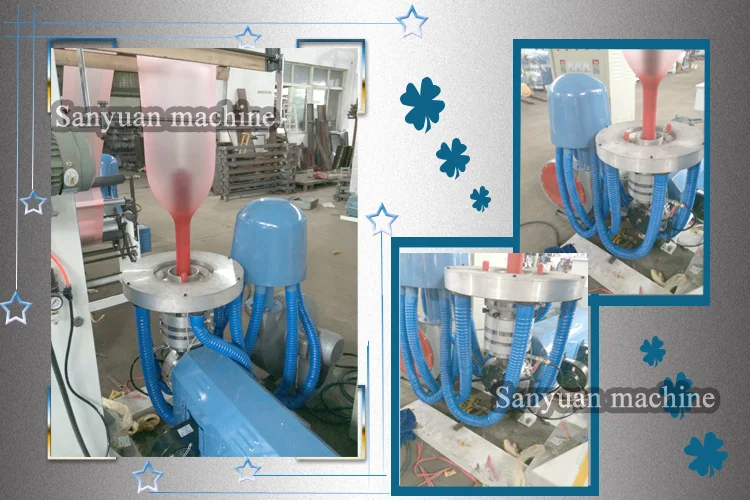

2. Die head: The die head is plated with hard chrome, of screw mandrel type structure it can strengthen the intensity and evenness of plastic film.

3. Rewinder: The rewinder adopts pressure friction rewinding or center rewinding device, which is driven by torque motor. It is even and smooth rewinding and easy roll changing.

4. Lifting device: the lifting device is suitable for various width of film. If the film width is wider, the lifting device can be lift to higher position. If the film width is narrower, the lifting device can be lift to lower position.

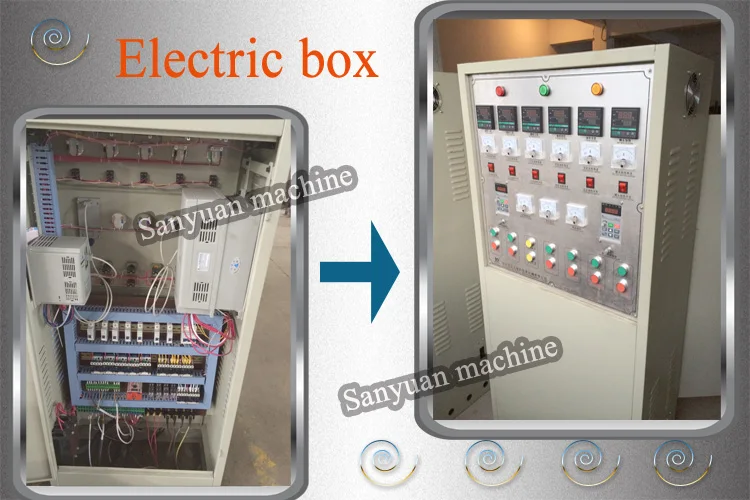

5. Electric container: the independent electric container is convenient for operation the machine.

6. Frequency Inverter: the main motor is adjusted by frequency inverter, the take-up motor is also adjusted by frequency inverter.

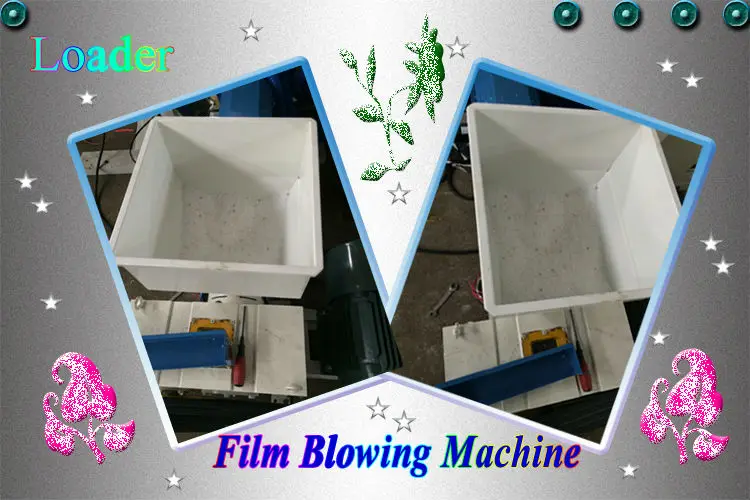

7. Optional device: air shaft, auto loader, electric meter calculator, corona, screen changer.

Main Technical Parameters:

MODEL	SJ45
Raw Material	HDPE LDPE
Film Thickness	0.008-0.08 MM
Film Width	100-450 MM
Max Output	30 KG/H
Whole Power Required	26KW
Overall Dimension	5000*2000*4000MM
Gross Weight	1100KG
EXTRUDER
Screw Diameter	Φ45
Screw Ratio	28:1
Driving Motor(Inverter)	11 KW/15HP
Heating Power	12 KW
Screw Speed	10-110 RPM
Cooling Blower	1.1KW/1.5HP
Temp. Controller	5ZONE
DIE
Die Diameter	Φ50/Φ70
Heating Power	4.5KW

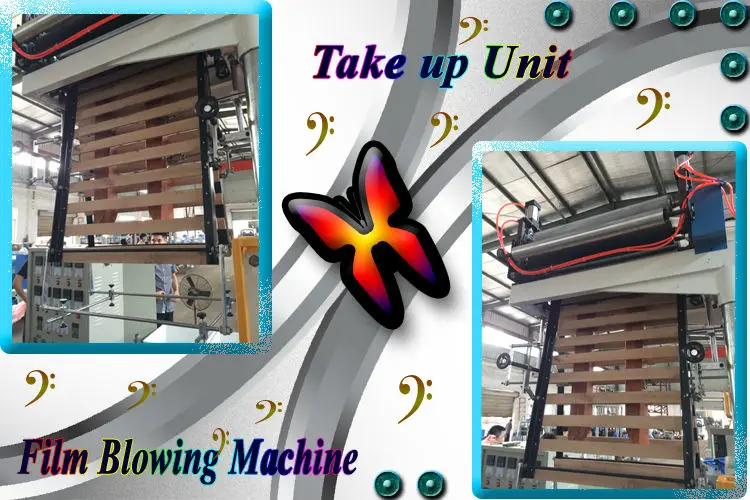

TAKE-UP UNIT
Take-up A.C. Motor/ Inverter	1.1KW/1.5HP
Take-up Roller Width	700MM
Second Take Up Torque Motor	OPTIONAL

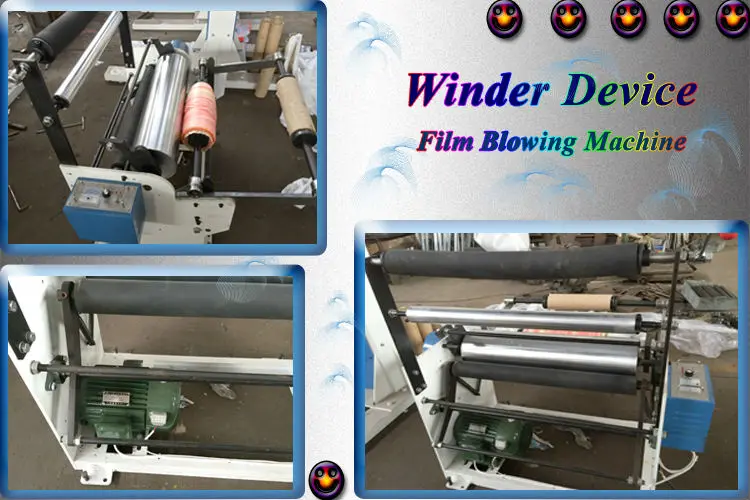

WINDER
Winding Roller Width	700MM
Winding Torque Motor	10N/M



  Free spare parts list:



No.	Spare parts name	Quantity	Notes
1	Temperature meter	1set
2	Electric Sensor	2 pcs
3	Heating ring	3 pcs
4	Tool box	1set
5	English manual	1pc
6	Die head	2 different size	One on the machine, and another one as spare part
