Corner Rounding and Pre milling Functions Edge Banding Machine T 600GY PUR Glue System
- Category: Wood Based Panels Machinery >>>
- Supplier: Foshan Leabon Machinery Company Limited
Share on (60306182636):
Product Overview
Description
Product Description
Product Application
T-600GY high efficiency full automatic edge banding machine has additional functions such as corner trim and pre milling, it's good for wood, MDF, plywood edge banding work. The edge banding material can be PVC, Acrylic and ABS. Wood belt is also optional! Minimum working thickness of boards is 9mm!
It's idea selection with full functions automatic edge banding machine. This model can be with PUR glue system for perfect edge banding effect.
T600GY Automatic Edge Banding Machine Specification | ||
Model No. | T600GY | |
Motor Power | 16.9Kw | |
Overall size | 7100*1000*1600mm | |
Feeding Speed | 12-16-18mm/min | |
Panel Thickness | 12-60mm | |
Edge banding tape thickness | 0.4-3mm | |
Panel Width | ≥80mm | |
Working air pressure | 0.6Mpa | |
Weight | 2800kgs | |
T-600GY Edge Banding Machine Automatic Main Features
1. Taiwan Delta frequency controller, insured the duration and precision of our wood edge banding machine.
2. PLC use LG brand, air cylinder use SMC from Japan, HIWIN liner track, Honeywell limitation switch, Taiwan CPG conveyor motor, all key parts we choose market tested best brands to try to guarantee our machine performance and let our customers enjoy to use our machines.
3. Independent lifting up and down system, simple and convenient.
4. Precise encoder control, high speed.
5. Special polishing structure, motor angle can be universal adjusted, make the PVC/Acrylic/ABS band polishing and buffing to the best.
6. Glue spray clean system is optional, it's good to remove the glue and dirty on MDF/Wood during edge banding process.
Funtions: Pre-milling / Gluing / End Trim/ Rough Trim / Fine Trim / Corner Trim/ Scraping / Buffing
Leabon PUR Glue system provides a pre-melt tank, feeding a thermally accurate flexible heated hose to the slot nozzle coating head, and apply glue to the boards.
Super gear pump form positive displacement.
Apply EVA, PUR or polyolefine adhesives.
Adjustable PW slot die technologu/
Closed system.
Reduce maintenance and downtime.
Reduce adhesive consumption.
No contamination.
Reduce rejects and improve edge banding quality.
Certifications

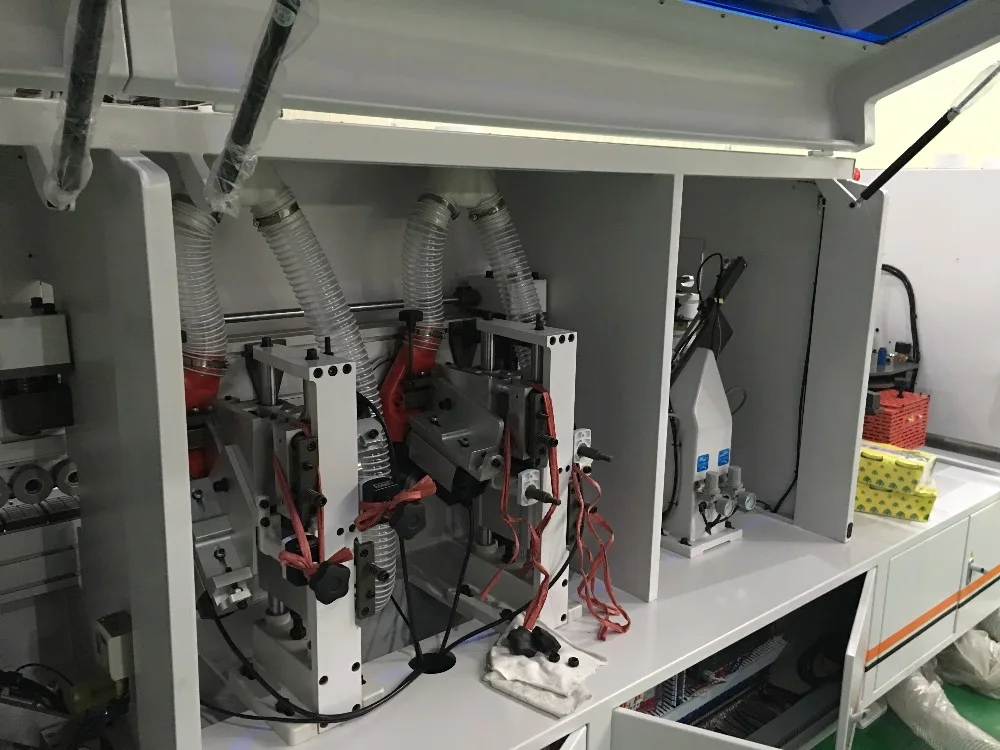

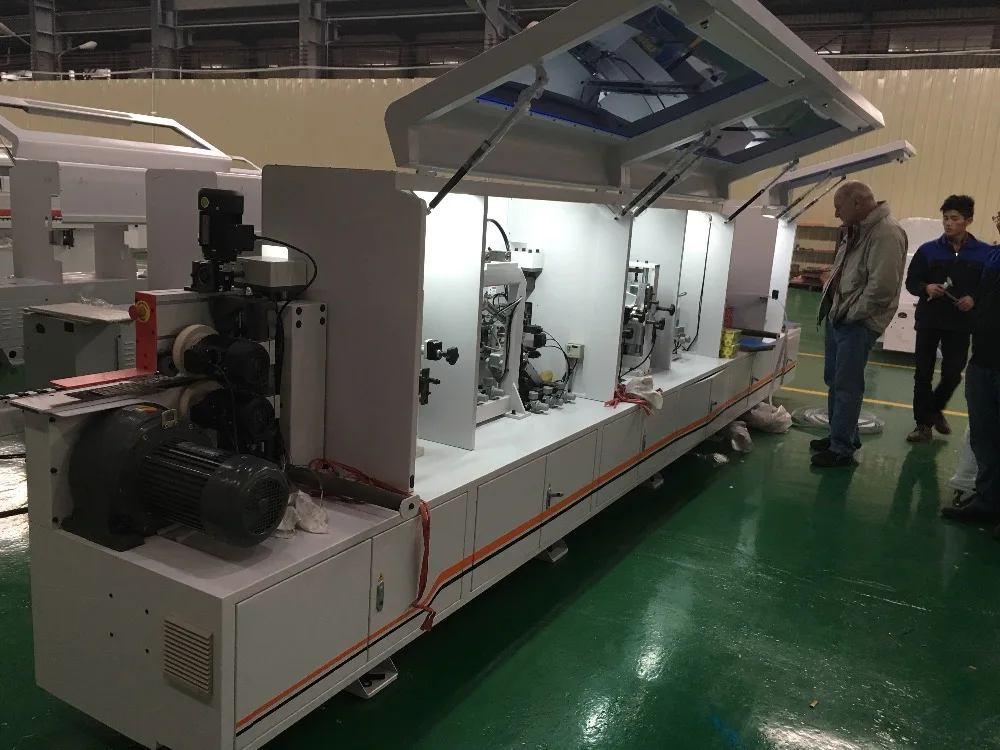

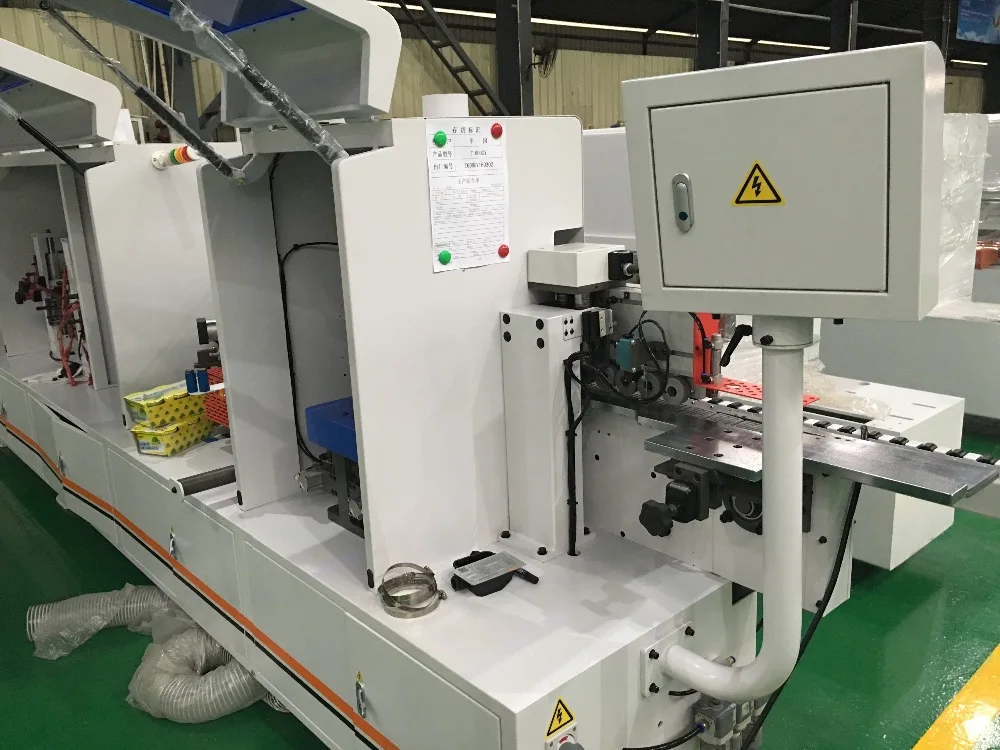

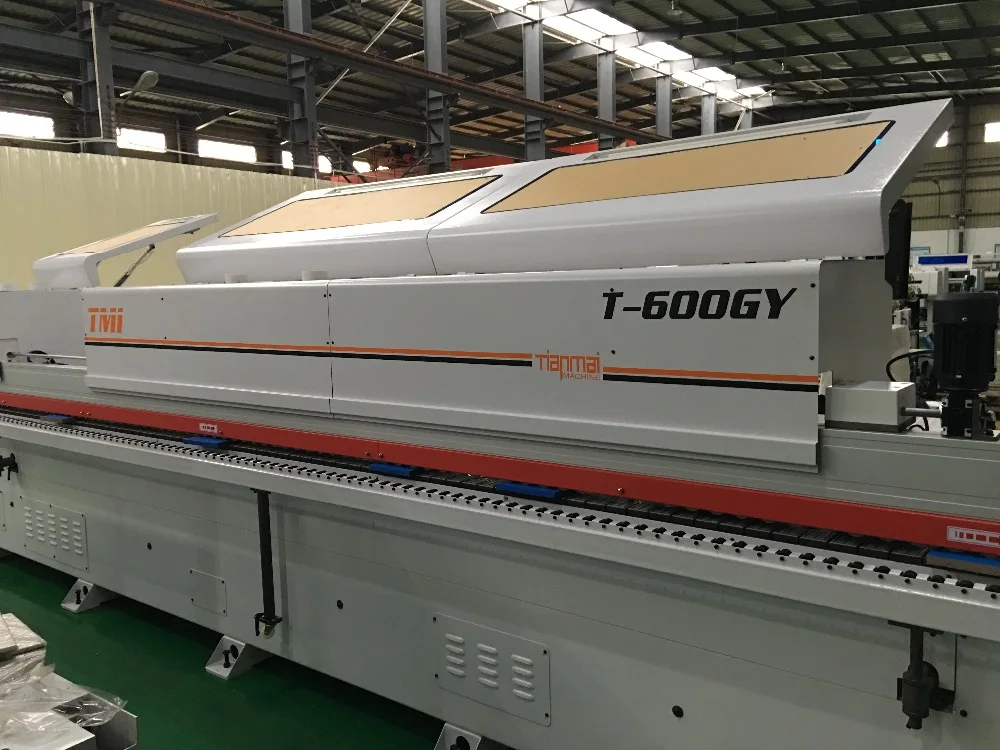

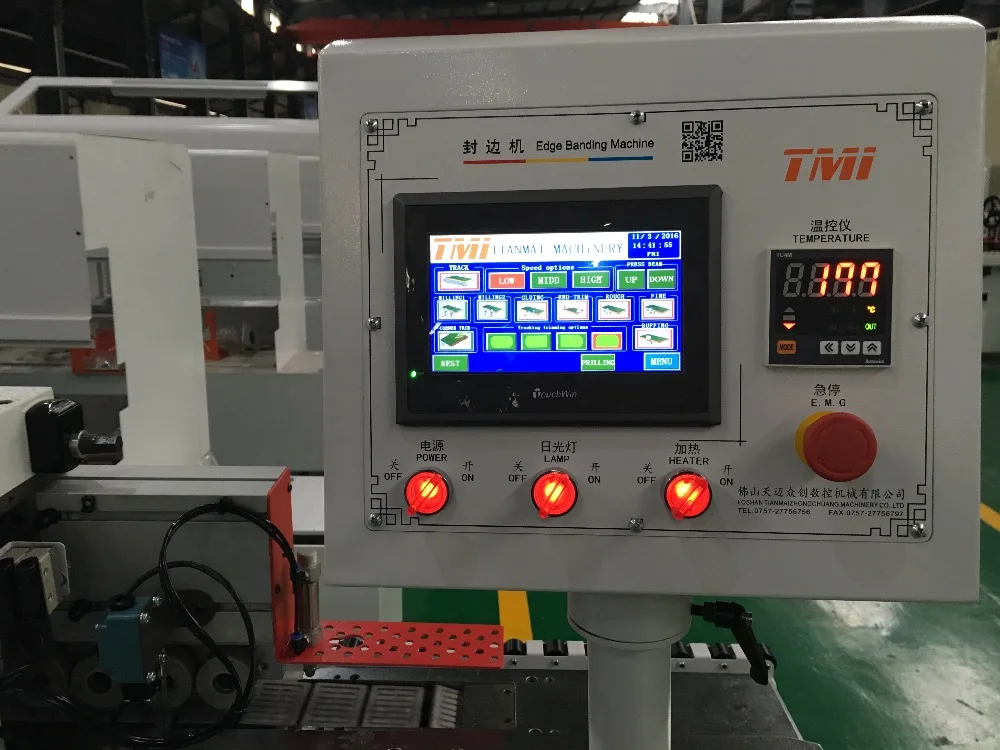

Detailed Images
Pre-milling and End Trim
Equipped with double diamond blades, remove the possible waving texture on edge to achieve better edge banding affection.
End trim running through precise liner track, automatically tracked with mould and fast cut with high frequency high speed motor, guaranteed the plain and complete of cutting side.
Buffing and Gluing
The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly.
Gluing facilities use special structure to evenly spread the glue on both banding panel and band, ensure a more solid adhesion force.
Fine Trim / Rough Trim and Scrapping
Fine and rough trim facilities are used to remove the extra material on band, it adopts mould automatically track and high frequency high speed motor, ensure the plain and smooth of work piece top and bottom parts.
Scraping units used to remove the texture which might happened during trim processing, guarantee the band to be smooth and plain.
Grooving
Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc.
