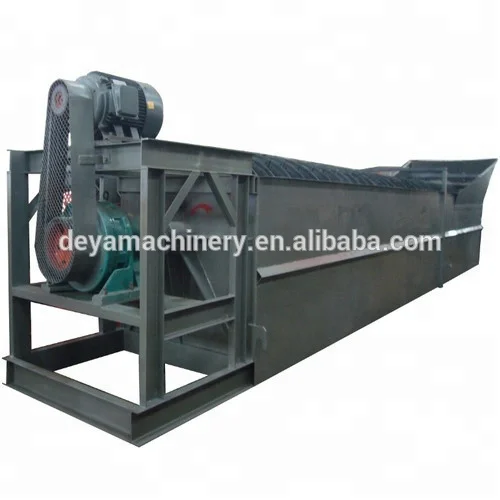

FG series Spiral Sand Washer for sale

Share on (60307068159):


Price:

Quantity:


Product Overview

Description



Product Description

Contact us to get more information whatsapp & wechat: +86 137 2141 9876


Spiral sand washer introduction


Spiral sand washer can wash and separate the soil and impurities in the sand. It is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station, etc.





Working Principle of spiral sand washer


The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.





Technical parameters of Spiral sand washer






















































Model



FG-50



FG-75



FG-100



FG-120



FG-150



FG-200



Spiral diameter



500



750



1000



1200



1500



2000



Rotation speed(r/min)



18



16



13



10



8-10



6-10



Capacity (t/h)



3-20



5-40



10-70



20-90



30-130



40-200



Motor (KW)



5.5



7.5



11



15



22



30

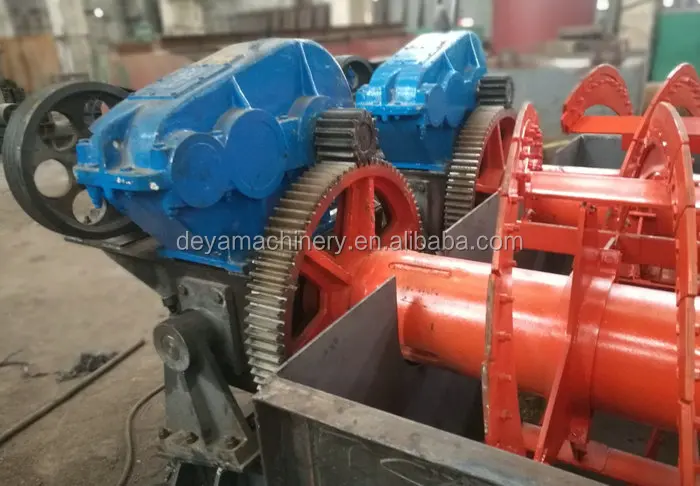

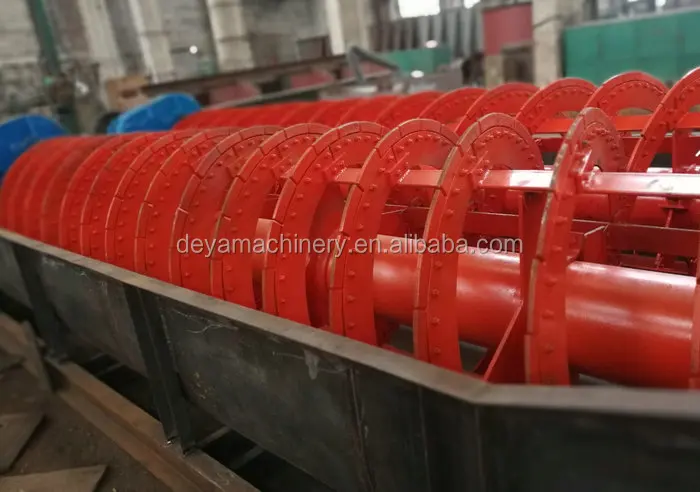

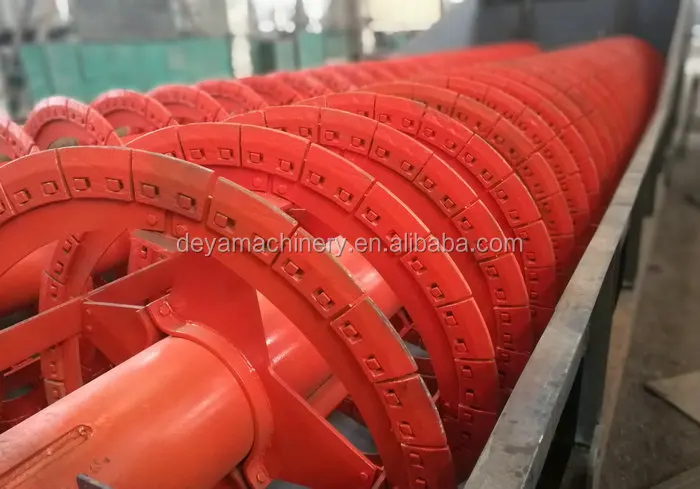

Pictures of spiral sand washer produced by deya machinery


_20200904143949_202009041439312019-12-17_1454012019-12-17_1453502019-12-17_145321

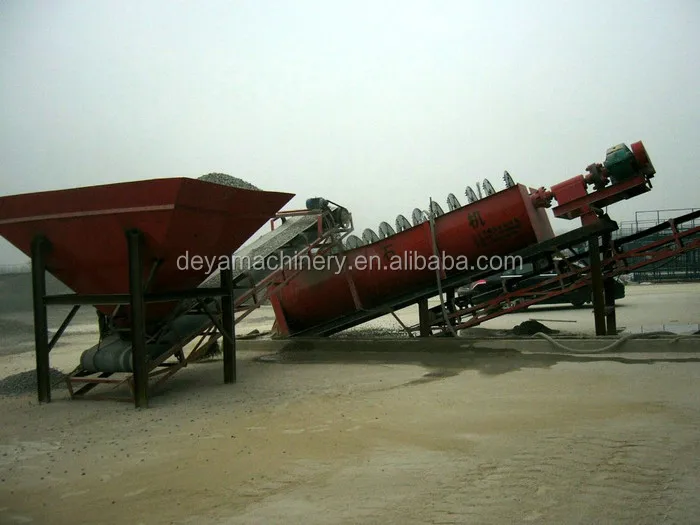

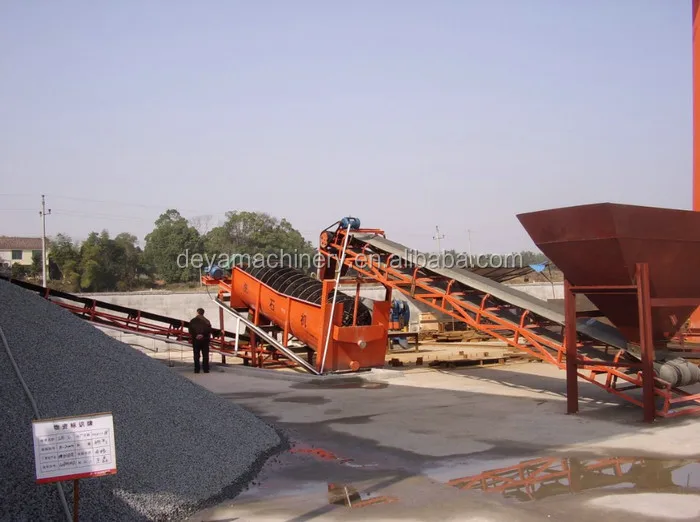

Pictures of Spiral sand washer from deya clients' working site





Packaging & Shipping


Deya Machinery offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Deya workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.


2018-06-22_100549





Our Services


-Pre-sale services


Based on the clients’ request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and translators for the visiting customers.

-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients’ request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.

-After-sale services
Normally, the equipment warranty is 18 months since installation, but can extend as long as 24 months as the clients’ request. Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.





Company Information


Henan Deya Machinery Co., Ltd. is a professional manufacturer of crushing equipment, mineral processing equipment, construction machinery equipment and their spares; the company was established in early 1990’s with an area of twelve thousand square meters which includes four thousand square meters of standard industrial workshop.

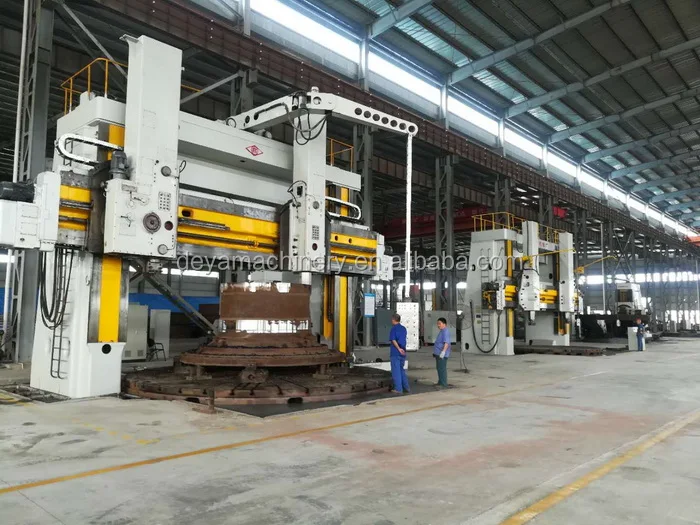

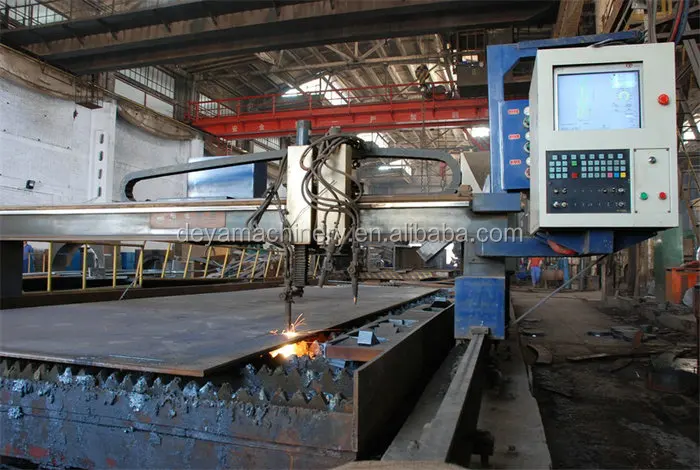

Deya Machinery lays much emphasis on quality and service; the company has acquired ISO 9001: 2008 certificate, and it has independent quality control department and after sale service department. Main equipment include Jaw Crusher, Ball Mill, Magnetic Separator, Flotation machine, Trommel Screen, Belt Conveyor, construction machinery equipment and their spares. Main processing equipment includes φ8.0m, φ5.0m hobbing, φ6.3m, φ5.0m heavy vertical lathe, φ3.5m, φ2.5m CNC vertical lathe, φ6.0m × 18.0m barrel sleeper, φ220mm, φ160mm boring, φ160mm boring and milling machine, CNC cutting machine, milling machine, automatic welding center, 60mm × 3m Bending and other NTU, fine, thin processing equipment.

As a customer oriented company, Deya People with high level of professionalism, and responsibility; total satisfaction from clients becomes the top priority, and long-term cooperation is what we always sought and cherished for. The products have exported to over 30 countries like Indonesia, Philippines, Vietnam, India, Pakistan, Turkey, Tanzania, Zambia, South Africa, Ghana, Peru, Bolivia, Mexico, Chile, etc. We sincerely hope can establish business cooperation with your esteemed company in the long run.deya factory newcustomer factory visit201882111282273499201881711323273499





FAQ


1. Quality control


All the equipment offered by Henan Deya Machinery Co., Ltd. are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. Deya Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.

2. Way of payment
Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.

3. Delivery time
Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.

4. Trade terms
Typically EXW, FOB, CIF, CFR, DAF follows International Rules for the Interpretation of Trade Terms 2010(INCOTERMS 2010).

5. Shipping lines
Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.

6. Installation
Deya has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians’ round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians’ safety.

7. Equipment warranty
Equipment from Henan Deya Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.





Contact Deya


Bruce Ma/International Sales Director
Henan Deya Machinery Co., Ltd.
Email: bruce.ma AT deyamachinery.com
Tel: +86-371-6030 5814, 6030 5824
Mobile/Whatsapp/Wechat: +86 137 2141 9876
Web: www.deyamachinery.com
Address: NO. 2, Qinling Road, Zhongyuan District, Zhengzhou, Henan province, P. R. China
