2.4G wireless dmx transmitter and receiver pcb

Product Overview

Description

2.4G wireless dmx transmitter and receiver pcb Small size,Esay to suit for interior of accessed lighting





PCB-LED DMX wireless receiver /wireless receivertransmitter/



Wireless Module of DMX512



DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console ) by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.

This product adopt 2.4G ISM frequency section( global opening section) without permission limited High effective GFSK modulate,communication design ; 126 channels jumping frenquecy automaticly,high anti-jamming ability.



Product Feature

1. Product name: 2.4G wireless DMX512 R/T moulding board

2. Small size,Esay to suit for interior of accessed lighting

3. Single key to operate,tricolor LED displaying

4. Transmitting standard DMX512 protocol data of console,also can transmitting lighting and lighting DMX512 protocol data.

5. 126 channels jumping frenquecy automaticly,high anti-jamming ability. to ensure works reliability

6. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere each other in the same place..

7. Input voltage: 5VDC

8. Work frequency section; 2.4G ISM,126 channels.frequency section

9. Max transmitting power rate: 20dBm

10. Receiver sensitive: -94dBm

11. Signal port: RS485 or CPU series port AURT





Application: Upgrade DMX512 stage lighting

 Stage lighting Disco hall Large literature performance Gymnasium lighting Temporary stage performance  City lighting system TV station  Conference center  professional showplace Topic park Bar lighting and so on.

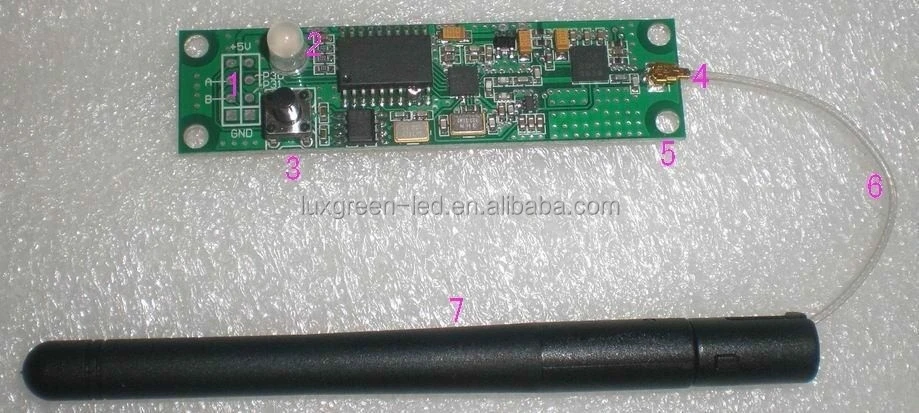

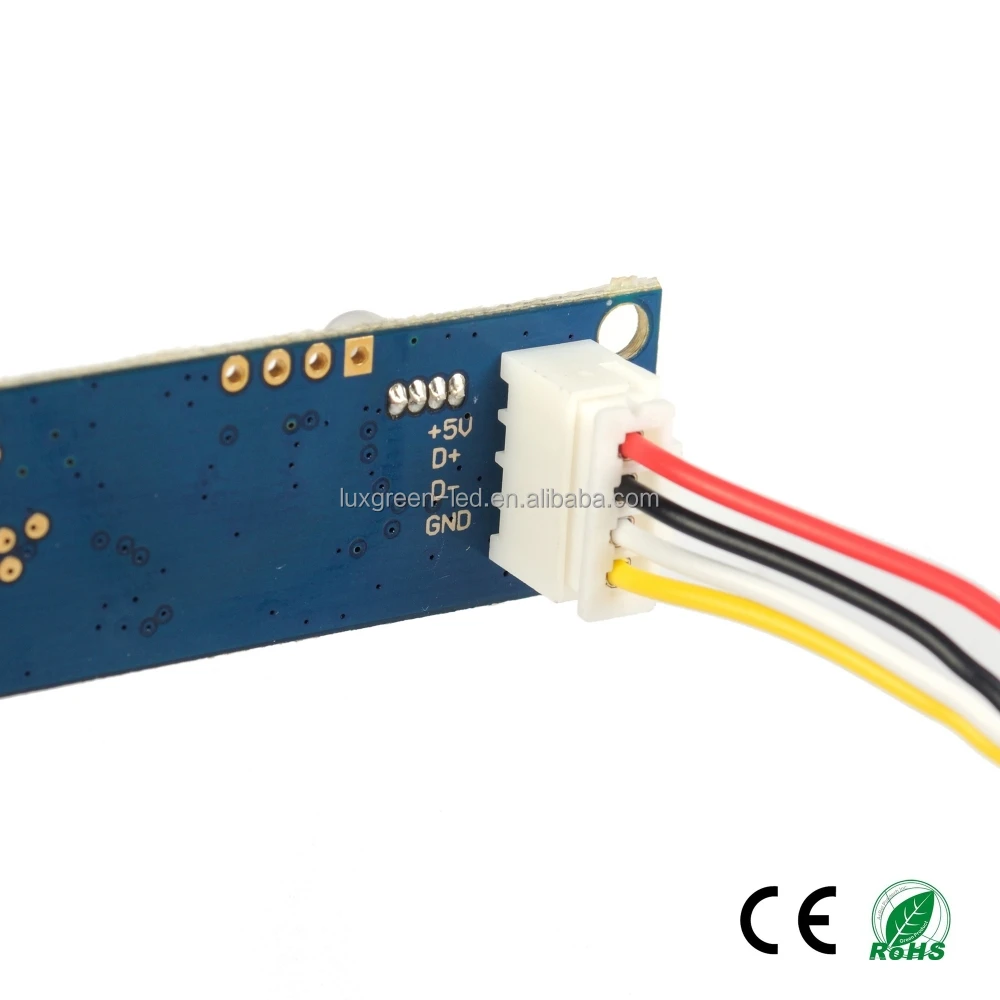

Product Picture:











 Please take off IC of RS485 port such as SN75176 if CPU series port connect with lighting to be slected on the module.
Try to separate 5V between power supply and input voltage of lighting
Select quality linearity Zener diode for power supply, such as 1117 , 7805 etc
Please place it apart from hi-RF circuit part.



Compatible series products as follows:





LCD-WI-DMX (ID:0-15)                                              XRL-WI-DMX(ID:1-7)



Operating manual:

1. ID code and LED color corresponding relateship:

 1:RED

 2:GREEN

 3:RED+GREED

 4:BLUE

 5:RED+BLUE

 6:GREEN+BLUE

 7:RED+GREED+BLUE

1. Press key 1 time to indicate ID setting,,Press again to set ID,then ID value adding 1 each time.by press


2. Working condition:

 LED constant lit up:no DMX or wireless singal.

 Red LED flash:transmitting.

 Green LED flash:receiveing

1. RF frequency- - - - - - - - - - - - 2. 400-2. 525 G,total 126 channels,it’s searching automaticly,


2. ID Code- - - -“1-7” groups ID code,press ”KEY” for setting,it only can works under same ID code.of transmitter and receiver.

Establishing Communication:

1. Power on DMX512 wireless received board and transmitted board.


2. Press “Key” button to set same ID value of transmitted board and received board., please use different ID value if you need use more than 1 group wireless net at same time in same place.


3. The red LED flashs when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section.  Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.


4.  Communication was established correctly then



Cauction:

  Don’t repair this R/T board by yourself, it should be returned to manufacturer to repair if any problems.









If more information and the video needed,pls kindly contact my Whatsapp or Skype,tks
