Brief introduction:

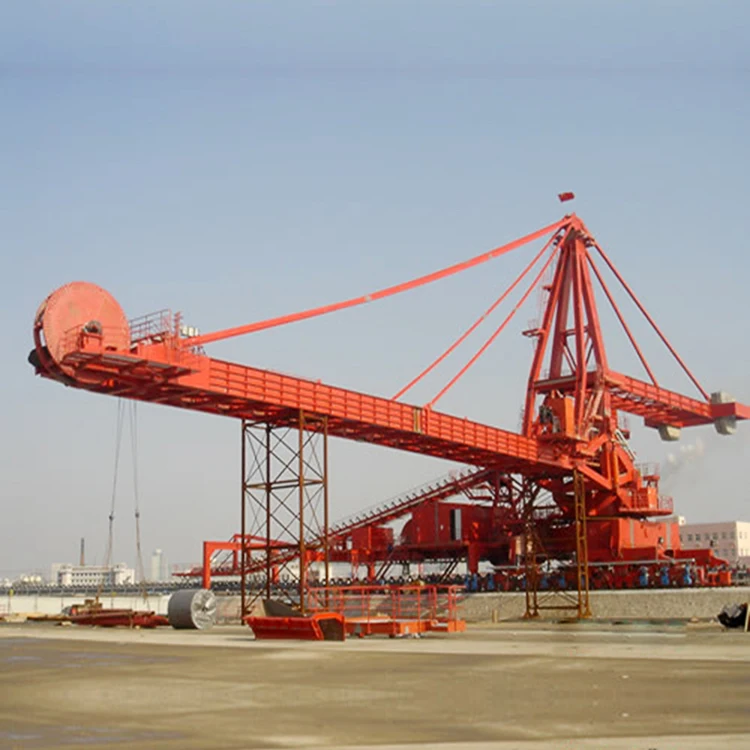

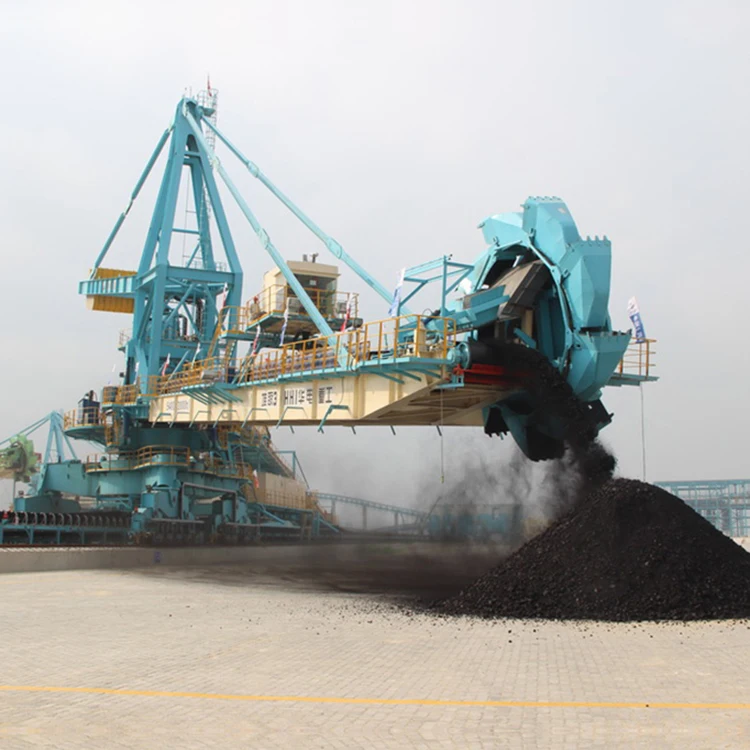

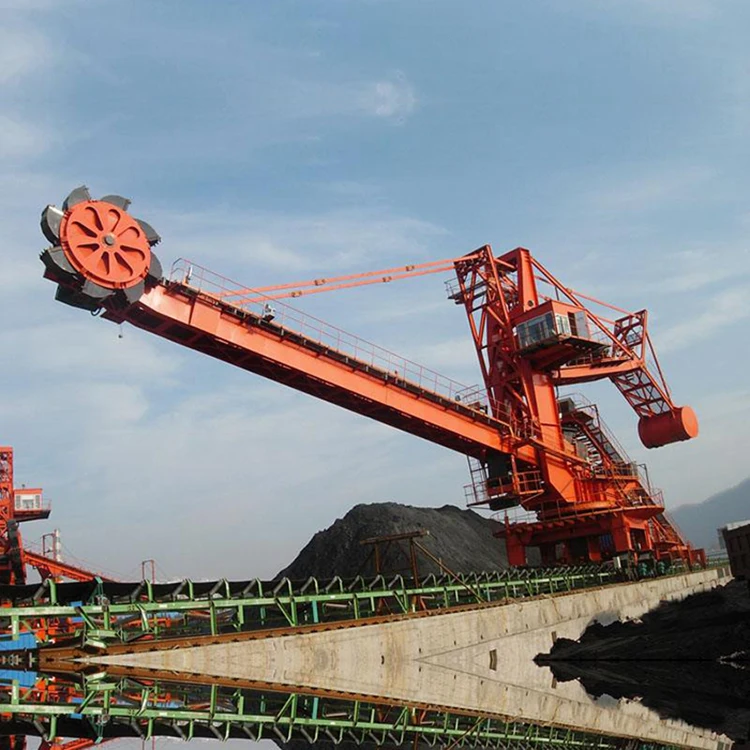

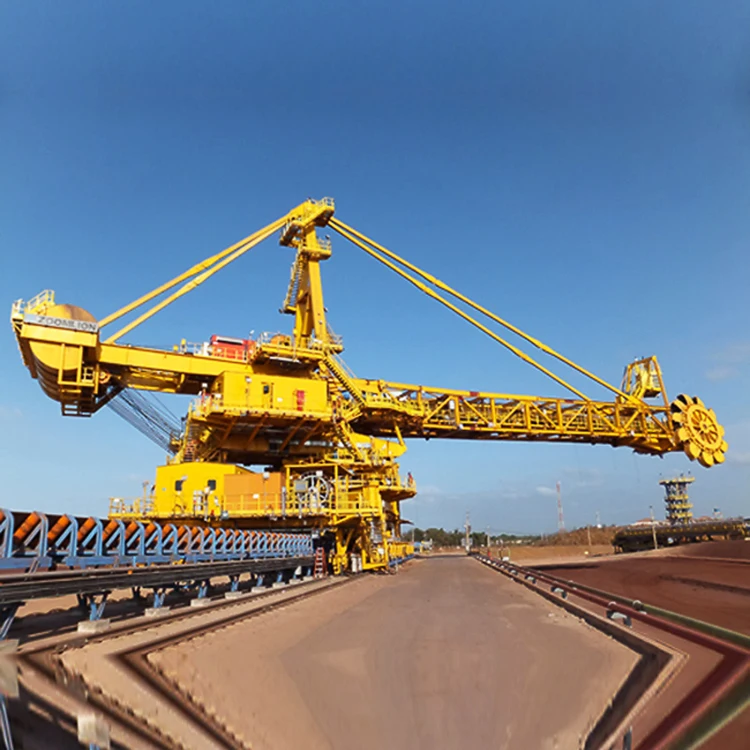

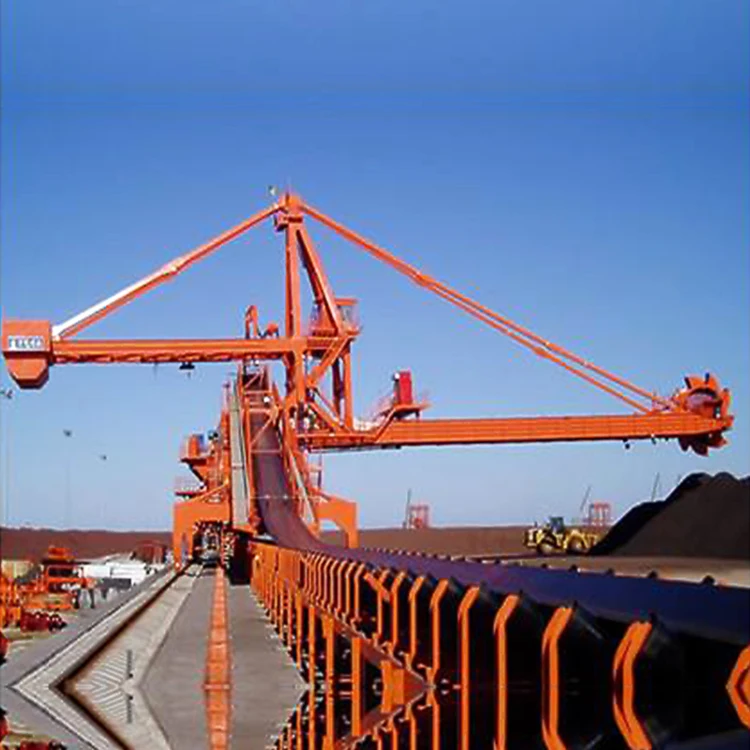

Low Price And High Quality Stacker Reclaimer for Coal Mining
Stacker and reclaimer is widely used to stack and reclaim bulk cargoes, coal, ore etc.Stacker and reclaimer jib could slew,luffing,prolong or shorten itself.and end turning bucket is material grab device.
Advantages of stacker reclaimer:
1. Advanced design methods:such as computer aided design, three-dimensional design and optimization design of steel structure.
2.Advanced technology:combined with material piling and taking machine design and manufacture of the summary of experience and constantly improve, do advanced technology in the design is reasonable, reliable equipment use.
3.Advanced production equipment and technology : such as steel pretreatment line can guarantee the quality of the products and corrosion resistant ability, the use of large milling and boring machine to improve the machining quality of large parts.Big knot file within the overall play, drive part of the plant commissioning, rotating part adopts mould preparation.
4.Use new materials, such as wear-resistant materials, composite materials.
Stacker reclaimer generally includes the following units:
1.Steel structure
2.Jib belt conveyor
3.Feeder tripper
4.Luffing mechanism
5.Slew mechanism
6.Travel mechanism
7.Spray system
8.Wheel bucket device
9.Electrical system
10.Other accessory safety related components and accessory devices.
Use of stacker reclaimer:
Widely used in power plant, ports, steel, chemical plants, cement and other basic industry raw material field, apply and bar or circular storage yard, which can realize the coal, iron ore, such as lime disperses the shape of raw materials, taking the continuous operation.
Want to know more details to contact me!
Technical data of stacker reclaimer:
| Type | DQL450/ 600.25 | DQL1000/ 1250.30 | DQL1800/ 2000.35 | ||
| Capacity | Rated capacity | Stacker | 600t/h | 1250t/h | 2000t/h |
Reclaimer | 450t/h | 1000t/h | 1800t/h | ||
| Capacity | Height | Above rail | 10m | 11m | 12m |
Below rail | 2m | 2m | 2m | ||
| Material | Type&density | Coal 0.85~1t/m3 | Coal 0.85~1t/m3 | Coal 0.85~1t/m3 | |
| Granularity | 0~300mm | 0~300mm | 0~300mm | ||
| Reclaimer | Wheel bucket type | No lattice | No lattice | No lattice | |
Wheel bucket dia | 4.21m | 6m | 7m | ||
Rotating speed | 6~10r/min | 7.817r/min | 7.5r/min | ||
Bucket no.&capacity | 7×0.22m3 | 8×0.5m3 | 8×1m3 | ||
| Transmission | Mechanical | Mechanical | Mechanical | ||
| Transfer tape | Feedstock& discharging | Width | 1200mm | 1400mm | 1600mm |
| Speed | 2.5m/s | 3.45m/s | 3.45m/s | ||
Slewing mechanism | Slewing dia | 25m | 30m | 35m | |
| Slewing angle | ±110° | ±110° | ±110° | ||
| Slewing speed | 0.046~0.154 | 0.06~0.16 | 0.1~0.2 | ||
| Control mechod | Variable frequency | Variable frequency | Variable frequency | ||
| Support form | Cross roller bearing | Cross roller bearing | Tapered roller | ||
Traveling mechanism | Track guage | 5m | 6m | 7m | |
| Base | 6m | 7m | 7m | ||
| Speed | Slow | 7m/min | 7m/min | 7m/min | |
| Fast | 30m/min | 30m/min | 30m/min | ||
Max.wheel pressure | 200KN | 200KN | ≤250KN | ||
Recommed track | P43/P50 | P43/P50 | QU80/ QU100 | ||
Luffing mechanism | Luffing Angle | Face upward | 13° | 13° | 13° |
| bow | 8° | 8° | 8° | ||
Luffing speed | 3~6 m/min | 4.3~6 m/min | 4~5.5 m/min | ||
Installed capacity | 180 | 280 | 360 | ||
Total power | 380/Coiling block V | 6000/Coiling block V | 6000/Coiling block V | ||
| Size | Length | 52.6m | 51.19m | 61.4m | |
| Width | 7m | 8.58m | 9m | ||
| Height | 17m | 21m | 23.5m | ||
Referenced standards:
1.GB/T14695-93 jib-form wheel bucket stacker and reclaimer type parmeters.
2.JB/T7326-94 wheel bucket stacker and reclaimer safety regulation.
3.JB/T7328-94 wheel bucket stacker and reclaimer receipt &inspection specification.
4.GB3811-2008 crane design criterion.
5.GB6067-85 lifting equipments safety regulation.
