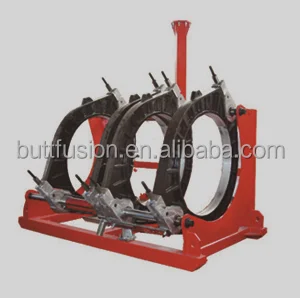

Rothenberger SHD1200 HDPE pipe hydraulic butt fusion welding machine

Product Overview

Description

SHD1200 HDPE pipe  hydraulic butt fusion welding machine



Application and Features:

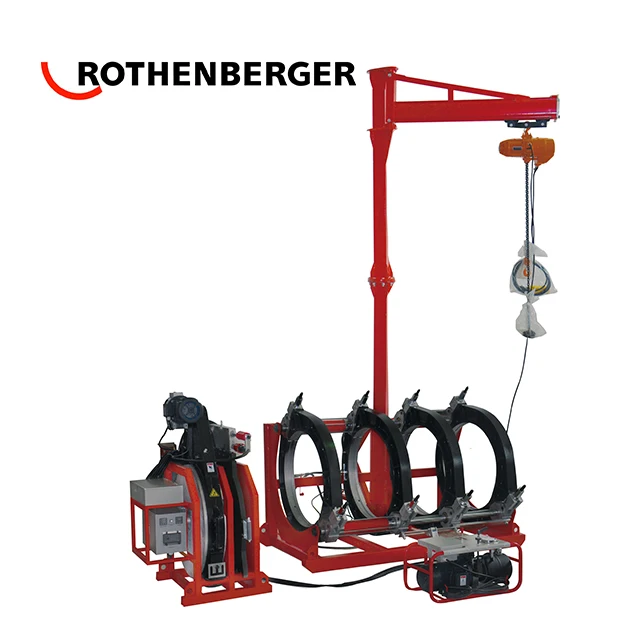

1. Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate and optional parts

2. Removable PTFE coated heating plate with high accurate temperature control system

3. Electric planing tool with safety limit switch enables to start it only when it is locked in operation position

4. Made of lightweight and high strength material

5. Low starting pressure and high reliable seal structure

6. Changeable welding position brings more convenience while welding various fittings

7. Separate two-channel timer records times in soaking and cooling phases

8. High-accurate and shockproof pressure meter indicates clearer readings

9. Labor saving and high efficient crane is available to lift planing tool and heating plate.



Technical parameters:

Model	SHD1200/630
Pipe size (mm)	630,710,800,900,1000,1100,1200
Heating plate max. temp.	270 centigrade degrees
Temp. deviation in surface	less than ±7 centigrade degrees
Pressure adjustable ranges	0~12MPa
Working voltage	380V 50Hz
Heating plate power	21.5KW
Planing tool power	4KW
Hydraulic unit power	3KW
Crane power	1KW
Total power	29.5KW
Weight	3940KGS
Packing	5 Plywood cases



Optional parts:

1. Stub end device for short flange

2. Data logger

3. Trolley







We are the earliest and biggest butt fusion welding equipment manufacturer in China,we specialized in all range of butt fusion welding machine,workshop fitting welding machine,cutting machine,electrofusion machine and related tools.Welcome to visit our factory at any time.

Our business scope includes as below,
1. HDPE pipe butt fusion machine(welding range:20mm-2000mm)
2. Fitting making machine to fabricate elbow,tee,cross and wyes fittings(welding range:63mm-2000mm)
3. Pipe saw to cut the pipe with different angle(cutting range: max:3000mm)
4. Saddle fusion machine to make reducing tee fitting
5. Electrofusion machine

If you have any new inquiry about butt fusion welding machine,please feel free to contact me.I’ll be glad to quote for you.
