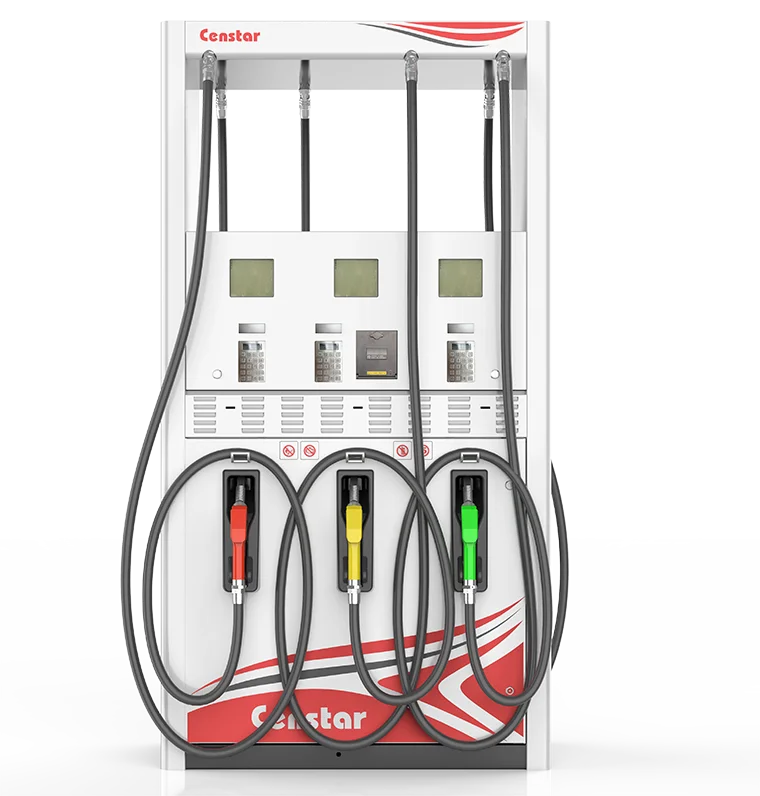

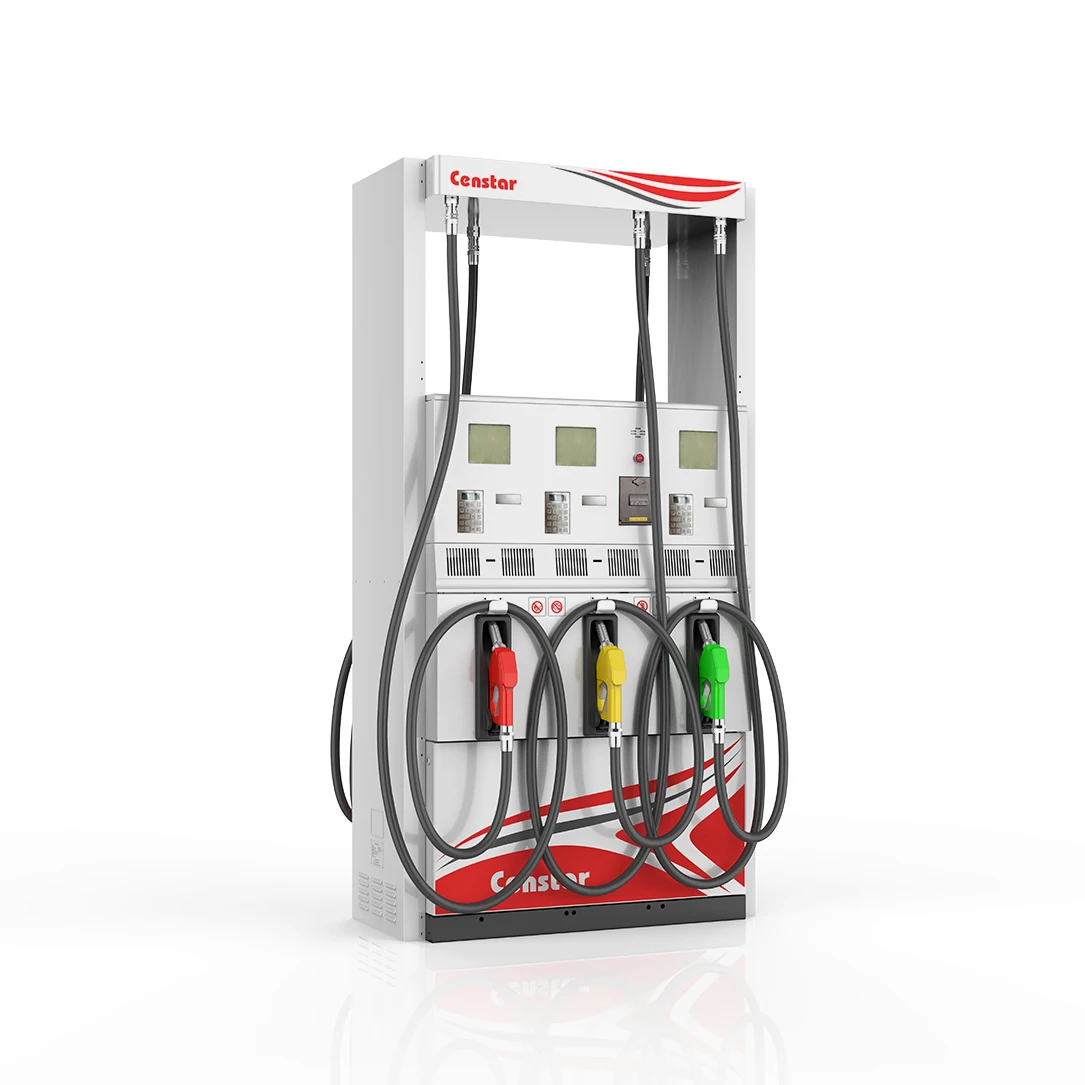

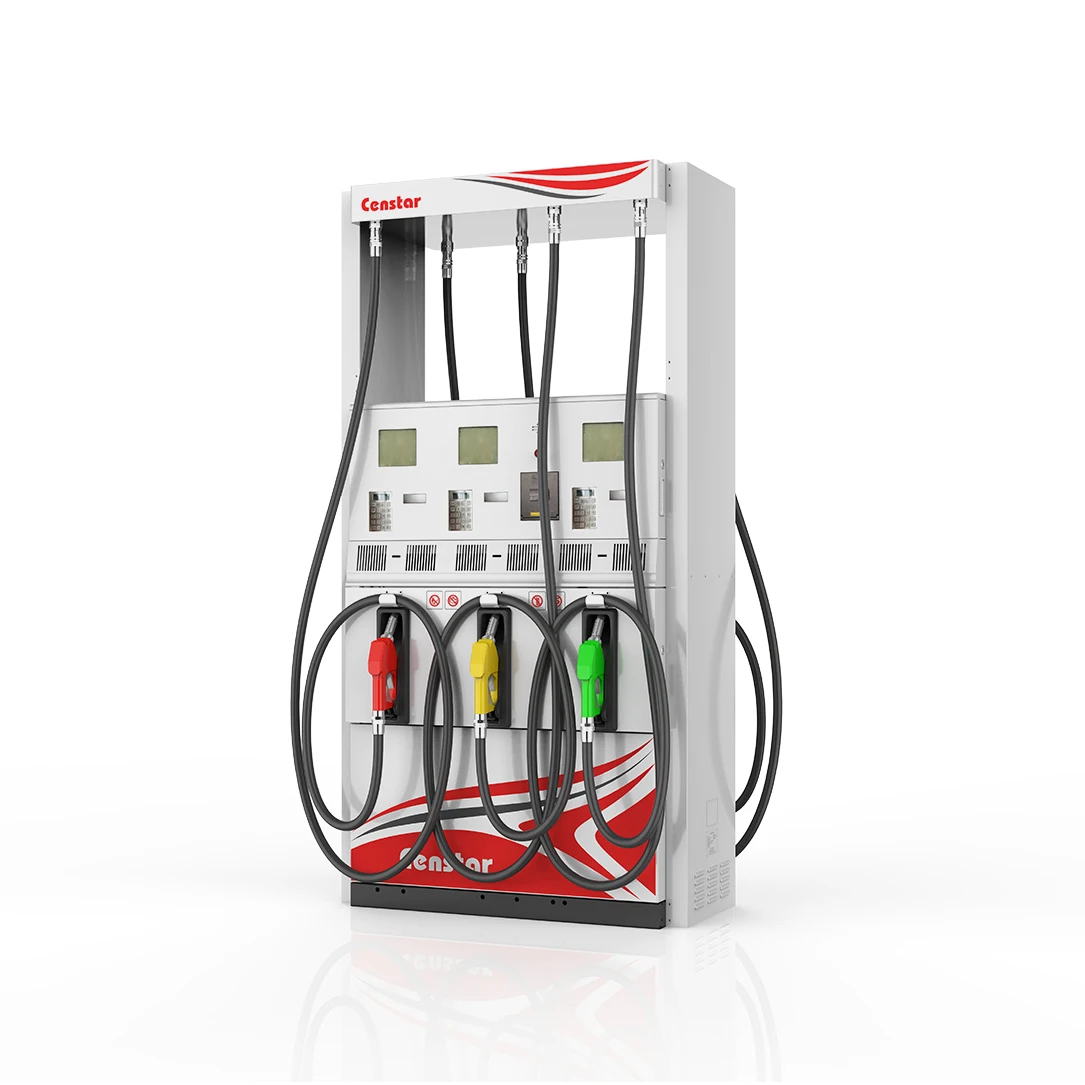

best quality 6 Nozzle more view screen CS42 serise fuel dispenser machine for petrol station

Product Overview

Description

PackageSize:

1280*740*2480mm(L*W*H)

CS42 multi petrol products total multi station equipment

Censtar fuel dispensers, stand from the coldest Siberia to the hottest and wettest Sri Lanka.





Censtar, top brand in Chinese greaser industry, pioneered a number of "FIRSTS" in Chinese fuel-servicing equipment industry, won 14 national patents in the R&D of fuel-servicing equipments.

Detailed Product Description

1)more matured than traditional design 2)compact structure 3)convenient maintenance 4)stable operation

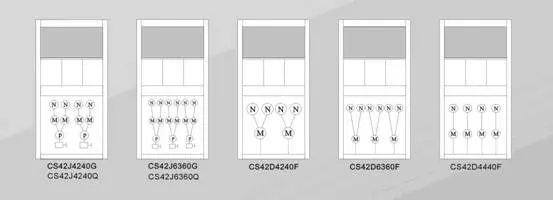

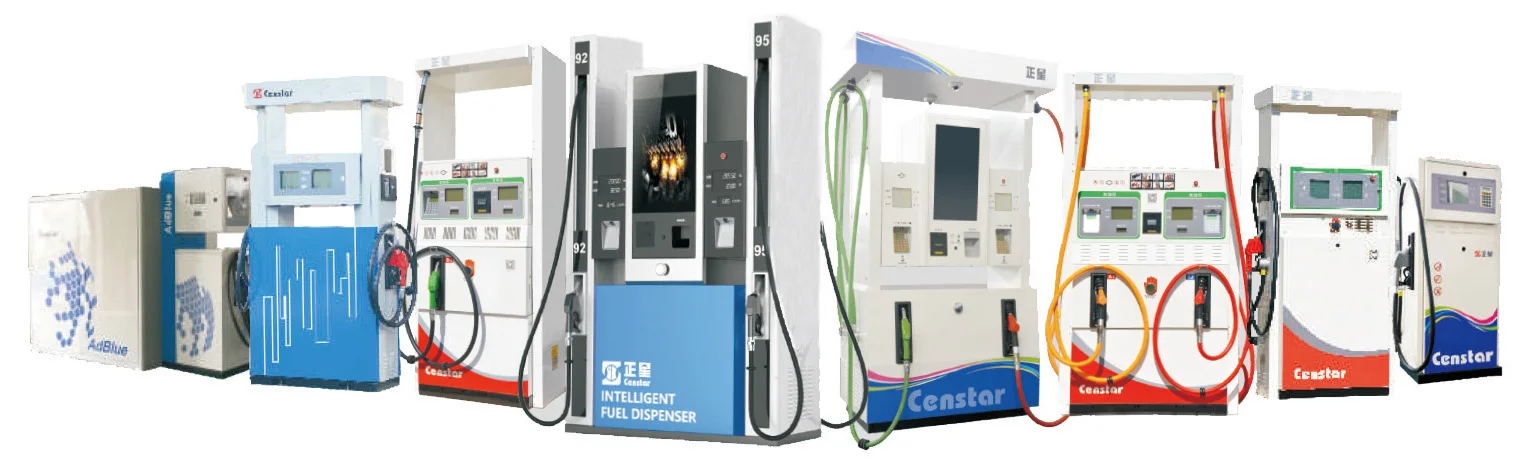

Censtar Filling Station Fuel Dispenser

a) CS42J4240G: 4 hoses, 2 products, 2 displays for each side

b) CS42J6360G: 6 hoses, 3 products, 3 displays for each side



Remote fuel dispenser:

a) CS42D4240F: 4 hoses, 2 products, 2 displays for each side

b) CS42D6360F: 6 hoses, 3 products, 3 displays for each side



Congfiguration Table:

	pump type	Nozzel	Oil Product	Display	Flow Rate(L/Min)
6H 3P	Gear Pump	6	3	6	5-50
6H 3P	Gear Pump	6	3	2	5-50
6H 3P	Submersible Pump	6	3	6	5-50         8-80
6H 3P		6	3	2	5-50         8-80
NetSize: 1220X680X2370(L*W*H	NetSize: 1220X680X2370(L*W*H)	NetSize: 1220X680X2370(L*W*H)	PackageSize: 1280*740*2480mm(L*W*H)	PackageSize: 1280*740*2480mm(L*W*H)	PackageSize: 1280*740*2480mm(L*W*H)



Specifications:

1) GP03 gear pump and LLG05 4-piston flow meter used

2) Wide range for power supply

3) Last sales recall

4) Hose retraction

5) International solenoid valve

6) Big LCD display with high light back ground source

7) Space for local card payment system

8) Interface for local management system

9) Automatic shutoff nozzle

10) Multi filtration system 1

11) The internal filters can be cleaned

12) Keypad or without keypad

13) Vapor recovery system

14) Low or high temperature

15) Emergency shutoff valve for remote dispenser

16) Net size: 1,220 x 820 x 2,370mm
