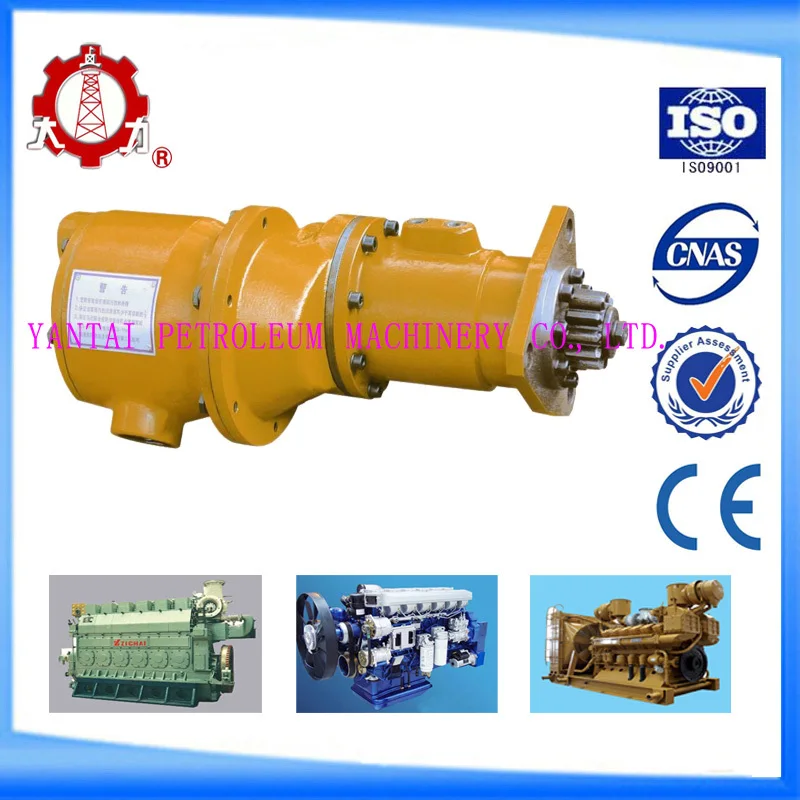

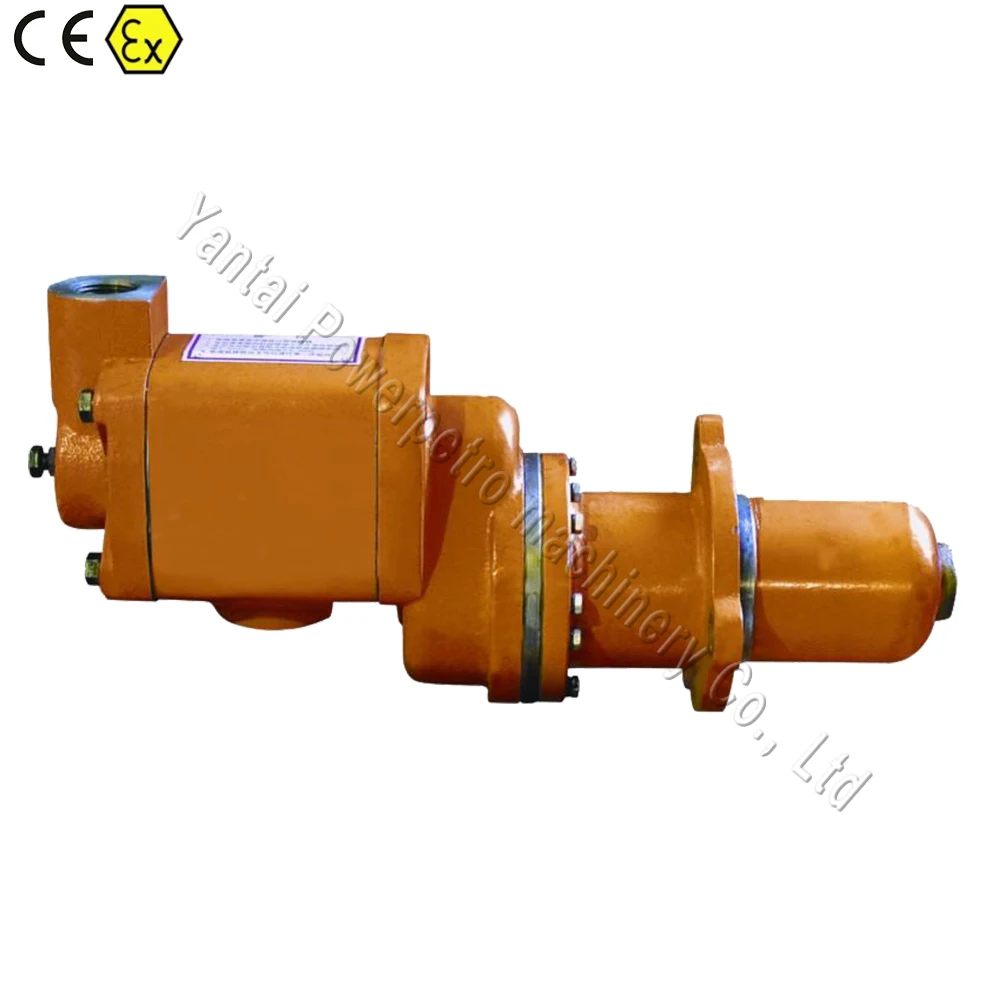

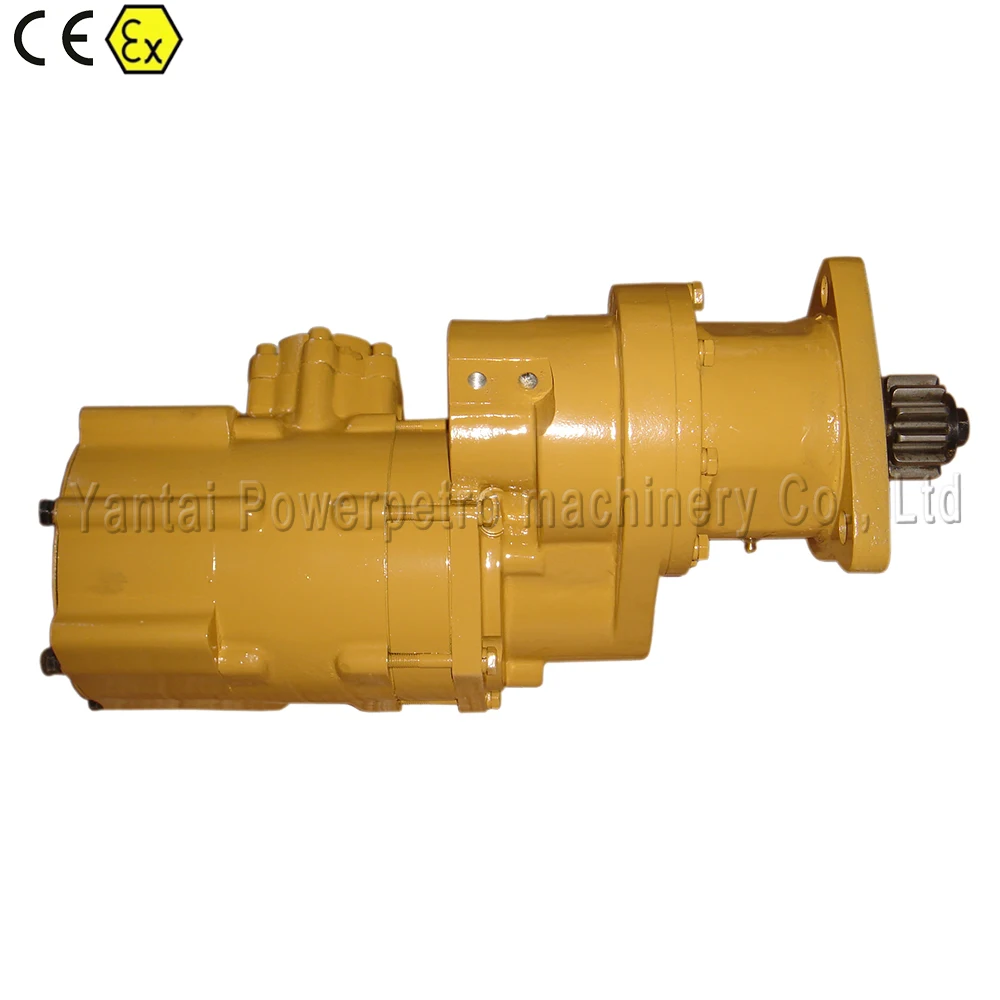

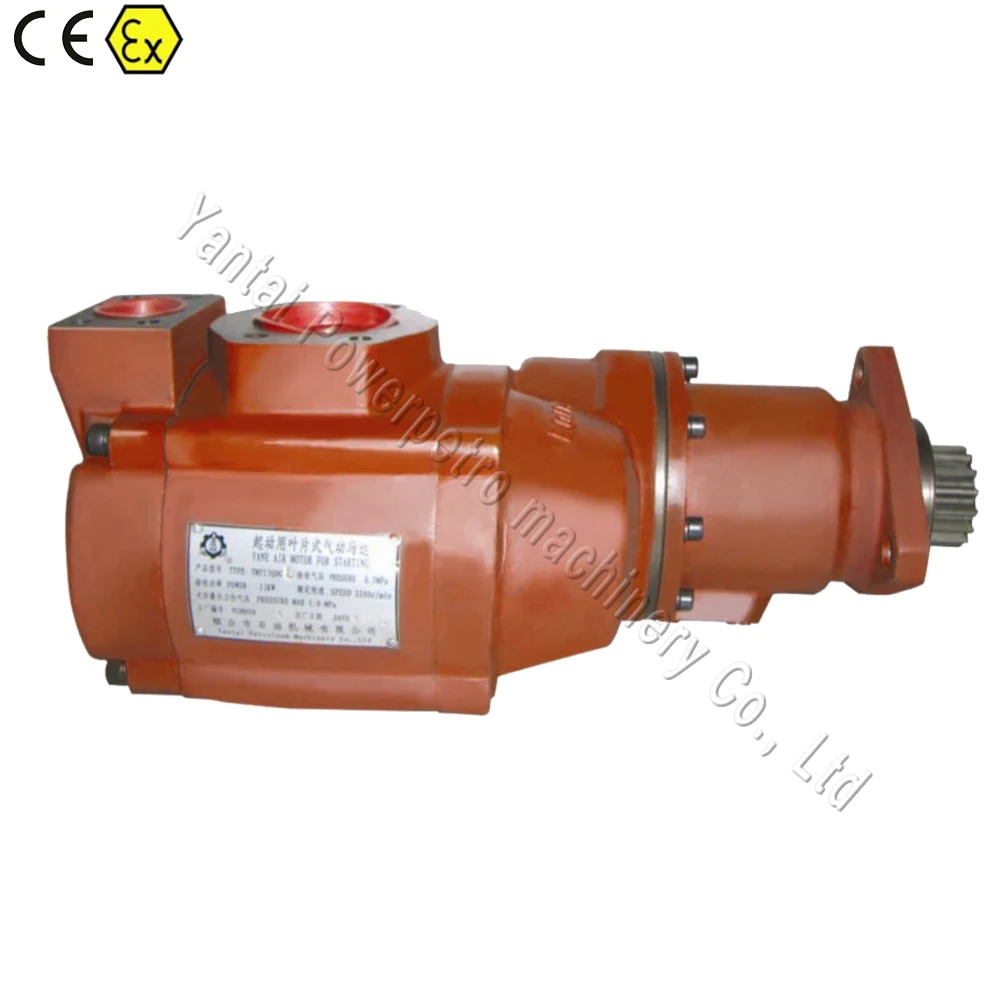

TMY9QD Pneumatic Air Motor

Product Overview

Description

TMY9QD Starting Vane air motor Original spare parts

Introduction..............................................................................

TMY9QD Starting Vane air motor is a starting device,adopting compressed air as its power to start diesel engines.TMY9QDB,TMY9QDBa,TMY9QDBb,TMY9QDBc staring vane air motors all belong to this series.



Features

1. High starting torque enables starting with load, fast and reliable to start and stall.



2. Concise structure, compact in size and light in weight, easy to operate and convenient to maintain.



3. Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.



4. The pre-engaged starting style (output gears of motor and gears of diesel engines pre-engaged) makes the starting more reliable and stable.



5. Widely used in small-scale and medium diesel engines for ships or power unit.



Specification



Working Pressure	Max Power	Parameter at Max Power
		Output Gear Speed	Output Gear Torque	Air Consumption
MPa	KW	r/min	N.m	L/s
0.4	7	1600	42	120
0.5	9	1730	50	150
0.63	12	1870	64	190
0.8	17	2030	80	240









We here by to confirm that the TMY9QD Starting Vane air motor Original spare parts can be customized as per your requested.
