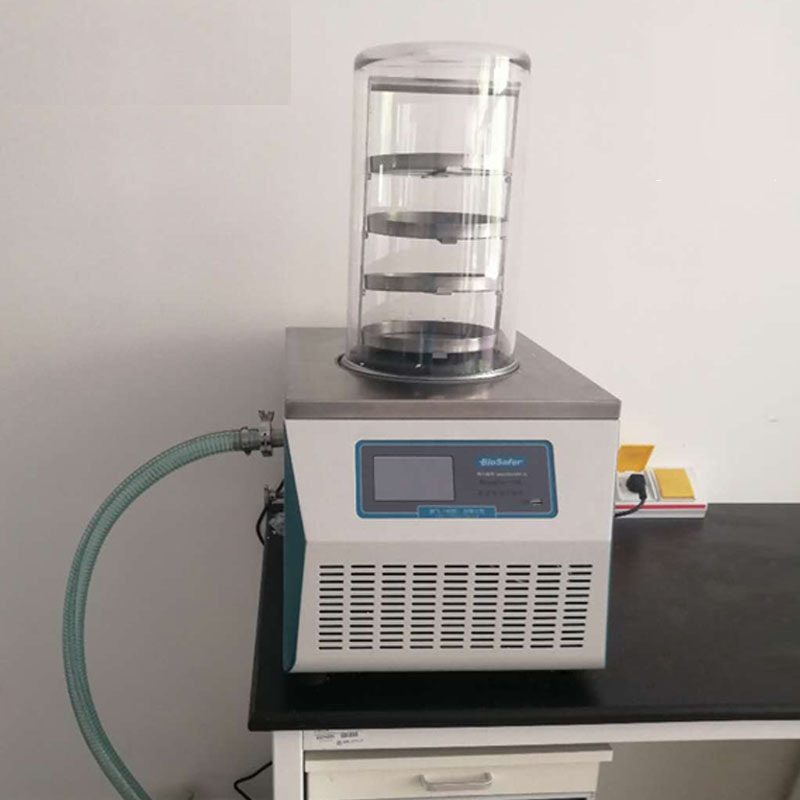

BIOBASE China Lab Bench Vacuum lyophilizer Vacuum Food Freeze Dryer for Laboratory or food

Model

BK-FD10S

BK-FD10T

BK-FD10P

BK-FD10PT

Type

Standard

chamber

Stoppering

 chamber

Standard

chamber

with 8 port

manifold

Standard

stoppering
chamber

with 8 port manifold

Final Condenser Temp (℃)

≤-56

≤-56

≤-56

≤-56

Vacuum Degree (Pa)

<10

<10

<10

<10

Freeze Drying Area (m2)

0.12

0.09

0.12

0.09

Ice Condenser Capacity (Kg/24h)

3

3

3

3

Shelves

4

3

4

3

Material Loading Capacity/Shelf (ml)

300

300

300

300

Material Loading Capacity (ml)

1200

900

1200

900

Freeze Drying Time (H)

24

24

24

24

Manifold

/

/

8 pieces

8 pieces

USB Interface

Yes

Yes

Yes

Yes

Drying Chamber (Standard)

Transparent acrylic

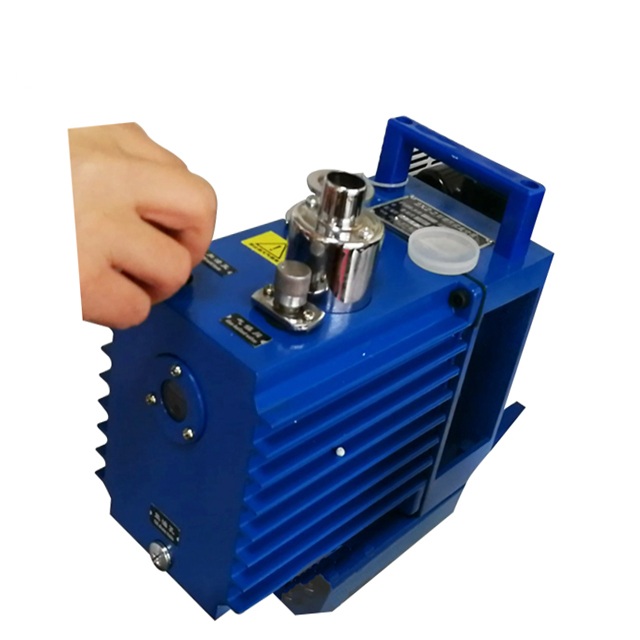

Vacuum Pump (Standard)

Model: 2XZ-2, Speed: 2L/s (China-Made)

Control System

Microprocessor, touch screen

Power Supply

AC220V±10%,50/60Hz

External Size (W*D*H)

580*625*530/960mm

Package Size

Main Body

670*660*610mm

Drying Chamber

350*350*570mm

Vacuum Pump

570*370*190mm

Gross Weight

105kg

110kg

110kg

110kg

Note

Shelf(plate) heating and cold trap(ice condenser) defrosting function

are optional; The vacuum pump, standard drying chamber

and all other accessories,like valve, flask etc. are standard accessories;

The vacuum pump is independently packed in a separate package.
