HS TM 40 по самой низкой цене Классическая стальная зауженные к низу для формовки концов труб
- Category: Tube End Forming Machines >>>
- Supplier: Zhangjiagang,Huashun,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Science & Technology & Service -- Achieve Huashun
Huashun keeps on improving products and successfully develops complete series of pipe processing machines, ranging from micro-computer controlled SB & DB pipe bending machine, GY rolling machine, MC cutting machine, TM pipe-end forming machine, MC metal circular saw machine, EF chamfering machine, CH ARC strike machine, SX riveting machine and some other automatic machines.
Final Products

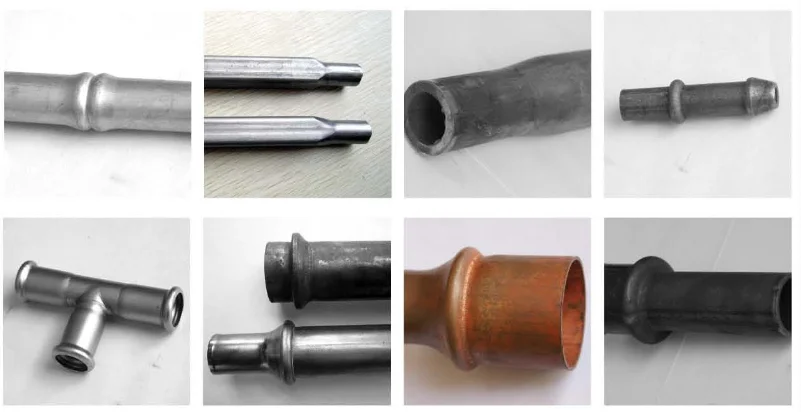

Pipe End Forming Machine Sample
Main Products

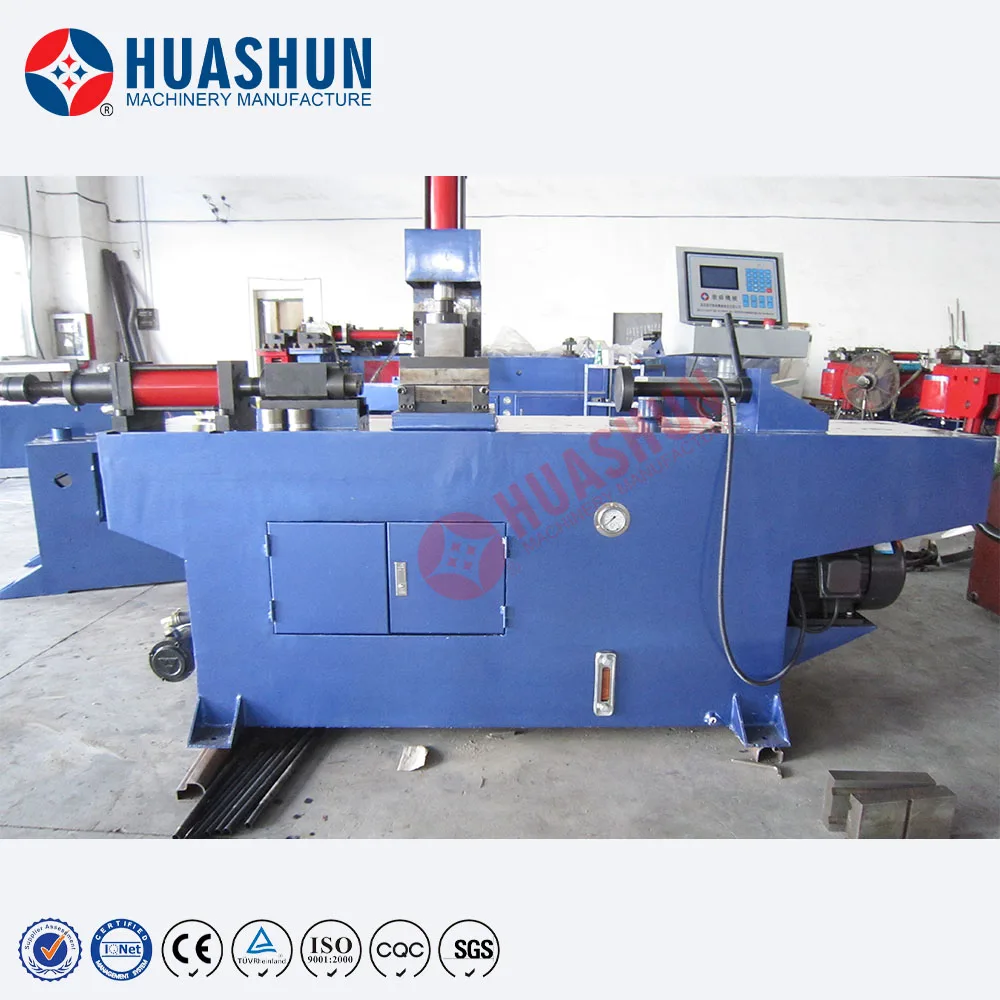

HS-TM-40 Automatic Pipe-end Forming Machine.
* A kind of high efficiency, full-auto end forming machine.
* Tube clamping and end forming driven by hydraulic.
* Human Interface offers easy access to auto and manual operating modes.
* Available end forming: oncave-convex section, long, flat, square, enlargement, slanting, V-shaped, open slot and others.
* Good mechanical parts ensure machine runs in high stability.
* Simple die change process.
* CE, ISO9001 Certification
* Tube clamping and end forming driven by hydraulic.
* Human Interface offers easy access to auto and manual operating modes.
* Available end forming: oncave-convex section, long, flat, square, enlargement, slanting, V-shaped, open slot and others.
* Good mechanical parts ensure machine runs in high stability.
* Simple die change process.
* CE, ISO9001 Certification

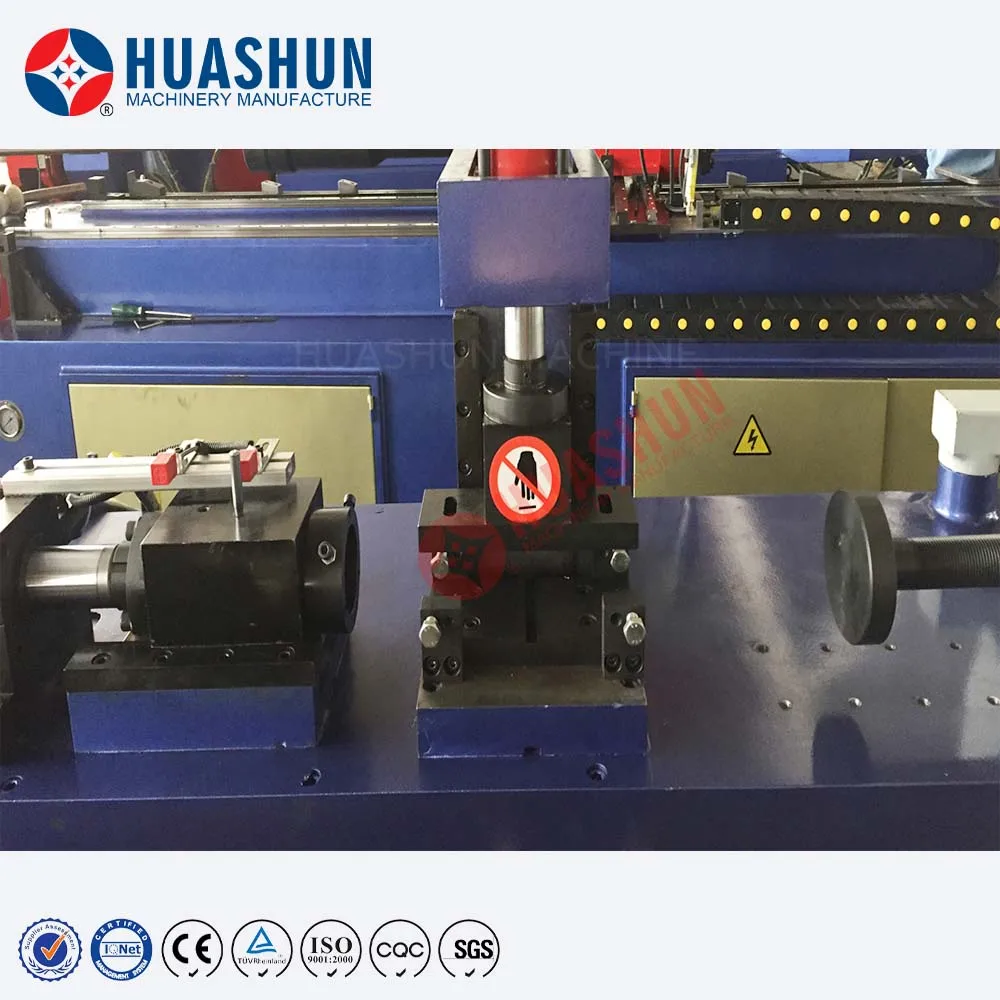

Machine Details
Machine details.
The tube end forming machine is suitable for the processing of complex shapes of tube ends. With three stations, it can automatically change molds to ensure processing accuracy. Manual and automatic arbitrary selection, NC control, Chinese display,man-machine dialogue operation, and automatic counting function. Changing molds, shrinking tubes, and flaring can all be processed. At the same time, it is equipped with a chamfering mold, so that the chamfering can be completed at one time.
Want to know more details about our machine, inquiry us now!
Product Paramenters
Name | Unit | TM-40 |
Max. End Forming Capacity | Mm | ￠40*2 |
Max. End Forming Length | mm | 100 |
Reduction time | mm/s | 100/3-4 |
Max. Hydraulic Pressure | Mpa | 14 |
Motor Power | Kw | 4 |
Dimension of machine | mm | 2400×650×1350 |
Weight of the machine | kg | 1100 |
Recommend Products
Pipe End Forming Machine.
Pipe End Forming Machine DTM-40
Pipe End Forming Machine TM-2-60
Pipe End Forming Machine TM-3-40
Pipe End Forming Machine TM-4-100
Pipe End Forming Machine TM-40
Pipe End Forming Machine TM-60
Pipe End Forming Machine TM-3-40
Pipe End Forming Machine TM-4-100
Pipe End Forming Machine TM-40
Pipe End Forming Machine TM-60
If you want to know more model types machine, inquiry us now!
Why Choose Us
Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
Huashun Machinery started factory in 2000 from producing pipe bending machine, and then expands the whole line of pipe equipments.Lead the manufacturing of pipe equipments after 19 years' of development.
The predecessor of Huashun Machinery was established in 2000. Since 2005, it has cooperated with Taiwan's famous pipe bending machine manufacturers to introduce Taiwan's advanced engineering technology. In 2007, it officially upgraded to Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
The predecessor of Huashun Machinery was established in 2000. Since 2005, it has cooperated with Taiwan's famous pipe bending machine manufacturers to introduce Taiwan's advanced engineering technology. In 2007, it officially upgraded to Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
Factory.
It is located in Zhangjiagang City, along the Economic circle of Yangtse River Delta, Located on the National Road,enjoying the highly developed economic expansion and convenient transportation access.
Our team.
Our factory is combined with manufacture, sales, service, and supply of Pipe equipments, We are devoted to providing a one-stop sales model to customer; We give more important care on our customer's satisfaction. So far, over 108 countries and regions have enjoyed our products and service. Our success has been mainly achieved by following the corporate philosophy of being firmly committed to "Integrity is the base, Customer is the first".
Certificates.
Certificates.
FAQ
Q:Are you manufacturer or trading company?
A:Yes,we are a manufacture since 2000.We are focusing on metal pipe/tube processing machinery.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
Q: What is the certificates available?
A: CE & ISO9001
Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our
professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals and etc.
