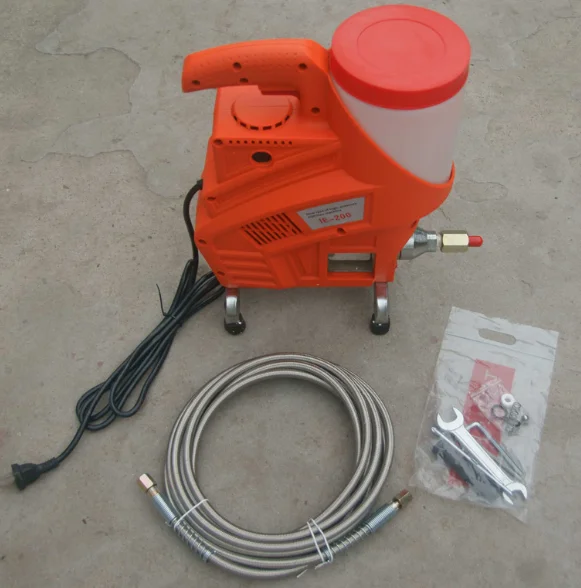

Remote Control High Pressure Single Component Crack Injection Pump

Product Overview

Description



1. Item:  Remote Control polyurethane grout injection pum


2. Brand Name: OEM


3. MOQ: 1 set


4. Sample Time: 5 to 7 days days-polyurethane Grouting Machine


5. Package details:


   1set/Carton, Carton Size:39*42*20cm, Net Weight: 7kgs







6. Easy to carry & maintain, maximum output pressure up to 80MPa.


7. Injection pressure:0-80Mpa


8. one ways of material feed-in: pour


9. The Drill is assembled already. The power consumption:900W/220V or 900W/110V





 Material of application



WPU and OPU foam stop leakage agent, Concrete crack waterproofing, Epoxy resin.

Applications

Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.



Weight(Include Package)	around 8Kg
Maximum output pressure	80MPa
Pressure of restarting	less than 20 MPa
Safe range of high-pressure hose	less than 70 MPa
Safe range of switch valve	less than 50 MPa



 Materials of Application



       Hydrophilic Polyurethane (WPU) and Hydrophobic Polyurethane (OPU) foam stop leakage agent, Epoxy Resin.



Application Field



 Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement Hairline Crack, etc., water stop projects.



Notes during Applying

1. Stop injecting if injected materials does not emit from the cracks after 5 minutes of application. Check for cross-drilled buried pipeline or other unnoticed holes.


2.  All application process should be closely watched. If the injection machine’s pressure remained high after releasing the valve on the connector, cracks and injection packers should be checked.





Transportation by Ship: Delivery within 3-7 days upon receipt of payment, excluding weekends and holidays.
