Product Description


General Description

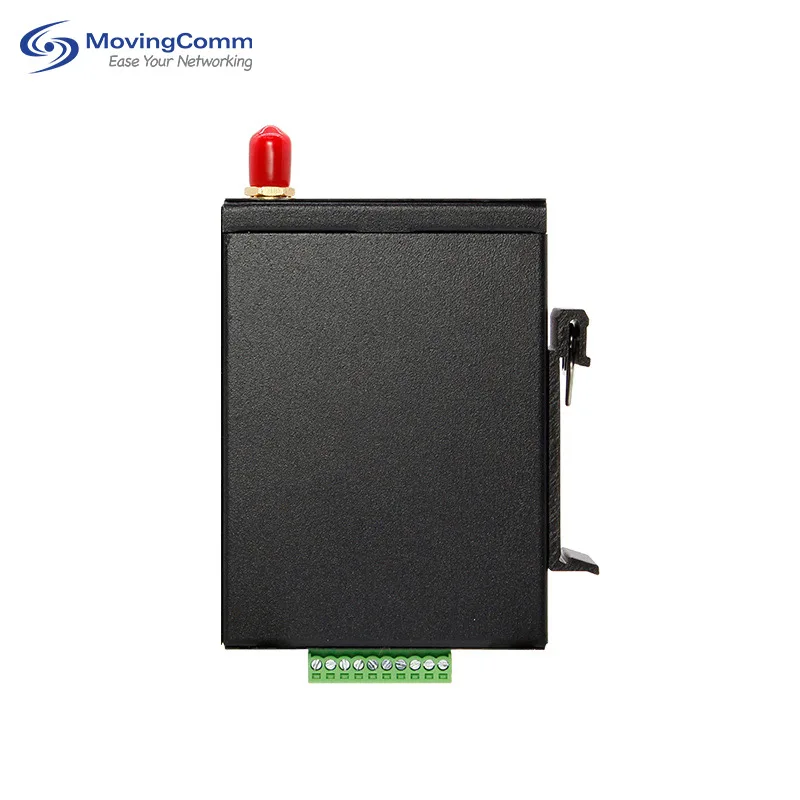

ComIn D220 product adopts dual serial channel mode and supports both RS232 and RS485 standard interfaces. It supports TCP/IP protocol, and transmission protocols, and utilizes a cellular network to realize transparent transmission of data information. It is suitable for single-chip data acquisition and transmission systems such as PLC or RTU, and industrial computers that use serial communication. It can make the customer's original wired serial device immediately transform into a wireless network communication device without modification, reducing the system upgrade costs.




Specification


Main Chipset
Model
ComIn D220
Main Chipset
CPU
ARM Cortex-A5 Processor, Core-Clock Speed 500MHz
ROM
8MB
RAM
16MB
Interface
SIM
1 x 2FF SIM Card Slot (Drawer Type)
Serial
1 x RS232 or RS485 (cannot be used at the same time)
Power
5~36V DC
Reset
Controlled by Terminal Block (Voltage Low level)

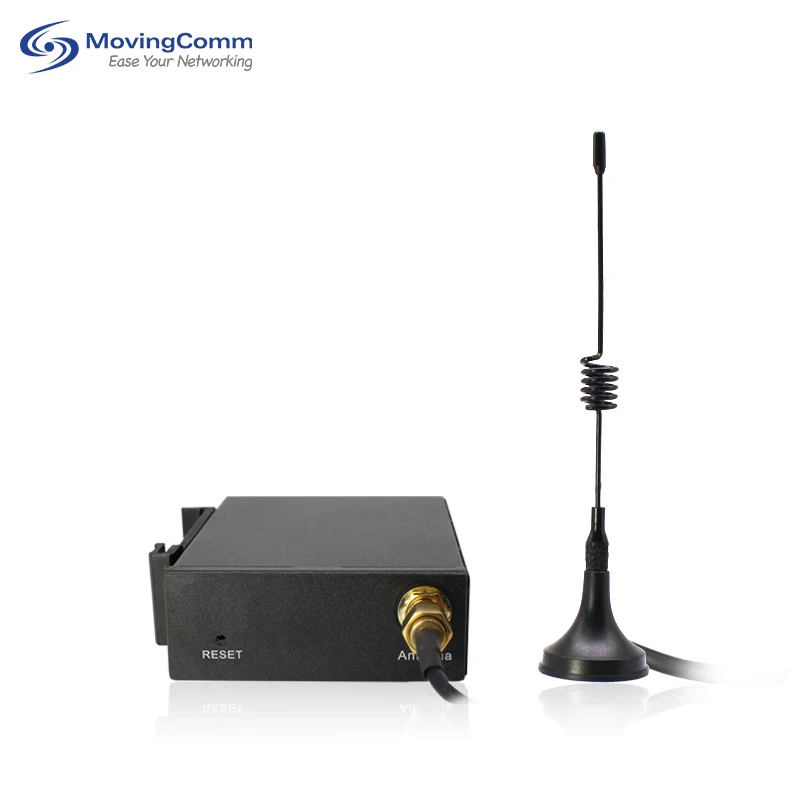

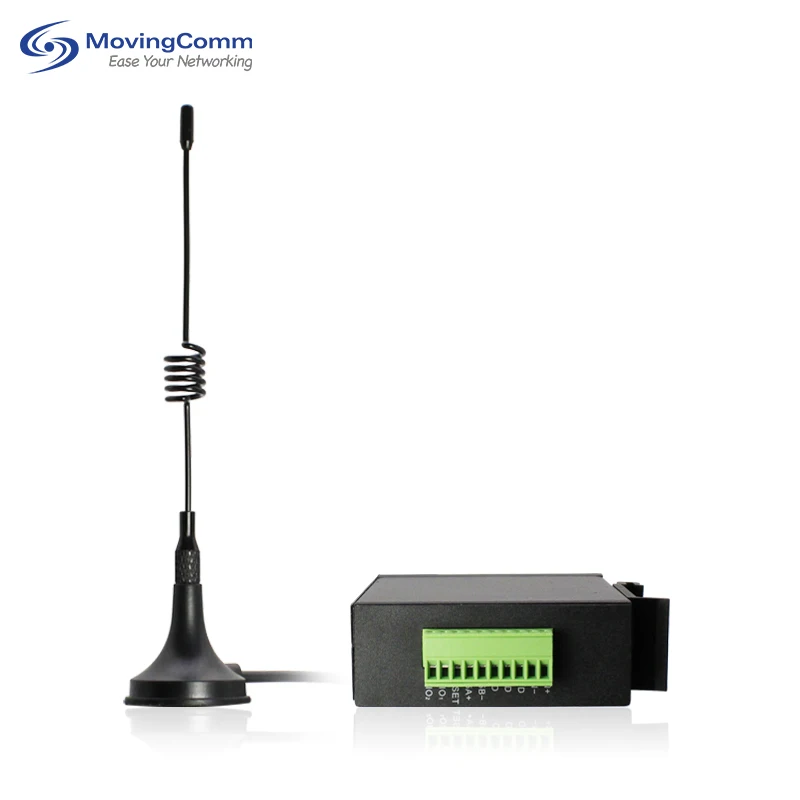

Antenna
1 x SMA Connector
Power Supply
Power Supply Voltage
5~36V DC, Support Reserve Polarity Protection, Overload Protection
Power Consumption
Typical
15mA@12V (Continuous Data Transmission)
Peak
150mA@12V (Instantaneous)
Standby
5mA@12V
Environment
Operation Temperature
-30°C to 75°C
Storage Temperature
-40°C to 85°C
Humidity
5% ~ 95% RH (Non condensing)
Transmitting Power
GSM850
+33dBm (Power Class 4)
EGSM900
+33dBm (Power Class 4)
DCS1800
+30dBm (Power Class 1)
PCS1900
+30dBm (Power Class 1)
LTE
+23dBm (Power Class 3)
Antenna
2G/4G
50 Ohms Characteristic Impedance
Mechanical

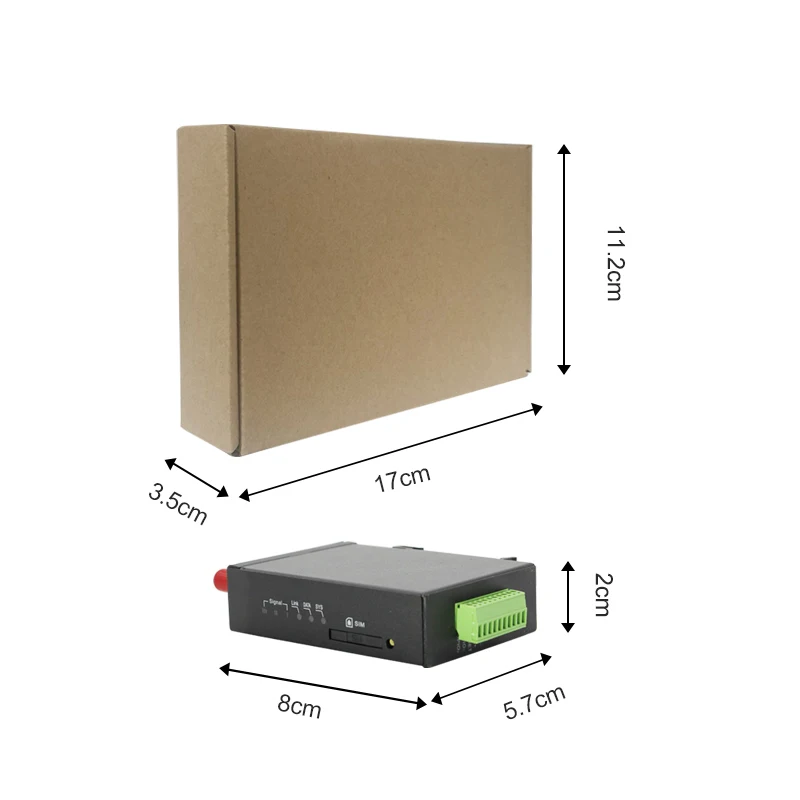

Dimension
80 x 60 x 21mm (L x W x H), (Excluding antenna and mounting sets)
Installation

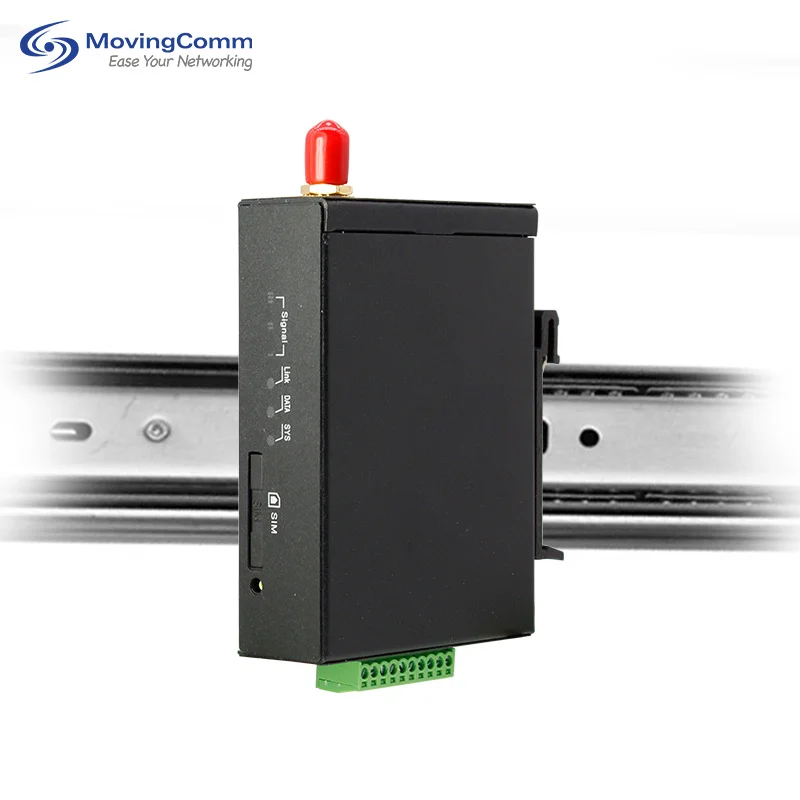

Hanging Ears or Din-Rail
IP Rating
IP41
Weight
132g

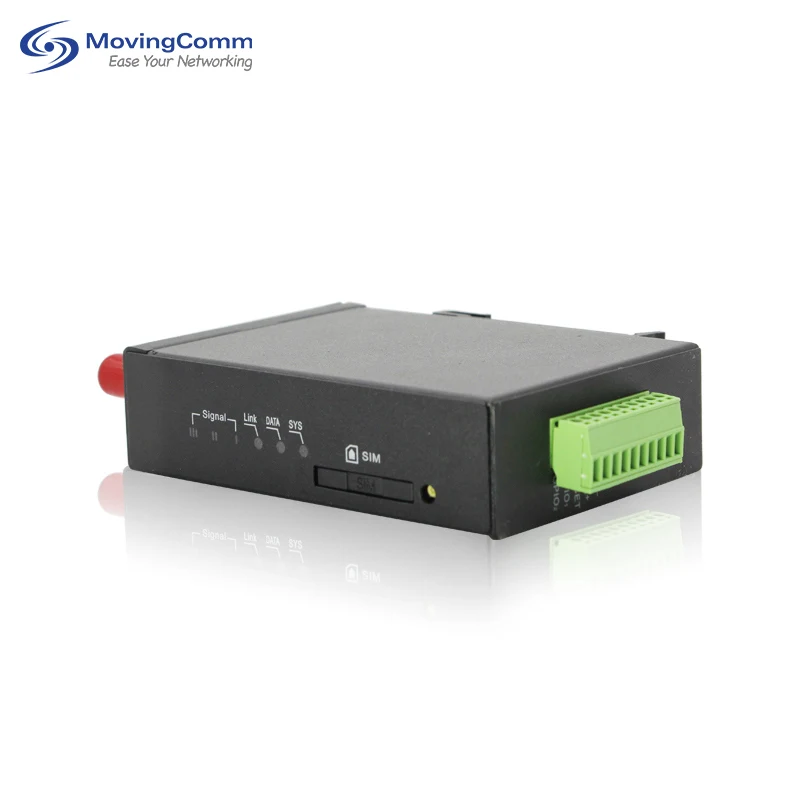

LED Indicator
SYS
System LED Indicator
LINK
Link Connection Indicator
DATA
Data Transmission Indicator
SIGNAL
3-level Signal Strength Indicator
EMC
ESD Immunity
EN61000-4-2, Level 3
Surge Immunity
EN61000-4-5, Level 3
Ring Wave Immunity
EN61000-4-12, Level 3

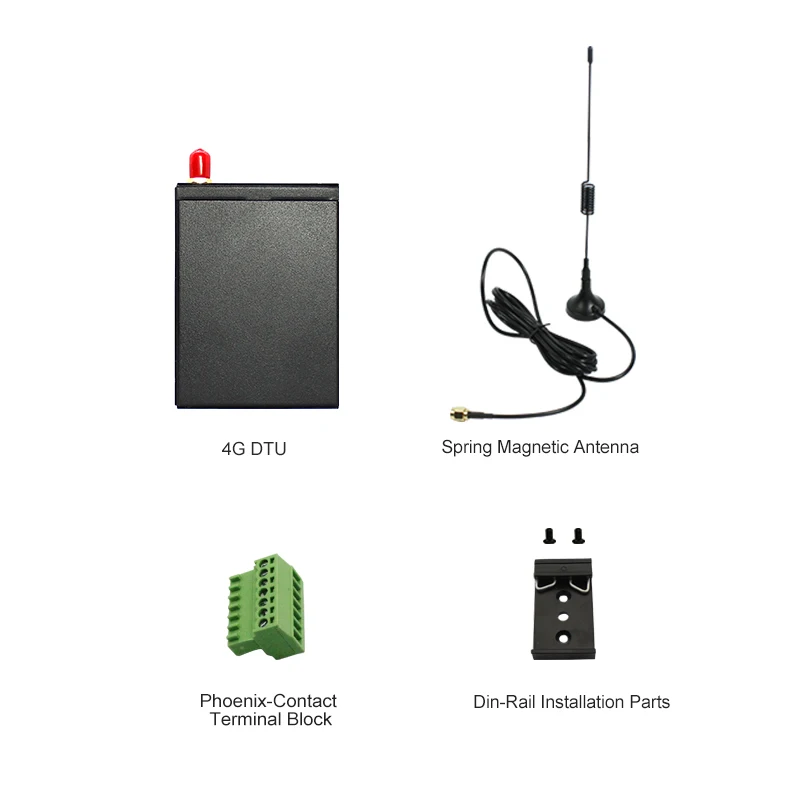

Product packaging
