YTJ 1200C Low Noise Table Jig Saw Machine for Die Making Industry

Product Overview

Description

Welcome to our website!

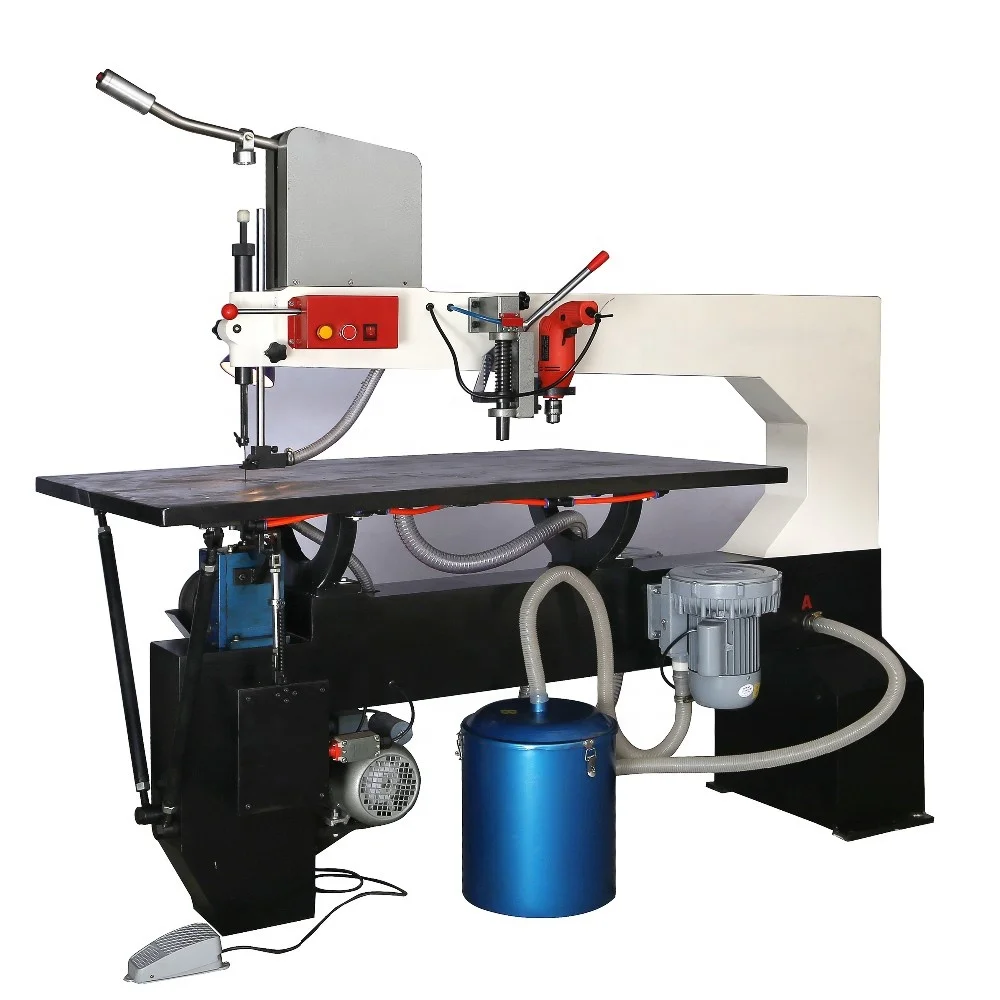

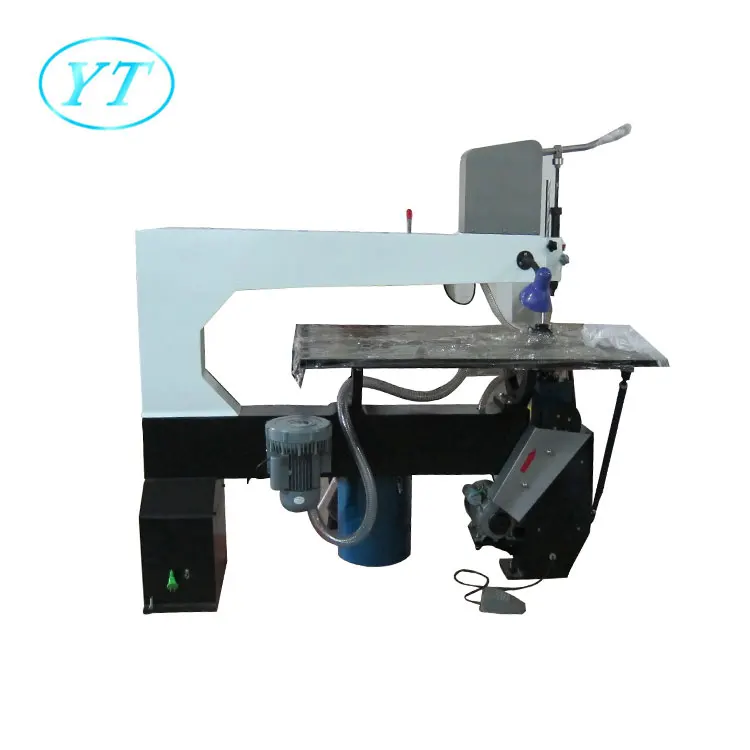

YTJ-1200C Low Noise Table Jig Saw Machine for Die Making Industry





YTJ-1200C type jig sawing machine adopts electric chucking saw blade, automatic dust absorption system, integrated sawdust collection device and air flotation die-cutting plate, etc. Thus performance indexes are improved and the machine can be used with facility.







Specification

Model	YTJ-1200C
Max. radius of gyration(mm)	1200
Max. working thickness(mm)	30
Materials of working plate	Wood, plastic and nylon
Max. turnaround speed(T/min)	1300
Voltage(V)	220/380
Power(KW)	1.1/0.9
The area of working table(mm)	1200*800
Saw blade stroke(mm)	25
Dimension(mm)	1700*1400*800

 Feature

1.Advanced electronic chucking saw blade

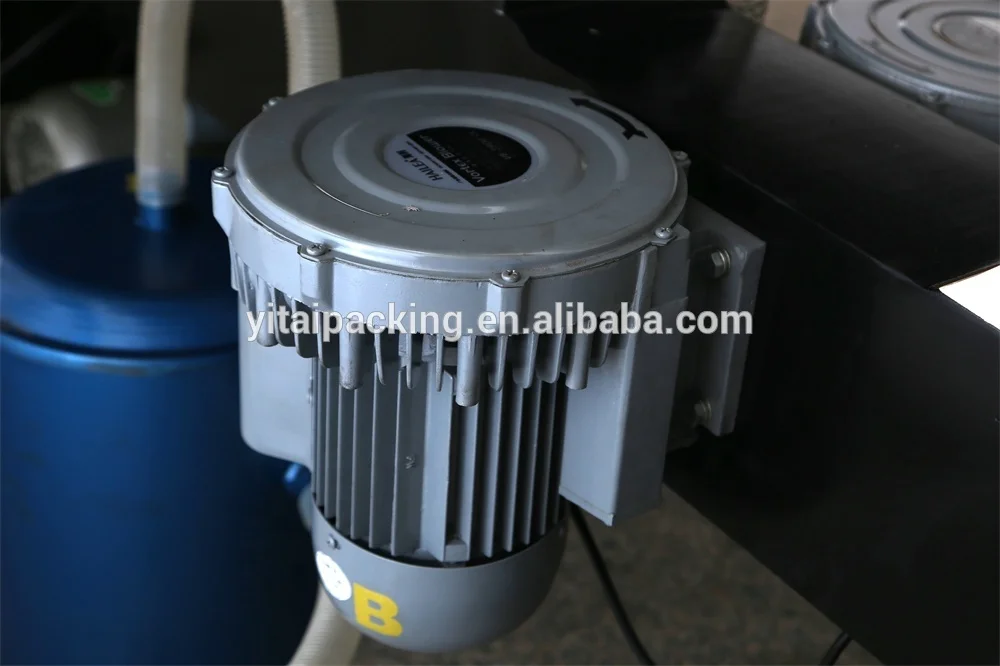

2.Two High-end air pumps for good dust absorption effect
3.Air flotation die-cutting plate, max. radius of gyration can be 1200mm
4.High precision sawing sample

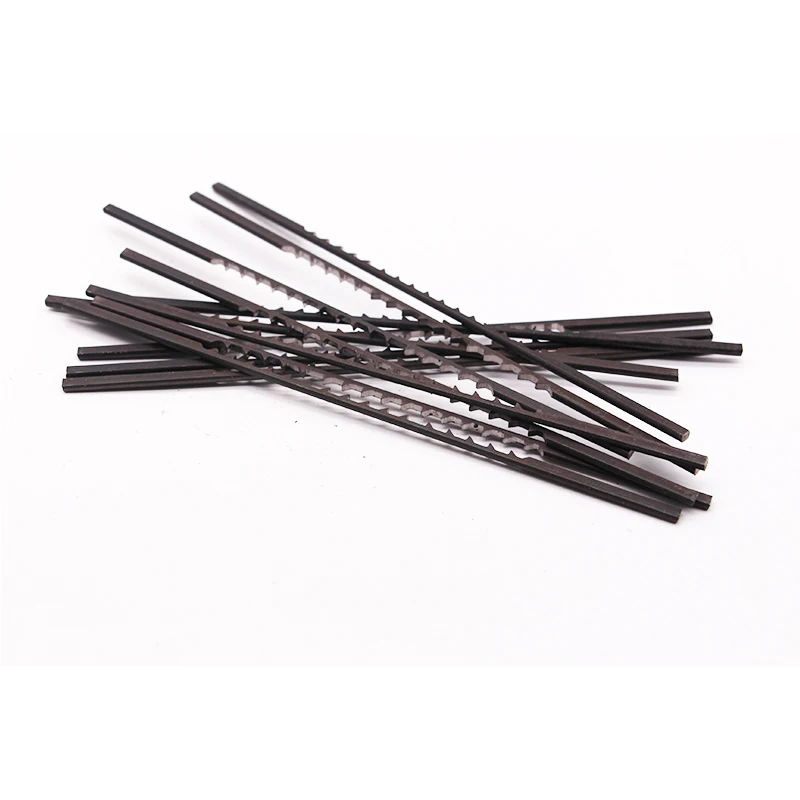

5.We also supply assorted jig saw blade,different spec for your choice



Maintenance
1. The screws of every part should be checked often. Once there are loose ones, fasten them in
     time.
2. Clear dust reservoir periodically to prevent the too much dust from having bad effect on air
    floating.
3. Add lubricant oil periodically to avoid being lack of oil to work.
3.The square guide of upper clip needs lubricating with grease once half an month .
4. Ensure that the surface level of lubrication oil in gearbox of down clip is higher than the oil
    window line.

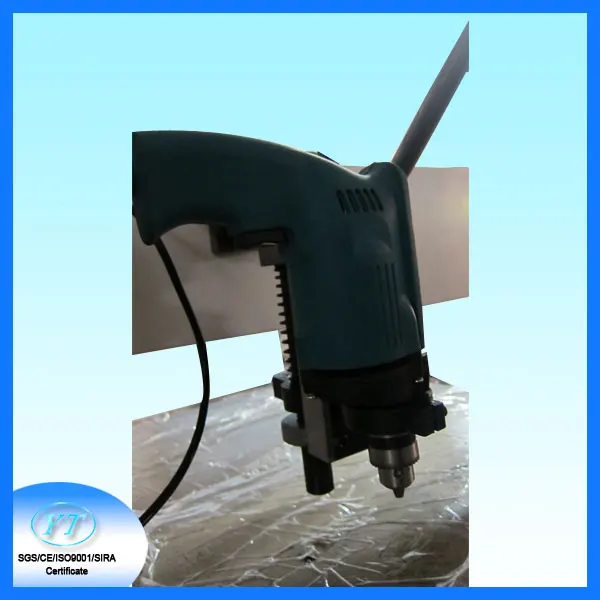

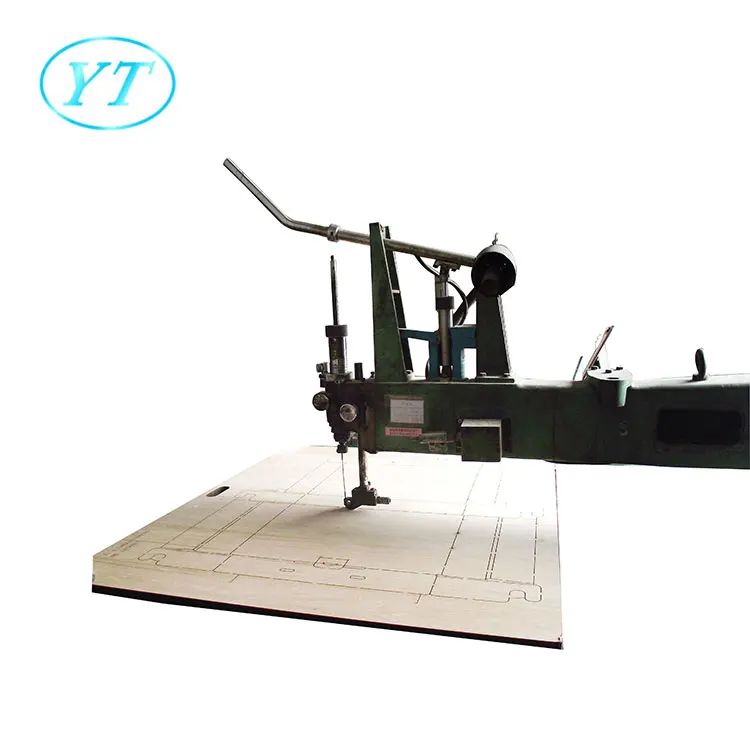

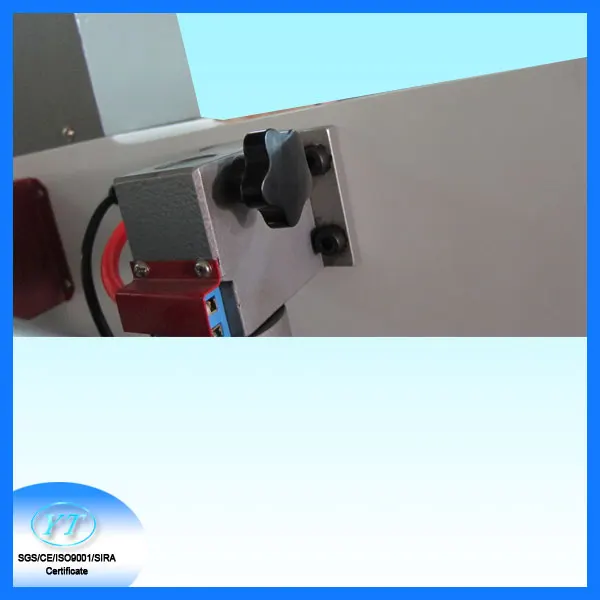

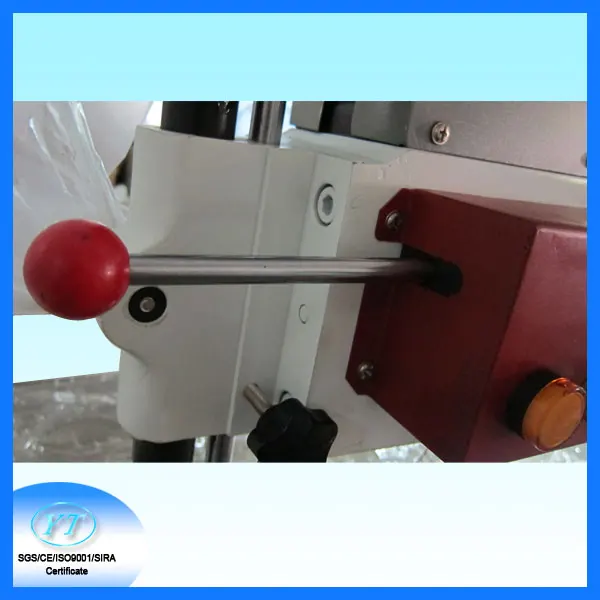

The detailed picture for you reference
