Professional Pcb Board Manufacturer Xbox One Controller Pcb Clone Custom Pcb Electronics Board
- Category: PCB & PCBA >>>
- Supplier: Shenzhen Fulltronics Corporation Limited
Share on (60361592987):
Product Overview
Description
Poster
| PCB Item | Manufacture Capacity |
| Layer Counts | 1--20L |
| Base Material | FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B) |
| Material Thickness(mm) | 0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 |
| Max board size(mm) | 1200x400mm |
| Board Outline Tolerance | ±0.15mm |
| Board Thickness | 0.4mm--3.2mm |
| Thickness Tolerance | ±8% |
| Minimum line/space | 0.1mm |
| Min Annular Ring | 0.1mm |
| SMD Pitch | 0.3mm |
| Holes | |
| Min Hole Size(mechanical) | 0.2mm |
| Min Hole Size(laser hole) | 0.1mm |
| Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
| Hole Position Tol | ±0.075mm |
| Plating | |
| HASL/LF HAL | 2.5um |
| Immersion Gold | Nickel 3-7um Au:1-5u'' |
| Surface Finish | HAL,ENIG,Plated Gold,Immersion Gold,OSP |
| Copper | |
| Copper Weight | 0.5--6oz |
| Color | |
| Solder mask | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
| Silk screen | White, Black, Blue,Yellow |
| Acceptable File Format | Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 |
| Certificate | ROSH,ISO9001 |

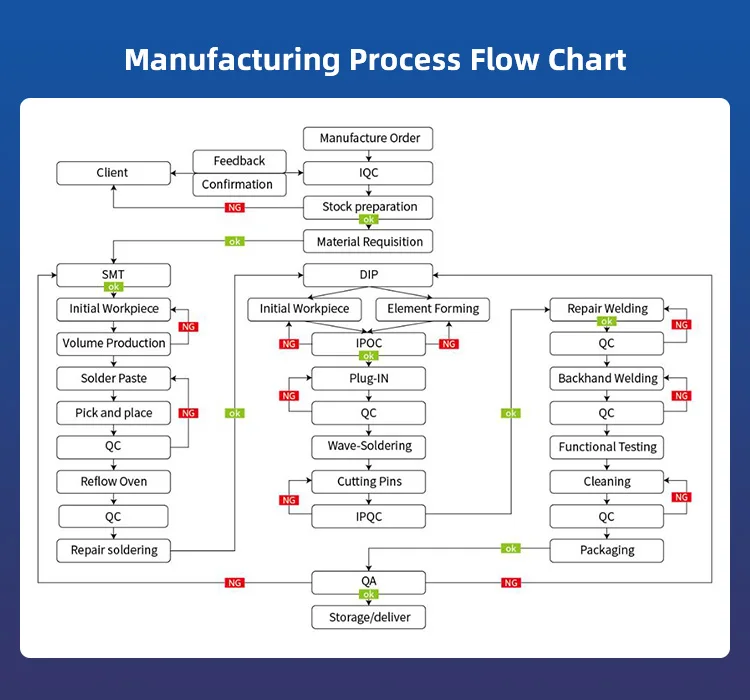

Flow

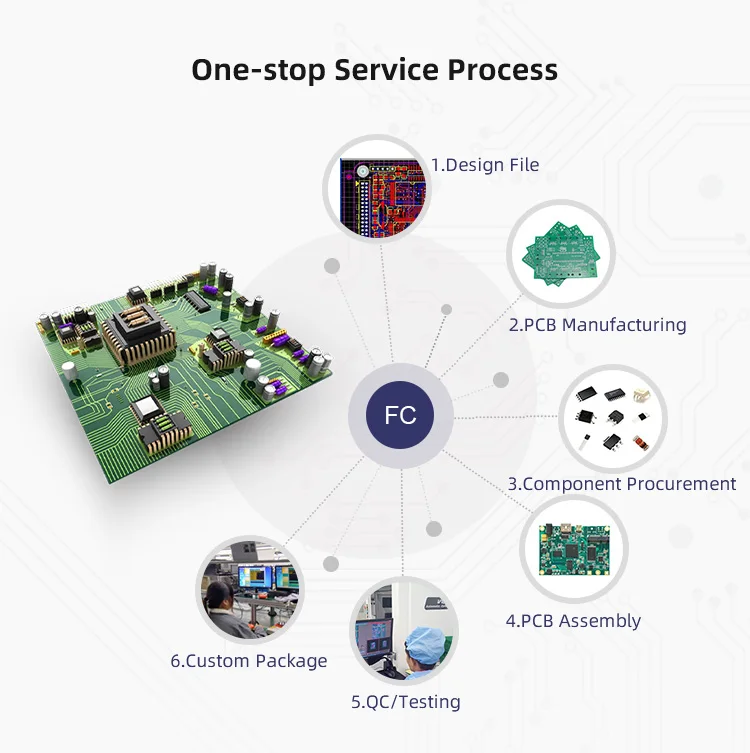

One-Stop Service

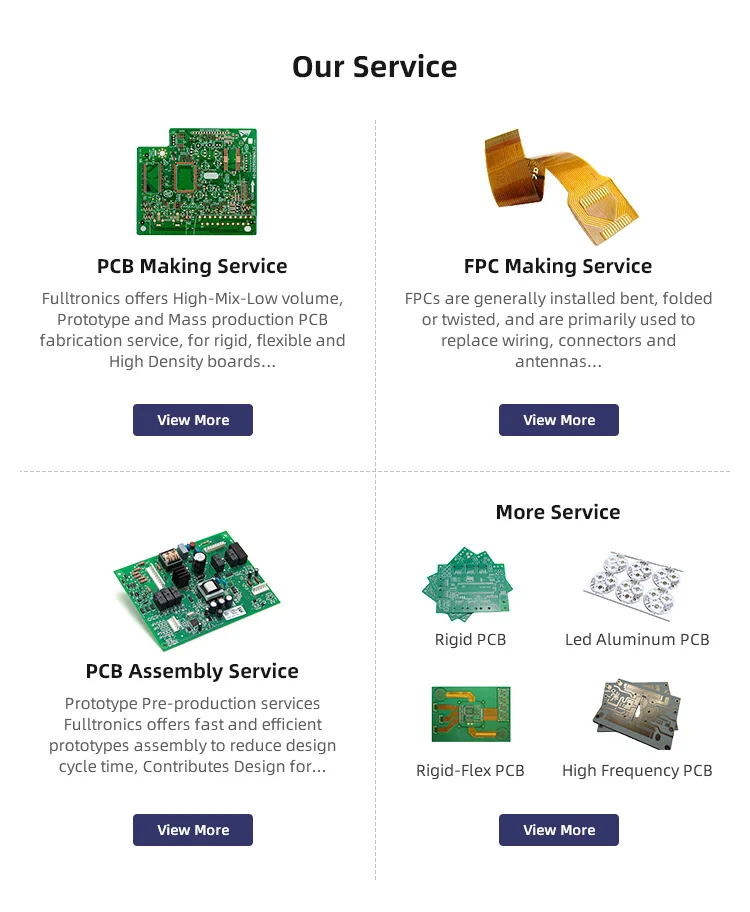

Our Service
Application

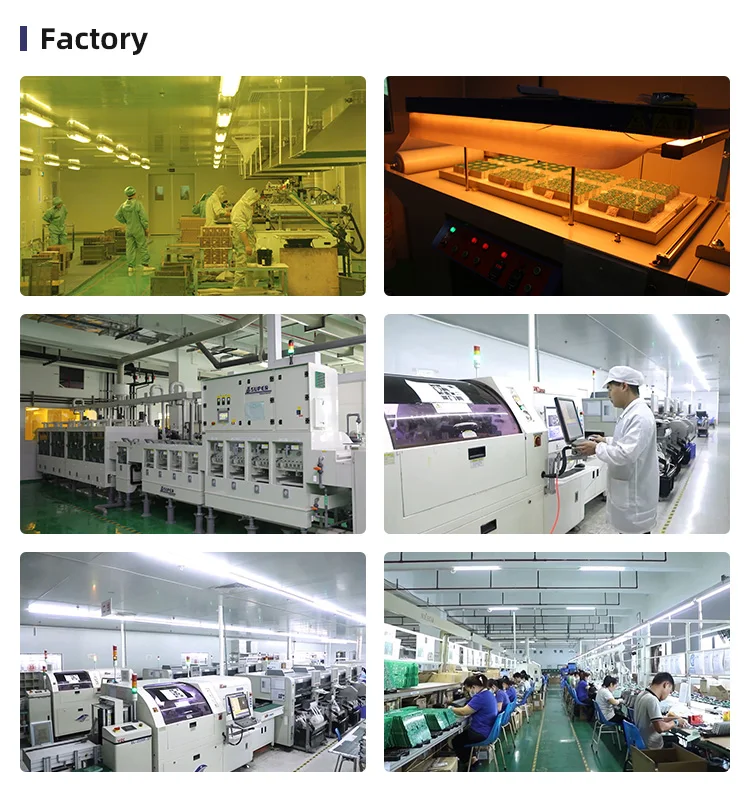

Company Profile

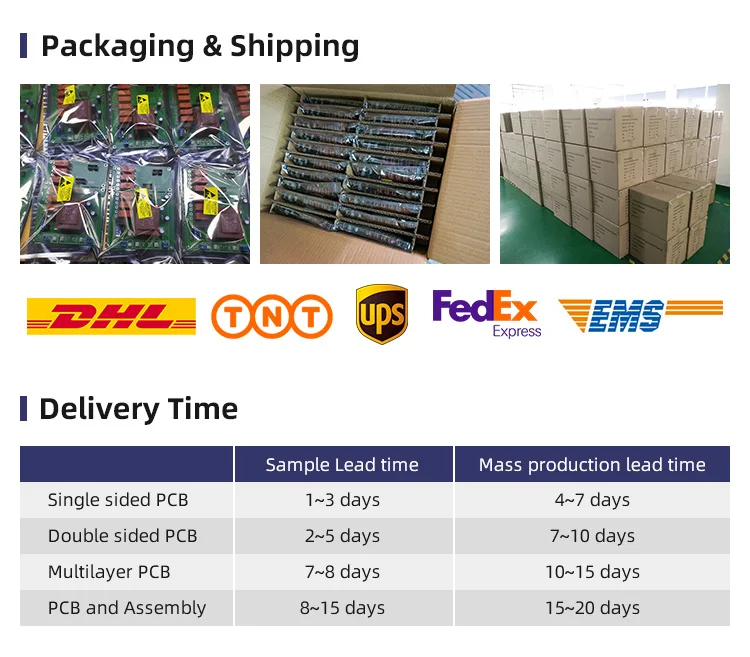

Packaing Service
FAQ
1. Are my design files secure when I send them to you?
Your files are held in complete safety and security.Your files are never shared nor will any third parties have access to your design files.Fulltronics can sign an NDA(Non-disclosure agreement) before sending files.
2. For small quantity orders, can you produce prototype PCBs?
Yes. Fulltronics can produce prototypes. but the greater the quantity, the greater the cost savings.
3. What file formats do you accept for PCB and assembly?
Gerber ,CAM Auto CAD DXF, DWG formats.
4. Do you have after-sales product servicing available for your customers?
Yes, for any quality problems Fulltronics will take our responsibility to solve it for you any time.
