high performance home biogas digester, bio digester tank for sale



Product Description

The biogas digester is widely applied to treat food waste, human sewage, wastewater, animal dung and agricultural waste like grass, straw and leaves for home, restaurant, and small farm use, supplying biogas for cooking, lighting, heating water and generating electricity.

 PUXIN FAMILY BIOGAS PLANT.jpg





A whole the biogas digester includes: a set of steel mould, a 1.0m3 gas-holder, a biogas transport system like pvc pipe and valves, a biogas purification system such as 1L desulphurizer and 0.6 dehydreator, biogas appliances (stove, water heater, rice cooker, lamp, room heater etc.), and small biogas power generators (1.2KW, 3KW).

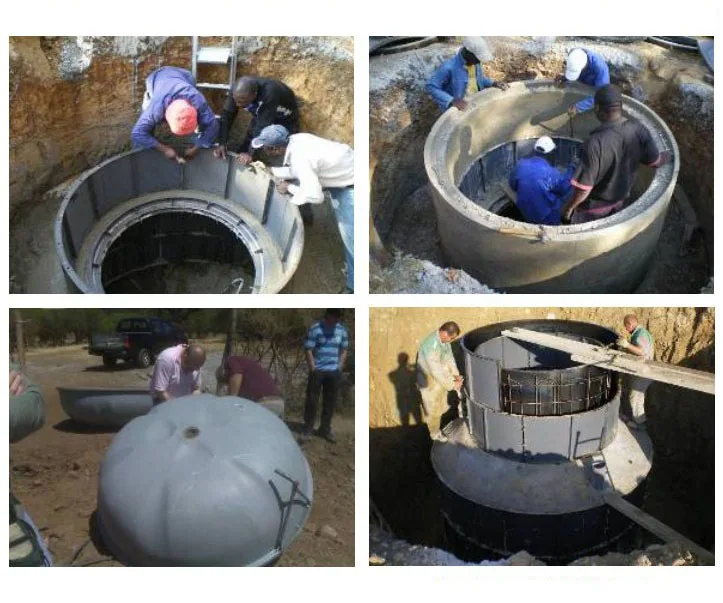

The steel mould is composed of a number of steel mould boards. By using a steel mould, the biogas digester can be built within two days, or build 150 sets in a year. The steel mould is reusable and can be usedfor building 4m3, 6m3, 8m3, 10m3 and over 10m3 biogas digester over 2000 times, lasting over 15 years. The glass-fiber reinforced plastic gas-holder is in 1.0 m3 size that is one of the main components of the biogas digester, and it can last over 10 years.





The parameter of biogas equipments for the biogas digester:
















































ProductDescription& specification

.JPG

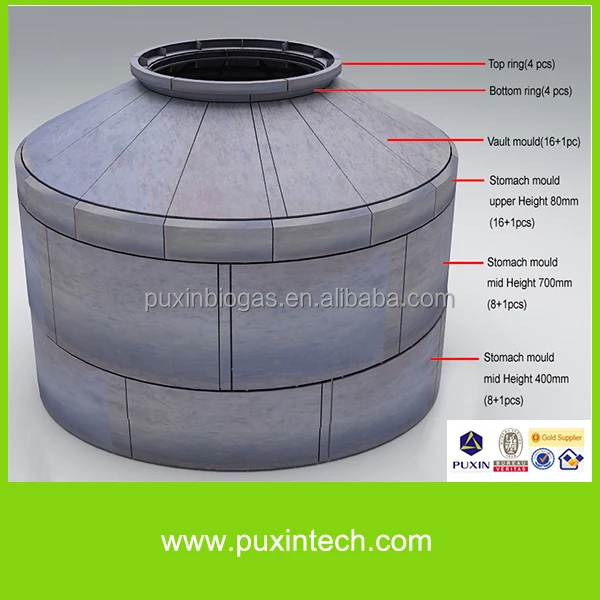

Steel mould with outer



It is composed of 93 steel mould boards and 19 working pieces, tools and mould hooks. The product is applied to construct the concrete digester of the biogas digester.
Digester inner: Φ280cm, Outer: Φ300cm, Depth: 120cm;


Neck inner: Φ166cm, Outer: Φ196cm, Depth: 110cm.



GLASS FIBER PLASTIC GAS-COLLECTOR.png


Gas-holder 1m³



It is one of the main components of the biogas digester, and is composed of a container made with glass fibre reinforced plastic and three steel supports. On the top of the gas-holder there is a valve that can eliminate the atmospheric pressure.


Diameter: Φ164cm, Height: 60cm.



biogas fittings.png


Biogas fitting



30m Φ9mm PVC soft pipe,


1pc pressure gauge 16KPa,


1pc desulpharize 1KG,


5pcs valves, etc.





Biogas stove double burner



Heat load: 2.8KW,


Biogas consumption rate: 0.9m3/h,


Heat efficiency : >57%,


Fire maker efficiency : >98%,
Gas entrance pressure: 1600Pa,
Gross weight: 5kgs,


Outside dimension: 730×410×130mm





Biogas rice cooker



Rating Power: 1.0KW,
Biogas consumption: 129g/h(about0.14m3/h),
Rating pressure: 1600Pa,
Largest rice quantity: 1.6kgs,
Gross weight: 3.5kgs,


Net weight: 3.0kgs,
Outside dimension: 305×305×335mm,



water heater.png


Water heater JSD14



Heat flux: 14KW,
Hot water production rate(at 25 ℃):7L/min,


Rated gas pressure: 1600pa,


Water pressure: 0.025-0.8 Mpa,


Biogas consumption: 2 - 3m3/hour



biogas lamp,.png


Biogas lamp


with electronic switch



Gas consumption: 0.07m3/h,


310×300×260mm /8 sets, 0.5kg/set,





Room heater



Biogas consumption rate: 0.3m3/h,
Gross weight: 21kgs/20sets,
Outside dimension: 590×590×410mm,


It could keep warmth for a room about 6 - 9 m2,
Diameter of the room heater: 28cm





Flow meter



Normal flow rate: 2.5 m3/h,
Maximum flow rate: 4 m3/h,
Minimum flow rate: 0.025 m3/h,


Maximum working pressure: 10 Kpa,


310×300×260mm /4 sets, 1.5kg/set









For the biogas digester, we design the biogas project for our customers based on their special requirements, sell all related biogas equipments and products to our customers, train the technicians for them, and our customers build the biogas application system themselves.
