Sunricher SR 2818 Size 8 Zones RGBW RF LED Remote Control
- Category: >>>
- Supplier: Shenzhen Sunricher Technology Co. Ltd.
Share on (60372764839):
Product Overview
Description
Sunricher SR-2818 Size 8 Zones RGBW RF LED Remote Control
- Eight zones/areas
- Touch button RGB+W controller

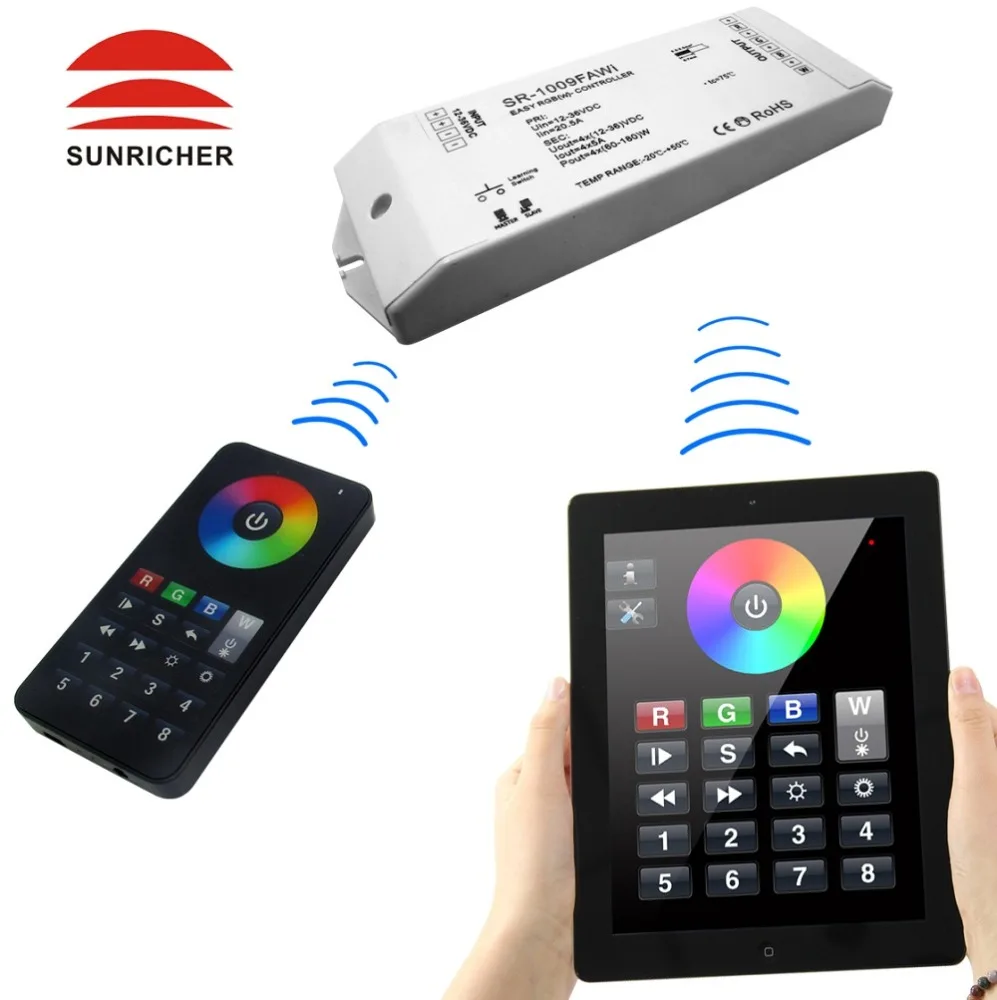

- Receivers work with WIFI-RF converter to be controlled by smart phone

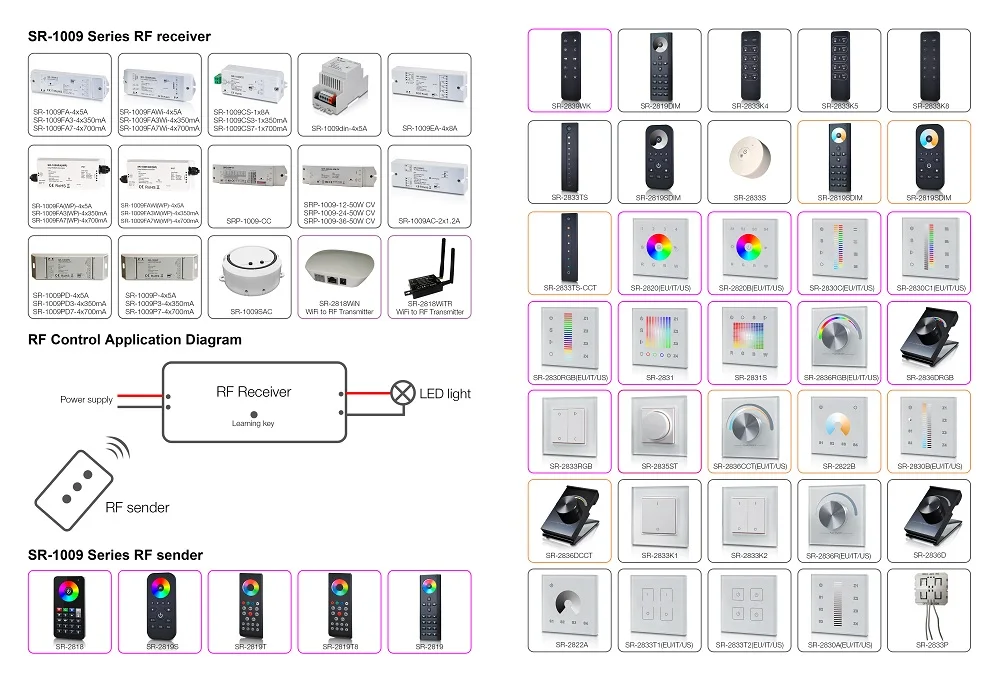

Compatible receiver
Sunricher SR-2818 Size 8 Zones RGBW RF LED Remote Control
Products image
Operation
Sunricher SR-2818 Size 8 Zones RGBW RF LED Remote Control
Learning (matching)
a. Do wiring according to connection diagram
b. Wake up the remote control by touching ON/OFF button.
c. Press learning button on receiver.
d. Touch any zone button on remote control.
e. Then touch color wheel.
f. Connected LED light will blink to confirm zone designation.
g. Press at learning button on receiver over 5 seconds until LED light flash, then delete the learned ID.
Note 1: To choose a master from slaves by jumper for each zone.
Short circuit for master.
Open circuit for slave.
Each zone only can set one master controller. After a period of time, the master will do synchronization
operation to keep the same color or mode of all slaves in one zone.
Note 2: Each remote control 8 zones (areas) receivers, each area can be learned as many receivers as
we can.
Each receiver maximally can be controlled by 8 different remote controllers.

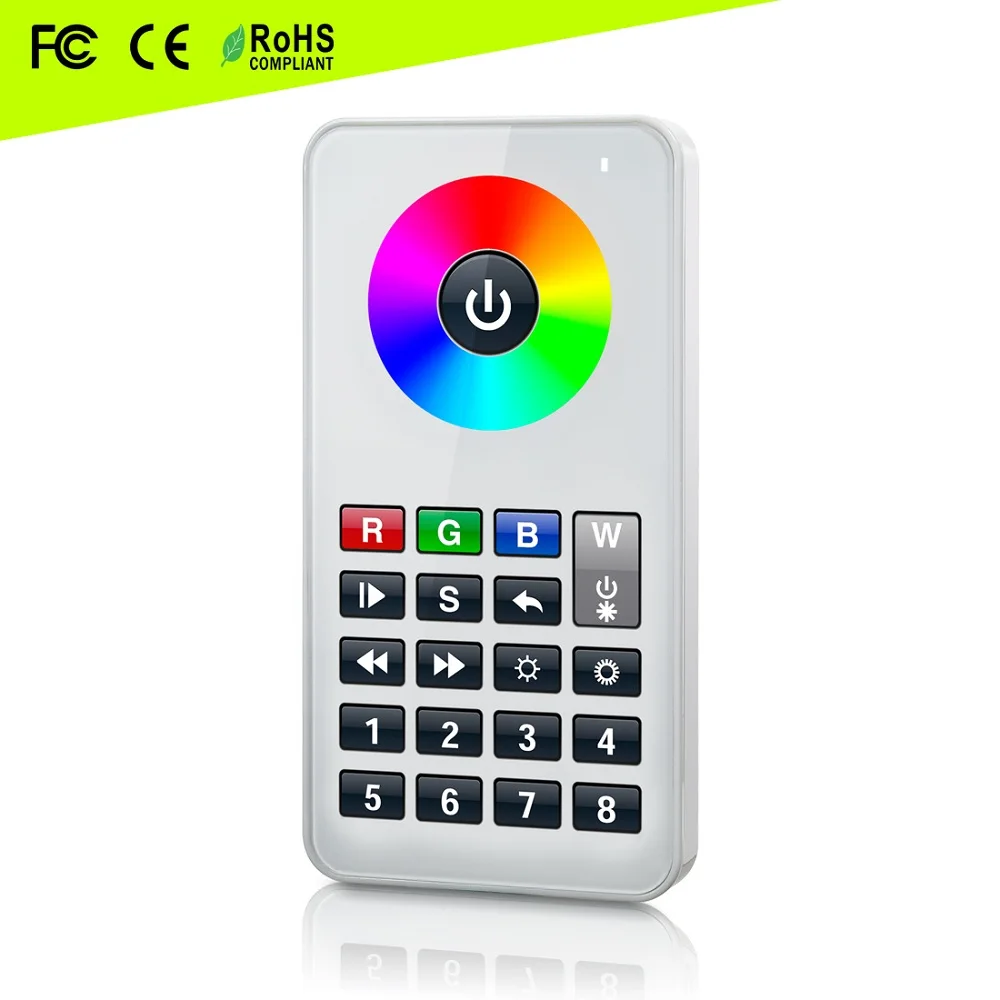

Button Introduction
Company Information
Shenzhen Sunricher Technology Limited is specialized in the wired and wireless lighting control systems for over 15 years, our products are widely used for the commercial lighting and smart home with innovative design and high quality.
Sunricher has always been the first ODM/OEM choice of many global leading brands. With our rich experience and expertise in lighting control systems and IoT technologies, such as DALI, DMX 512, KNX, Zigbee, Z-Wave, BLE, Wi-Fi, RF and etc, and we are the Alliance member of DALI, KNX, Zigbee, Z-Wave, and BLE Alliances.
We have designed and manufactured various high quality product types for our global clients. We always take good care of our clients with
•Well experienced and powerful R&D team.
• High efficient production and strict quality control.
• Good after-sales service.
• Global high end certification such as U L, TUV CE, FCC, SAA, CCC etc.
• Patented design and functionality.
• DALI-2, KNX, Zigbee3.0, Z-Wave, BLE certification.
