JBY618 Double Liquid Polyurethane foam epoxy resin Injection Grouting Machine for Waterproofing

Product Overview

Description

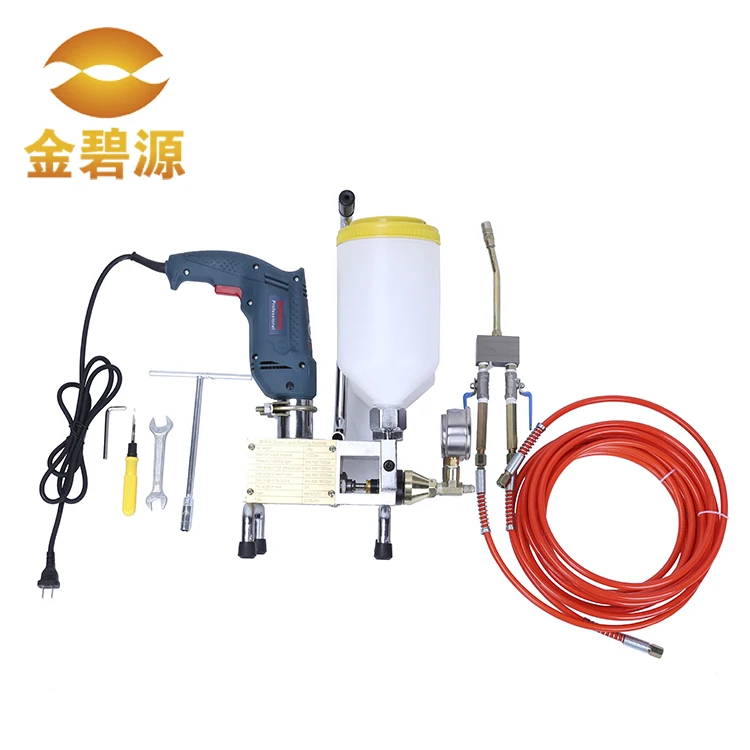

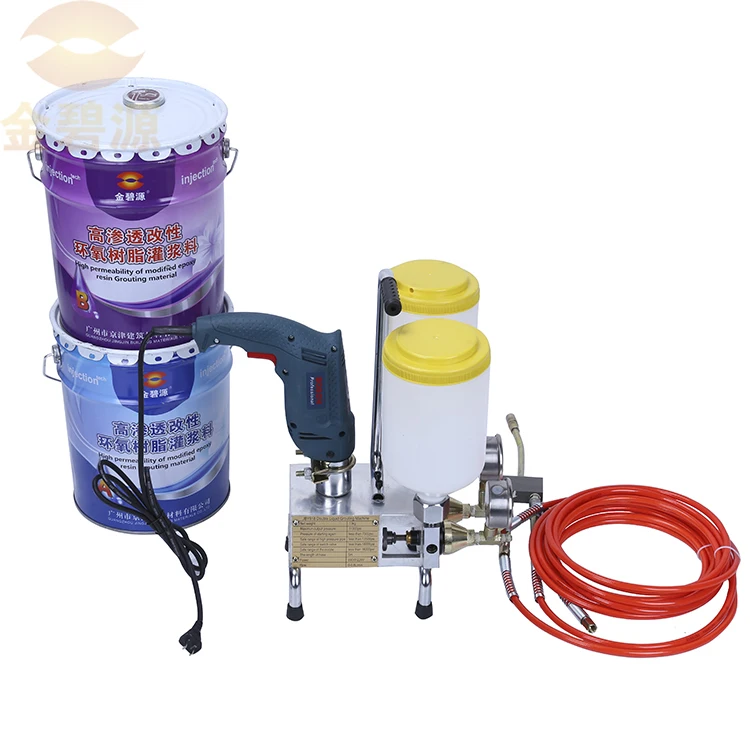

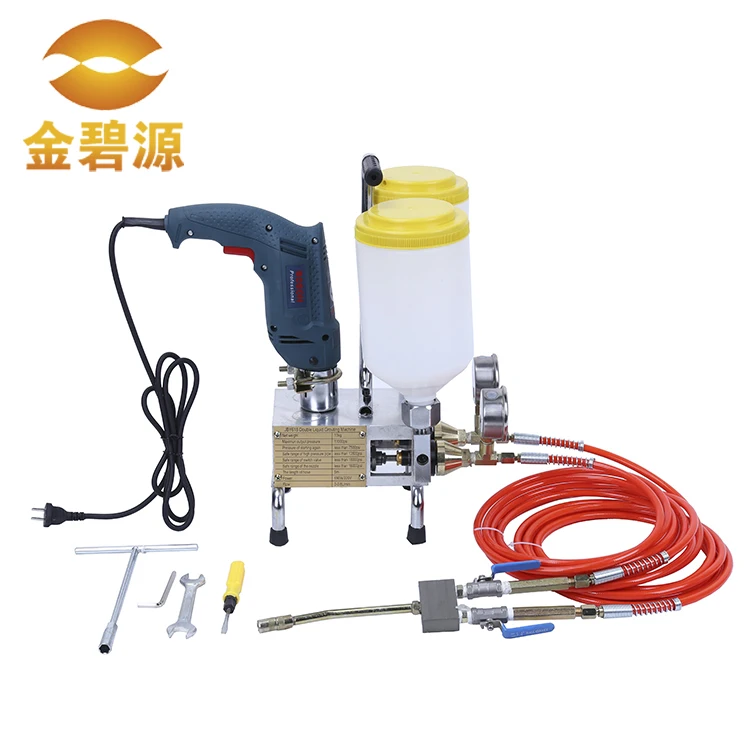

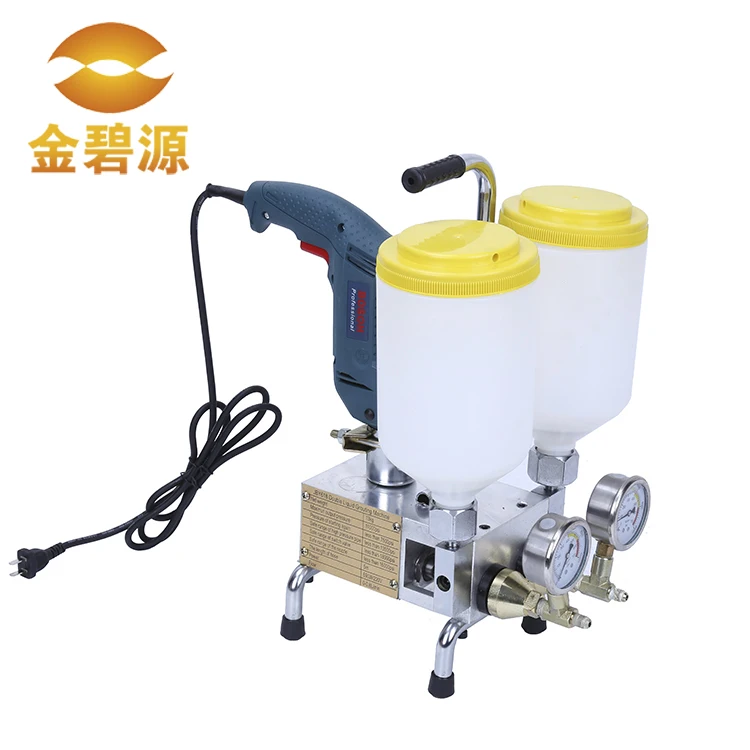

  JBY618 Double Liquid Polyurethane foam/epoxy resin Injection Grouting Machine for Waterproofing



Product Description

Two Component grouting machine is a professional machine for structure reinforcement, leak stoppage, easy to maintain. The parts of machine aren’t deformed when being injected. Besides, it can avoid the inconvenience of heavy machinery for workers and is the best tool for the persons who work on the professional water-sealing project.



Two component grouting machine
Net weight	13kg
Maximum output pressure	11000psi
Pressure of starting again	less than 7500psi
Safe range of high-pressure pipe	less than 1400psi
safe range of switch valve	less than 18000psi
Safe range of the nozzle	Less than 16000psi
the length of hose	5m
Power	690w/220v
Flow	0-0.8L/min























Fast Construction:upgrade to 0 ~ 6000spi work pressure in a few seconds, faster than other models on perfusion.

Durability:when the pressure is up to 8000psi (Max), the parts of the body will keep their shapes.

Simple Repair:it can be repaired in the construction site, avoiding stopping working because of sending for maintenance due to mechanical failure.

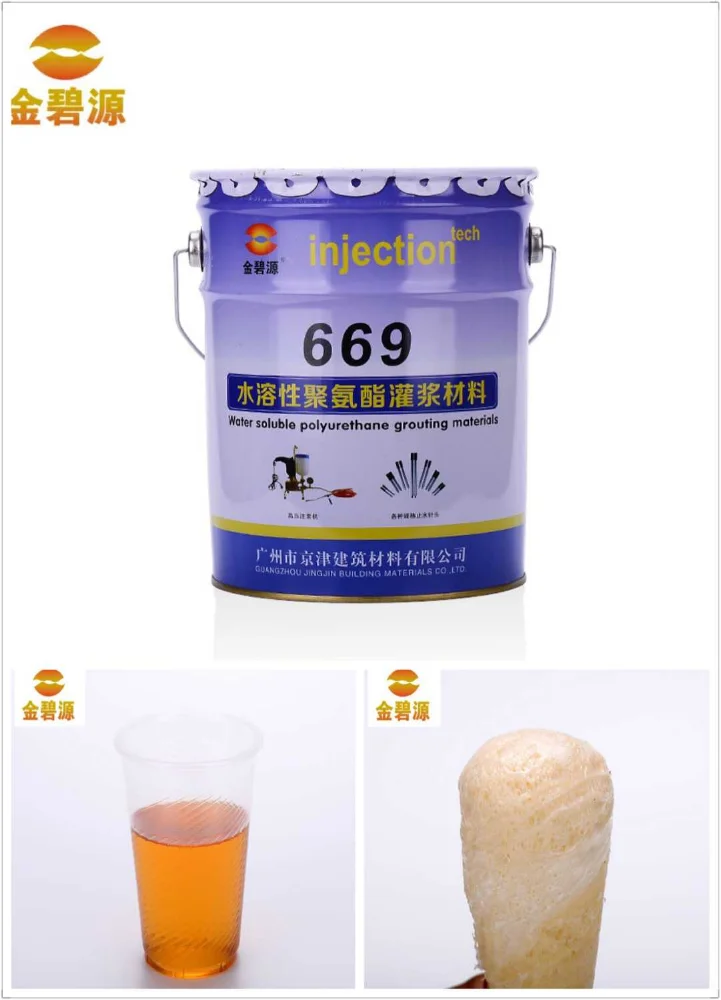

Applicable materials

1:1 matching double-liquid non particle low-viscosity liquid.

1. Double liquid-type PU Foam Waterproofing plugging agent, insulation material,

2. Double liquid-type quick-setting PU/EPOXY reinforcing agent



Application places

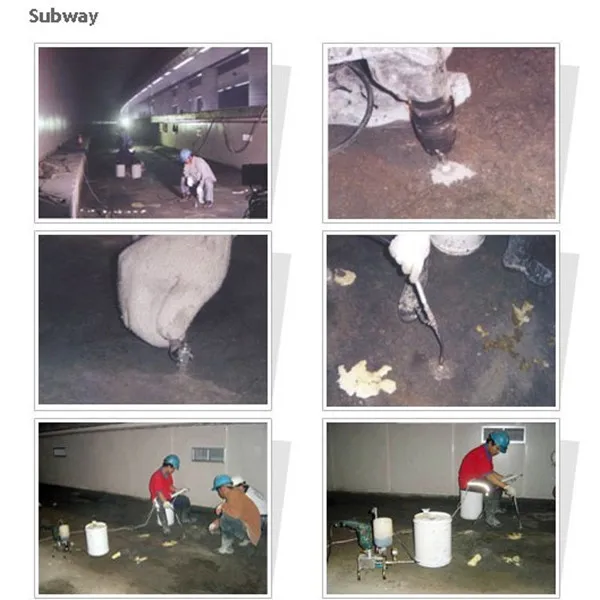

Leakage blocking, strengthening and reinforcing for subway tunnel, culvert, structure hives, crack, second construction joint and so on.



Usage

 A + B agent or polyurethane foam separately pours into the feed cup. Firstly, turn off the switch of straw and insert the double-liquid needle locked, start the power switch and inject the water-sealing agent into the body for leak stoppage & reinforcement.
