Product Overview

Description


rotary vacuum dryer,vacuum lyophilizer,vacuum freeze dryers
































1.Microprocessor controls.
2.3 Liters in 24 hours ice capacity.
3.Internal condenser coil-304 or 316 stainless steel.
4.-55C or -80C condenser lowest temperature.
5.304 or 316 stainless construction.

6.CFC-free refrigeration.(optional for customer's request refrigeration:R507,R410A,etc.)


7.Heating element to defrost avaliable for optional.
8.Transparent Acrylic Drum drying chamber for user to observe the drying process.







1.Parameters include vacuum,


2.condenser temperature


3.run time


4.ambient temperature


For water based samples, the -55C condenser is the perfect choice with effective cost.


For samples containing solvents or with low eutectic points, the -80 C condenser provides maximum performance.


For labs that need quick turn-around, Heating element to defrost available.


































































Parameters


Model



RLA-10N (Desktop)



RLA-12N(Vertical)



RLA-18N



No-load temperature



<-55°C,<-80°C optional



<-55°C,<-80°C optional



<-55°C,<-80°C optional



No-load freeze area



0.07-0.12m2



0.09-0.18m2



0.18-0.27m2



Plate load materials



0.7-1.2L



0.7-2L



2-3.5L



Ability to capture water



3Kg/24h



4Kg/24h



6Kg/24h



Vaccum



<10Pa



<10Pa



<10Pa



Dimension



610 x 395 x 370+420(drum) mm



800 × 515 × (725 +420 drum) mm



830 x 532 x 900+420(drum)



Material Tray Specifications



Φ200mm four-layered(common)


Φ200mm three-layered(with cover)



Φ200mm four-layered 70mm(common)


Φ200mm six-layered 50mm(common)


Φ200mm three-layered(with cover)



Φ240mm four-layered 70mm(common)


Φ240mm six-layered 50mm(common)


Optional:


Φ200mm three-layered(with coverd)



Consuming wattage



1000VA



1000VA



1300VA



Voltage



220V 50HZ /110V 60Hz



220V 50HZ /110V 60Hz



220V 50HZ /110V 60Hz

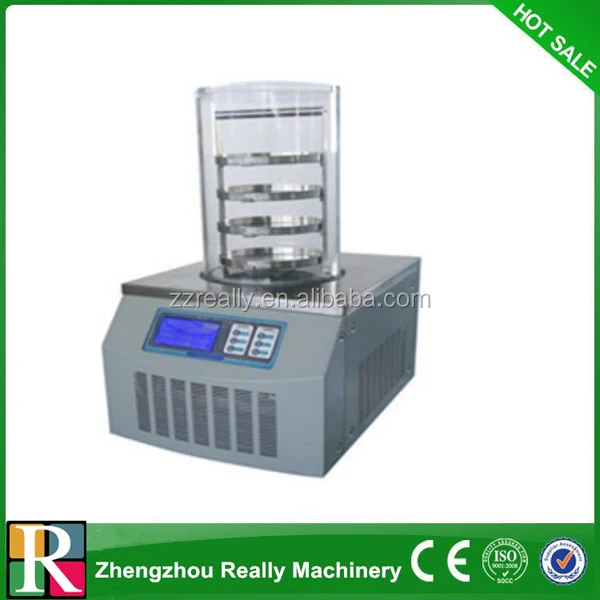

 basic type



Transparent Acrylic Drum chamber with rack and 4xΦ200mm trays.

The trays liquid load 1.2L;

Drying area: 0.12 square meter

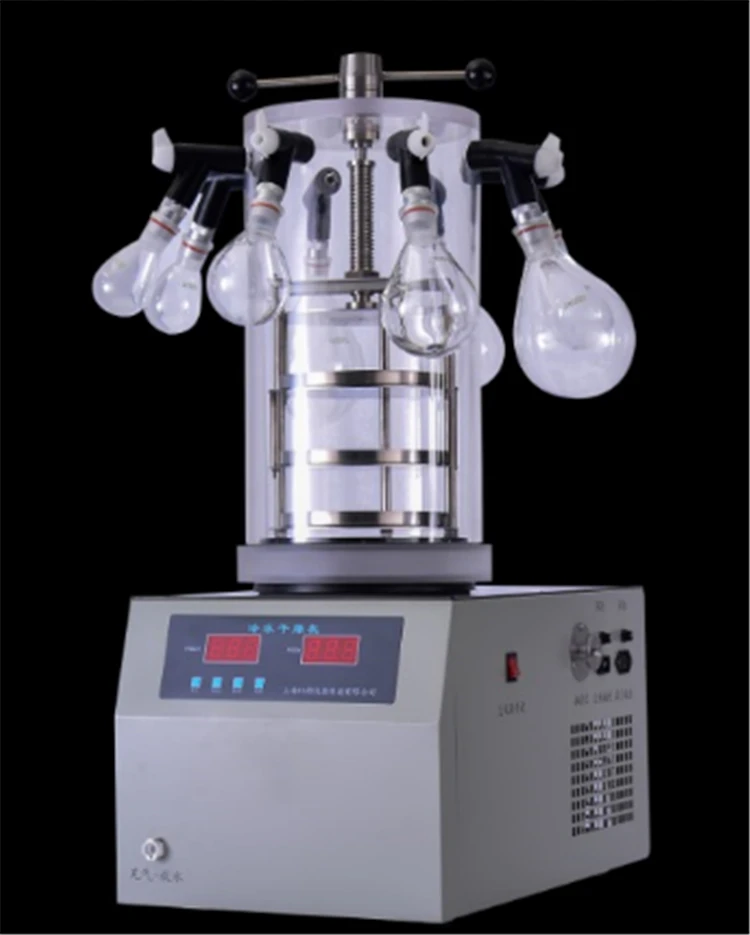

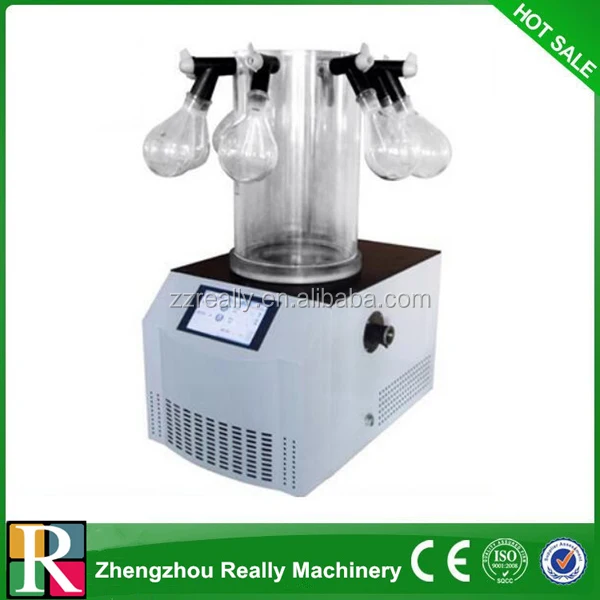

Acrylic Drum with Multi-manifolds:

8-Port Acrylic Drum Manifold.transparent drum acrylic chamber make it clear to watch the process of drying.Manifold sealing gaskets are also supplied with this accessory.

The trays liquid load 1.2L;

Drying area: 0.12 square meter




Top-stoper down type:

Vial Stoppering Shelf :samples in vials can be processed and stoppered under vacuum. The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber.

The trays liquid load 0.94L;Drying area: 0.094 square meter;




8 - Port Acrylic Drum Manifold&Vial Stoppering Shelf:

The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber.

The trays liquid load 0.94L;Drying area: 0.094 square meter;


(24 or more ports) 24-Port Column Manifold T type is useful for drying of small volume of liquids in flasks/Ampoules. It is provided with quick seal valves for holding flasks up to 1 litre capacity. Manifold sealing gaskets and cone connectors are also supplied with this accessory.
