professional machine for gypsum production /gypsum board manufacturing machine

General information for the professional machine for gypsum production /gypsum board manufacturing machine

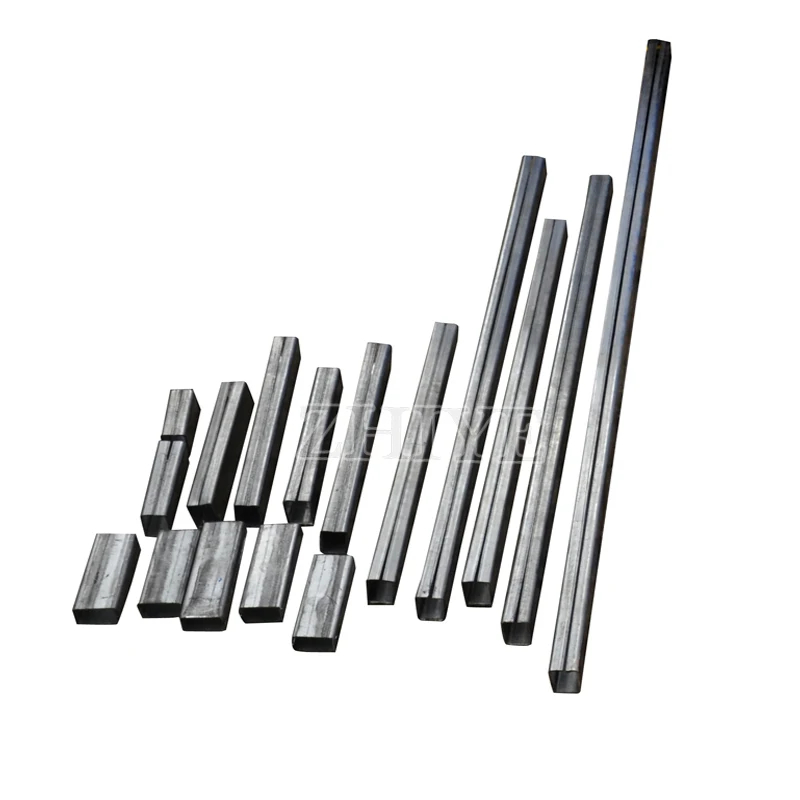

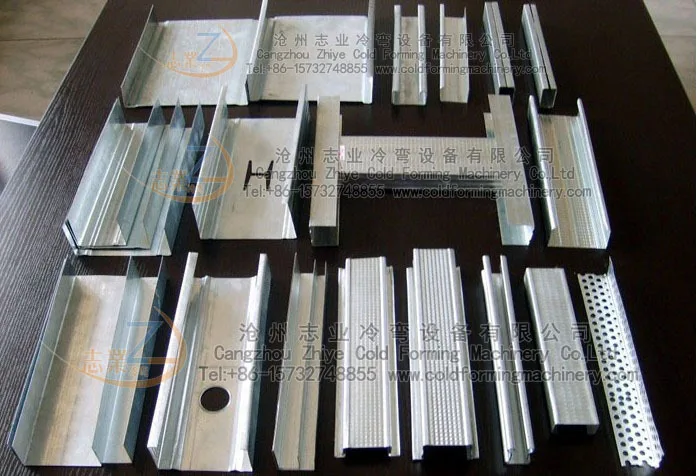

  Products made by this machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.Material for this machine is galvanized steel plate, snowflake plate and colored steel plate

Detailed components introduction for the professional machine for gypsum production /gypsum board manufacturing machine

1.. Manual Decoiler of the professional machine for gypsum production /gypsum board manufacturing machine

1):coil inner diameter:  450-550mm
2):coil max width: 1250mm
3):max carrying capacity: 5000kg
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system

2.. Coil feeding part of the professional machine for gypsum production /gypsum board manufacturing machine

Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.

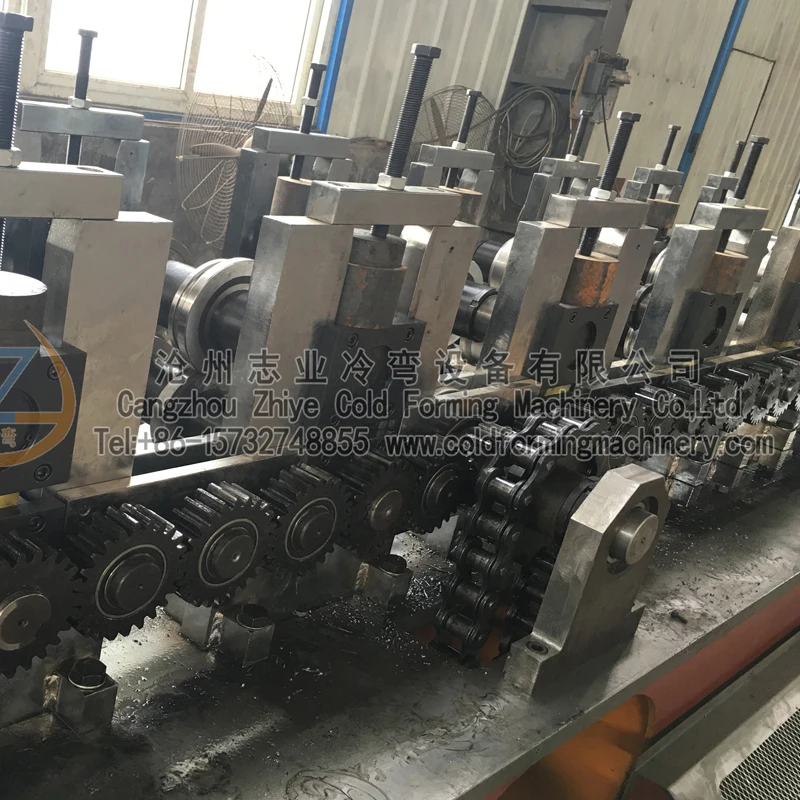

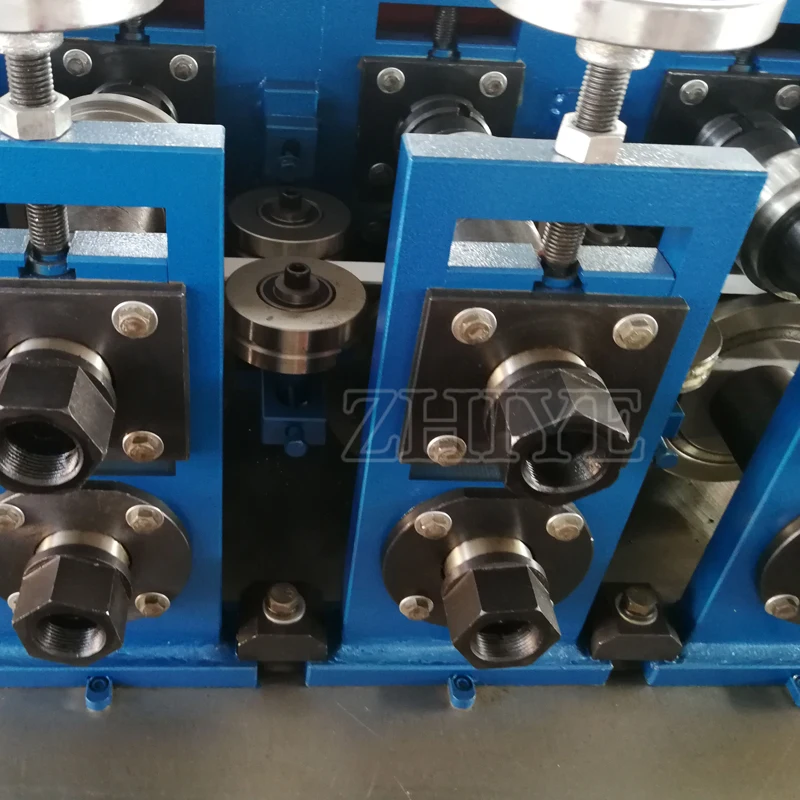

3.. Main roll forming machine part of the  professional machine for gypsum production /gypsum board manufacturing machine

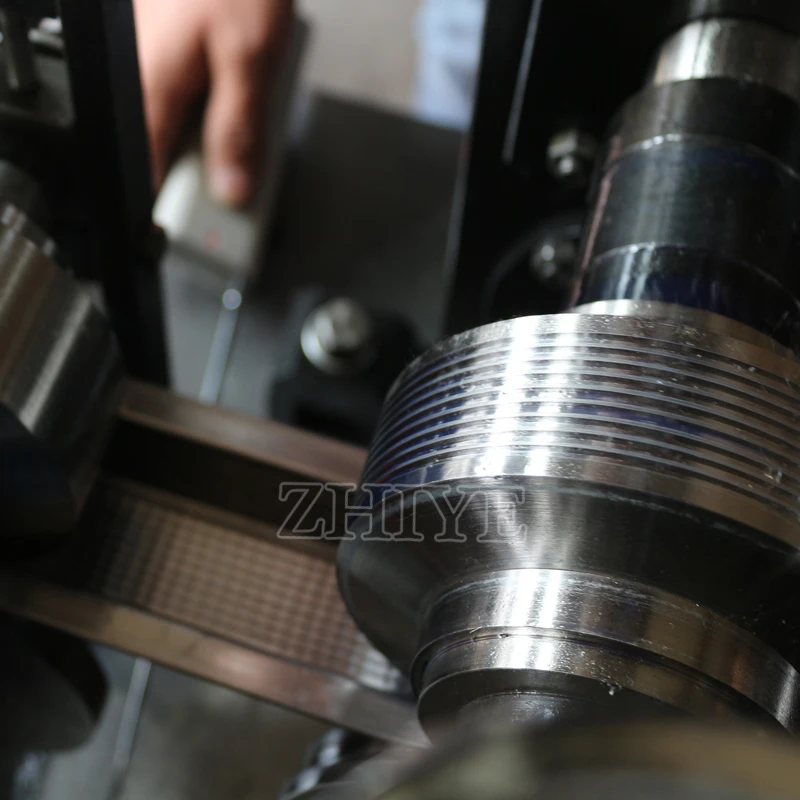

rees, hot chormed on the surface to make sure its hardness.

  shaft material: solid shaft(not hollow style), around 70kg/pc, to make sure the strength of it.and final profile shape are perfect in this way.
  shaft diameter: normally is 72mm.
2).power: normally 7kw in total
3).transmission model: gear and chain
4).controlling model: PLC controlling system, fully automatic.
5).Forming speed: 0-17m/min
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor
reducer drive, chain transmission,roller was chromed which can keep the molding plate surface
smooth and not easy to be marked when it is working

4.. Automatic cuttting system of the professional machine for gypsum production /gypsum board manufacturing machine

1).Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or
wasting, high level safety factor.
It adopts the hydraulic drive and automatic encoder to cut the accurate length you set on the computer.The tolerance is within 10m±1mm
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine

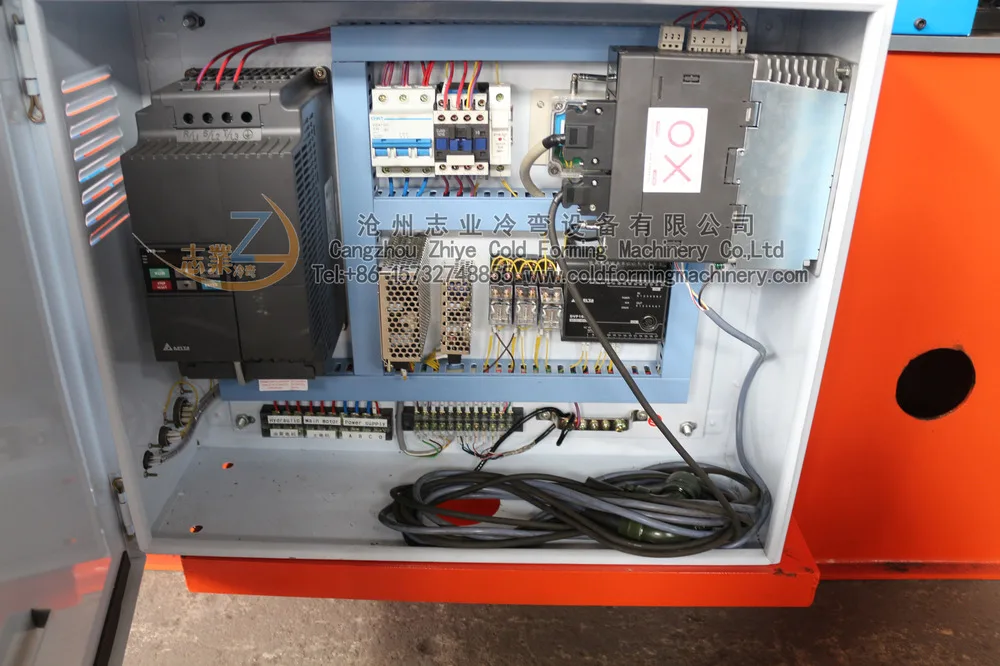

5.. Computer controlling part of the professional machine for gypsum production /gypsum board manufacturing machine

1).PLC brand: Normally, it is Delta. Mistubishi, Panasonic, Siemens are optional.

2).working model: fully automatic and manaul
3).working language: normally are English, Chinese,Russia. Can be set as per your requirements.



6. Hydraulic station of the professional machine for gypsum production /gypsum board manufacturing machine

1).including one motor,one oil tank,one magnetic valve,one pressure gage, hydraulic oil tube
2).3kw,4kw,5.5kw,will be adopted as per your profile sheet.

professional machine for gypsum production /gypsum board manufacturing machine  can be packed into one 20 feet container. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.

Service:

Technology  R&D

We have R&D centers and innovative designing teams for different kinds of production  lines.

Quality Control

We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.

After Sale Service

Warranty period 2 years , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.

Inspection

Inspected by the Sellers

After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.

Inspected by the Buyers

After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.

 Cangzhou Zhiye Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.

James LEE

SKYPE: rollformingmachines

Mob: +86 157 3274 8855

Whats App: +86 157 3274 8855

Sincerely wish to estabilish win-win business relationship with you!
