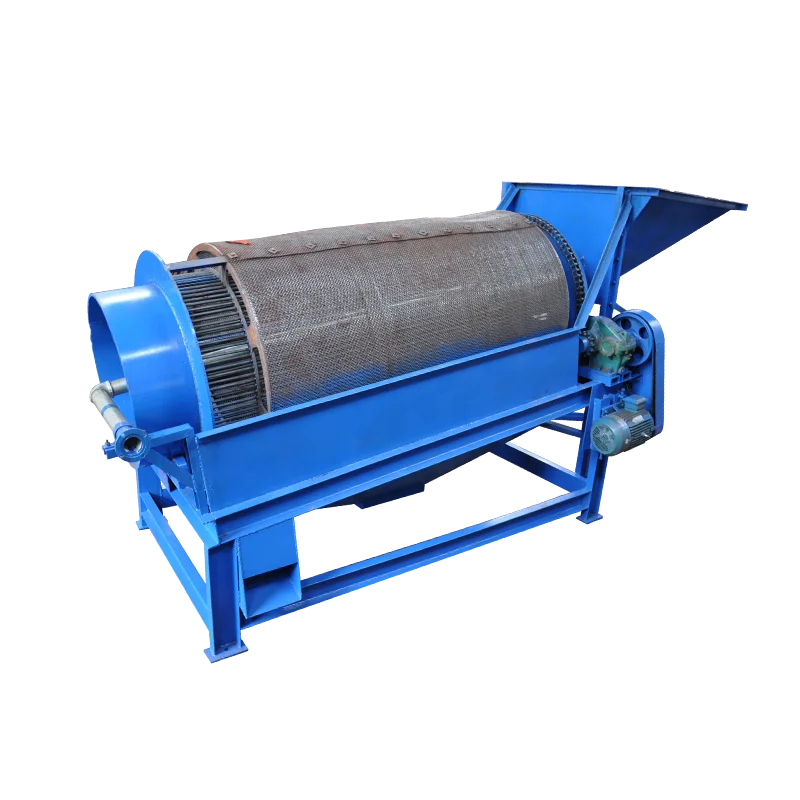

Heavy Duty Gold washing machine trommel screen for sale

Product Overview

Description

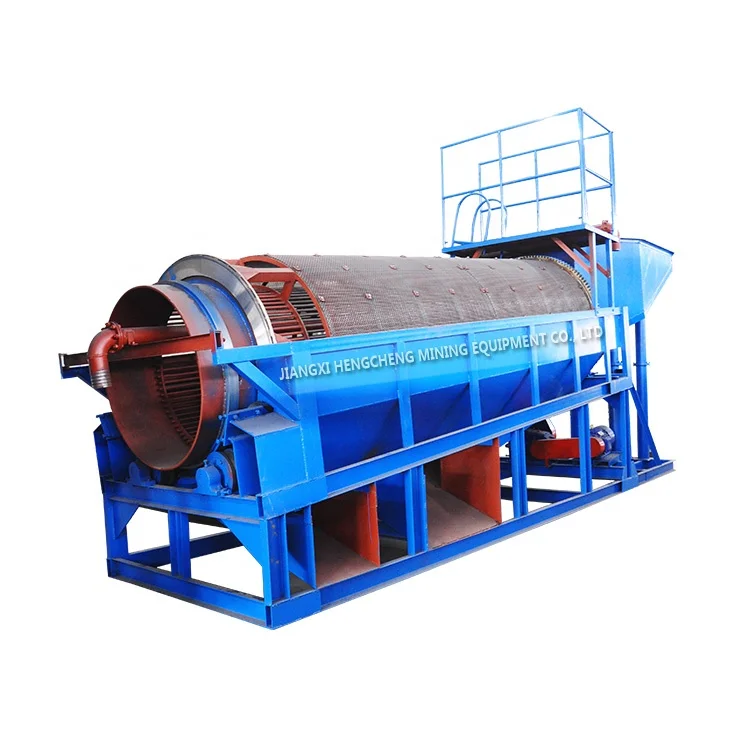

Gold washing machine trommel screen for sale

 ---We supply full line of mining equipment and technical support



Gold trommel screen is a very important first step screening & separation equipment in gold processing projects, it provides a simple, efficient and economical solution to upgrade a wide rang of material, and

optimize the subsequent process steps of recovery. This method of screening helps not only to

reduce manual operation and investment, also increase product grade, while allows rapid and large

 volume processing.





Machine Features Of Trommel Screen:

•


  Sieve size can specially make as your request





•


  3 diffierent size of screens





•


  Easily changed screen plates





•


  Unique screen design,result in higher capacities,longer screen life and no material clogging





•


  Gear drive mechanism

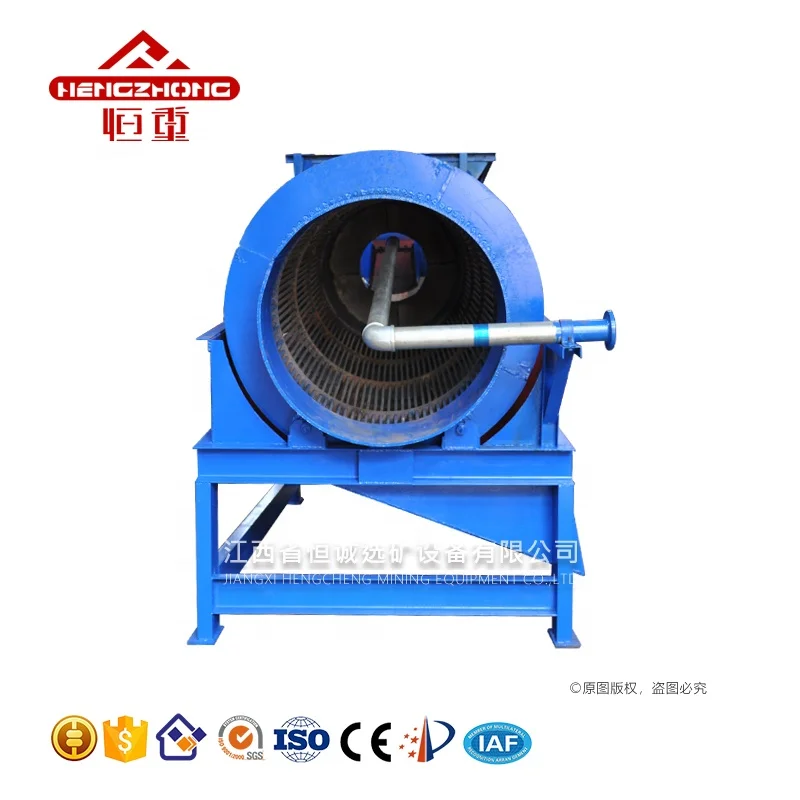

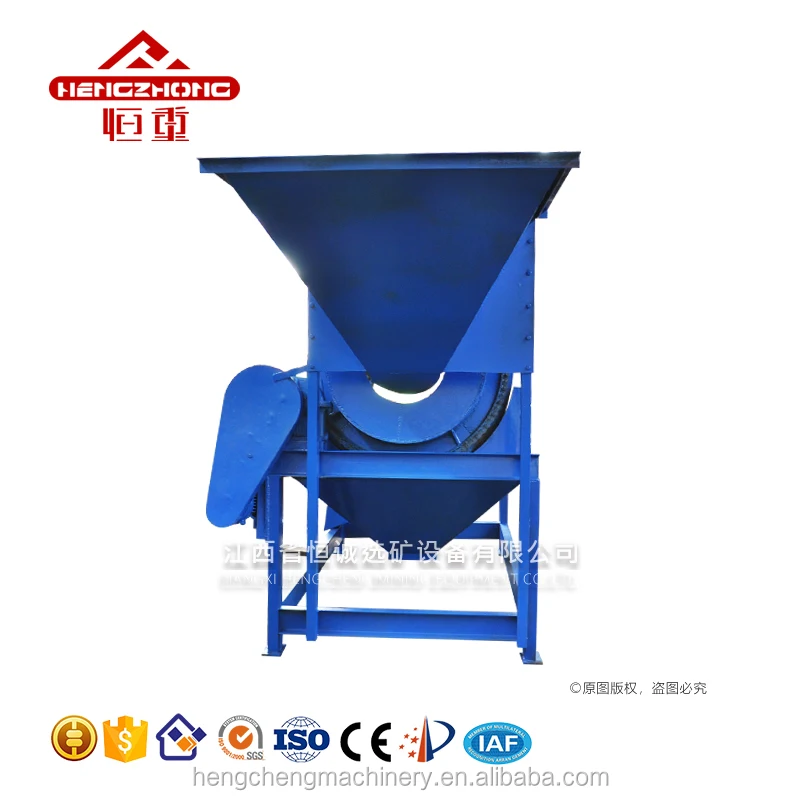

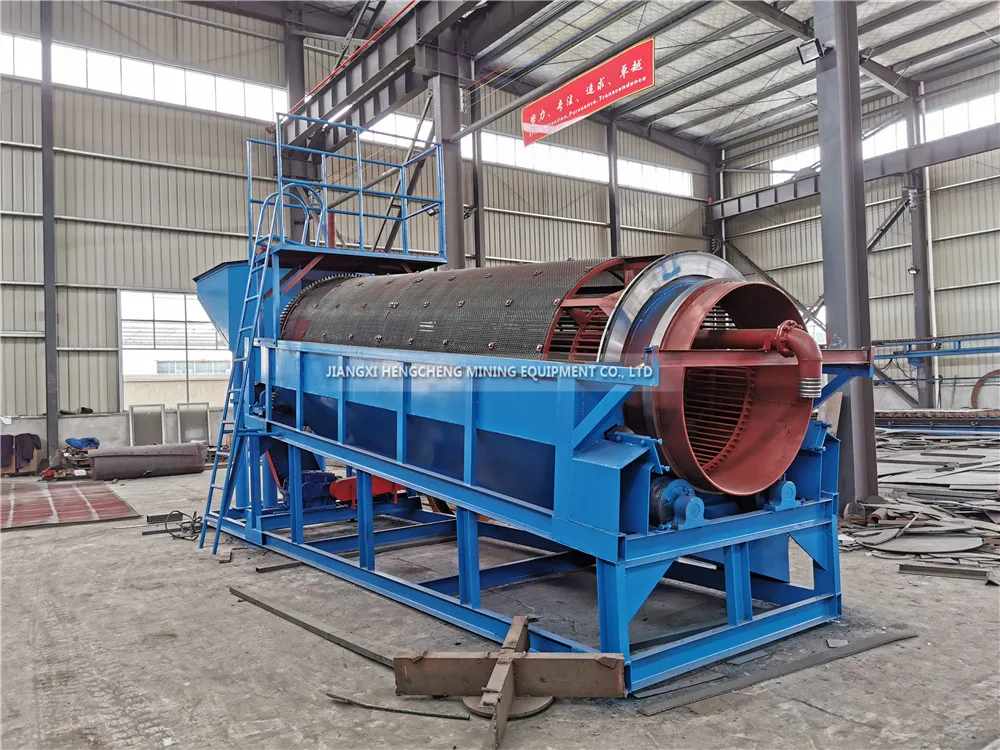

Fixed Trommel Screen Machine

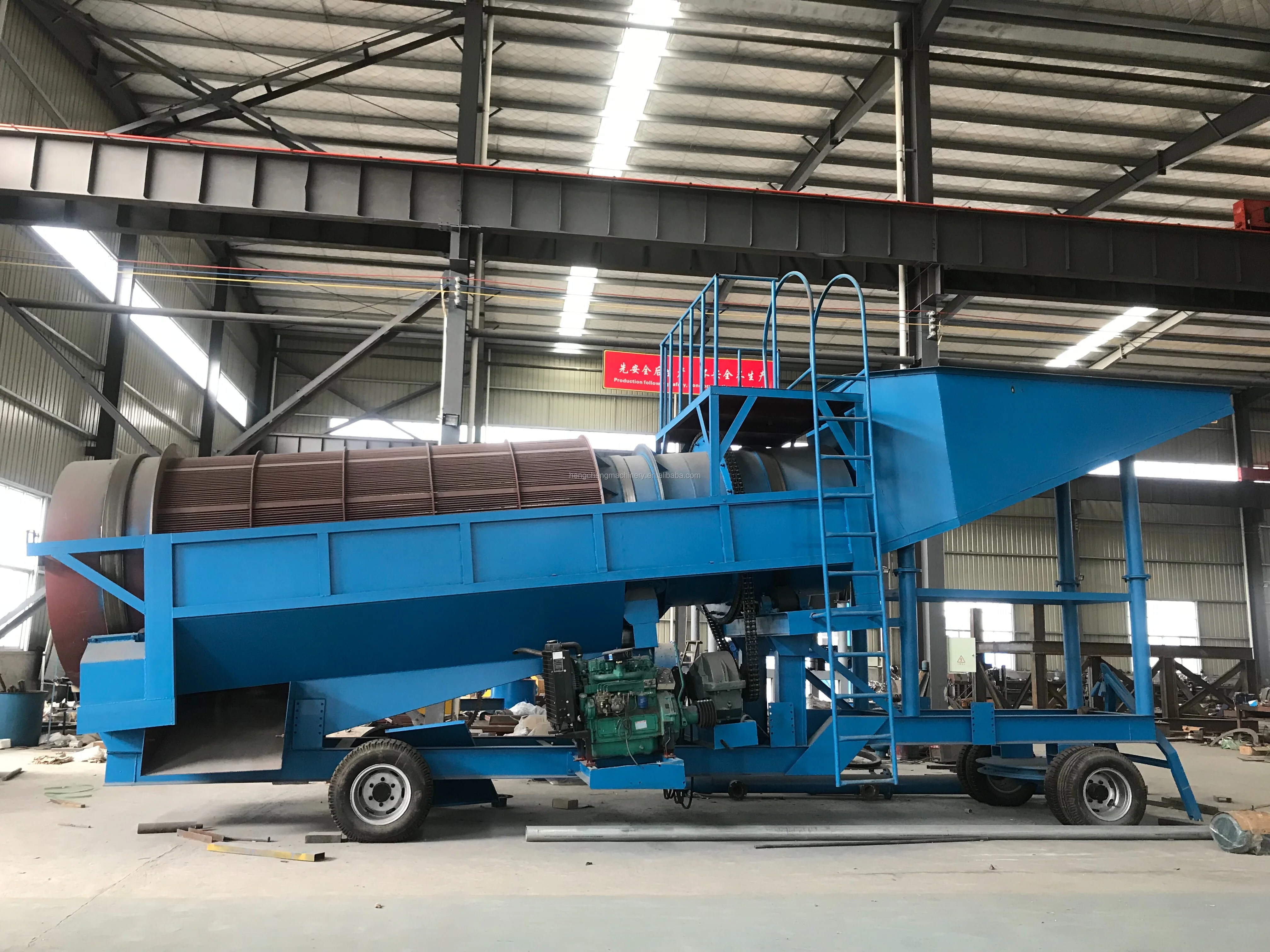

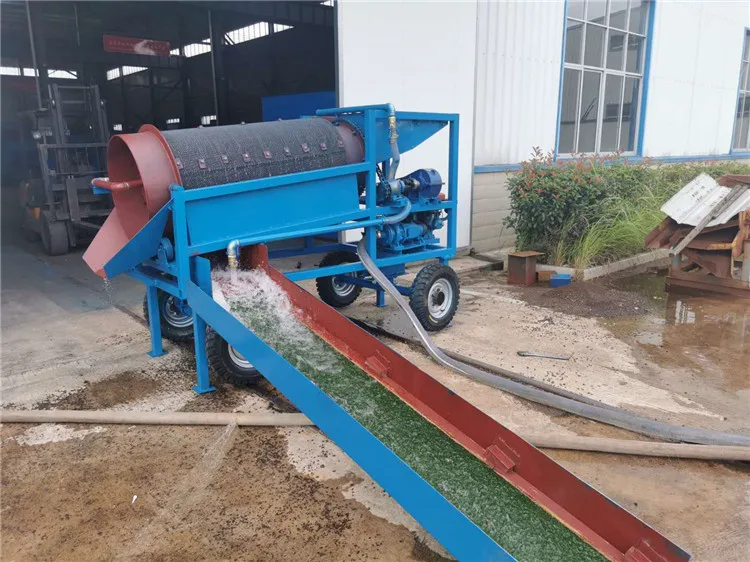

Small Mobile Gold Trommel Screen GMT0713, For More detail, Click the below picture.

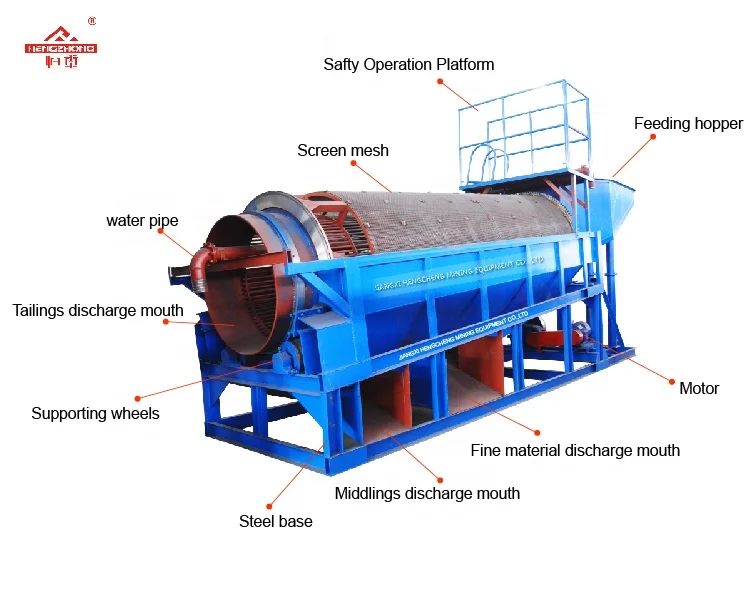

Details Of Trommel Screen:

All of our equipment can be customized according to your requirements.

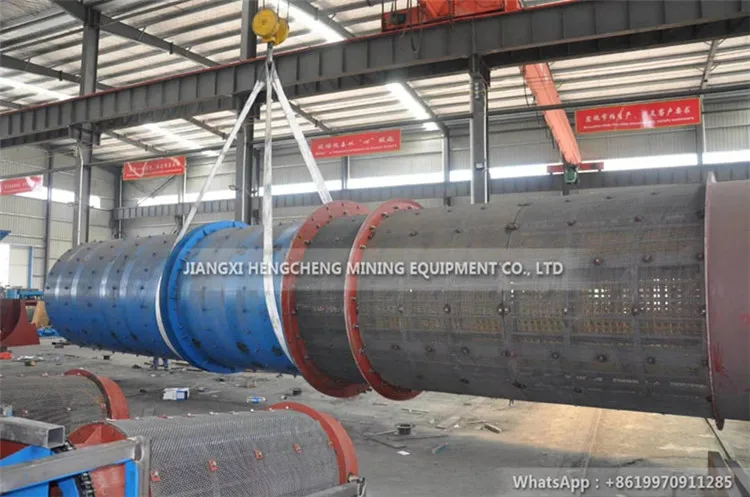

Customizable parts of trommel screen.

The material of screen has 4 kinds,they are: raw steel, high manganese steel, stainless steel, PU.
The quantity of screen layer can be made 1 layer or 2 layers,it depends on the number of particle size customer need.
The screen mesh size can be set between 3- 10mm,it depends on the size customer want to get.

Technical Paramters of Trommel screen



Model	Capacity	Power	Drum Diameter (mm)	Drum Length	sieve mesh	Dimension	Weight
	(t/h)	(kw)		(mm)	Size (mm)	(mm)	(kg)
GT0510	1-5	1.5	500	1000	<3~10	1800*1020*1500	1000
GT1015	5-20	4	1000	1500	<3~10	3000*1400*2145	2200
GT1020	10-40	5	1000	2000	<3~10	3460*1400*2145	2800
GT1225	20-60	7.5	1200	2500	<3~10	4146*1600*2680	4200
GT1530	30-90	11	1200	3000	<3~10	4460*1900*2820	5100
GT1545	50-120	15	1500	4500	<3~10	5960*1900*3080	6000
GT1848	80-200	22	1800	4800	<3~10	6500*2300*4000	7500
GT2055	120-250	30	2000	5500	<3~10	7500*2500*4000	8600





Application Of Trommel Screen:



Gold trommel screen is a main washing & screening machine for alluvial deposit minerals, especially for those gold mine sites; our trommel machine already exported to many different countries, like Africa Ghana, Togo,  Asia Philippines, Australia. etc
