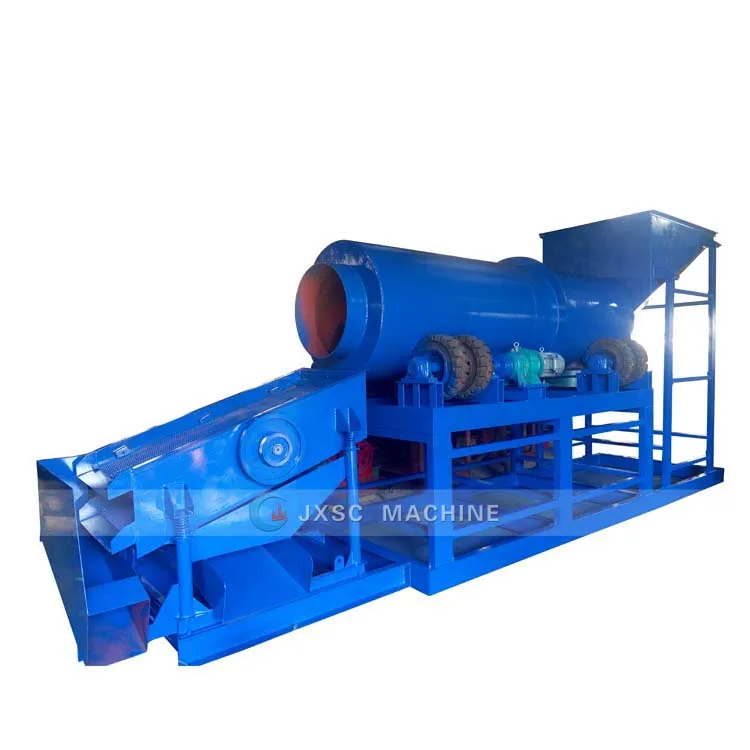

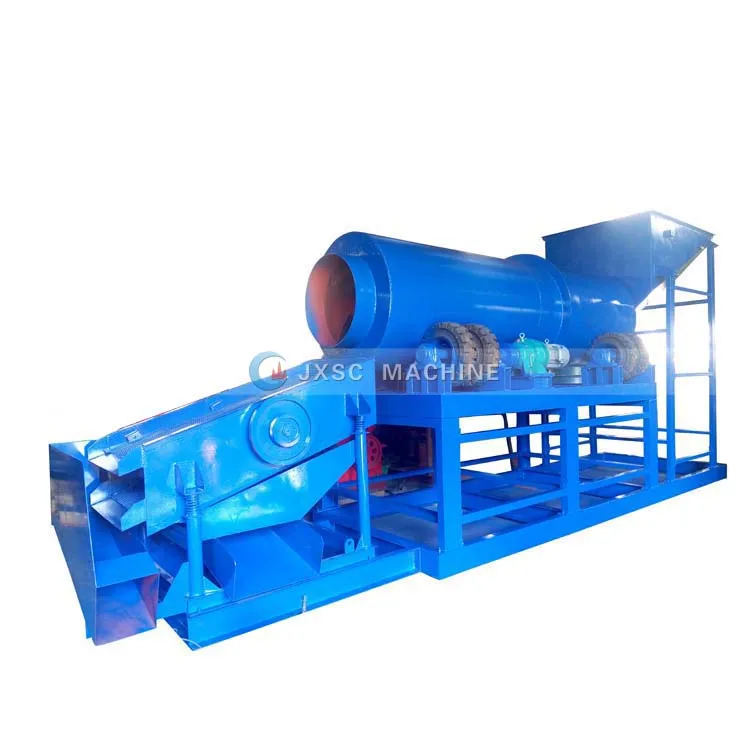

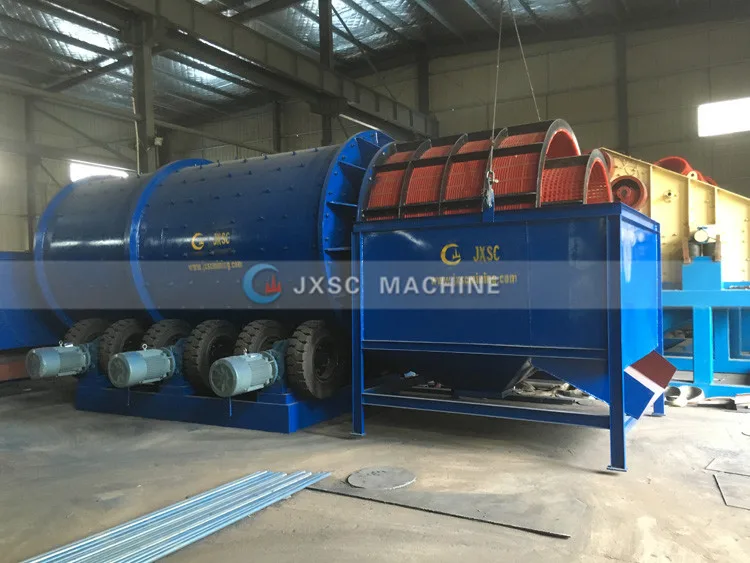

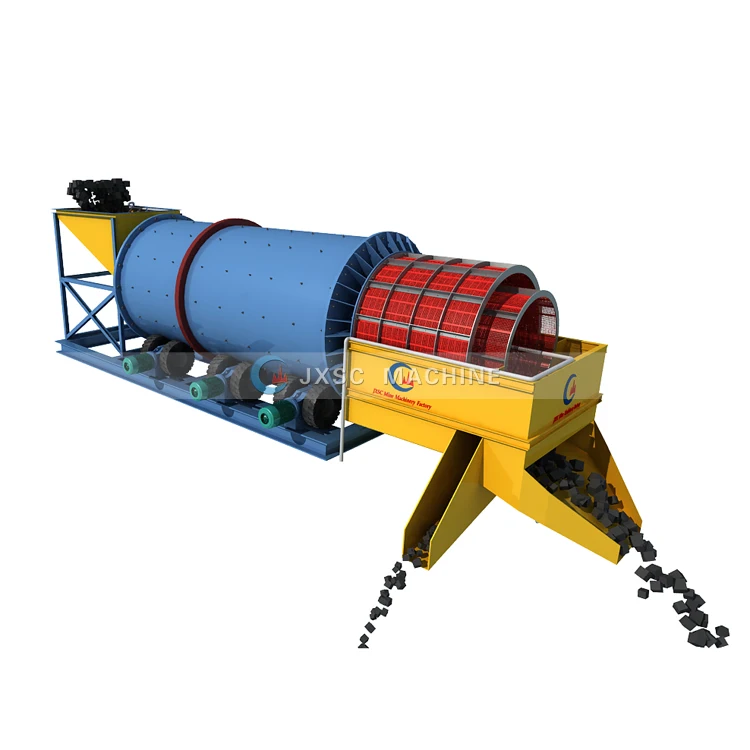

250 TPH Alluvial Silica Sand Washing Scrubber Machine with High Quality

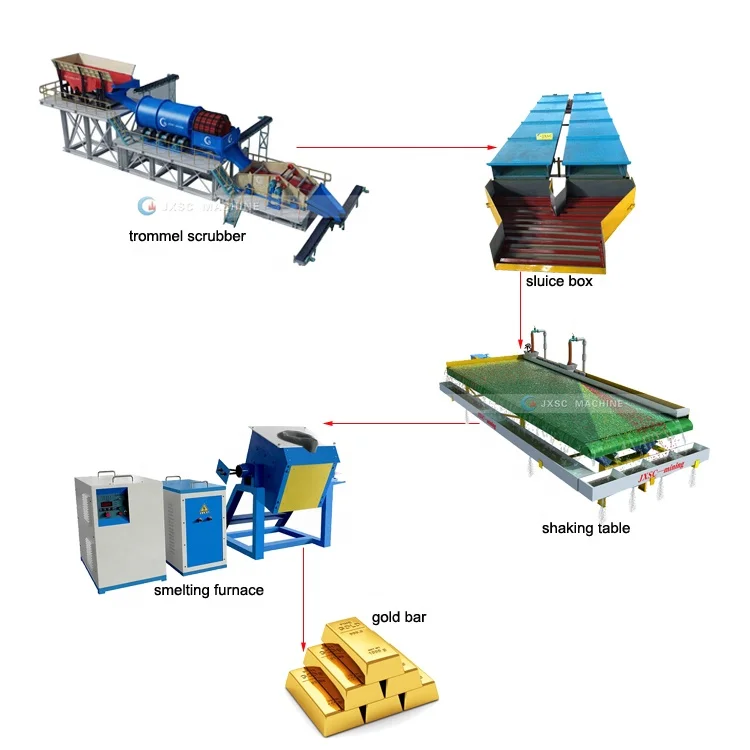

Drum Scrubber Washing Machine is consisted of two parts: one is for washing the clay, another is for sieving different sizes ores. There are 4 carrier rollers to support the drum. The Gold Trommel Washing Machine is working rotary through the gear in the middle of the outside drum. In the washing part, it's a closed space ,there are some plate in this part. When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part. The sieving screen of Gold Trommel Washing Machine will separate different size ores, the ore bigger than screen mesh will go to the discharge hopper, and the small ores will be flow out from screen mesh and go to next machine, such as sluice box, centrifugal concentrator, shaking table ect.

Application of Drum Scrubber Washing Machine

Drum Scrubber Washing Machine Mostly used for washing stick clay material, such as alluvial gold , tin ore, tungsten ore, diamond ore, coltan ore, manganese ore, iron ore, chrome ore, gravel stones, copper ore, zinc lead ore,ect

Features of Drum Scrubber Washing Machine

-Good washing effect for sticky clay material, sieving out different size ores.
- Various Process capacity , can be from 5 T/H to 250T/H as per request
- Low operating cost, easy maintenance, low noise.
-The length &diameter of Gold Trommel drum , inside drum lined material, screen mesh, layer quantity of screen and Screen material can be customized.
-mobile type or stationary type Gold Trommel
-diesel generator or electric motor for Gold Trommel

Main Structure of Drum Scrubber Washing Machine

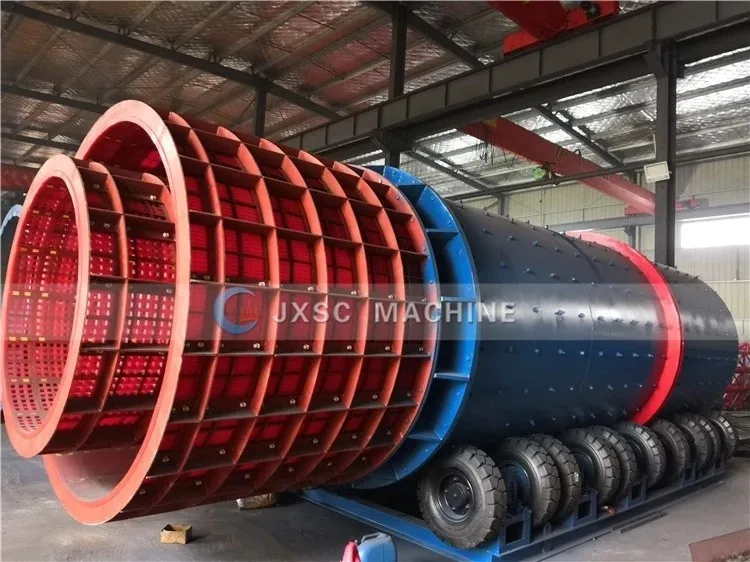

1.Gold Trommel Drum : For washing sticky clay from ore.
2.Inside drum lined plate: for breaking the clay and ores, wash more clean the material, can be rubber lined plate or iron steel plate welded inside drum

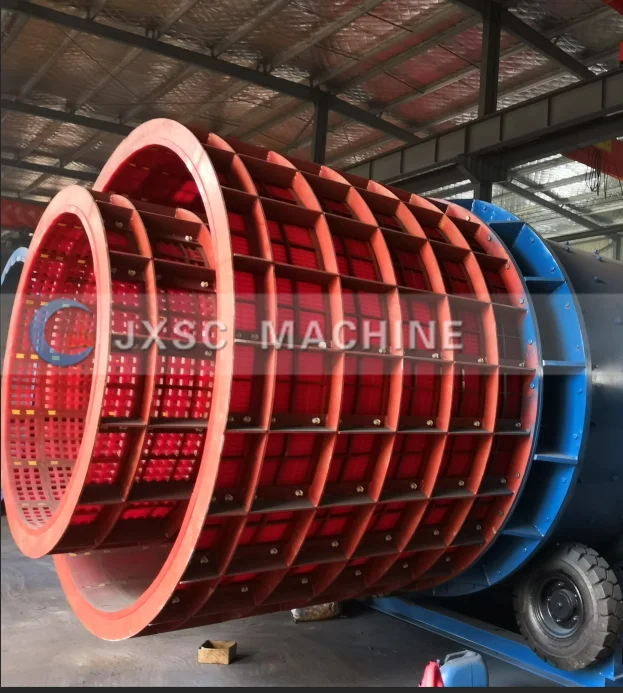

3.Sieving Screen of Gold Trommel Washing Machine : for sieving different sizes ores, the screen mesh size& layer quantity & screen materials can be customized, screen material can be PU , manganese steel or stainless steel. Mostly use PU

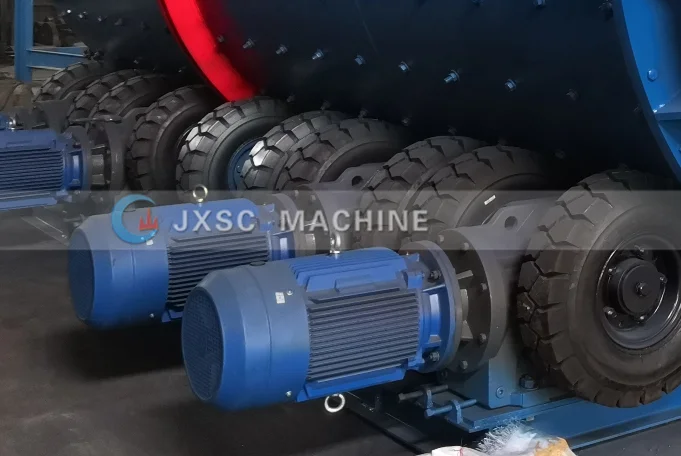

4.Motor: Electric Motor or diesel according to request.

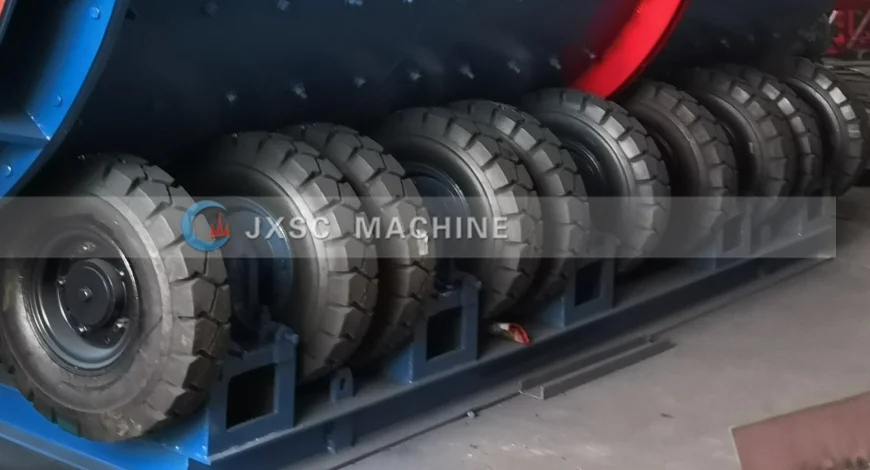

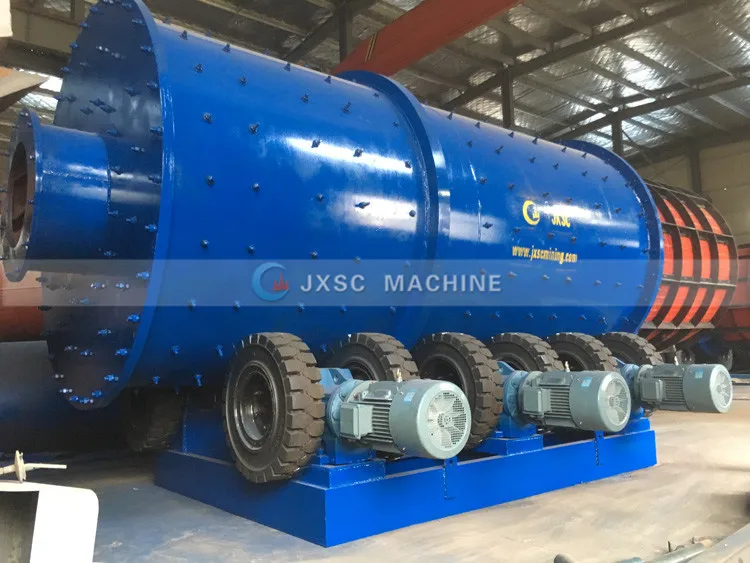

5.Rubber Drying Tyres: For supportting and running the drum.
6.Reducer: works together with motor and bearing for transmission drum rotating.
7.Gold Trommel Base Frame: Supporting the whole trommel scrubber

Advantge of  Drum Scrubber Washing Machine

Specification of Drum Scrubber Washing Machine

All Kinds of Trommel Scruber Designed By JXSC

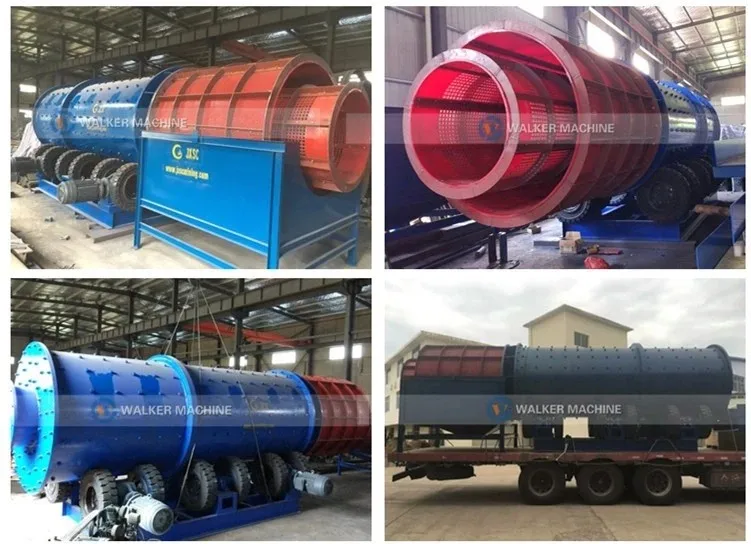

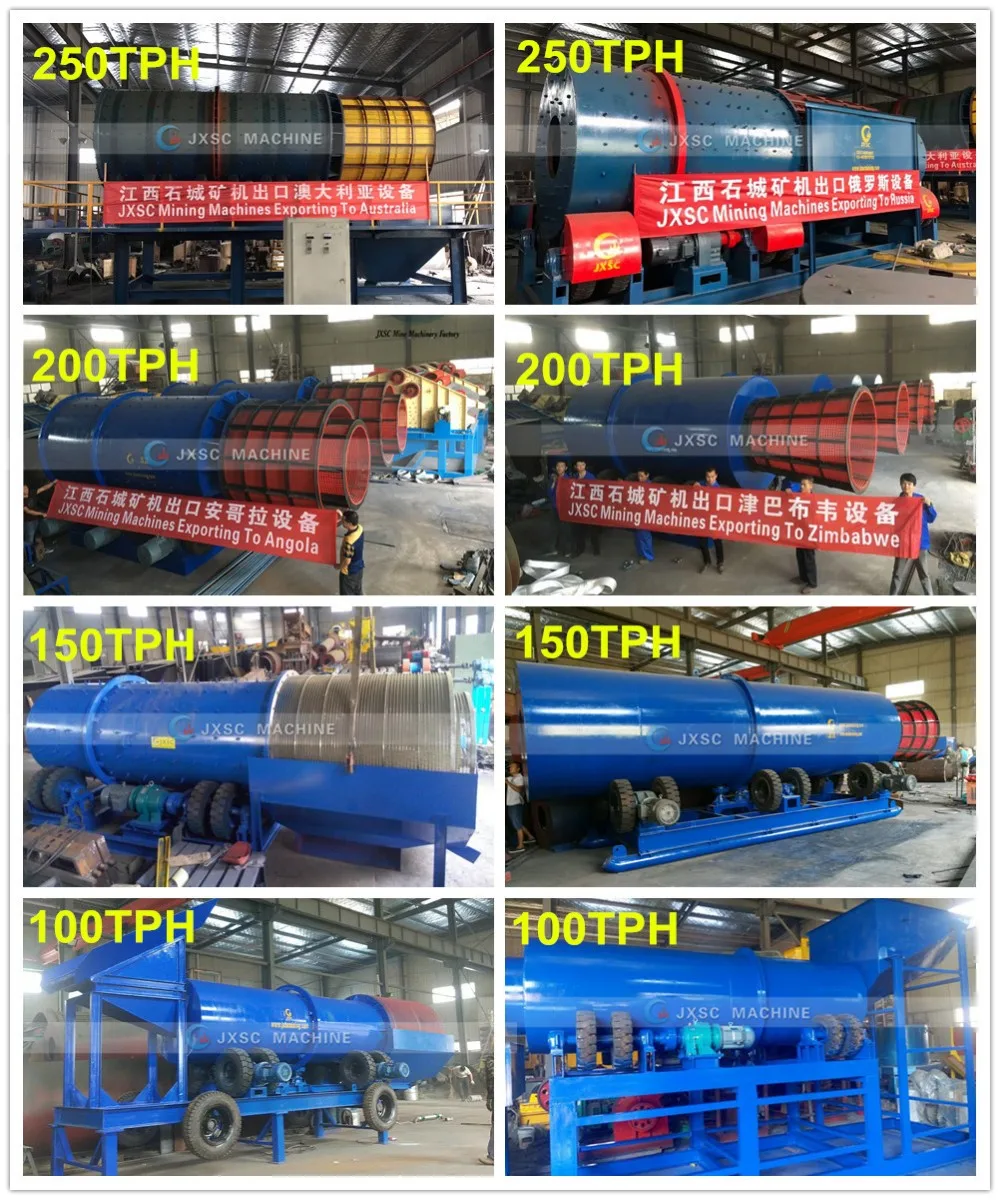

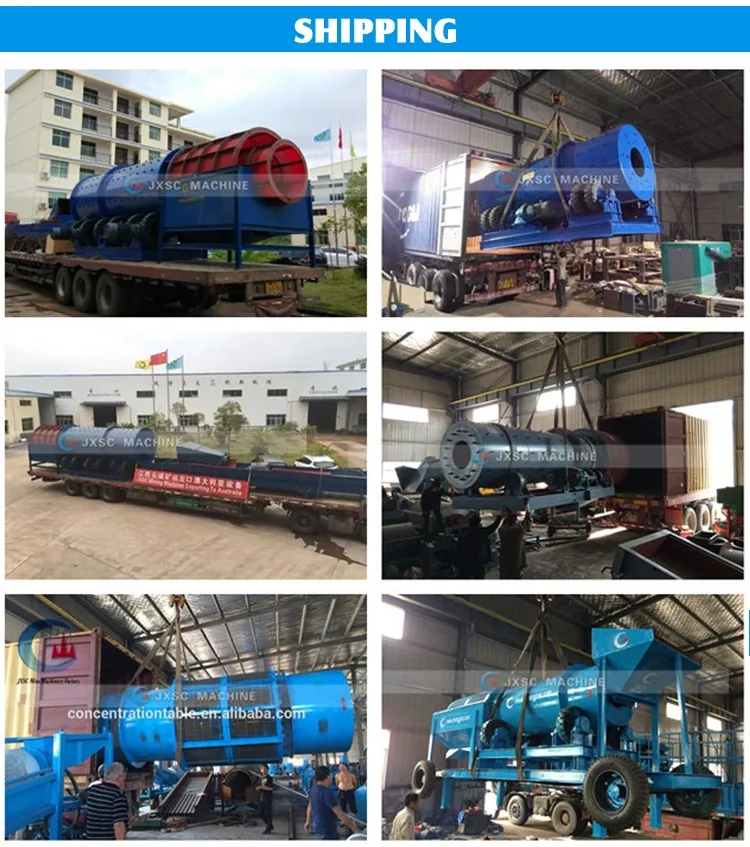

^{Delivery Pictures For Rotary Trommel Scrubber}

JXSC Mining Equipment Manufacturer is an experienced supplier of Gold Mining Equipment including gold wash plant, stone crusher machine, gravity concentration, magnetic separation, feeder equipment, mining laboratory equipment. Our Gold Wash Plant is widely used for gold mining plant among home and abroad, whole alluvial gold production line and gold mining equipment, diamond mining equipment, silica sand mining own a good name in the international market, owing to advanced design compare to top brands like MSI MINING.

Trusted mining equipment manufacturers leader in mineral processing technologies,ISO9001: 2008 and CE certified,providing high quality manufacturing,engineering support & professional mining design since establishing in China in 1985.
JXSC mine machinery factory, is specializing in manufacturing, and uniquely provides complete range of mining equipment, mining accessories for either placer or hard rock mineral types,also,processing and recovery of various metals and minerals: Precious Metals, Precious and Semi-Precious Stones, Base Metals, Ferrous and Non-Ferrous Metals, Noble Metals, Heavy Metals.

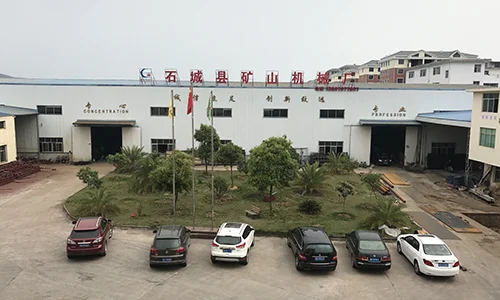

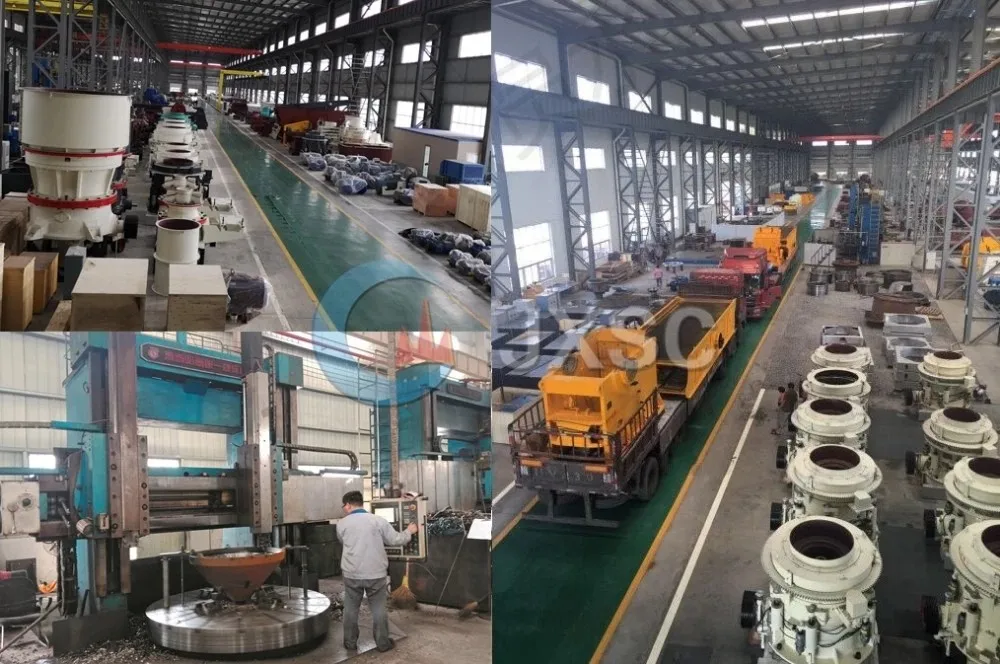

Jiangxi Shicheng Mine Machinery Factory mainly manufactures shaking table, flotation equipment, crushing(powder)equipment, magnetic separation equipment, screening equipment, ore washer classifying equipment, agitation equipment, spiral chute equipment, gravity separation jig, feeding equipment, milling equipment. Also we can custom-manufacture various types of mineral processing machinery and equipment according to our customers' requirements.
JXSC Mine Machinery Facotry products are widely applied for sorting gold, silver, copper, iron, tungsten, lead, zinc, tin, molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile, diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal, precious metals and other minerals.The company has been awarded for many times on both excellent enterprise award , high credibility enterprise award and advanced after-sales service units award. It is the key enterprise of mineral processing machinery among the metallurgical mineral processing machinery industry.
