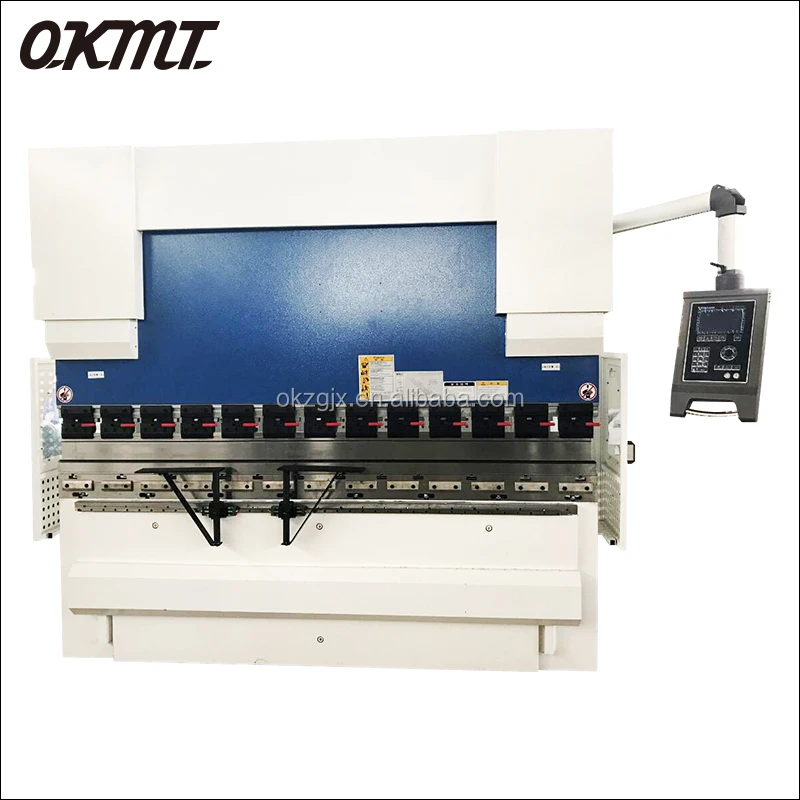

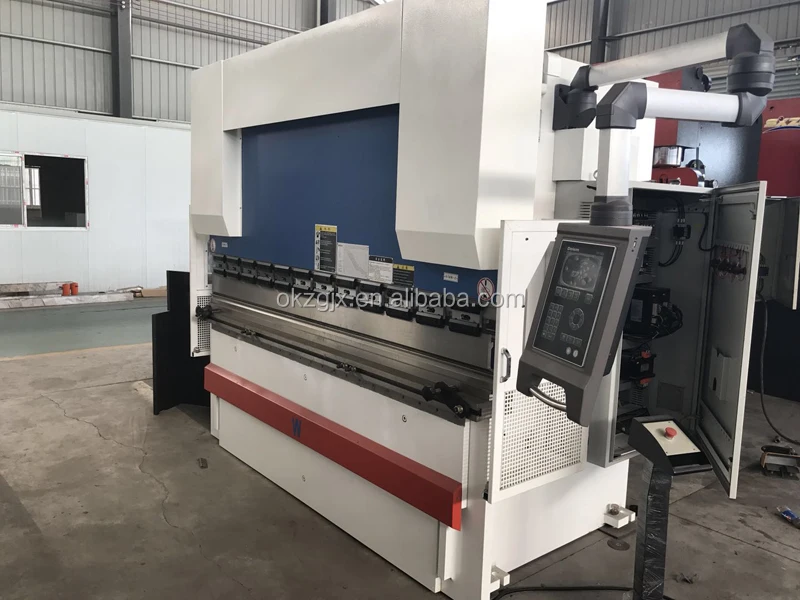

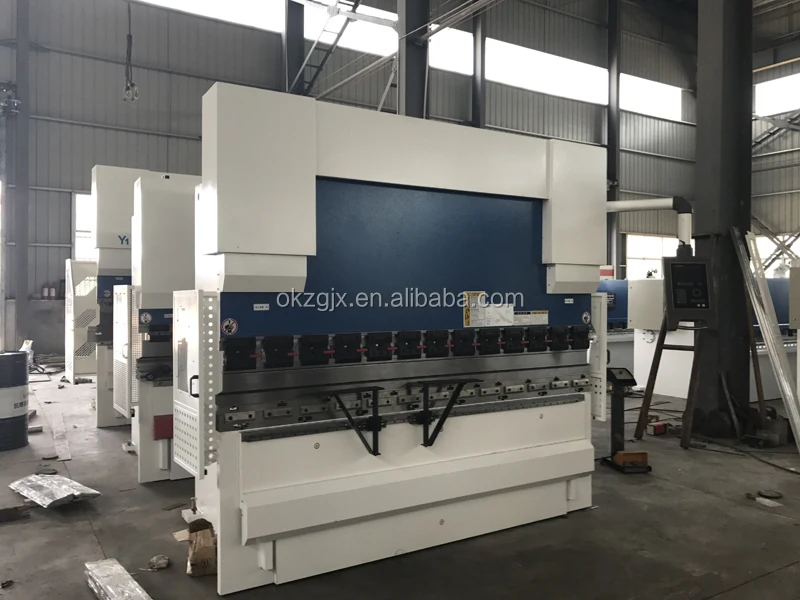

Automatic sheet metal folding , 3200mm plate bending machine

Product Overview

Description



Estun E21 Control System

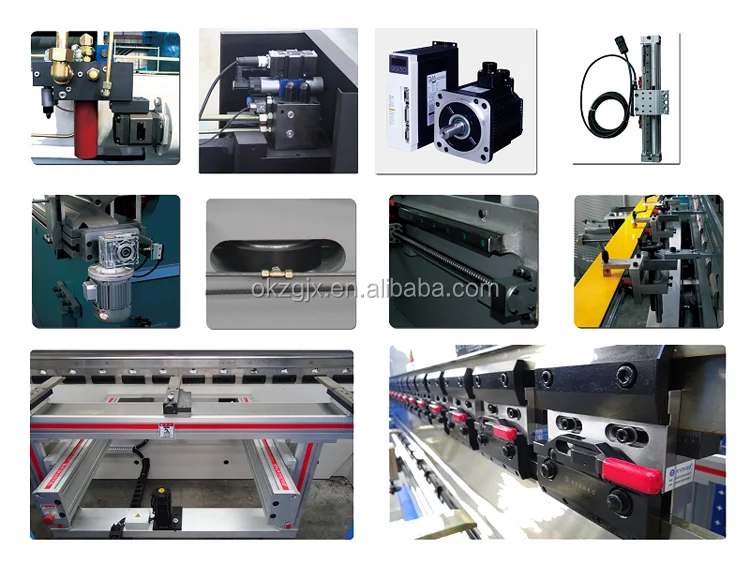

• Estun E21 NC control System

• Powered Depth Y-axis & Back gauge X-axis

• DELTA Inverter controlled back gauge

• HIWIN Ball screws & Polished rod with 0,05 mm accuracy.

• Plate Support Arms

• Germany Bosch-Rexroth Hydraulic

• Germany EMB Tubing connector

• Germany Siemens Main Motor

• Telemecanique/Schneider Electrics

• Hydraulic & Electrical overload protection

• Top and Bottom Tooling(86°,R0.6mm)

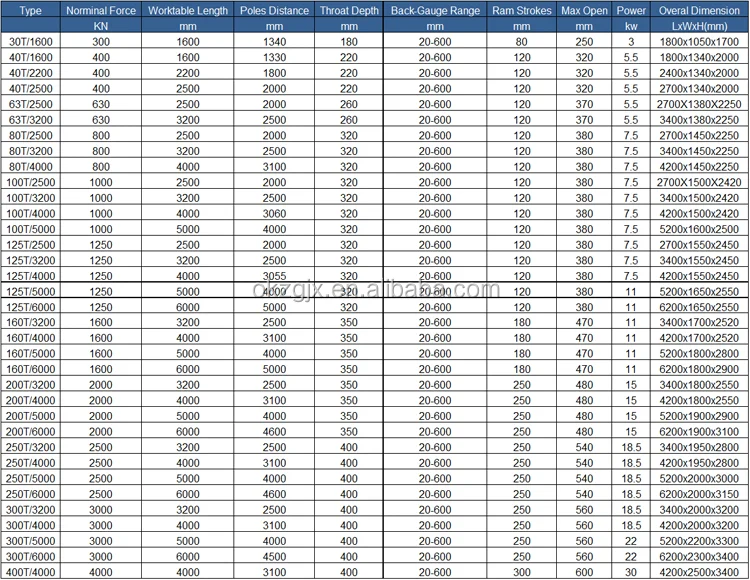

• WC67Y machine model is adopted for mainfram, fitted with digital display system.
• The machine is provided digital display for the positions of rear stopper and gliding block ,as well as prompting function for soft limit of X/Y shaft and one-way positioning clearance.
• Rear stopper and upper gliding block are both fitted with coders,for a more accurate display for positions of rear stopper and upper gliding block in cooperation with digital display system , thus to further increase the operating precision of this machine.
