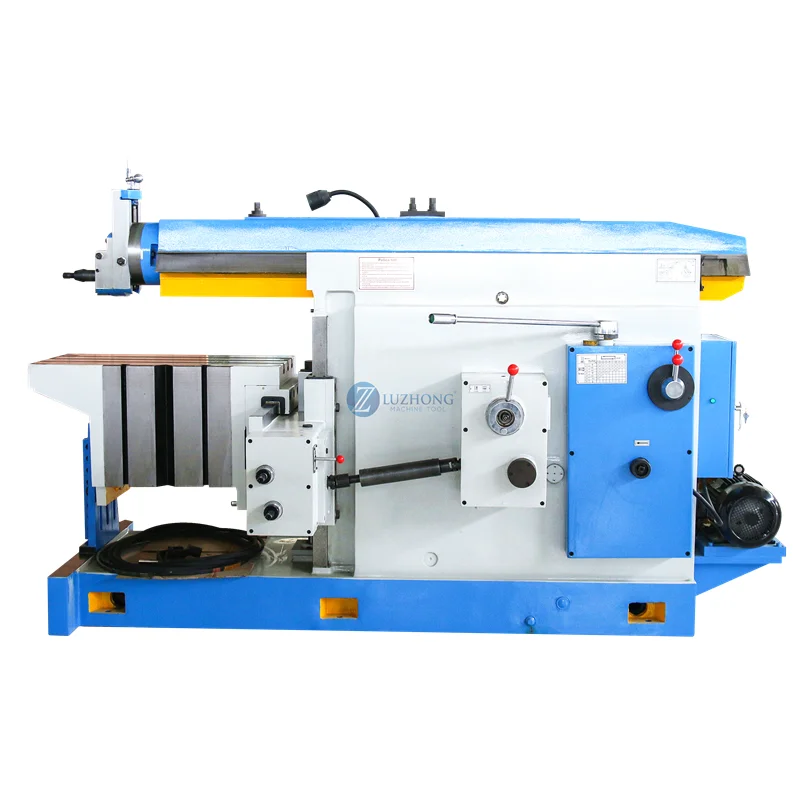

Shaper Cutter Machine BC6085 BC60100 Product main features: 1 Optimize the principle of design, the machine is beautiful, easy to operate. 2 The vertical and horizontal guide rail is used for rectangular guide and the stability is better. 3 The use of advanced ultra - frequency quenching process, so that the machine's life longer. 4. It is suitable for cutting all kinds of small parts of the plane, T type groove and forming surface, can be used for single or mass production.
Product main technical specification:
Specification
Units
BC60100
Maximum shaping length
mm
1000
Maximum moving distance of the working table(level)
mm
800
Maximum distance from ram bottom to table surface
mm
400
Maximum moving distance of the working table (vertical)
mm
380
Table size (L*W)
mm
1000×500
Maximum tool carrier travel
mm
160
Tool carrier rotary angle
°
±60°
Maximum size of tool planer(W*T)
mm
30×45
Number of ram reciprocating per minute
15,20,29,42,58,83
Feeding range of horizontal travel(10steps)
mm
0.3~3
Feeding range of vertical travel(10steps)
mm
0.15~0.5
Speed of rapid travel horizontal table
mm
3
Speed of rapid travel vertical table
mm/min
0.5
T-slots width
mm
22
Main motor power
kw
7.50
Overall dimensions (L*W*H)
mm
3640×1575×1780
N/G.W
kg
4870/5150

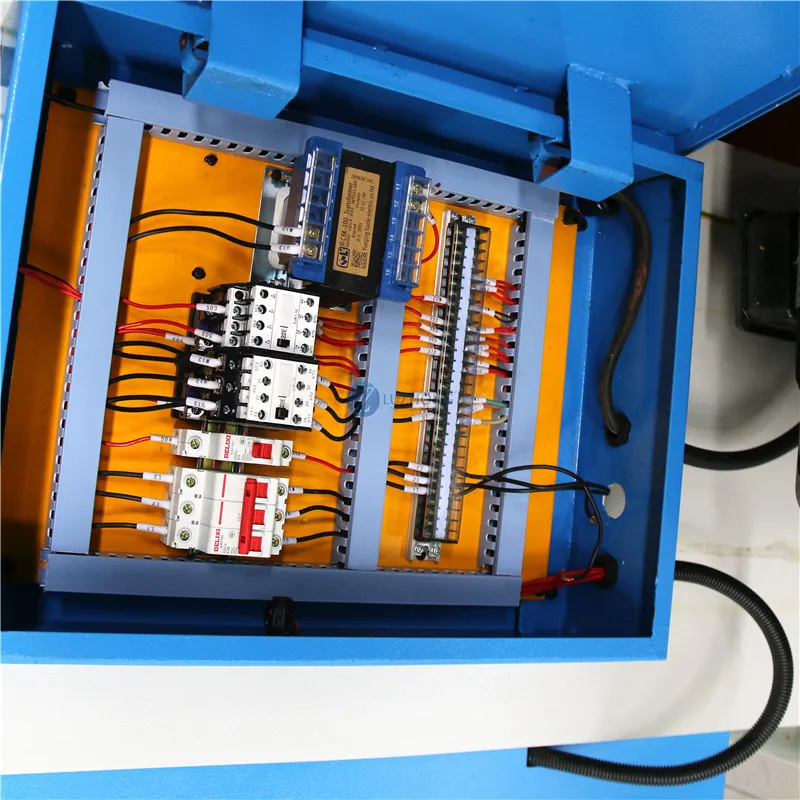

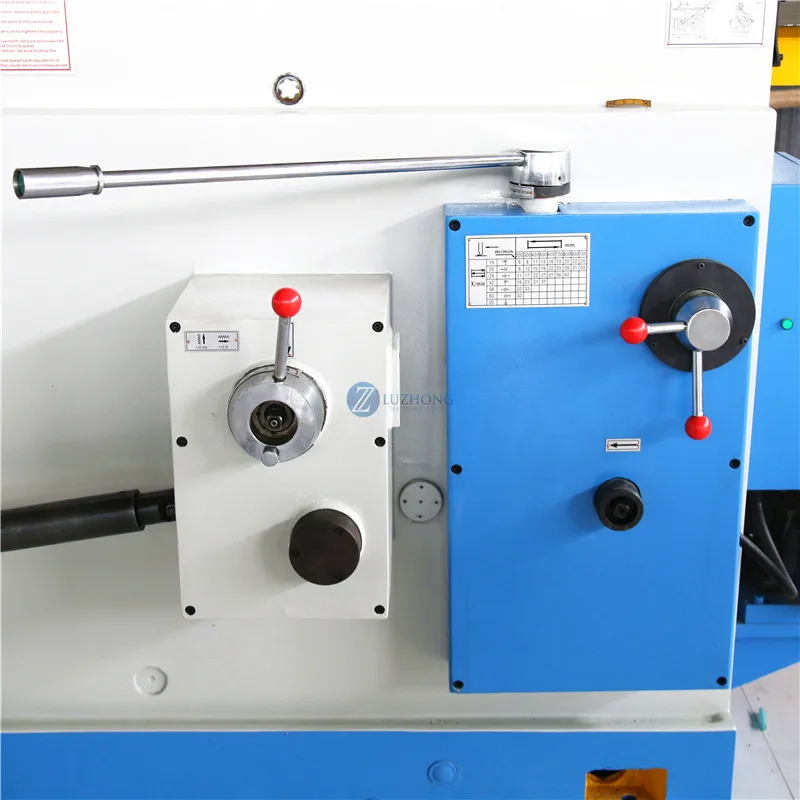

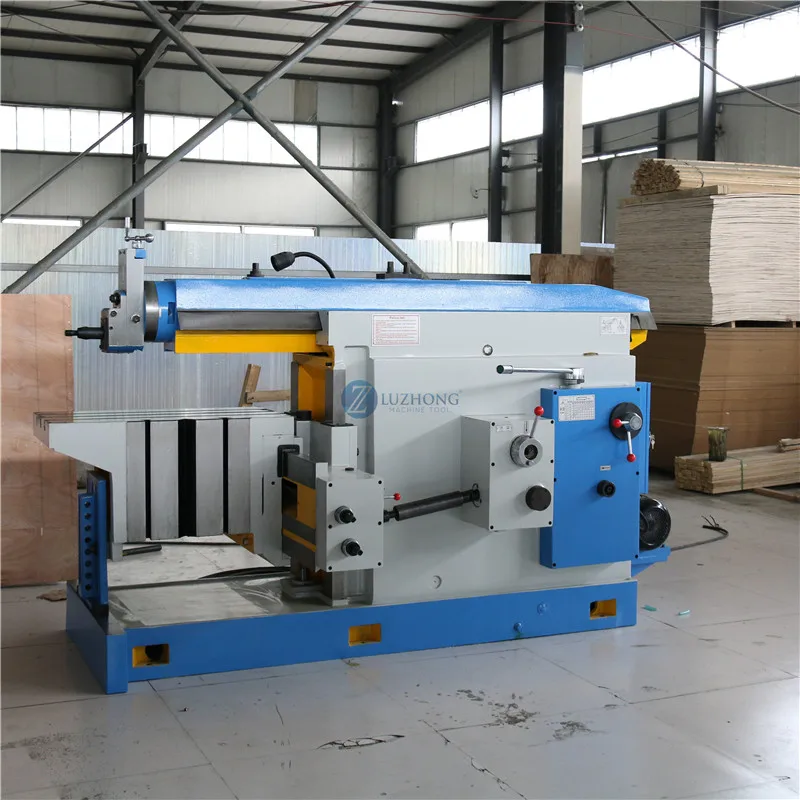

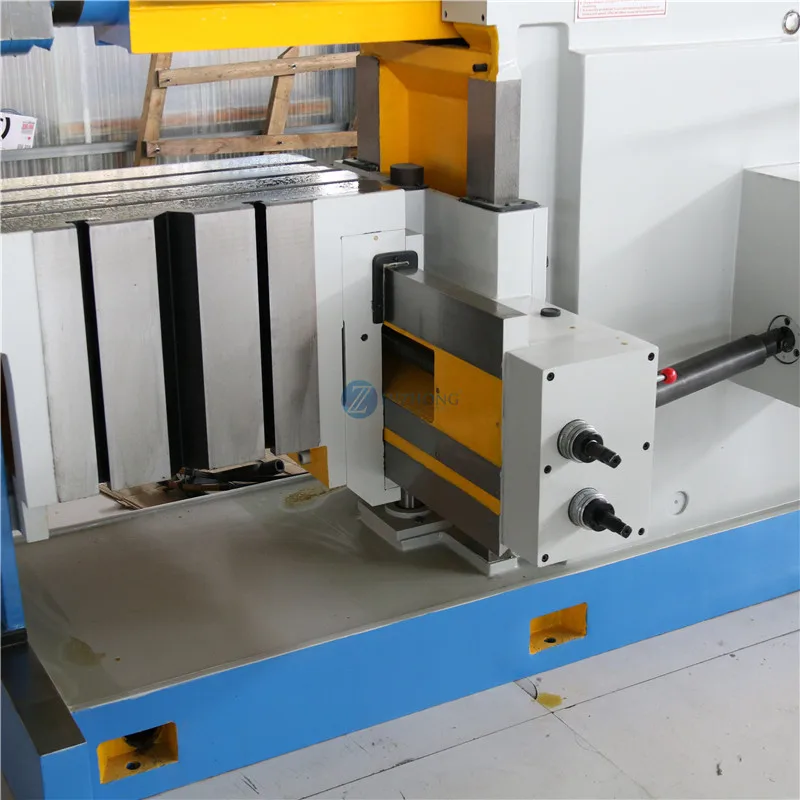

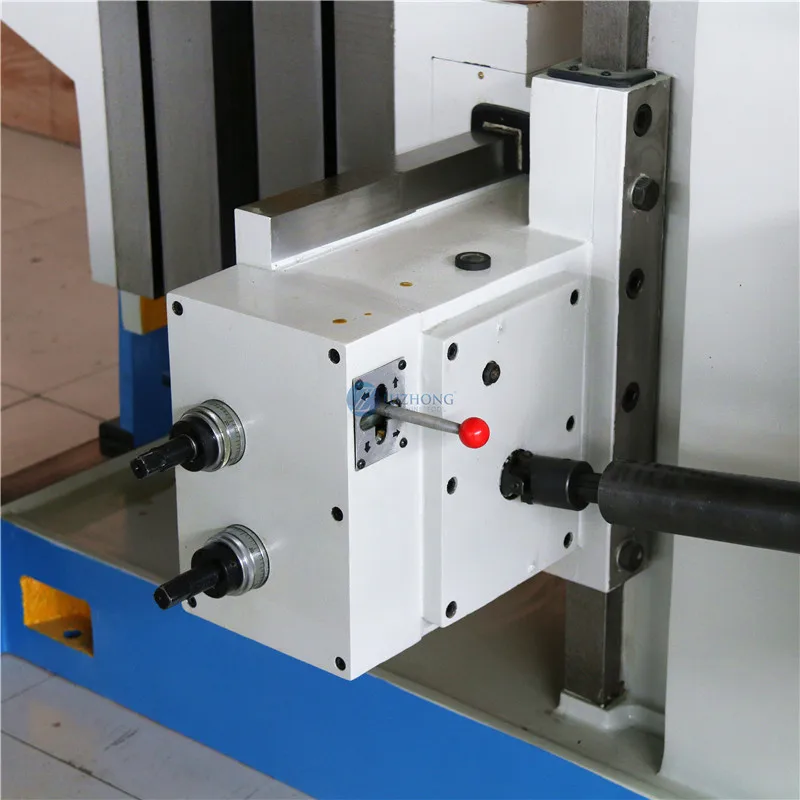

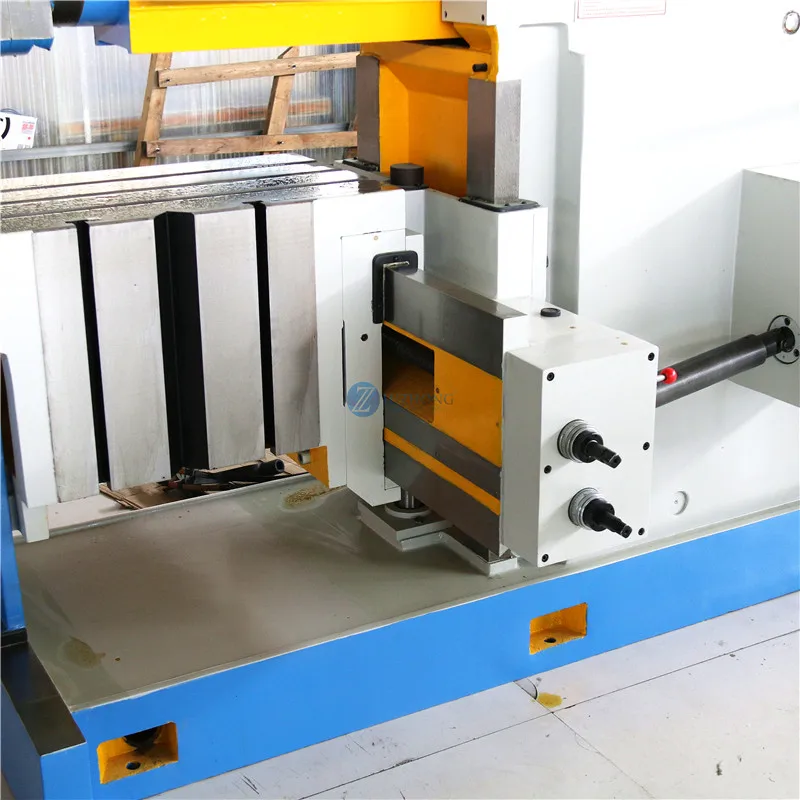

Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company? A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there? A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms? A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
5: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set )
