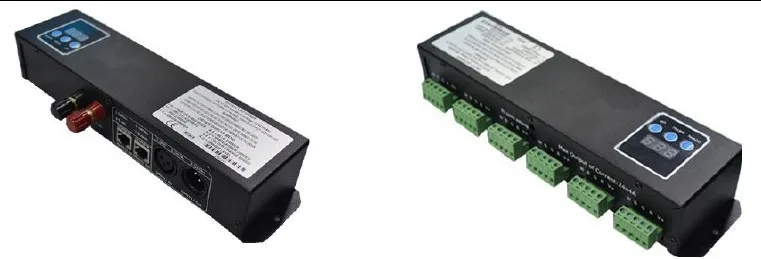

Wireless DMX/Sound DMX 24CH DMX Controller/Decoder 3years warranty
- Category: >>>
- Supplier: Shenzhen Luxgreen Plc
Share on (60398935759):
Product Overview
Description

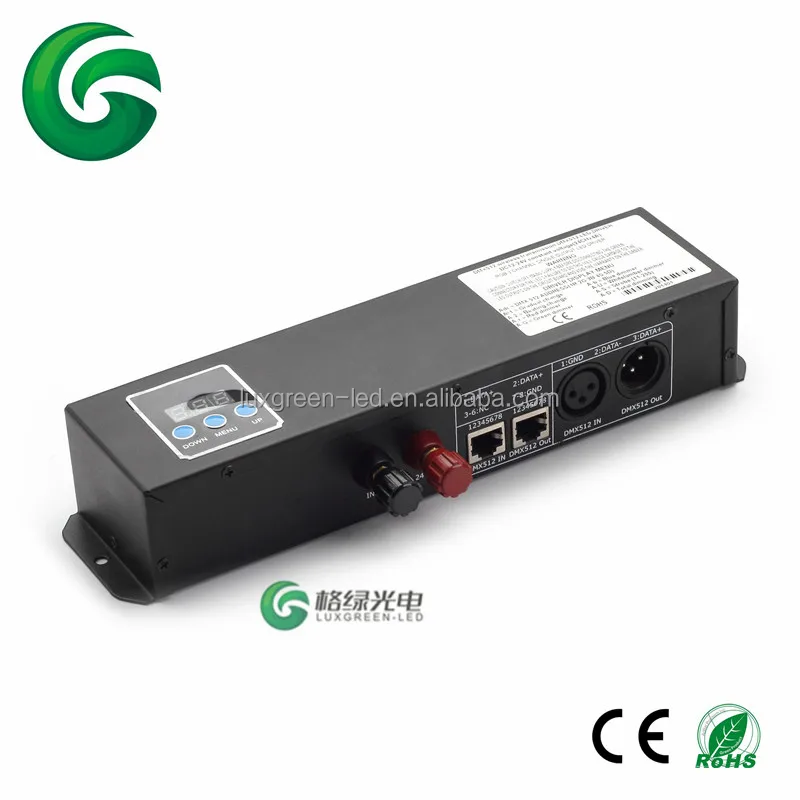

24V DC Wireless DMX/Sound DMX 24CH DMX Controller/Decoder 3years warranty
Parameters:
| Item No | LUG-DMXTCON- | |
Input | 12-24V DC | |
Output | 12/24V DC | |
Output | Each circuit | |
| / | ||
Load output | 12V:<864W, | |
| Control Way | DMX512 | |

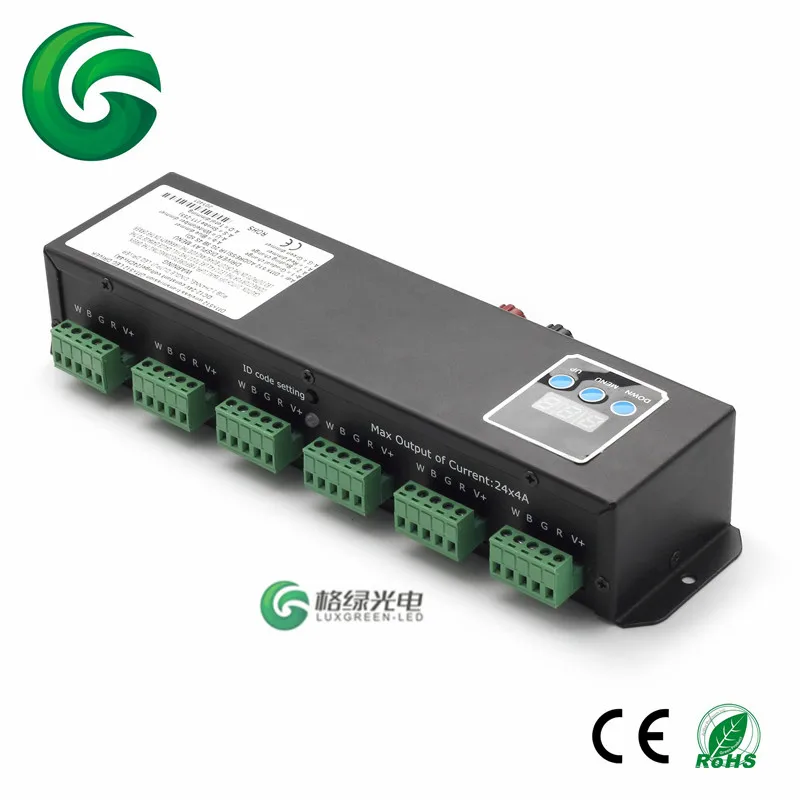

Load output | 6X4CH (RGBW) | |

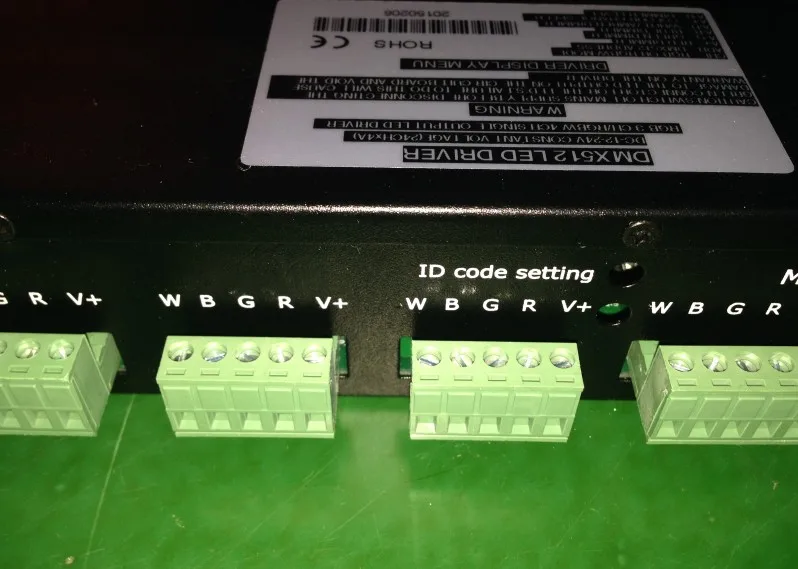

| DMX-control channels | 4CH (1R 2G 3B 4W) | |
| Size(MM) | 280*90*60 |
Summarization
The decoder adopt the advanced micro-computer control technology and converted the DMX512 digital
signal widely used in international to the analog control signal. 1~24 channels output for option and each
channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital
light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.
Technical Parameters
Working temperature: 0-70C
Decode channel: 24 channel
Supply voltage: DC, +12-24V

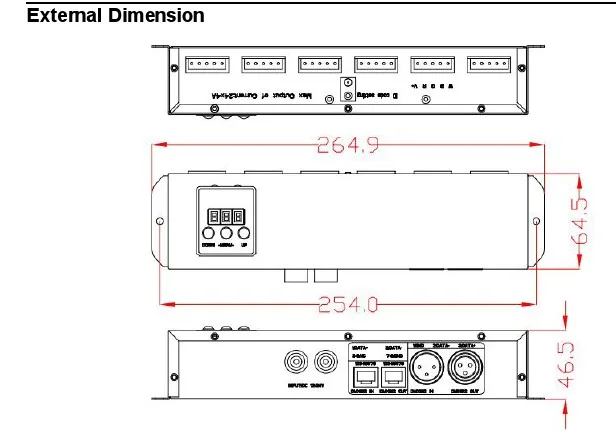

External dimension:L265*W65*H47 mm
Packing size:L280*W90*H60 mm
Net weight: 0.9kg
Gross weight: 1kg
Power consumption: <8W

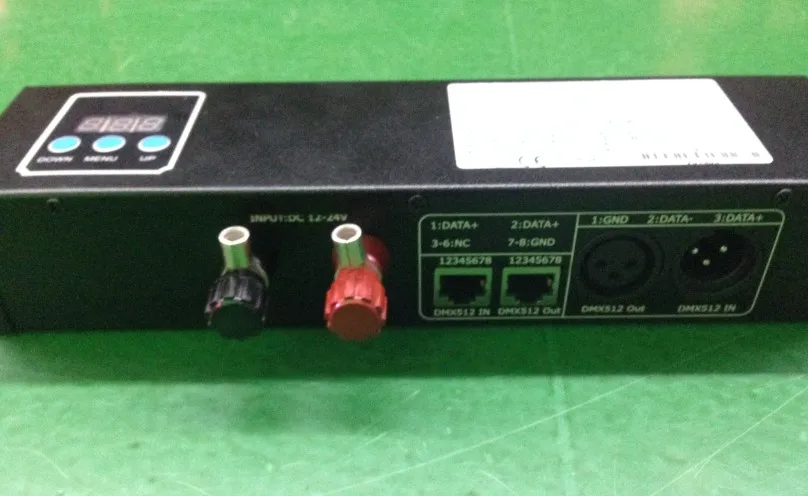

Signal input: DMX-512 Standard digital signal

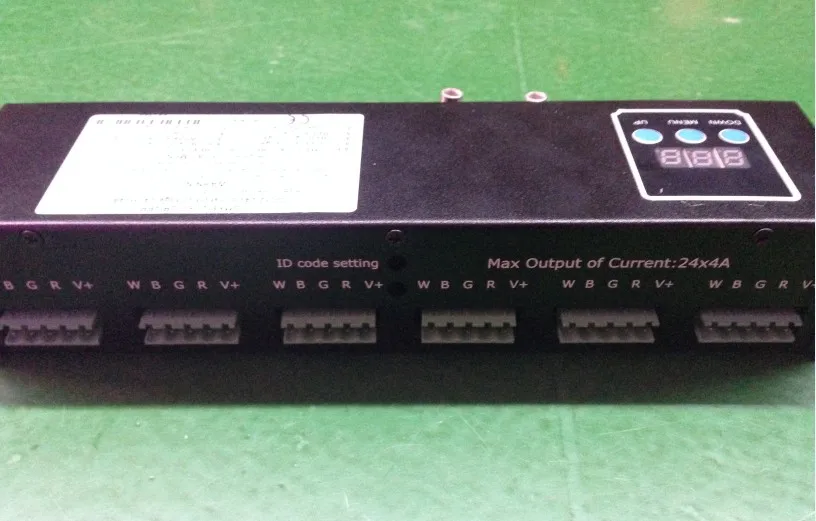

Signal output: 0-24V, Max. 4A /CH
Power output: 12V:<1152W, 24V:<2304W
DMX512 wireless signal transmission and reception
The function can be selected:
Product Profile:

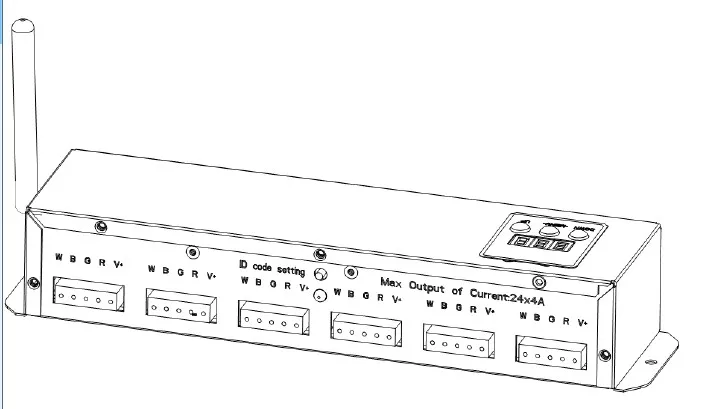

DMX512 wireless receiver / transmitter LED controller is to transmit standard DMX512
protocol data by wireless way, which solve lighting control issues of wireless transmitting
completely between console and lighting, lighting and lighting and so on, It get rid of connecting
cable limited completely
And also can ensure without any time delay when signal data is transmitting, signal data is real
time and reliably.
This product adopt global opening 2.4G ISM frequency section without permission limited
High effective GFSK modulate, communication design is 126 channels jumping frenquecy, high
anti-jamming ability.
Feature:
1. Product model: 2.4G DMX512 wireless receiver/transmitter
2. 126 channels jumping frequency self-moving,self-moving to option non-interfere frequency
section, ensuring communication is reliable.
3. Communication distance:400M(visible distance)
4. Working frequency:2.4G ISM,126 channels
5. Max transmitting power rate:20dBm
Receive sensitive:-94dBm
DMX512 wireless signal transmission and reception
The function can be selected:
Product Profile:
DMX512 wireless receiver / transmitter LED controller is to transmit standard DMX512
protocol data by wireless way, which solve lighting control issues of wireless transmitting
completely between console and lighting, lighting and lighting and so on, It get rid of connecting
cable limited completely
And also can ensure without any time delay when signal data is transmitting, signal data is real
time and reliably.
This product adopt global opening 2.4G ISM frequency section without permission limited
High effective GFSK modulate, communication design is 126 channels jumping frenquecy, high
anti-jamming ability.
Feature:
1. Product model: 2.4G DMX512 wireless receiver/transmitter
2. 126 channels jumping frequency self-moving,self-moving to option non-interfere frequency
section, ensuring communication is reliable.
3. Communication distance:400M(visible distance)
4. Working frequency:2.4G ISM,126 channels
5. Max transmitting power rate:20dBm
Receive sensitive:-94dBm
