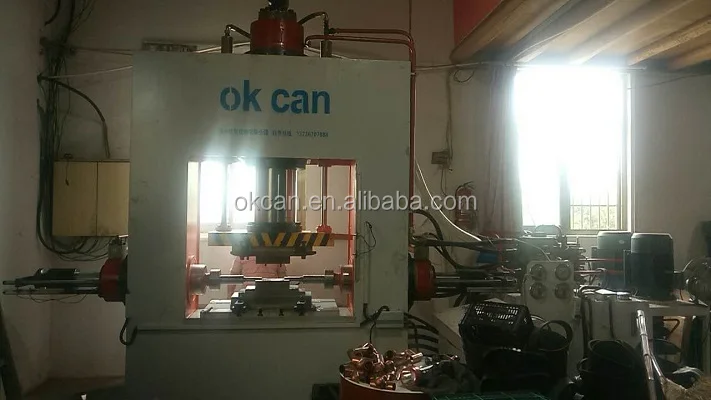

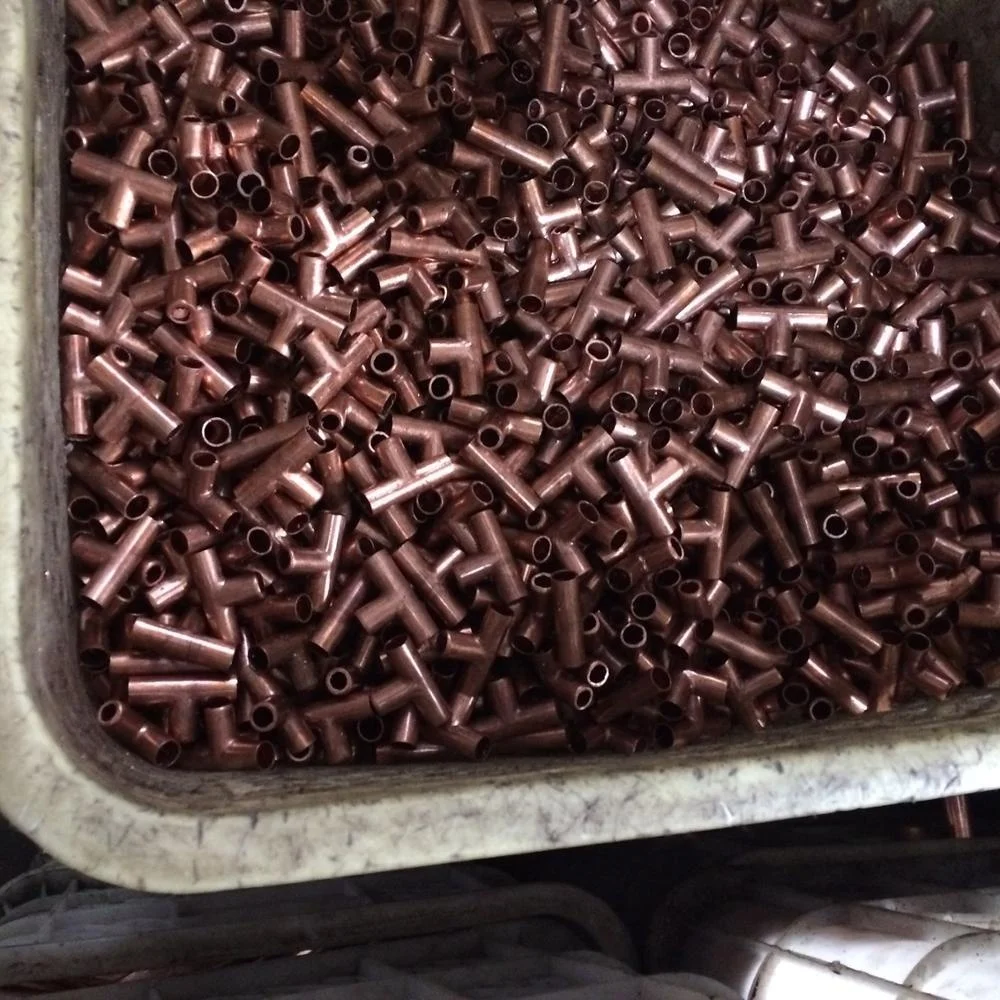

The machine extrusion medium is with water,instead of traditional lead extruding,no environmental pollution.Reasonable mechanical structure, strong rigidity,master cylinder clamping force is big,more fitting extrusion can effectively guarantee the stability of the pipe forming.The use of advanced internal high pressure forming technology,through industrial programmable controller for the pressure in the process of extrusion and speed for dynamic control,in order to realize the optimization of extrusion forming,ensure the shape stability of the product. Can be out of shape Y and T.
Machine modle
YCT-120
YCT-160
YCT-250
YCT-350
Clamping force of master cylinder (KN)
1200
1600
2500
3500
Extrusion force(KN)
400
500
800
1500
Max Hydraulic pressure
20Mpa
20Mpa
20Mpa
20Mpa
Max water pressure
150Mpa
150Mpa
150Mpa
150Mpa
Processing range (mm)
∅ 18
∅ 28
∅ 70.5
∅ 110
Working efficiency
10-15 seconds/cycle
10-15 seconds/cycle
10-18 seconds/cycle
10-20
seconds/cycle
Machine weight
Our Services
we can offer FOB ,C&F,CIF terms of quotation. our quality guarantee period for one year for free and offer life-span cost repairment .
Company Information
our factory is located in Pingyang ,Wenzhou City.established in 2000 ,and upgraded to limited company in 2013. we have powerful research and development ability and a group of skilled workers.so , we have many series of hydraulic press machine :smc /bmc composite plastic manhole cover machine ,copper pipefitting production line,hot die forging hydraulic machine,stainless steel and carbon steel pipefitting production line ,steel door skin embossing press ,metal sheet deep drawing machine ,smc hot press machine ,abs/pc and eva luggage production line , eva and metal eyeglasses case case production line,etc
