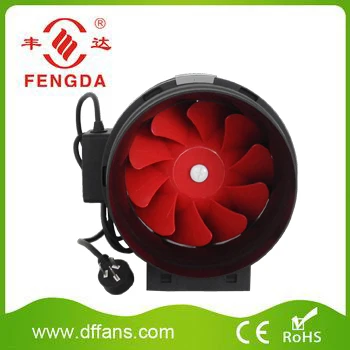

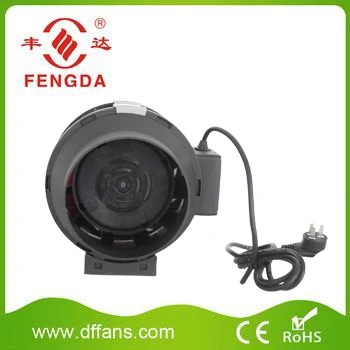

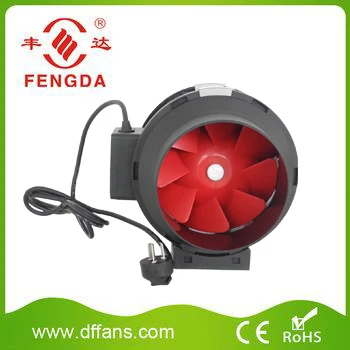

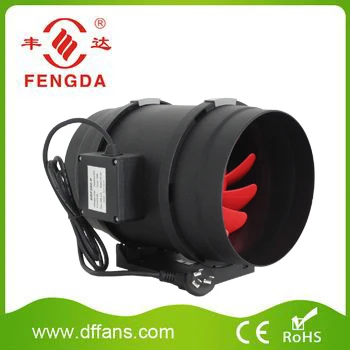

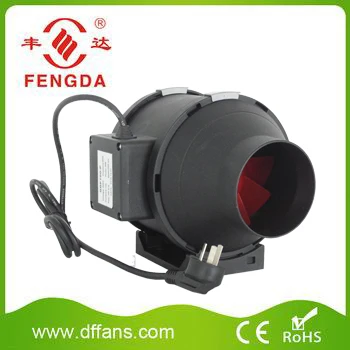

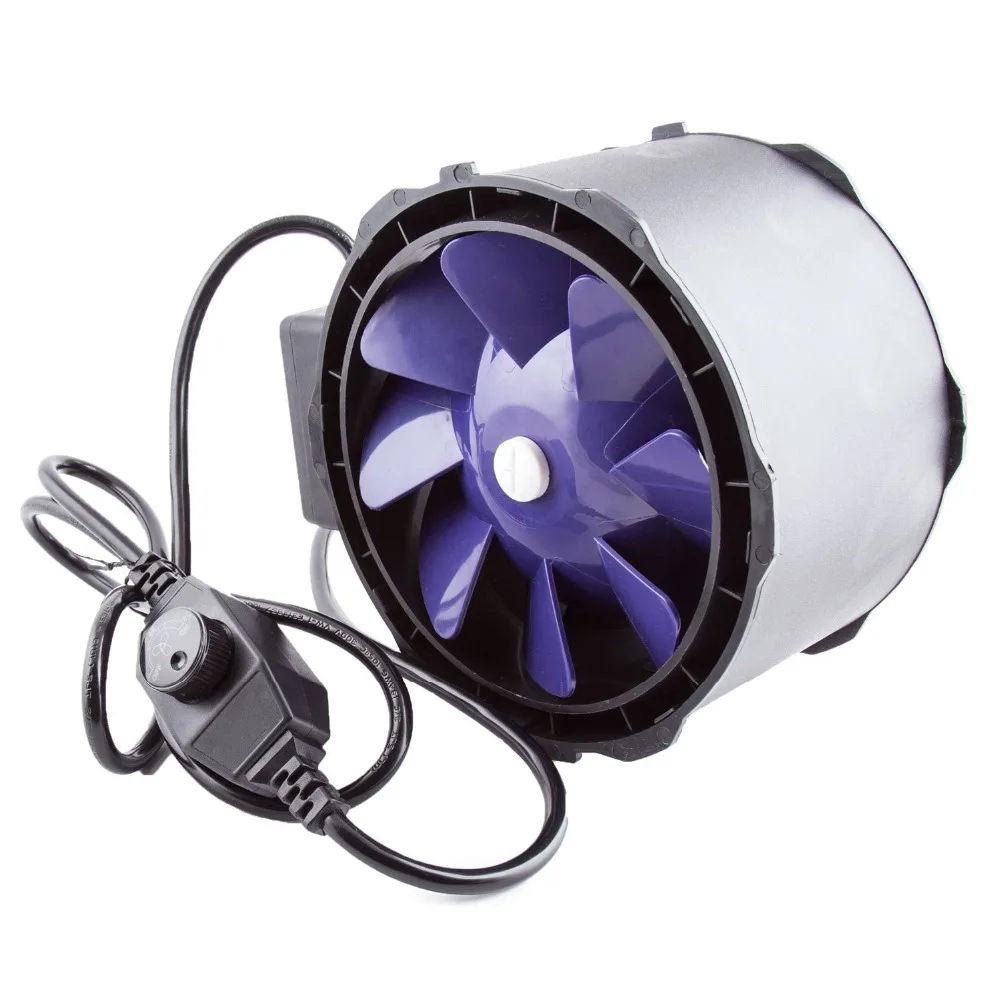

FENGDA ETL approved 4 inch Black Plastic Case Mixed Flow Fan inline duct Exhaust fan with speed controller for hydroponics
- Category: Centrifugal Fans >>>
- Supplier: Taizhou Defeng Mechanical And Electrical Co. Ltd.
Share on (60408995594):
Product Overview
Description
4 inch ac inline duct fan inline ventilation fan silent for speed controller
* EFFECTIVE VENTILATION: Powerful blower with a fan speed of 2400 RPM for an air flow of 188 CFM. Moves air through your target location efficiently for optimal ventilation
* LOW NOISE LEVEL: Durable plastic fan housing and blades for extremely low noise(<31 dB); Variable speed controller for easy fan speed adjustment.

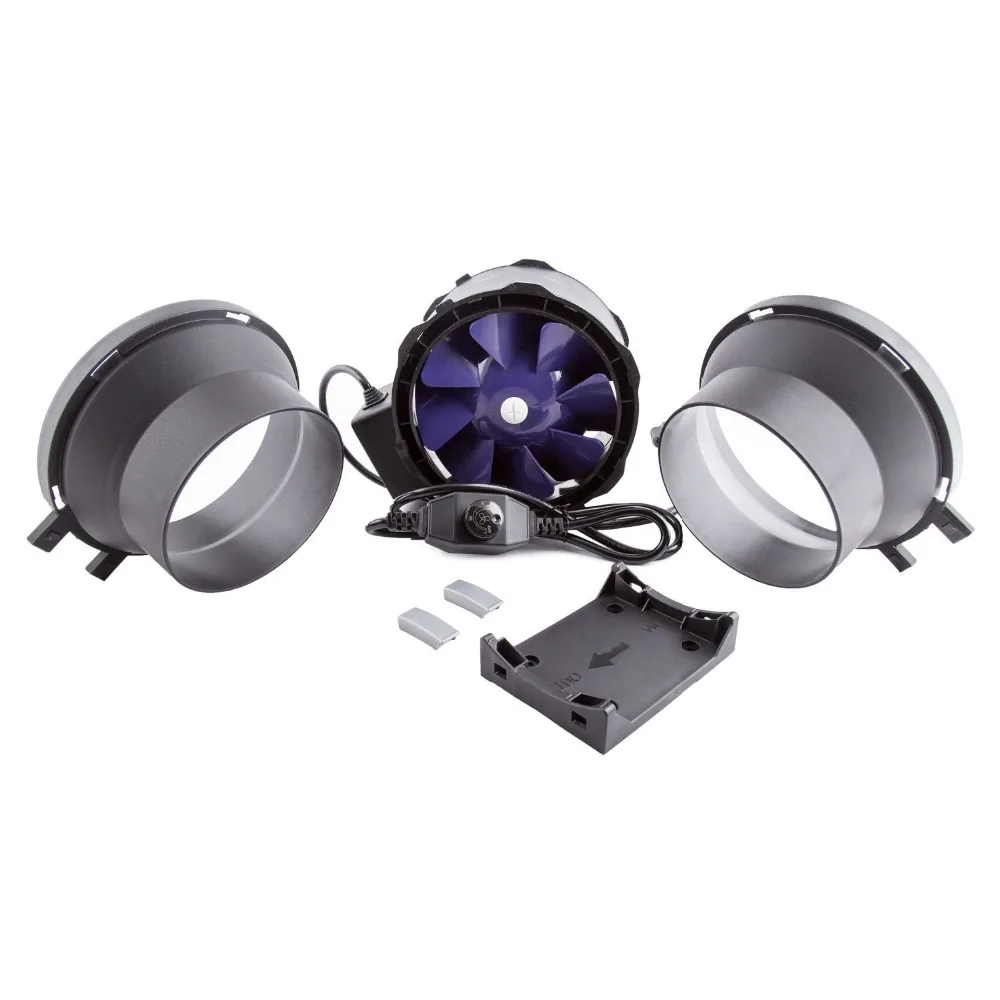

* EASY INSTALLATION: Removable duct ends with locking tabs for quick removal and easy maintenance and a cord length of 5.9 feet for hassle free setup.
* VERSATILE APPLICATIONS: Suitable for industrial, household and horticulture ventilation applications for air clean and
temperature control.
* NOTE: Comes with an installation bracket indicating the direction of the airflow. Max Ambient Temp is 104℉ / 40℃
* LOW NOISE LEVEL: Durable plastic fan housing and blades for extremely low noise(<31 dB); Variable speed controller for easy fan speed adjustment.
* EASY INSTALLATION: Removable duct ends with locking tabs for quick removal and easy maintenance and a cord length of 5.9 feet for hassle free setup.
* VERSATILE APPLICATIONS: Suitable for industrial, household and horticulture ventilation applications for air clean and
temperature control.
* NOTE: Comes with an installation bracket indicating the direction of the airflow. Max Ambient Temp is 104℉ / 40℃
* Balanced blades are ideal for boosting air supply and venting exhaust air.
* Motor features a permanently lubricated bearing that operates quietly and requires no maintenance.
* Solve air delivery problems without major system rework or expense.
* Can be installed in any location, such as greenhouses, tents, etc.
* Motor features a permanently lubricated bearing that operates quietly and requires no maintenance.
* Solve air delivery problems without major system rework or expense.
* Can be installed in any location, such as greenhouses, tents, etc.
* Diameter: 4 inch
* Power Supply: 110/120 V
* Power: 60 W
* Current: 0.8 A
* Speed: 2400 RPM
* Air Flow: 188CFM
* Noise Level <31 dB
* Max Ambient Temp is 110℉ / 45℃.
* Power Supply: 110/120 V
* Power: 60 W
* Current: 0.8 A
* Speed: 2400 RPM
* Air Flow: 188CFM
* Noise Level <31 dB
* Max Ambient Temp is 110℉ / 45℃.
Used as intake fan to bring fresh air into grow rooms; Also used as exhaust fan in setups with LEDs or Lights .
Used to extract odors from grow tents and powerful enough to pull air through carbon filters. When using this unit with a filter,attach the fan as close to the filter as possible.
Four different installation methods for you to choose the better one in your green house.
Company Profie
Specification
Model | Voltage | Power | Current | Airflow | Speed |
GDFP100 | 120V/60Hz | 60W | 0.85A | 188CFM | 2400RPM |
GDFP125 | 120V/60Hz | 60W | 0.85A | 205CFM | 2400RPM |
GDFP150 | 120V/60Hz | 70W | 0.58A | 395CFM | 2400RPM |
GDFP200 | 120V/60Hz | 190W | 1.59A | 735CFM | 2450RPM |
GDFP250 | 120V/60Hz | 219W | 1.82A | 1088CFM | 2481RPM |
Model | Voltage | Power | Current | Airflow | Speed |
GDFP100 | 220V/50Hz | 50W | 0.4A | 322m3/h | 2350rpm |
GDFP125 | 220V/50Hz | 50W | 0.40A | 358m3/h | 2350rpm |
GDFP150 | 220V/50Hz | 62W | 0.49A | 660m3/h | 2400rpm |
GDFP160 | 220V/50Hz | 62W | 0.49A | 700m3/h | 2400rpm |
GDFP200 | 220V/50Hz | 132W | 0.61A | 900m3/h | 2310rpm |
GDFP250 | 220V/50Hz | 175W | 0.68A | 1600m3/h | 2350rpm |
GDFP315 | 220V/50Hz | 280W | 0.97A | 2500m3/h | 2350rpm |
Packing & Delivery
Model | G.W (KGS) | N.W (KGS) | Carton Size |
GDFP100 | 2 | 1.7 | 31.5×21.5×21.5CM |
GDFP125 | 2 | 1.6 | 31.5×21.5×21.5CM |
GDFP150 | 3 | 2.5 | 31.5×24.5×24.5CM |
GDFP200 | 4.2 | 3.7 | 33.5×27.5×27CM |
GDFP250 | 7.3 | 6.5 | 39×36×34CM |
GDFP315 | 9 | 8 | 46.8×38.5×38CM |
Model | G.W (KGS) | N.W (KGS) | Carton Size |
GDFP100 | 2 | 1.7 | 31.5×21.5×21.5CM |
GDFP125 | 2 | 1.6 | 31.5×21.5×21.5CM |
GDFP150 | 3 | 2.5 | 31.5×24.5×24.5CM |
GDFP200 | 4.2 | 3.7 | 33.5×27.5×27CM |
GDFP250 | 7.3 | 6.5 | 39×36×34CM |
GDFP315 | 9 | 8 | 46.8×38.5×38CM |

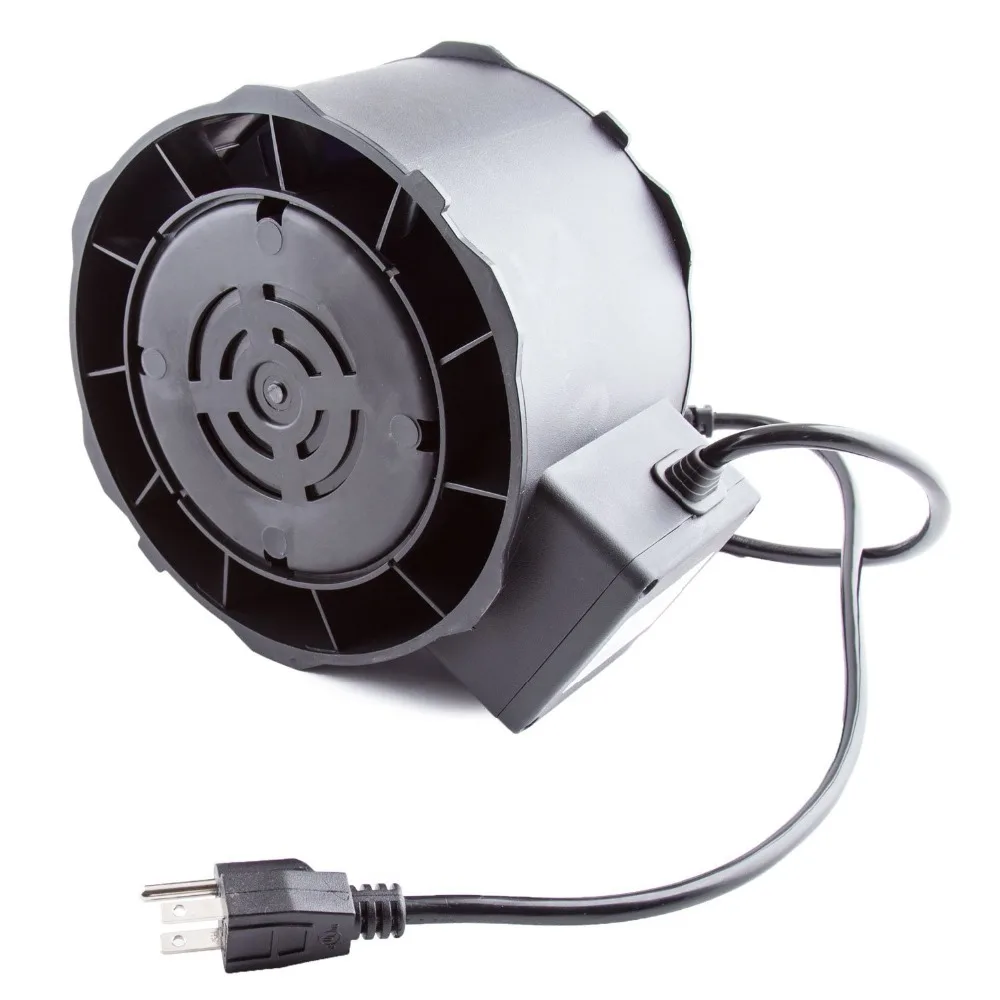

Details Images
Certifications

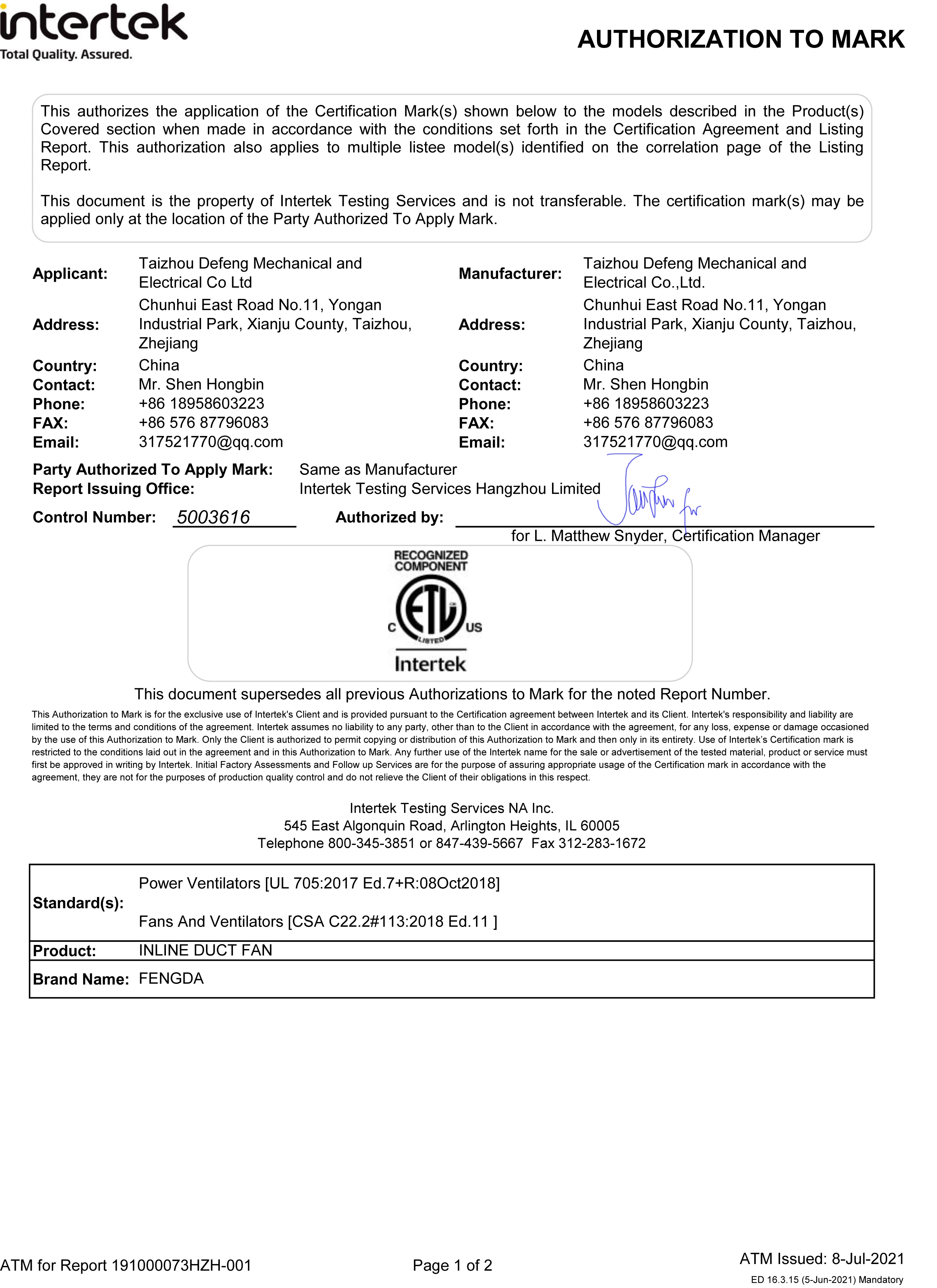

ETL : 5003616

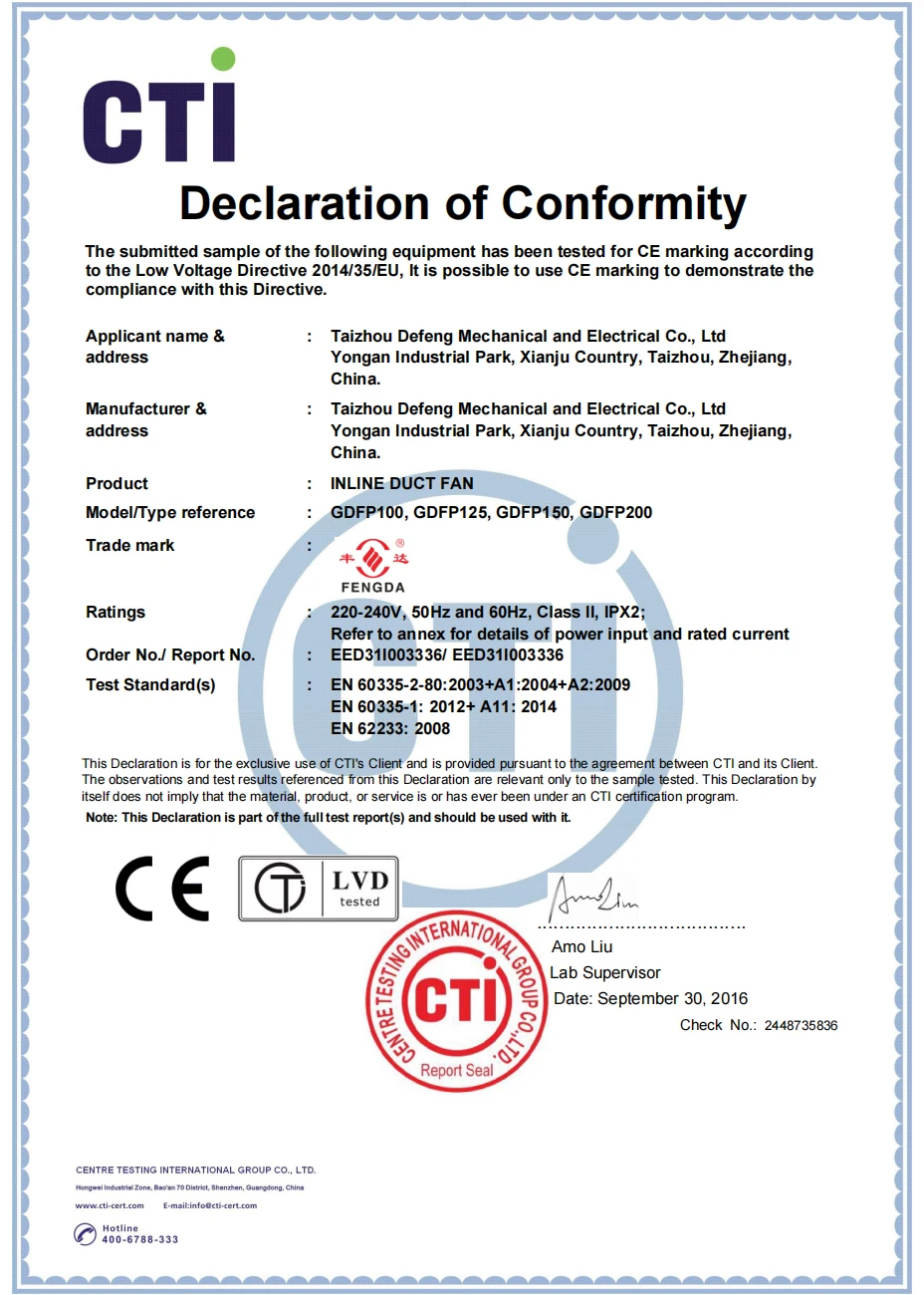

CE:2448735836
