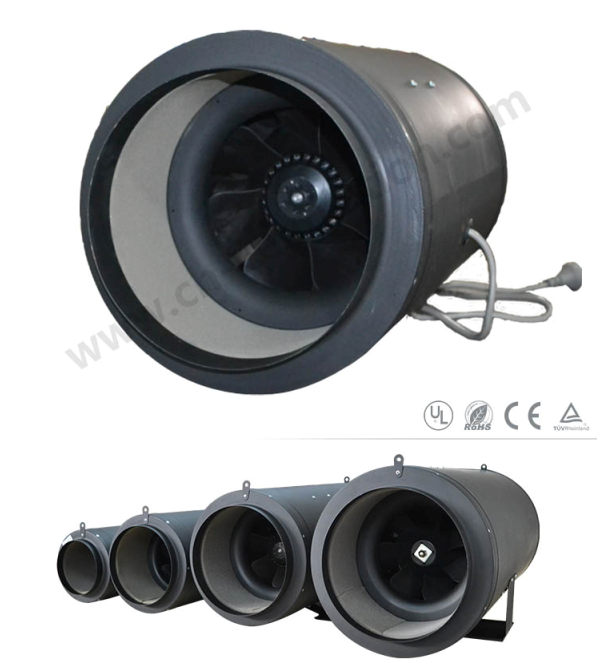

4" 6" 8" 10" 12" inline duct fan,220v silent inline duct fan
Build-in silencer
High strength Flame retarding Nylon body.
Wave crest polyurethane sponge can offer excellent sound and vibration absorption.
Reduces noise levels by up to 25 decibels.
Excellent sound and vibration absorption.
Air tight sealing tape pasted on the muffler.
Small airtight housing.
Compact overall dimensions.
High Performance.
Moisture resistant - great for use in damp environment.
Portable and light weight.
Safe and effective operation.
Easy to install.
Silent Max Fan | |||||||||||
110V/60HZ | |||||||||||
Model | Voltage | Frequency | Current | Power | Speed | Max Air Flow | Max Pressure | Noise | Weight | Product Dimension | Inch |
V | HZ | A | W | rpm | m3/h | Pa | d(B) | kg | cm | ||
CH-SM150 | 110 | 60 | 0.5 | 55 | 3470 | 663 | 250 | 49 | 7.5 | 22.5×22.5×64 | 6" |
CH-SM200 | 110 | 60 | 1.5 | 179 | 3300 | 1134 | 485 | 56 | 9.8 | 27.5×27.5×69.5 | 8" |
CH-SM250 | 110 | 60 | 1.9 | 228 | 3050 | 1800 | 443 | 53 | 13.3 | 35.5×35.5×76.5 | 10" |
CH-SM300 | 110 | 60 | 4.1 | 489 | 3490 | 3000 | 831 | 64 | 23 | 39.5×39.5×106.5 | 12" |
220V/50HZ | |||||||||||
Model | Voltage | Frequency | Current | Power | Speed | Max Air Flow | Max Pressure | Noise | Weight | Product Dimension | Inch |
V | HZ | A | W | rpm | m3/h | Pa | d(B) | kg | mm | ||
CH-SM150 | 220 | 50 | 0.21 | 47.8 | 2900 | 500 | 150 | 49 | 7.5 | 22.5×22.5×64 | 6" |
CH-SM200 | 220 | 50 | 0.5 | 120 | 2900 | 1000 | 336 | 56 | 9.8 | 27.5×27.5×69.5 | 8" |
CH-SM250 | 220 | 50 | 0.7 | 173 | 2750 | 1600 | 354 | 53 | 13.3 | 35.5×35.5×76.5 | 10" |
CH-SM300 | 220 | 50 | 1.7 | 340 | 2900 | 2600 | 665 | 64 | 23 | 39.5×39.5×106.5 | 12" |
A fan silencer is the ideal solution for cutting down on the excess noise produced from an Inline Fan.
This preassembled unit is constructed of heavy duty steel and features specially designed Open Cell Convoluted Foam.
Wave crest polyurethane sponge can offer excellent sound and vibration absorption.
Both moisture resistant and lightweight, it also features a 2" extended collar to easily connect to duct work or carbon filters.
CHOSEN VENT TECH LTD. is a manufacturer of ventilation and cooling equipment with more than 10years experience.
