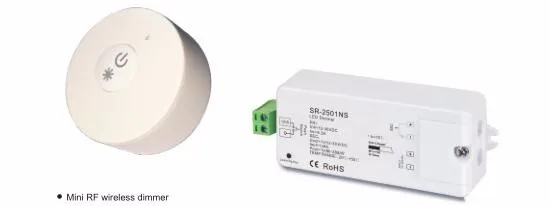

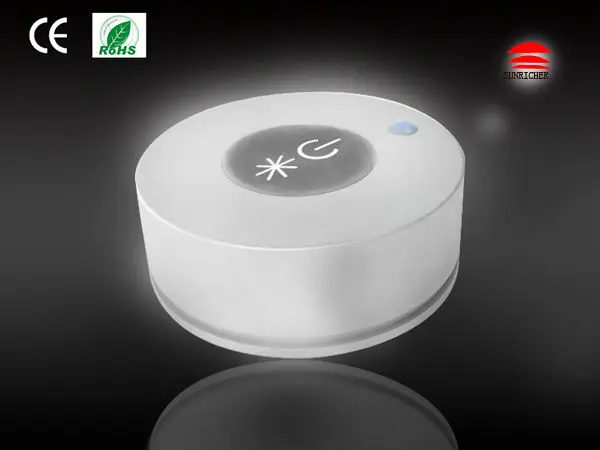

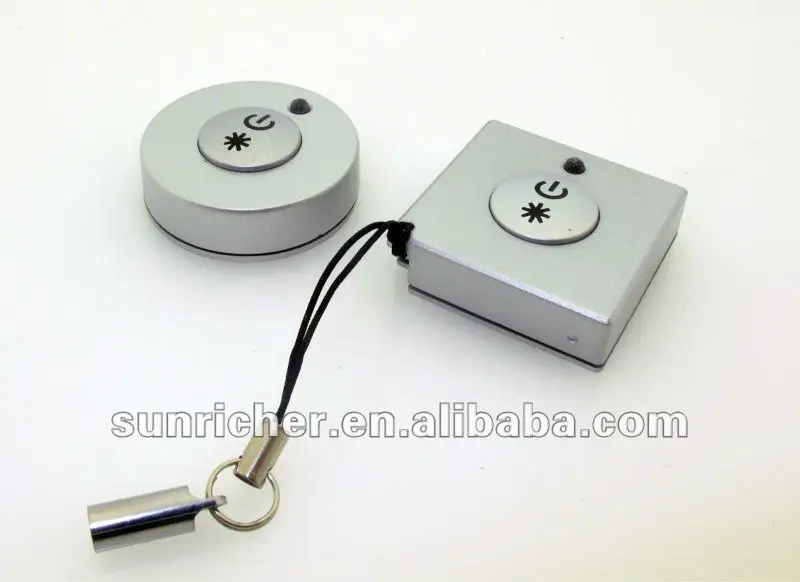

NEW Mini RF remote controler SR 2807N

Product Overview

Description

Features:

Reliable&stable switch and dimming control function, control range≥20m.

Battery in the remote is with long life span. It normally can use for 5years.

256levels logarithmic dimming, ideal for human eye senstitively to lighting, dimming smothly without any flash.

Switch on/off light slowly, wothout any flash, meet the comfort of human eyes.

Dimming range 0.1-100%

Use with power repeater to expand the output power unlimitedly.



Product Parameter( remote):



Part No.	Operation Voltage	Operation Frequency	Ta	Approval	Remarks
SR-2807	3VDC	434MHZ/868MHZ	-20-+50°C	CE/FCC/Rohs	Battery CR2025



Product Parameter(receiver):



Part No.	Input Voltage	Max load current	Max Output Power	Load Type	Ta	Tc	Approval	Remark
SR-2501A	12-36VDC	4*5A	4*(60-180)W	LED(0.04-0.1W)	-20-+50°C	+75°C	CE/Rohs	Remote control
SR-2502A	12-36VDC	4*5A	4*(4.2-12.6)W	LED(1W)	-20-+50°C	+75°C	CE/Rohs	Remote control
SR-2503A	12-36VDC	4*5A	4*(8.4-25.2)W	LED(3W)	-20-+50°C	+75°C	CE/Rohs	Remote control
