6.3MP High Sensitivity USB3.0 Microscope Camera Dark field

Product Overview

Description

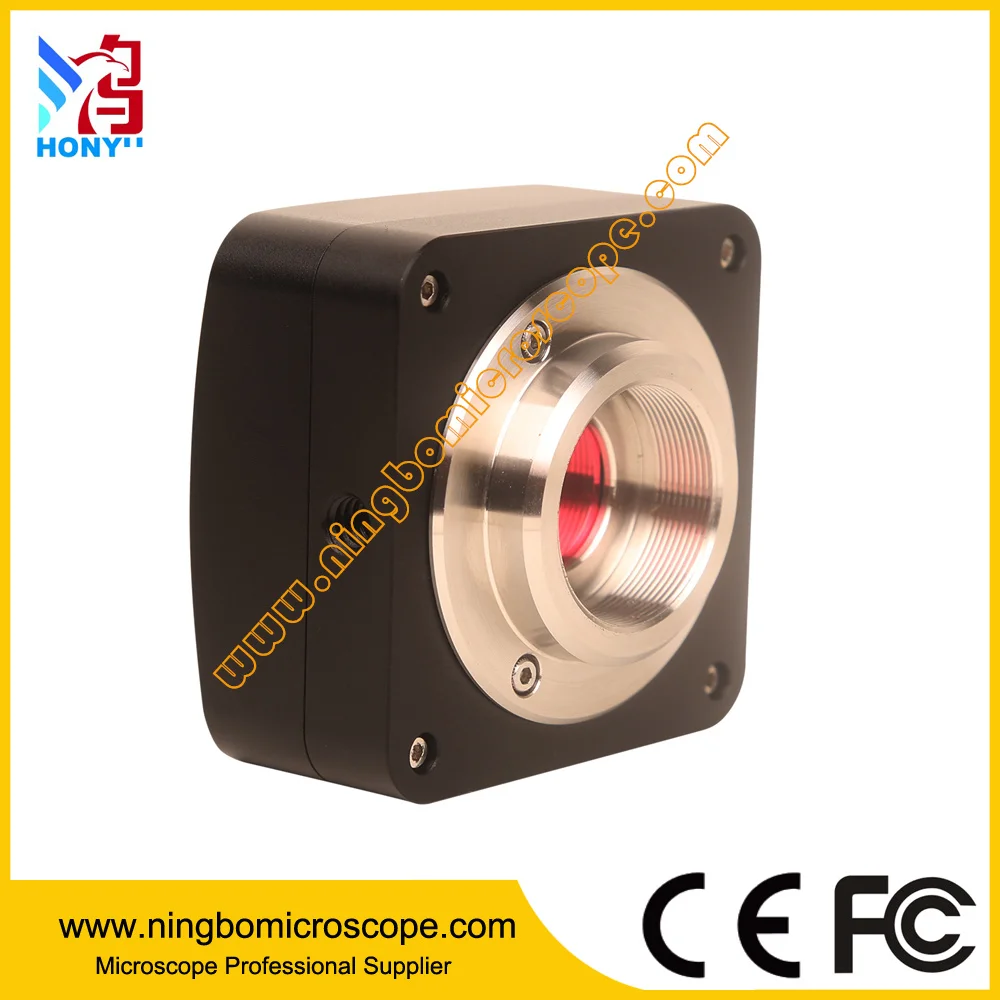

   6.3MP High Sensitivity USB3.0 Microscope Camera Dark field CMOS.17.E630







Description



CMOS.17.E630 usb3.0 camera adpots the latest Sony Exmor sensor which have the highest sensitivity and lowest noise with the help of 2 CDS(correlated double sampling) procedure. This feature guarantees that this camera is perfect for fluorescence microscope application, astronomy application and other dark field application, as well as the bright field application. This cmos camera can be used to replace the traditional CCD camera to some extent since its unique features, including high sensitivity, low noise, and group shutter (only some sensor has group shutter). Thanks to USB3.0, the frame rate is fast and 8bit, 12/14bit data transfer can be available and switchable. Capturing high resolution images, recording real-time specimen video, and image manipulation can be achieved through the user-friendly software attached. The advanced software can be compatible with Windows XP/Vista/7/8/10, Mac OS X and Linux.



Key Features



• USB3.0 high speed digital camera with SUPER SONY CMOS sensor



• Excellent performance for fluorescence, darkfield observation and astronomy



• Capable of recording real-time, high-definition videos and capturing still images



• Support Windows XP/Vista/7/8/10, Mac OS X and Linux and offering multiple platform SDK



• USB3.0 interface ensuring high speed data transmission



• Capable of being attachable to any microscopes, telescopes, endoscopes with C-mount



Specification



Sensor model	Sony IMX178(Color)
Resolution	3072x2048(6.3MP)
Sensor size	1/1.8"(7.37x4.92)
Pixel(μm)	2.4x2.4
G Sensitivity	425mv with 1/30s
Dark Signal	0.15mv with 1/30s
FPS/Resolution	15@3072x2048, 26@1536x1024
Binning	1x1, 2x2
Exposure	0.244ms~2000ms
Spectral Range	380-650nm (with IR-filter)
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control API	Native C/C++, C#, Directshow, Twain, Labview
Recording System	Still Picture and Movie
Cooling System*	Natural
OPERATING ENVIRONMENT
Operating Temperature	-10°C~ 50°C
Storage Temperature	-20°C~ 60°C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft  Windows  XP / Vista / 7 /8 / 10(32 & 64 bit)
	OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17" or Larger
	CD-ROM



Camera Standard Packing List



• One USB 3.0 Digital Camera



• One high-speed USB3.0 Cable



• One CD with Driver and Software
