Cement Sand Roof Terrazzo Tile Making Machine/Concrete Floor Tile Equipment/Granite Terrazzo Floor Machine
- Category: >>>
- Supplier: Zhengzhou Yuxi Machinery Equipment Co. Ltd.
Share on (60411743838):
Product Overview
Description
Product Description
Introduction
This series of equipment adopts Italian terrazzo brick machine technology, using sand and cement concrete as raw materials, using special steel molds, PLC programming, high-frequency vibration, flattening, vacuum drainage and hydraulic pressure filtration molding.
Raw materials: Sand, stone and cement can be used to add a large amount of industrial waste such as fly ash, slag, steel slag, coal gangue, ceramsite, and perlite.
Specification | YX-400 | YX-500 | YX-600 | YX1000 |
Rated pressure | 128 Tons | 200 Tons | 500 Tons | 1000 Tons |
Production capacity | 6-8 pcs/min | 5-7 pcs/min | 4-6 pcs/min | 2-3 pcs/min |
Power | 7.5KW | 7.5KW | 15KW | 33 KW |
Weight | 4.8 Tons | 5.2 Tons | 5.8 Tons | 28 Tons |
Dimension（mm） | 2900*1450*2550 | 2900*1530*2550 | 3300*3150*3200 | 6700*2900*2600 |
Product specification | Max 400*400mm | Max 500*500mm | Max 600*600mm | Max 1500*1000 |
Raw Material
Raw material like cement, sand, concrete, stone powder, marble, quartz stone, crushed stone, Broken ceramics or broken glass, etc

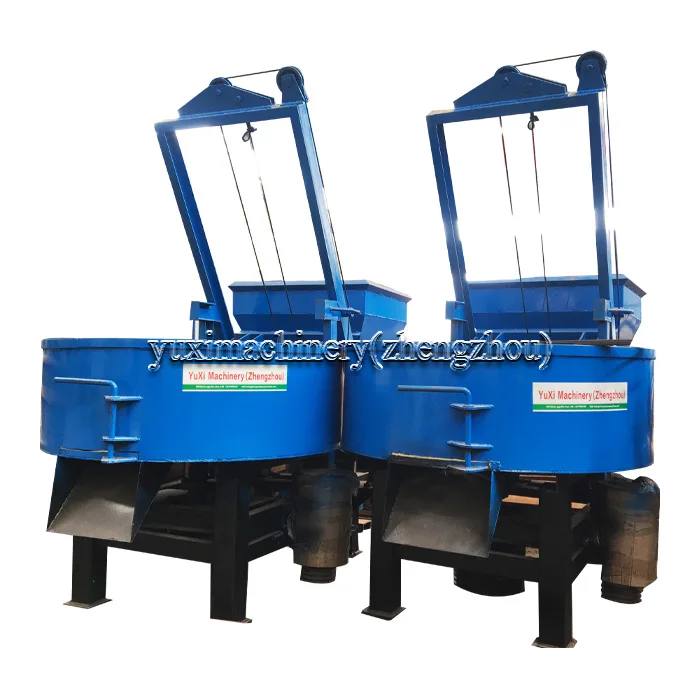

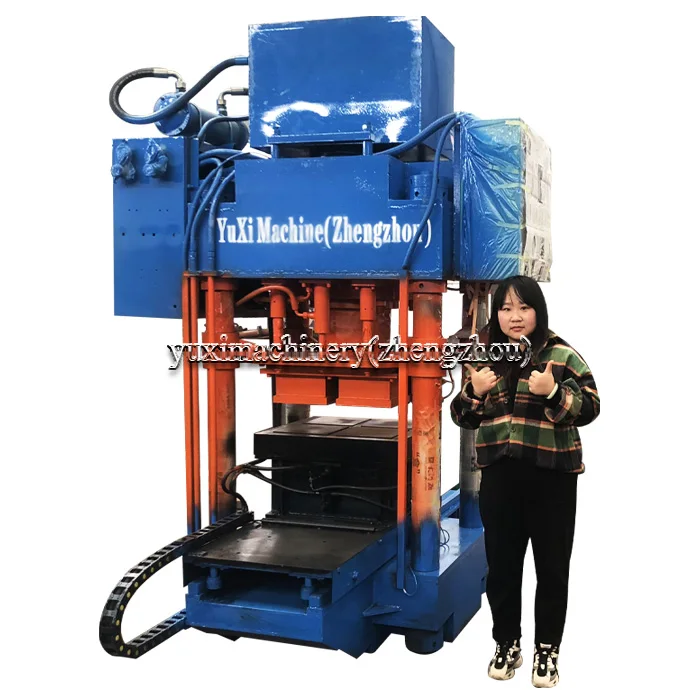

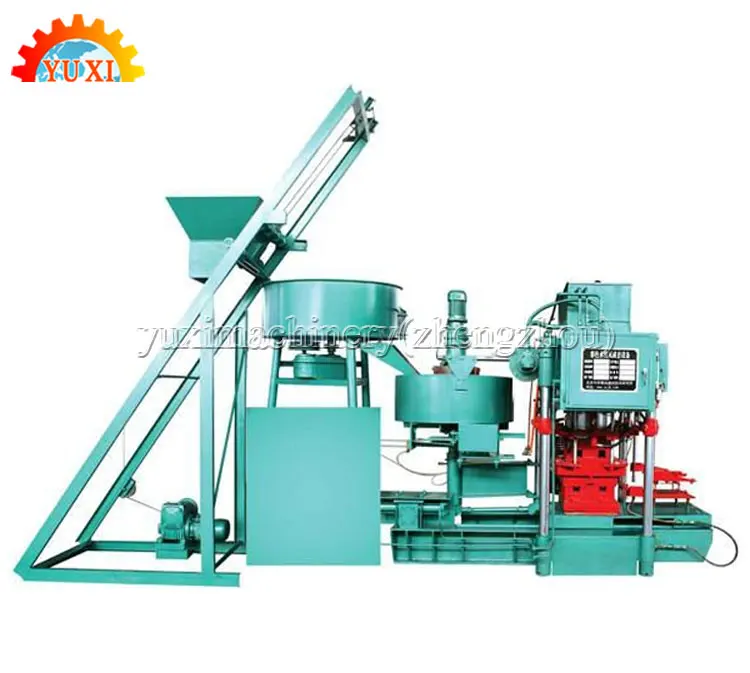

The terrazzo tile making machine is consists of a bucket elevator, mixer, doser, tile press machine, and concrete base.

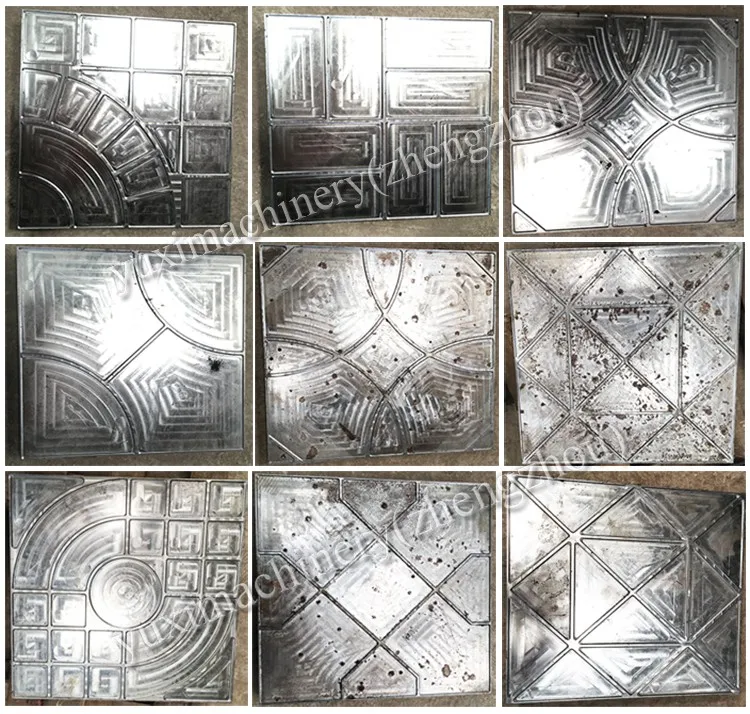

Molds structure
Divided into upper and lower molds, the upper mold determines the pattern, and the lower mold determines the thickness.
Details Images
Operating steps

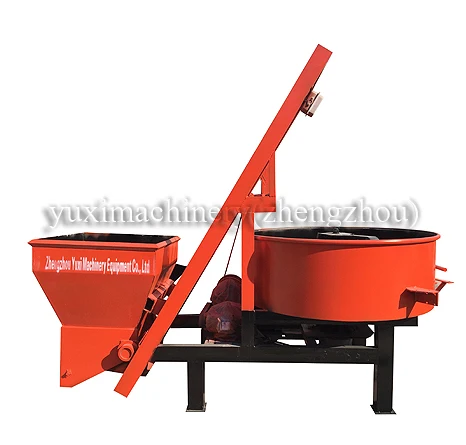

♣ . At first, the raw materials are put into the floor tile making machine bucket elevator, then deliver to the rolling mixer, at this time, you must add some water into it.
♣ . After mixing, the mixture comes into the dosing feeder, then,
the measurable mixture that one tile need will put down on the mold below through a small hole.
♣ . Then, a tile can be formed by high pressure, the pressure is about 125 tons. So the produced tile is very stable and dense. I think the constructor can boldly walk on the paved roof.
♣ . The tile needs to dry out for about 10 days. Then you can paint.
♣ . After mixing, the mixture comes into the dosing feeder, then,
the measurable mixture that one tile need will put down on the mold below through a small hole.
♣ . Then, a tile can be formed by high pressure, the pressure is about 125 tons. So the produced tile is very stable and dense. I think the constructor can boldly walk on the paved roof.
♣ . The tile needs to dry out for about 10 days. Then you can paint.
Working Site
Packaging & Shipping
1. Packaging: 1)Wrapped by the protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Our Factory
Q: Why choose us?
A: Several year's experiences
We have rich experience in equipment. Our machines have a high reputation in our country and abroad(such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
We have rich experience in equipment. Our machines have a high reputation in our country and abroad(such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
Manufacturer, not dealer
Factory direct sale makes the price more competitive. The customer is always welcome to our factory.
Factory direct sale makes the price more competitive. The customer is always welcome to our factory.
Professional after-sale service
If necessary, oversea installation and provide a technical exchange, train client to operate the machine. Any other reasonable assistance that you needed, please contact us.
If necessary, oversea installation and provide a technical exchange, train client to operate the machine. Any other reasonable assistance that you needed, please contact us.
Q: Will you dispatch the engineer to guide the installation of terrazzo tile making machine?
A: Yes, according to the customer's requirement, we will dispatch the engineer to guide the installation of the high output shredder equipment.
Q: How about you to ensure the machine normal running?
A: Except for the installation engineer, we also provide the production engineer to guide how to keep a good production.
