Тип Мини Универсальный инструмент шлифовальный станок GD 600S сферическим концом заточный станок

Product Overview

Description

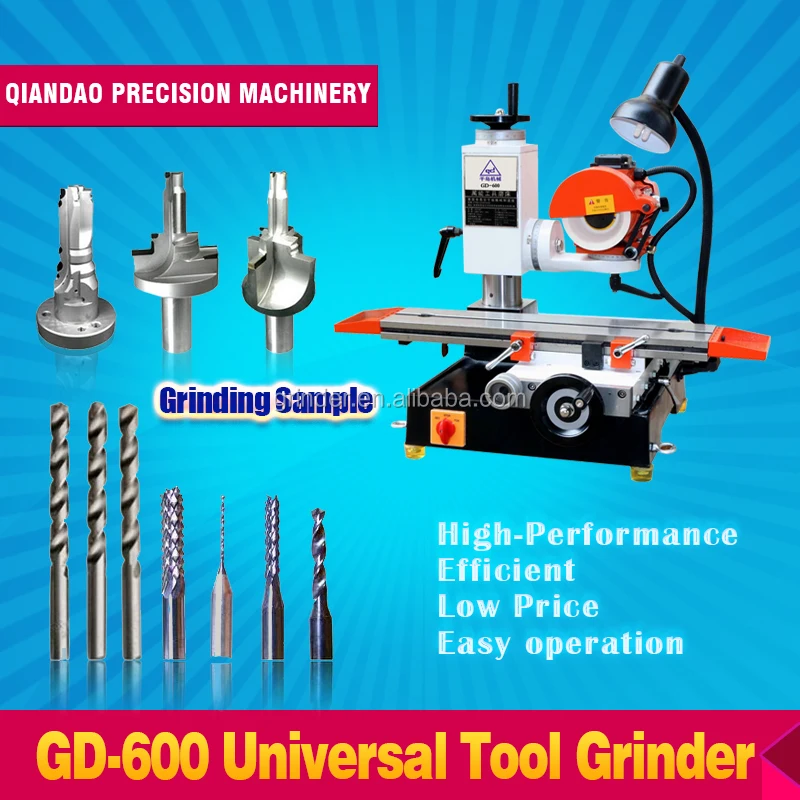

Mini type universal tool grinder machine GD-600S ball nose end mill cutter grinder

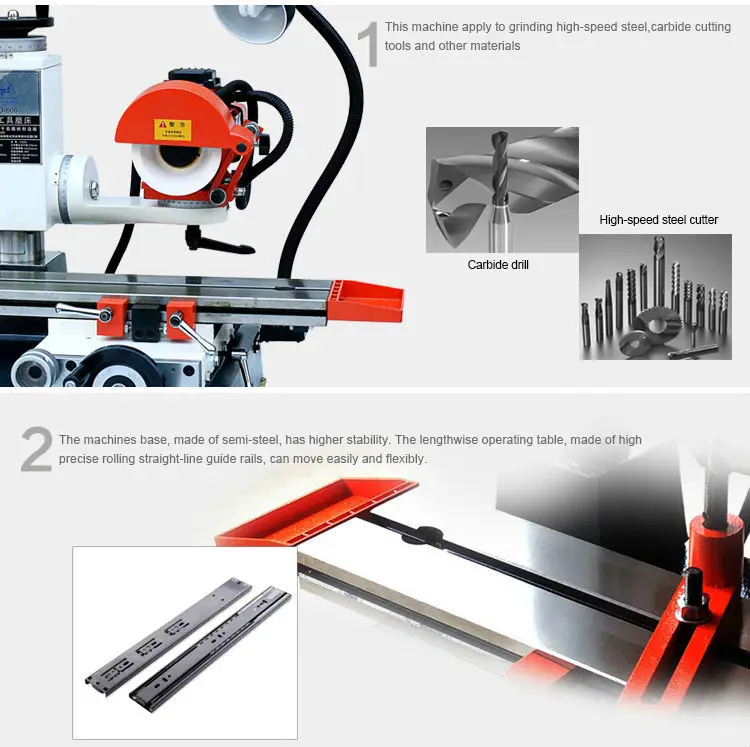

1.The operating table adopts the imported high-precision linear ball slide rail which can ensure the table stable and easy to operate.



2.The machine can be matched with different fittings in lines with tools to grind so as to grind drill bit, screw tap, end-milling cutter. R-shaped turning tool, R-shaped milling cutter, hobbling knife, round paper cutting knife.



3.The motor can rotate 360, The two sides of the motor can be installed with two grinding wheels at the same time.When you grind cutting tools of different materials, you may restart grinding by simply rotating the motor,

Which can enhance security and reduce the time of disassembling and repatation.



4.It adopts the FC30 cast iron of high toughness to maintain the precision of the machine.



5.The maximum linear speed of grind wheel is 40m/s



Note: The first frame spindle cone can be designed according to the customer request





Specifications
Horizontal Travel of the Oprating table	270mm
Longitudinal travel of the operating table	170mm
Area of the operating table	130*600mm
Elevating Distance of Wheel Head	140mm
Rotating Angle of Wheel Head	360°
Grinding Wheel Size	125*50*32mm
Speed of grinding Wheel	2800 RPM
Net Weight / Gross Weight	145/160kg
Voltage	550W 220V/380V
Package Size	760*650*650mm
