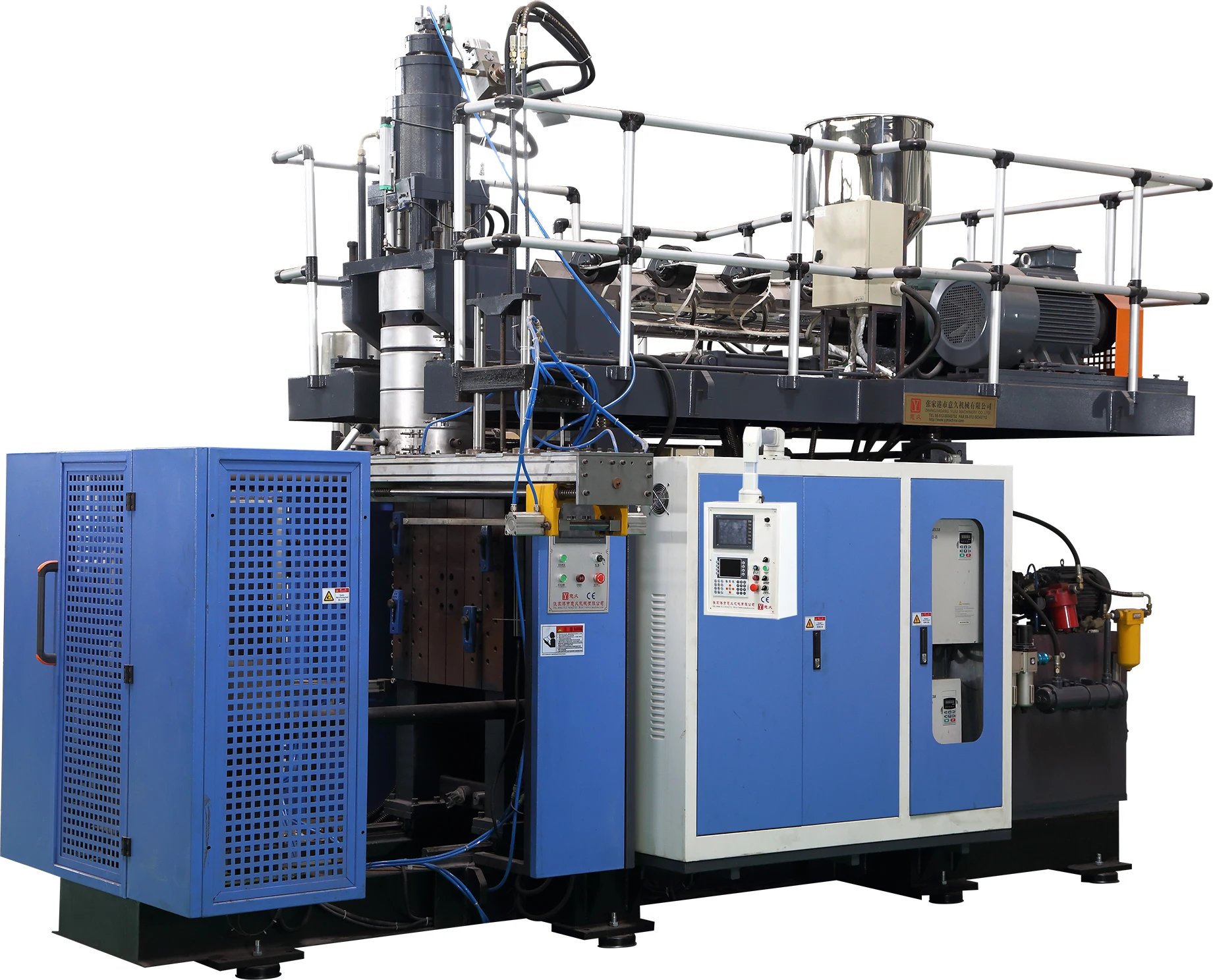

EVA ABS TPU Fully Automatic Blow Moulding 5 Gallon Water Pc Bottle Blowing Making PlasticBlow Molding Machine
Product Description
*PLC+touch screen:making the operation easy. Automatic malfunction alarm with self-diagnosis,
making the malfunction clear at a glance.
*Accumulator die head:Accumulator die head whose runner is made by high-quality mitrede alloy steel with morrorsurface treatment, material and color quick reload.

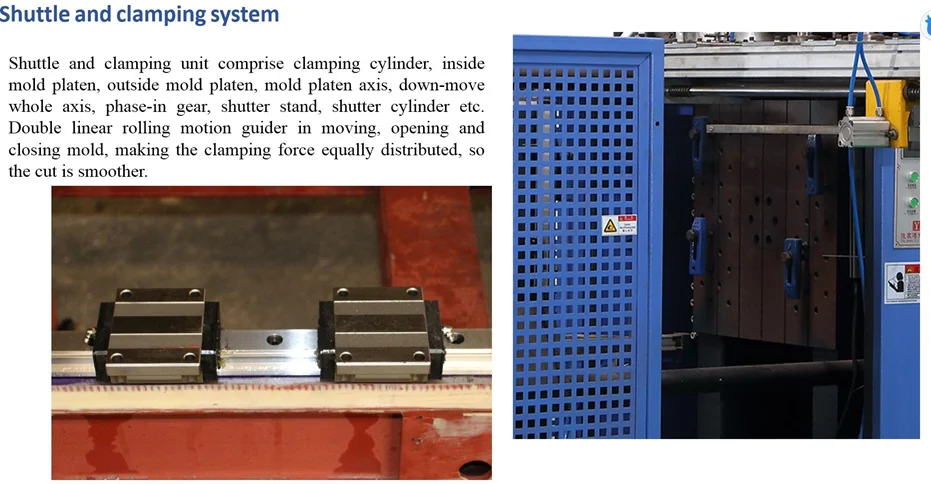

*Unique “liner guide”: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother.

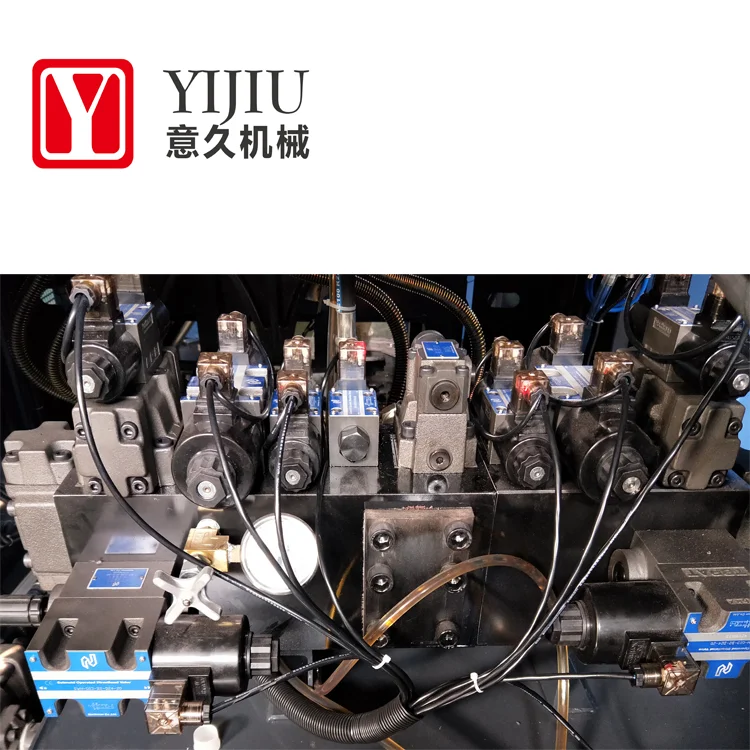

*Energy-saving hydraulic principles:Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption by 20%-40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.
*Variety of functions for products:Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parison control system, etc.
Product Details
Main Parameters
Available material
PE,PP,etc.
Max. Product Volume
30
(L)
Dry Cycle
650
(pcs/h)
Machine Size
4.5*2.4*3.5
(LxWxH)(m)
Machine Weight
11.5
(Ton)
Installed capacity
73
KW
Plasticizing System
Screw Diameter
80
(mm)
Screw L/D Ratio
25
L/D
Plasticizing capacity
100
(kg/h)
Screw Heating Zone
4
(Zone)
Screw Drive Power
30
(KW)
Extrusion Die Head
Type
Storage Die Head
NO. of Heating Zone
4
(Zone)
Die Heating Power
11.9
(KW)
Max. Die Diameter
300
(mm)
Opening And Clamping System
Clamping Force
180
(KN)
Mold Stroke
400~900
(mm)
Max. Mold Size
600X700
(WxH)(mm)
Hydraulic System
Oil Pump Power
15
(KW)
System pressure
12
(MPa)
Certificate
Packaging & Shipping
Company Information
FAQ
FAQ For Extrusion Blow Molding Machine
Q1: Are you a trading company or a manufacturer?
A1: We own a factory ourselves, and we can assure the quality we manufactured.
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.
Q3: How can I install my machine when it arrives?
A3: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
Q4: How about the spare parts?
A4: After we deal down all the things, we will offer you a spare parts list for your reference.
Q5: What after-sales service your company offers?
1, Your inquiry related to our product & price will be replied within 72 hours.
2, Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
3, Working time: 8:00am ~6:30pm, Monday to Saturday.
4, Your business relationship with us will be confidential to any third party.
5, Good after-sales service offered, please get back to us if you got any questions.
Q6: Can I visit your factory and send team for learning and inspect?
A6: Yes, sure. We will do our best to teaching you how to use the machine.welcome to visit our factory!
Q7: What is our advantages?
A7: 1.Competitive price 2. Excellent technical support 3.Best service
Q8: Where is your factory located? How can we visit there?
A8: Our factory is located in Zhang Jia Gang City, Jiang Su Province, China, about 2 hour to Hong Qiao airport, from SHANG HAI by air. We offer transportation service from Hong Qiao airport to our factory.
