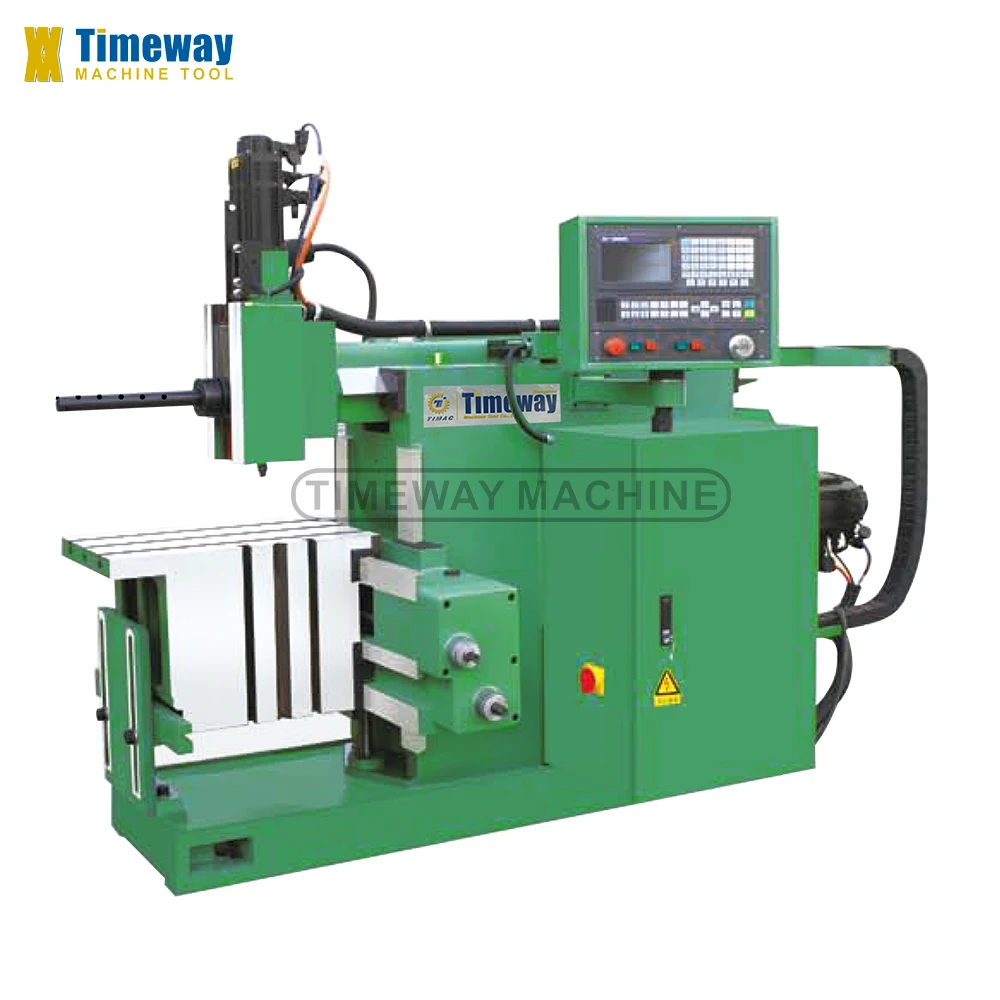

Horizontal Shaping Machine

Specification

Unit

SMK-630

SMK-650

Max. shaping length

mm

630

650

Max. range of the horizontal movement of the worktable

mm

630

630

Max. distance between the ram bottom and worktable

mm

385

380

Max. length of the vertical movement of worktable

mm

360

315

Dimensions of worktable (LxW)

mm

630x400

630x400

Max. stroke length of the toolhead

mm

120

120

Swivel angle of the toolhead

°

±60°

±60°

Max. size of tool shank (WxH)

mm

20x30

20x30

Number of ram reciprocation per minute

time/min

-

14-80

Range of worktable feed (horizontal/vertical)

mm

-

0.2-2.5/0-1

Width of the T-slot for center positioning

mm

18

18

Power of the main motor

kw

3

3

Net weight

kg

1750

2200

Machine dimensions (LxWxH)

cm

200x130x155

238x121x150

Working accuracy

Flatness of machined surface on tested workpiece

mm

0.03

0.03

Parallelism of machined surface on tested workpiece to base

mm

0.04

0.04

Parallelism of machined surface on the side to that on the other side on tested workpiece

mm

0.06

0.06

Verticality of machined side surface on the side of tested workpiece against base

mm

0.03

0.03

Surface roughness

um

Ra6.3

Ra6.3
