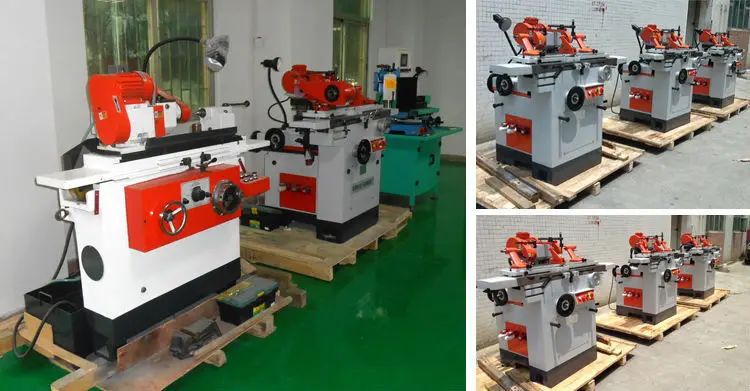

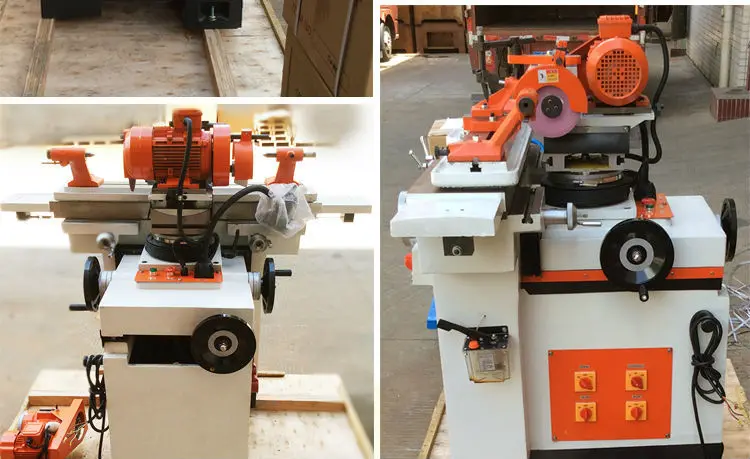

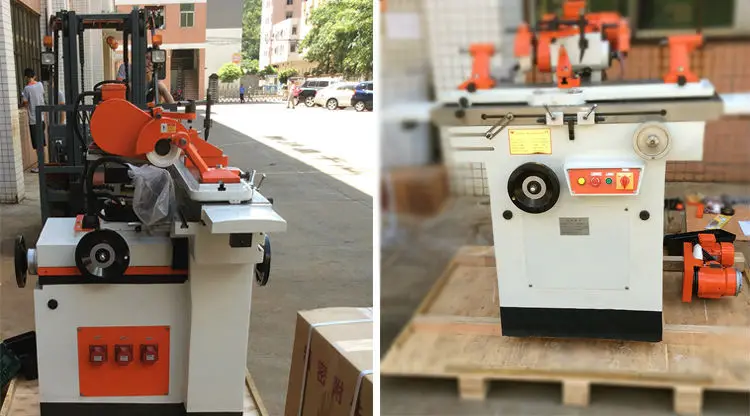

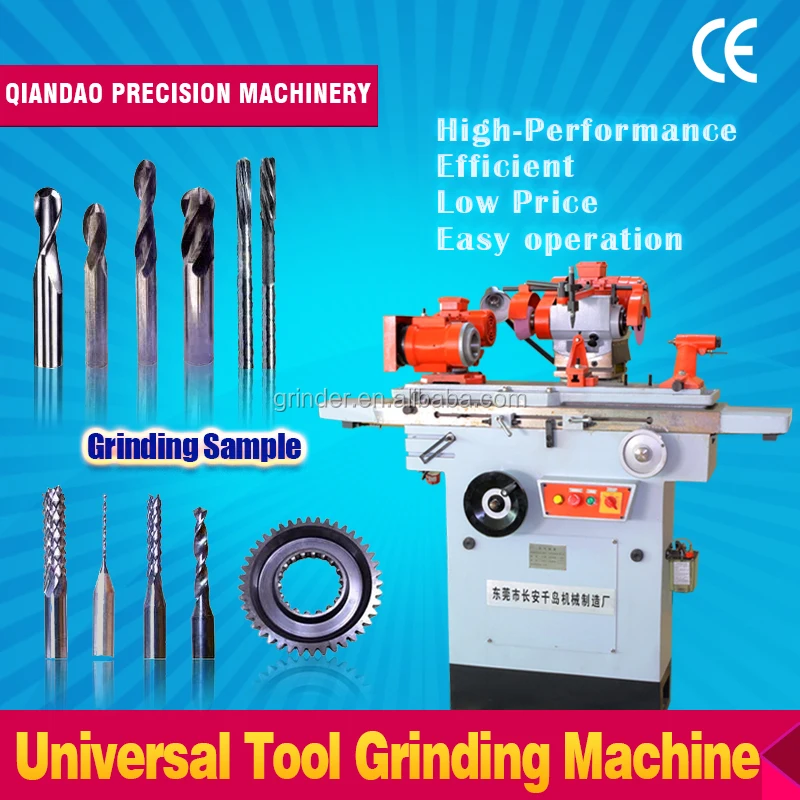

MQ6025A universal tool sharpener machine for hobs drill bit end mill engraver
- Category: Other Grinding Machines >>>
- Supplier: Dongguan Qiandao Precision Machinery Manufacture Co. Ltd.
Share on (60422147061):
Product Overview
Description
MQ6025A universal tool sharpener machine for hobs drill bit end mill engraver
|
Product name: |
high quality CE-approved tool grinding machine MQ6025A multi-functional Universal sharpening tool grinder |
||
|
Model Number: |
MQ6025A |
place of origin: |
Guangdong, China (Mainland) |
|
Brand Name: |
QianDao |
Manufacturers: |
Qiandao Precision Machinery |
|
Type: |
Universal |
Certificate: |
CE |
Features:

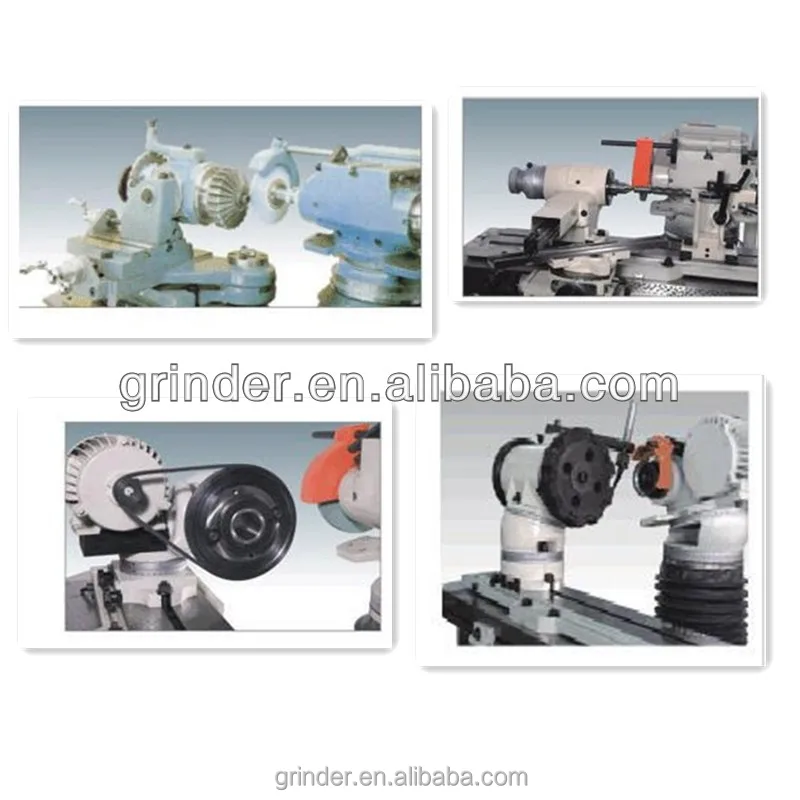

This series machine are specially suitable for shrpening tools in HSS, tungsten carbide and other materials, also for cylindrical, surface, slot and profile grinding wor. By using additionl attachments, you greatly extend the range of application of there machinery and can solve individual machining problems, such as grindign fo various hobs, tools, spherica cutters, twist drills and steep taper reamers, etc. The series machine wheelhead with two-dimensional setting(except MA6025B), workhead stock swivels with double dir. And supplied with ISO-50 taper hole. Worktable is supported in preloaded ball guide and can be driven by hand or by infinitely changing rate hydraulic.
|
Parameters |
|
|
|
Swing dia.of workpiece |
250mm |
|
|
Distance between centers |
700mm |
|
|
Area if tge ioeratuib tavke |
940*135mm |
|
|
Longitudinal travel of table |
480mm |
|
|
Swing angle of table |
120°(60°) |
|
|
Max travel of wheel head cross wertica |
225mm |
|
|
Wheel center line of the min distance between the top |
50mm |
|
|
Wheel center line of the max distance bewteen the top |
265mm |
|
|
The max movement in the vertical direction |
270mm |
|
|
Wheel certer line up to the top |
200mm |
|
|
Wheel certer line down to the top |
65mm |
|
|
Swing angle of wheel head in horizontal pline |
360° |
|
|
Swing angle of wheel head in vertical pline |
30°(±15°) |
|
|
The end taper of the spindle |
MT3# TAPER ANGLE |
|
|
Grinding head motor power 50Hz |
Power |
0.85/1.1KW |
|
Speed |
1400/2800rpm |
|
|
The speed of grinding head |
3010/6010rpm |
|
|
The Motor of Cylindrical grinding attachment:50Hz |
Power |
0.25KW |
|
Speed |
1400RPM |
|
|
The size of the machine |
1650*1150*1500mm |
|
|
The weight of the machine |
940kg |
|
|

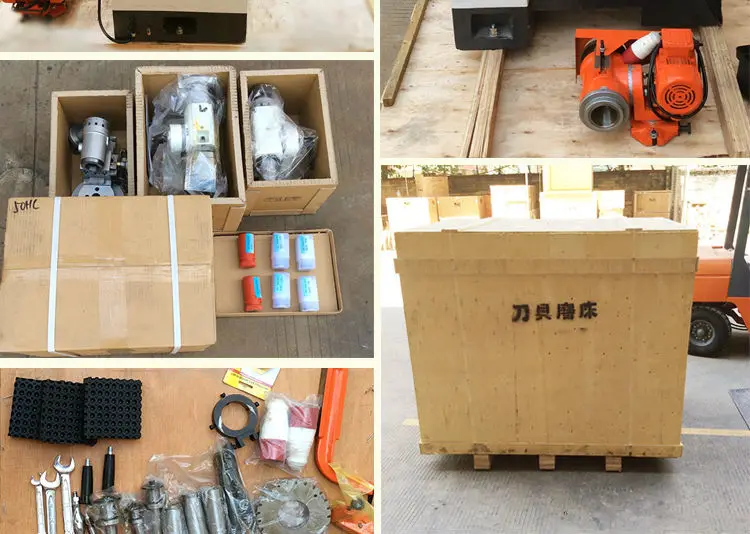

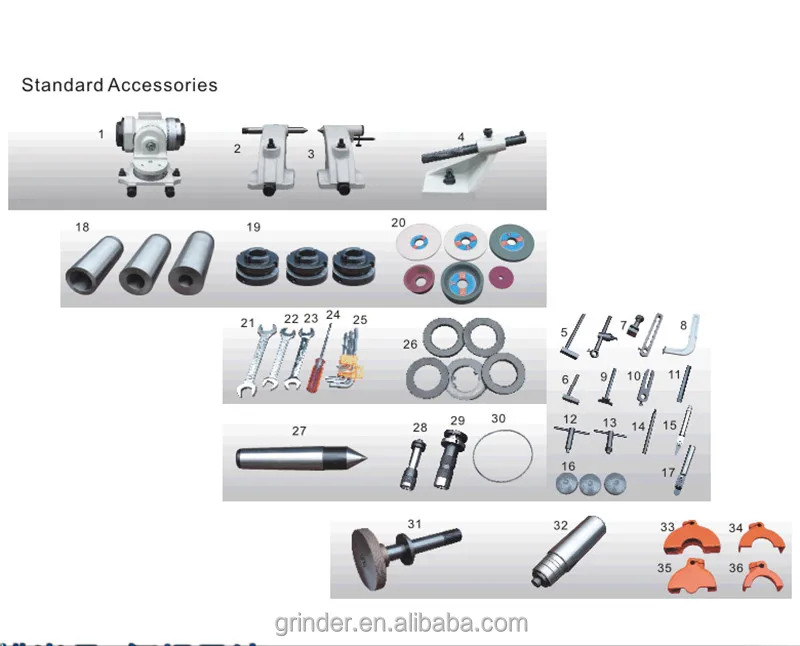

Standard accessories |
|
|
|
universal grinding attachment |
1 set |
|
|
Wheel dresser |
1 set |
|
|
Wheel guard |
Each 2pcs |
|
|
Right tail stock |
1 set |
|
|
Cutter saw support equipment |
1 set |
|
|
cutter arbor Φ22,27,32 |
Each 1pcs |
|
|
drawbar M24(NT50) |
1pcs |
|
|
inner hexagon spanner |
1 set |
|
|
inner spindle mandrel |
1pcs |
|
|
foot pad |
3pcs |
|
|
tool box |
1pcs |
|
|
Grinding wheel |
2pcs |
|
|

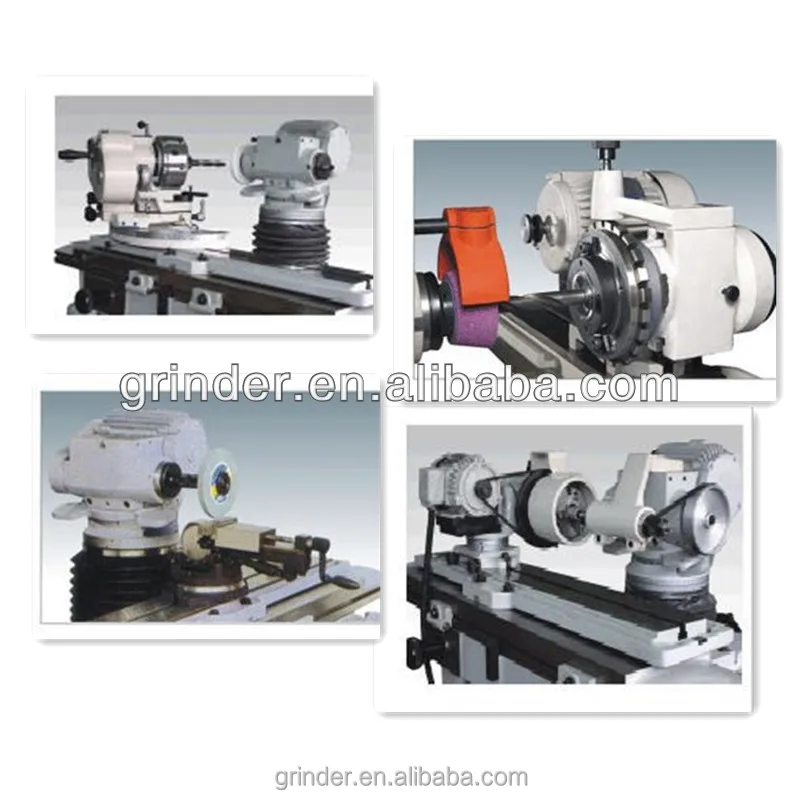

Special accessories |
|
|
|
bob sharpehing accessories |
1set |
|
|
divided plate |
1pcs |
|
|
Drills grinding attachment |
1set | |
|
Taper reaming grinding attachment |
1set | |
|
Swing angle of table |
1set | |
|
3 jaw chuck |
1set | |
|
round magnetic chuck |
1set | |
|
universal-tilt rectangular magnetic chuck |
1set | |
|
Dust-free cleaner |
1set | |
|
cooling system |
1set | |
|
extral long wheel spindle |
1set | |
|
MT5# taper |
1set | |
|
Round spindle |
1set | |
|
electronic scale device |
1set | |
|
double-end wheel dresser |
1set | |
|
ball mill flank grinding atlachment |
1set | |
|
precision wheel dresser |
1set | |
|
machine vise |
1pcs | |
