Product Overview

Description

conference system 1 U host SH1180 SINGDEN









 Description:



SINGDEN wired digital conference system main unit-SH1180 uses high power transformer, wide voltage input, and automatically adapt to variety of different voltage input in the world, and sufficient power, Standard conditions, a main unit can be installed 60 microphone unit;Main unit equipped with three of a video matrix, in the off-line condition, it still able to achieve the automatic camera tracking function; Built-in DSP audio processing module, In conference system



the case of the bad condition, DSP module will be turned on to prevent howling to achieve the perfect sound. The Standard 1U housing for 19" rack mounting, Firm and reliable installation.



SINGDEN-SH1180 automatic tracking of digital video conference system, SINGDEN has good quality audio technology, advanced control technology, suitable for a variety of conference room, lecture hall meeting occasions, perfect sound performance, intelligent video control technology, conference room more easier to set up, high performance.

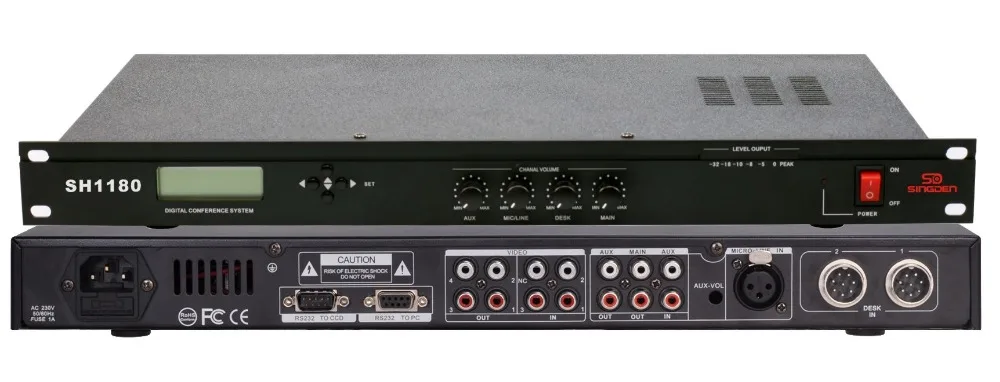

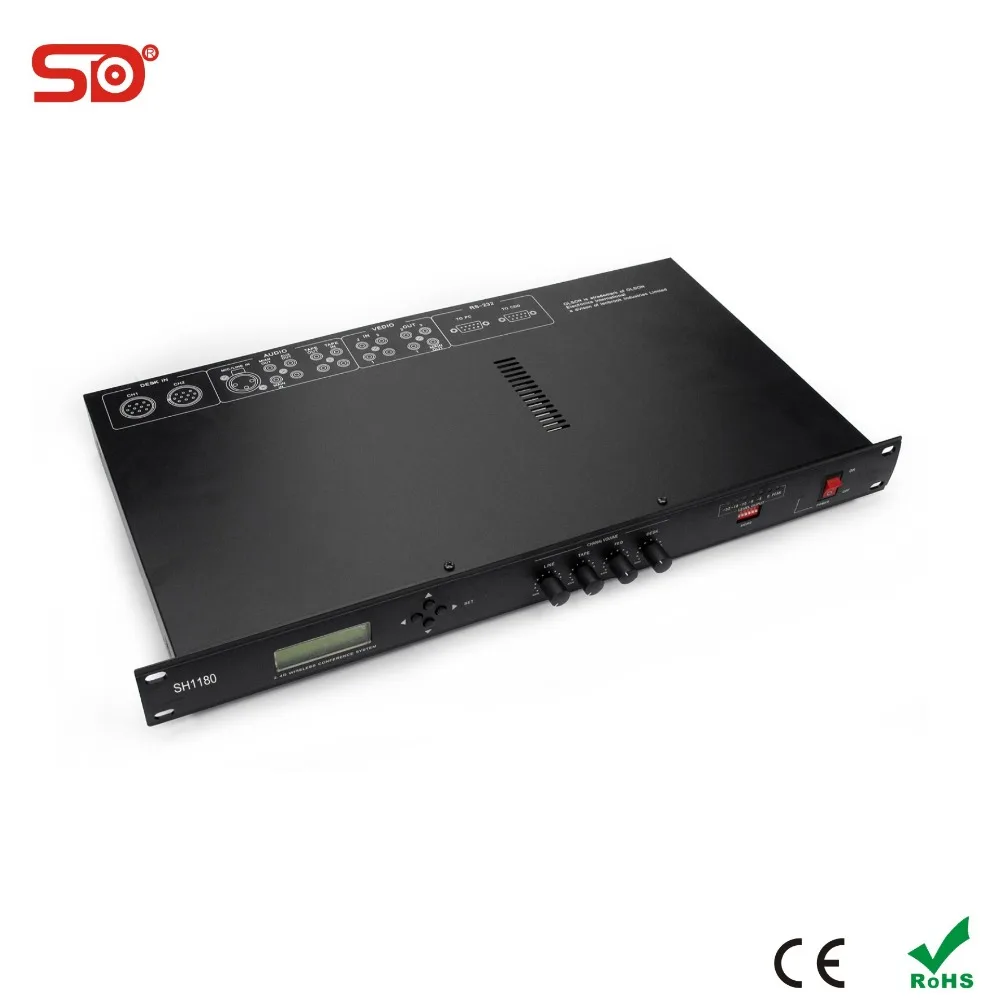

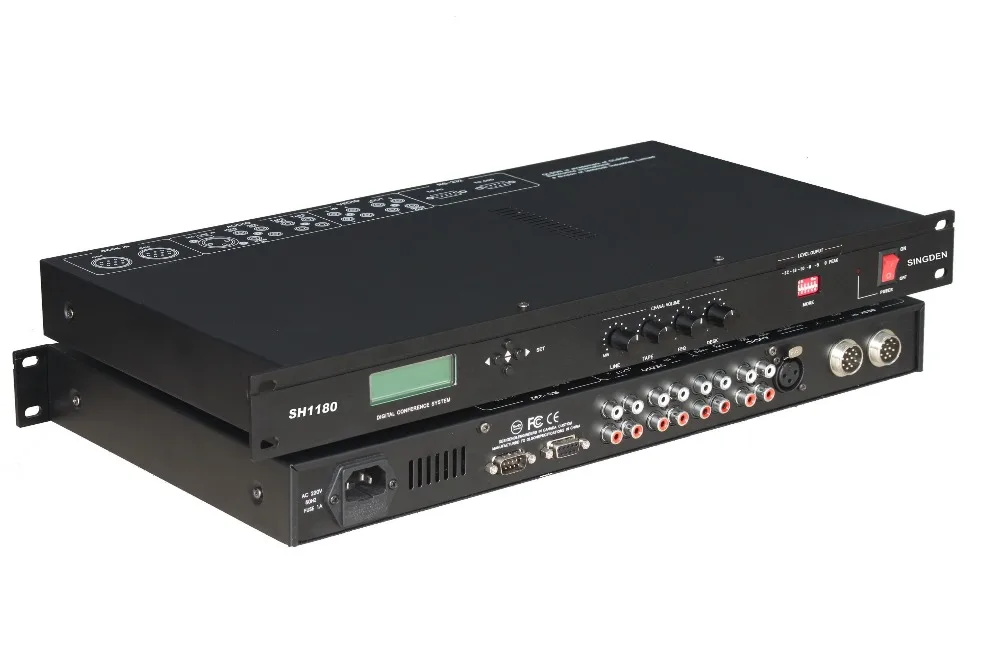

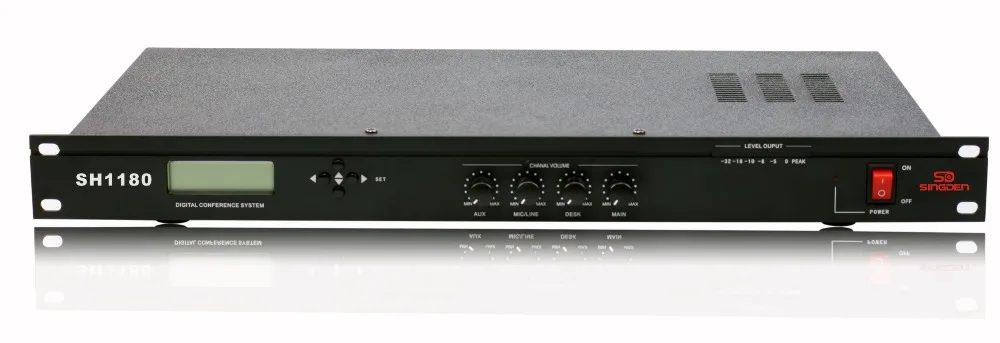

Main unit---SH1180

connection:









Characteristics:



•      System host standard mount microphone quantity for 30, most system can be mounted 60 meeting microphones, and the longest line length can be as long as100 meters.



•      Easy be Flexible configuration: Meeting automatic discuss mode, video tracking conference pattern



•      1 to 6 microphones can be active at the same time;



•      Built-in 3 into 1 video matrix, which can be directly connect 1~3 cameras. Complete video conferencing capabilities to achieve the automatic switching of the screen.

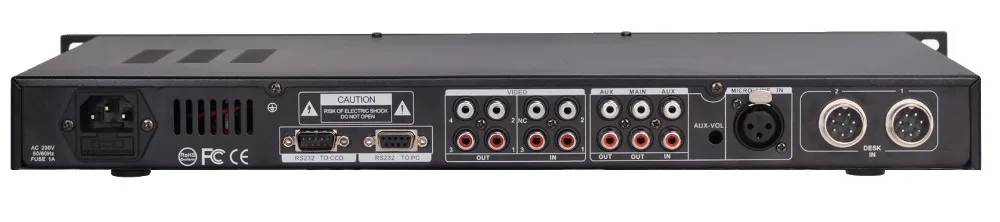

•      A variety of input and output interfaces, the main input deck input and front output, auxiliary output interface.



•      Built-in DSP audio processing module, can prevent a limit screaming



• Standard and secure power supply design, 100--240V AC power supply, sufficient power



•      besides can meet this machine use, but also can supply please Concerning microphone use, its output voltage is 24 volts dc power, belong to Ann All the voltage range, ensure participants' use safety.







Basic function:



•      Support for three cameras camera tracking;



•      1 to 6 microphones can be active at the same time;



•      Selectable mode: AUTO mode, FIFO mode;



•      Built-in DSP processor for acoustic feedback prevention



Connected to the computer with the software, In addition to all of this, also has the following function:



•      Conference management functions by the operator by clicking the conference unit icons approval or reject to speak.



•      Speaking time limit can be preset for conference units



•      VIP microphone, Offline condition, system support 4 cochairman unit, VIP microphone is controlled by itself when we turn on another chairman unit microphone, they can’t affect each other.





Technology parameters:



Frequency Response	30-22000 Hz (3 dB )
SNR	Mic:≥ 60 dB Line:≥ 70 dB AUX:≥ 75 dB
Input Impedance	AUX:47 kΩ Main :10 kΩ
Output Impedance	Pre output:2.5 V – 600 Ω Aux:2.5 V - 600 Ω
Power	100~240VAC(±5%)–50/60Hz/150W
Dimension	433 x 45 x 243 mm
Weight	6 KG
