lcd laminating machine Polarizer Sticking Lamination Machine laminating lcd for TV repairing
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Guangzhou Weicai Electronics Technology Co. Ltd.
Share on (60426004947):
Product Overview
Description
Product Overview

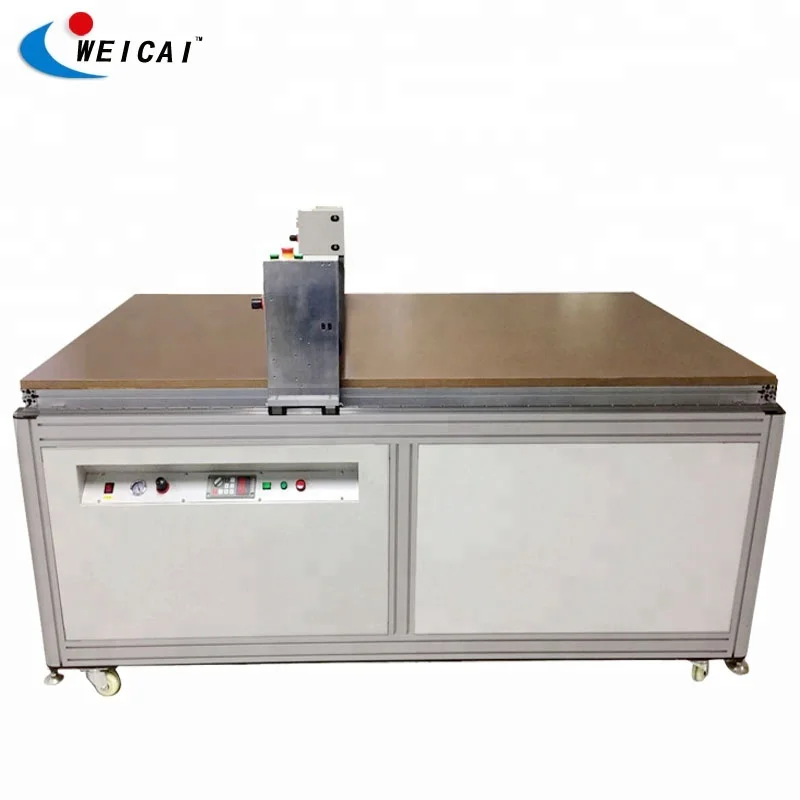

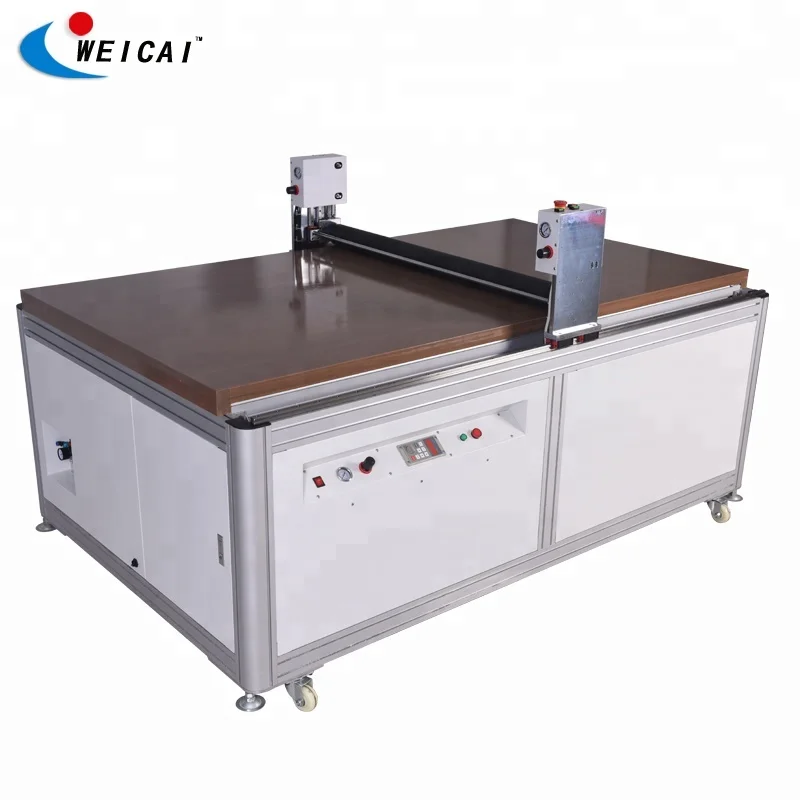

Semi automatic LCD polarizing stick film machine

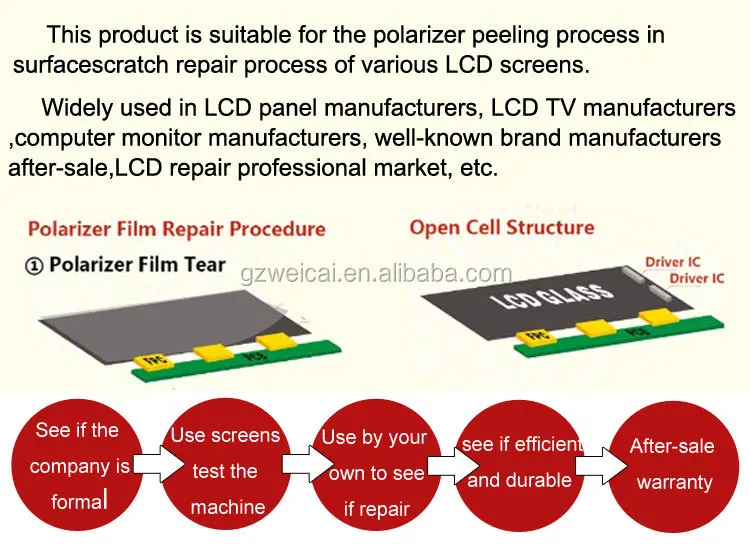

This product is suitable for the polarizing film peeling process in the surface scratch repair of various liquid crystal panels,and after that make the new polarizer stick to the glass substrate process.It is widely used in middle/large-size LCD screen and display panel production,maintenance; such as LCD TV, advertising machine.
FEATURES AT A GLANCE
Working principle
Place the cleaned panel on the platform,the polarizer and panel were manually positioned and fixed by measuring the edge distance,next, the centrifugal protective film of polarizer is manually separated and placed in the material collection device,press the start button,bonding the glass substrate through the cylinder descending roller,the lead screw pushes the roller finally make polarizer accurately and quickly stick on the corresponding LCD substrate.
Right elevation
Left elevation

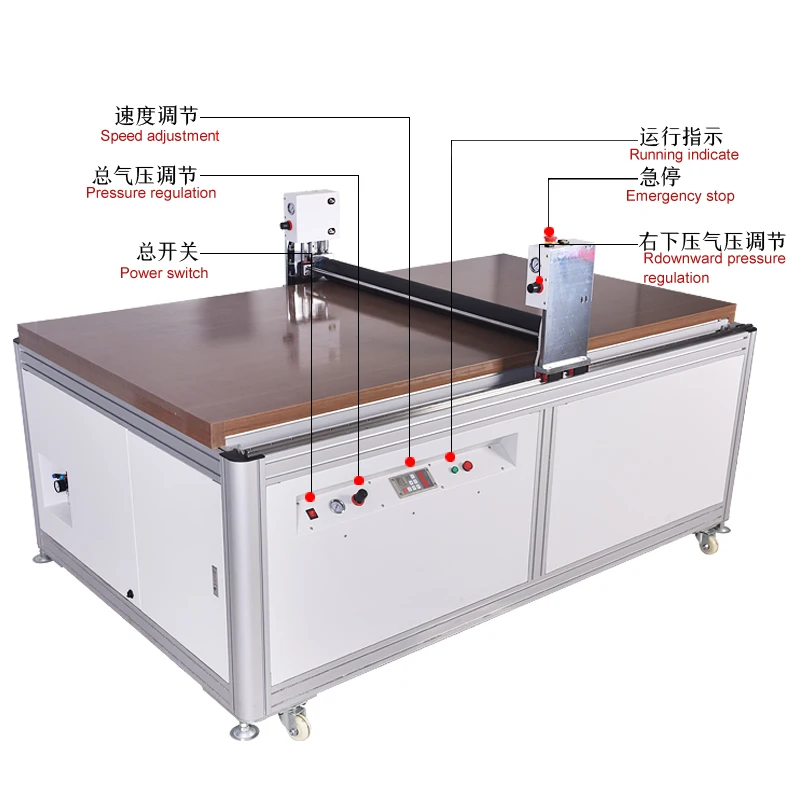

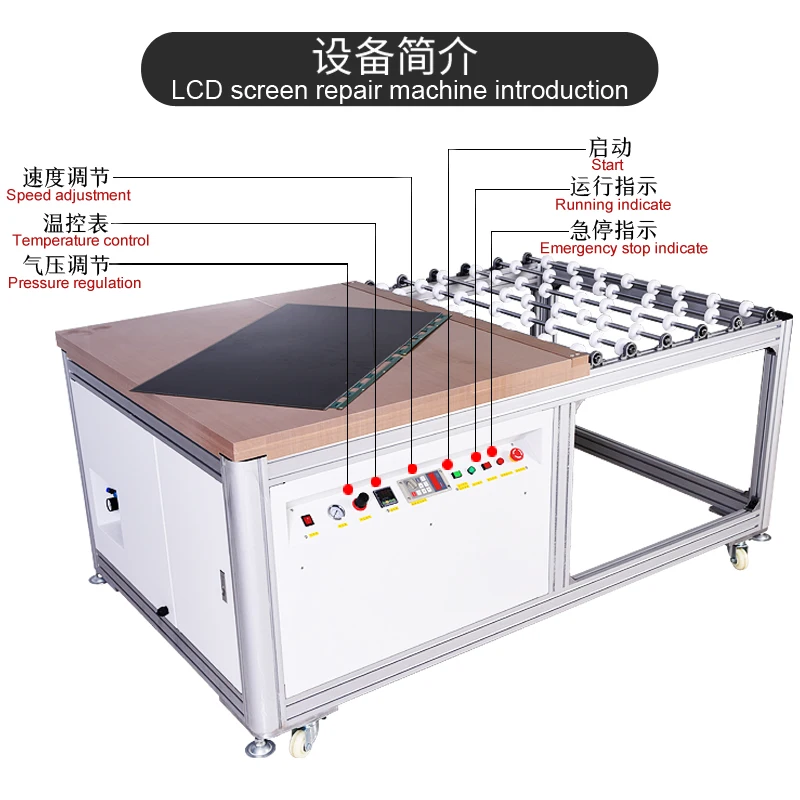

Detail
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Input power | AC220V 50-60HZ |
2 | Rated power | 2KW |
3 | Working pressure | 0.4-0.8MPA |
4 | Applicable size | Applicable size |
5 | Pressure setting | 0.01-0.8mpa Pointer adjustment |
6 | Waste recycling device | l Use synchronous motor coaxial drive,adjustable speed |
7 | Applicable polarizer type | 2D polarizer at various angles |
8 | Roller motion mode | Up-and-down type ,round trip |
About us
We are from Weicai Electronics Technology Co.Ltd which locate in Guangzhou,china.we are direct manufacturer.
We are specialize in laser machine and bonding machine for repair TV LCD screen,light bar and acf tape and accessories more than 8 years.
We own R&D Department and professional engineer too.Support free training and Video factory audit.
SALES AND SERVICE NETWORK
Packing
We are packing by wooden
Customizable
Supporting the custom packing
Global shipping
We are accept EXW price and shipping global
Certification
SIMILAR PRODUCTS
FAQ
Q1：Are you an agent or a manufacturer？
A1：We are directly manufaturer and our own R＆D team.
Q2：How to deal with after-sales problem？
A2：We are support the free training and online video guidance.
...
More question feel free to contact.
