OPTO-EDU A12.1305-B China Binocular Professional Laboratory Microscope
US $214.29-$266.67
5.0MP USB2.0 Digital Eyepiece Camera for Microscope
- Category: Microscopes >>>
- Supplier: Ningbo Haishu Honyu Opto-Electro Co. Ltd.
Share on (60426518407):
Product Overview
Description
Product Description

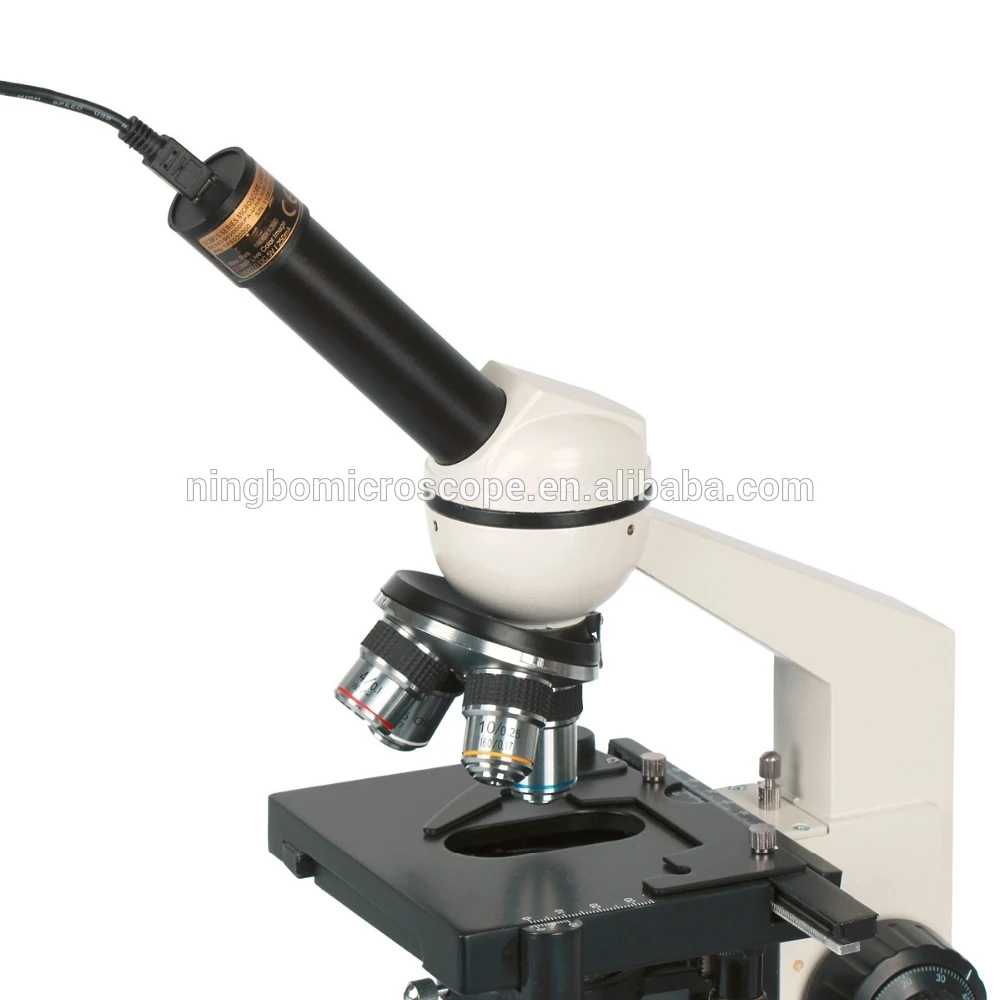

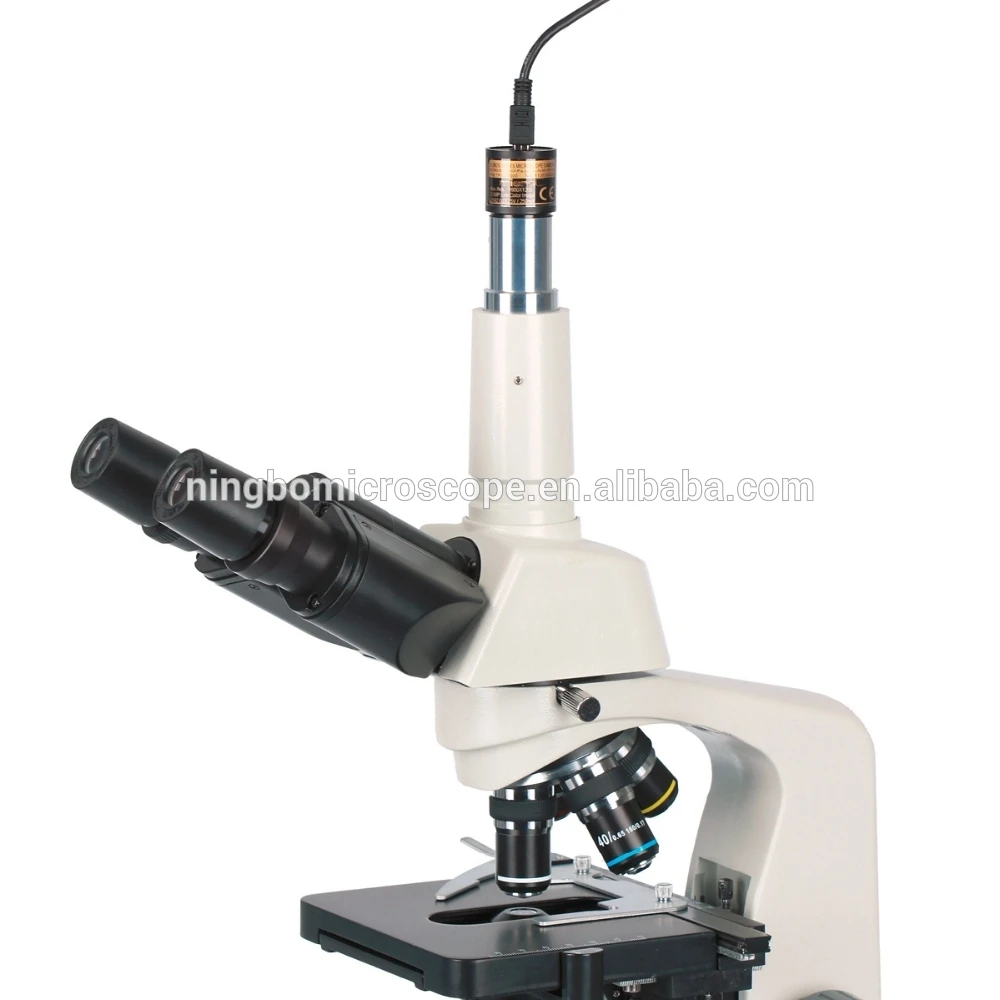

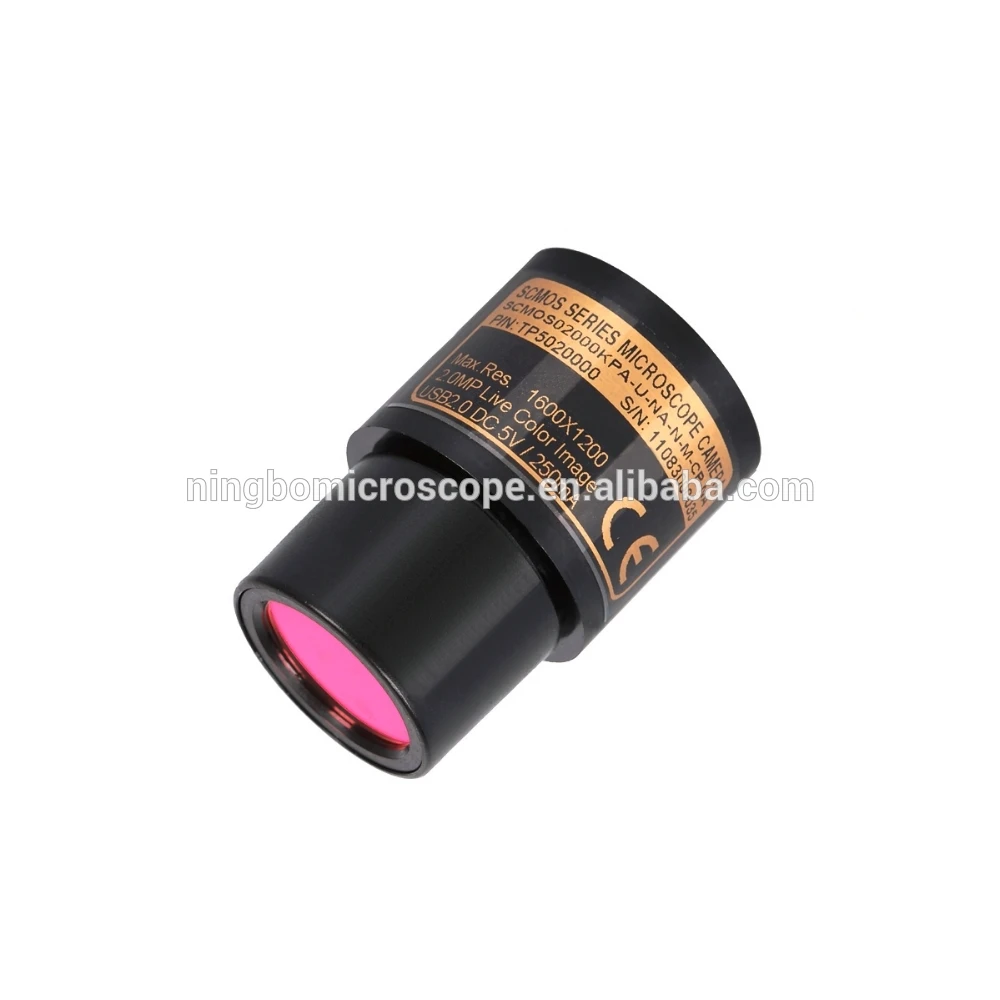

5.0MP USB2.0 Digital Eyepiece Camera for Microscope
Description
The CMOS.17.S500 USB2.0 microscope eyepiece camera, equipped with advanced CMOS color sensor, is characterized by compact design and small dimension. With built-in C-mount compatibility and various adapters, it can be attached to any microscope, telescope, and endoscope with C-mount. Capturing high resolution images, recording real-time specimen video, and image manipulation can be achieved through the user-friendly software attached. The advanced software can be compatible with Windows XP/Vista/7/8/10, Mac OS X and Linux.
Key Features
•USB2.0 high speed digital camera with CMOS sensor
•Capable of recording real-time, high-definition videos and capturing 5.0MP still images
•Compatible with WindowsXP/Vista/7/8/10, Mac OS X and Linux
•Capable of being attachable to any microscopes, telescopes, endoscopes with C-mount
Specification
Sensor Model | Aptina(color) |
Scan Mode | Progressive |
Max. Resolution | 2592 x 1944 (Approx.5.Mega Pixels) |
Sensor Size | 1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm) |
Pixel Size | 2.2μm x 2.2μm |
Responsivity | 0.53v/lux-sec(550nm) |
DynamicRange | 66.5dB |
A/D Converter | 12-bit, 8-Bit R.G.B to PC |
SN Ratio | 40.5dB |
Spectral Range | 380-650nm (with IR-filter) |
Frame Size and Rate | 2fps @2592 x 1944, 3fps @2048 x 1536, 5fps @1600 x 1200, 7.5fps @1280x1024, 30fps @Other Resolutions |
Exposure | Electronic Rolling Snap(ERS), Auto |
Color Rendering Technique | NA |
White Balance | Auto |
Capture/Control API | DirectShow, Twain, VFW |
Capture Mode | Still Picture and Video |
Software Environment | |
Operating System | Microsoft Windows XP / Vista / 7 /8/10(32 & 64 bit) |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory:2GB or More | |
USBPort:USB2.0 High-speed Port | |
Operating Environment | |
Operating Temperature | -30~70°C |
Storage Temperature | -40~85°C |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | Over USB Port |
Optional Accessory
Order Number | Specification Description |
0.5x Fixed Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) | |
ADA.17.AMA050 | 0.5x Adjustable Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
23.2mm to 30mm Eyepiece Adapter | |
23.2mm to 30.50mm Eyepiece Adapter |
Camera Standard Packing List
• One USB 2.0 2.0MP Digital Camera
• One high-speed USB 2.0 Cable
• One CD with Driver and Software
