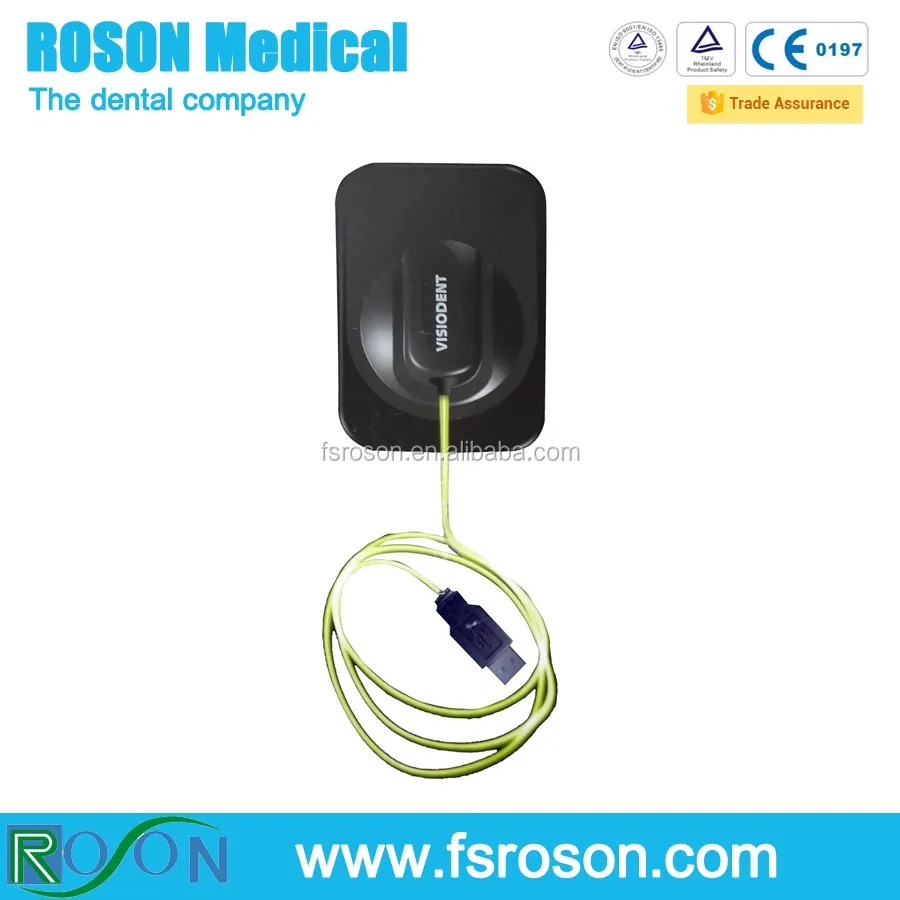

Dental digital portable X ray unit for dentist,Can be use with X ray sensor

Product Overview

Description

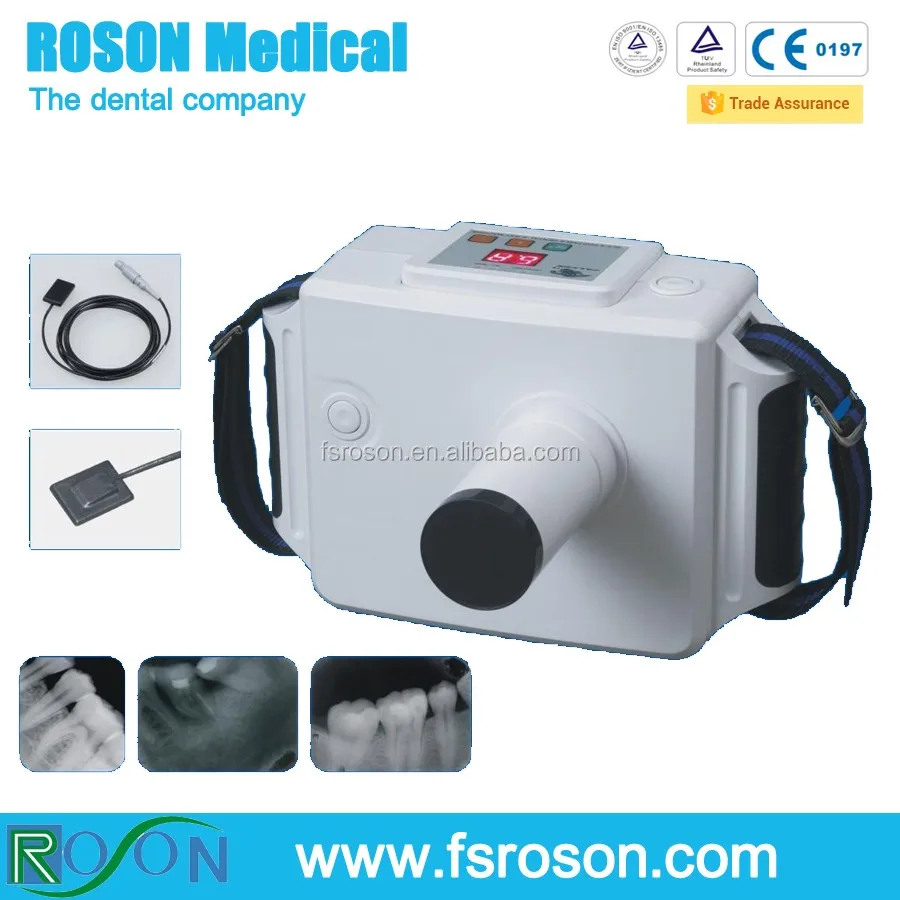

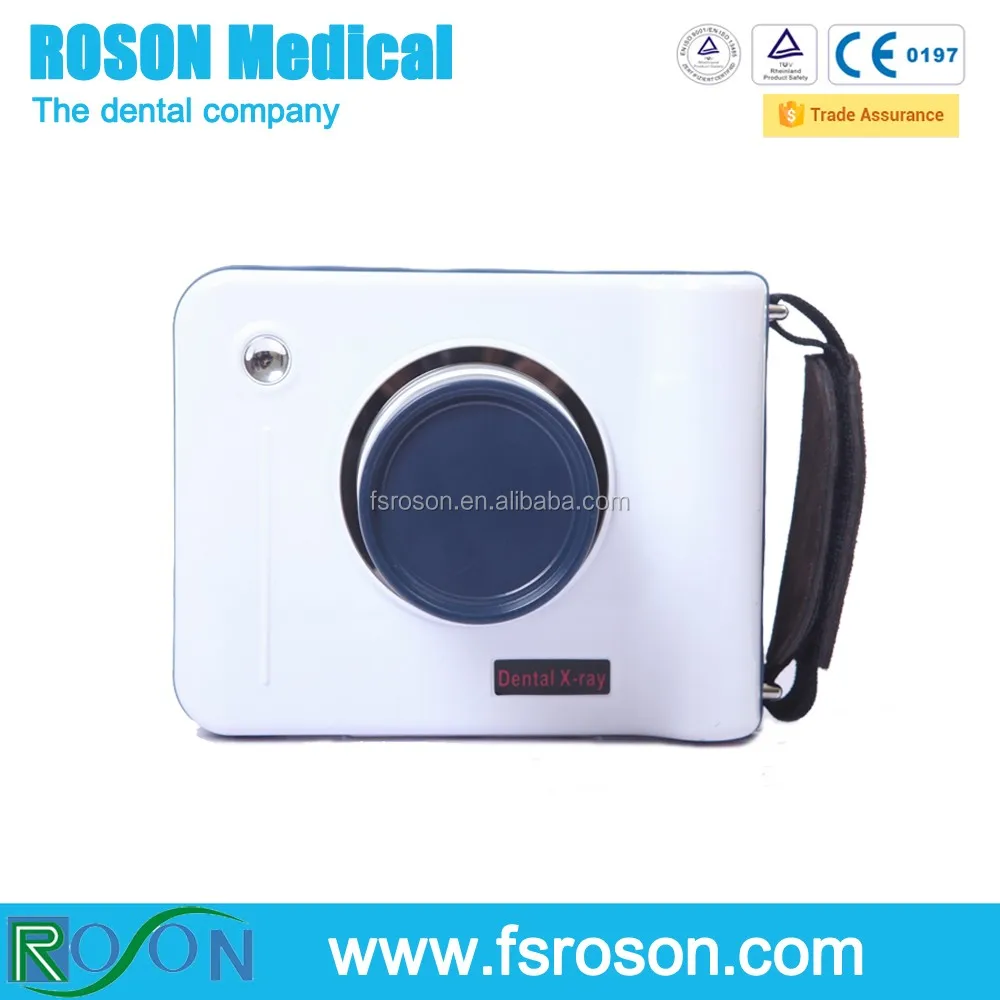

RX3 Portable digital X-ray machine

Thank you for purchasing our portable dental x ray unit,portable dental x ray camera is High Frequency Dental X-Ray unit.
It use new technology and process to make the normal product to be diversified. The dentak x ray unit has the advantages of high-efficiency, Clear imaging, Loe leak radial. It is easy to carry and place.

There chargeable battery can shoot 500 times per charge. It is more stable than the external power source in producing X-rays.
→ Technical Specification:

1.Grade:class II B
2.Classification:Type Bapplied part
3.X-ray generator
1)Tube voltage:60kv(Ficed)
2)Tube current:2mA(Fixed)
3)Tube voltage generator circuit:High frequency inverter method
4)X-ray control method:Controlled by the micro processor
5)Time setting range:0.01~1.6 second(0.01sec step)
4.X-ray tube
1)Type:Stationary anode X-ray tube
2)X-ray tube model:D-081B(toshiba)
3)X-ray tube focal size:0.8mm
4)Target angle:20°
5)Tatal filtration:1.6mmAl
5.Display method:LCD display
6.SSD:100mm/200mm(Long cone)
7.X-ray field:55mm(Round style)
8.Weight:2.0kg
9.Size of main body:180(W)x73(D)x138(H)mm
10.Voltage to use
1)Bettery:Lithium polymer bettery(DC14V)
2)Charge:(Input:100~240V,50-60Hz 1.0A output:DC25.2V 0.75A)
