35m per minute high speed simple operation door line edge banding machine for sale
Mode: MF1504AFG
AFG Pro Parameter
MF-1504AFG is our high speed door line edge banding machine. The feed speed can reach 35 meters/min.
35 meters=8 pieces work piece
8 pieces*60mins=480 pieces /hour
480*8 hours/day=3840 pieces /day=16800meters per day
Thickness of edge band:
3~12 mm.
Thickness of work piece
12-40 mm
Minimum Width of Work piece
65 mm

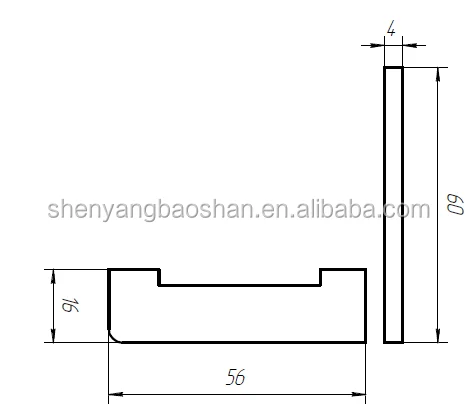

Max edge band height:
60 mm
Feeding speed
15-35m/min
Air pressure
0.5-0.8Mpa
Work Transmission Motor:
3.7KW/0.4KW 1:40 380V 1400RPM 50HZ
Glue Box Heating
2KW
Auxiliary Heating
4KW 1PC
Machine Lighting and Others
0.3KW
Glue box motor
0.55KW
Size of machine
3700×1120×1900mm (Length* Width* Height)
Weight of machine
2200KGS
Total power
11KW

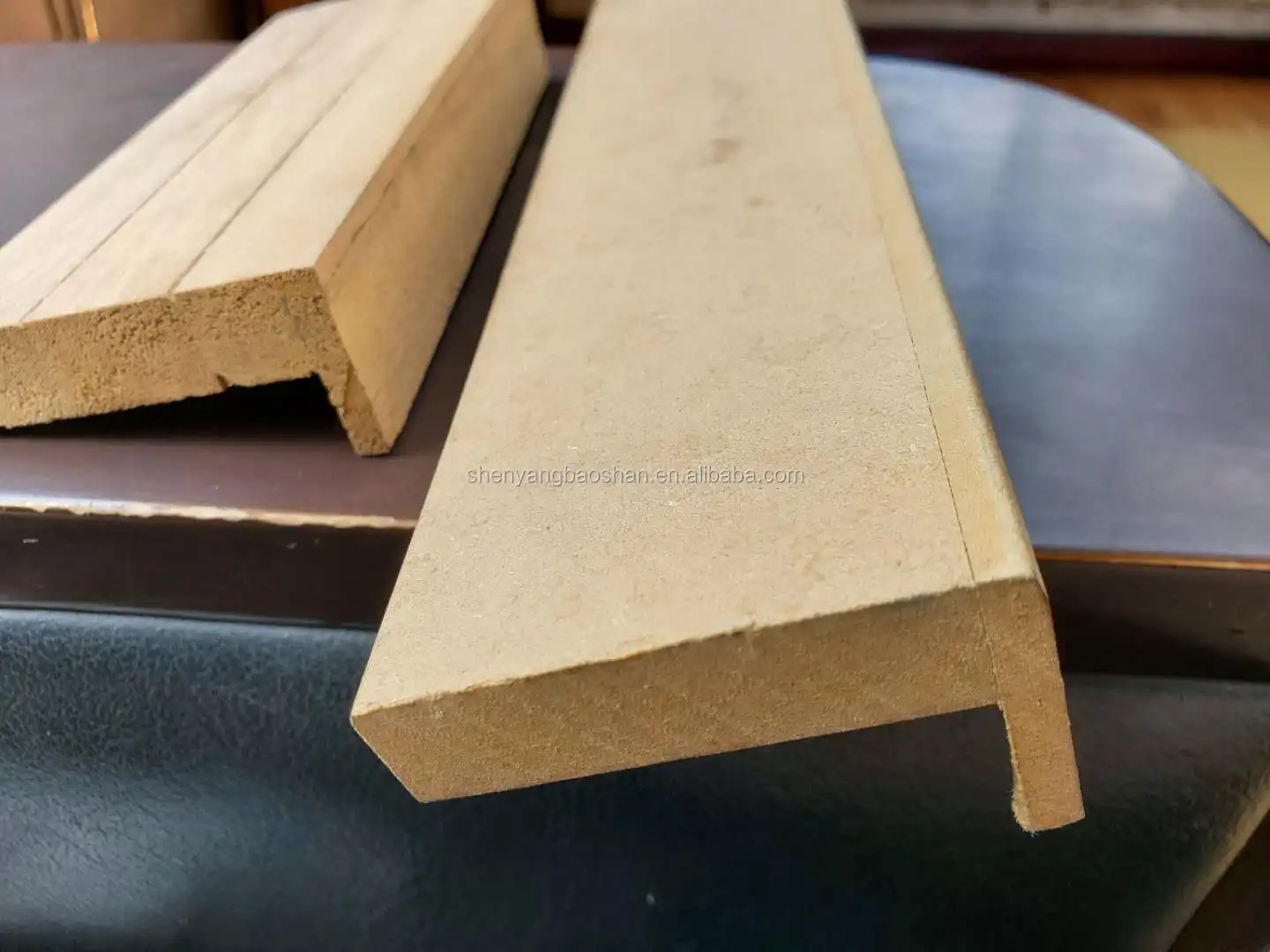

Finished Products
This high speed door edge banding machine is special because the height of the band goes up to 60mm while other machines only go up to 40mm. 60mm high bands are very common in Russia and some other European countries.Customers have a difficulty finding machine does this.
And more importantly, the edge banding machine has a feed speed up to 35 meters per minute which is very fast compared to other common edge banding machines.
