PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000
Высокоскоростная машина для выдувания пленки с двойной головкой
- Category: Blown Film Production Line >>>
- Supplier: Ruian Yuanhang Machinery Factory
Share on (60429178208):
Product Overview
Description
Specifications

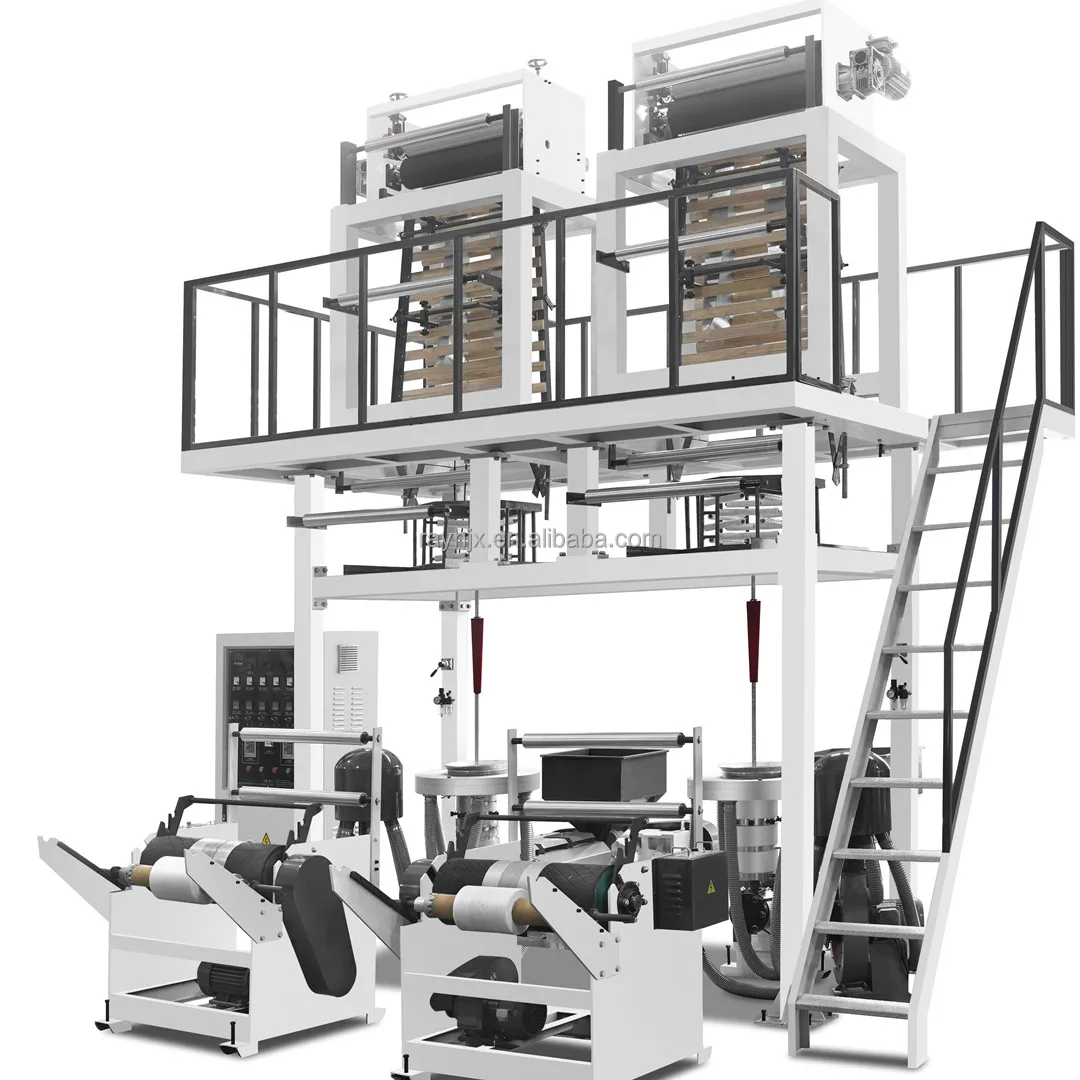

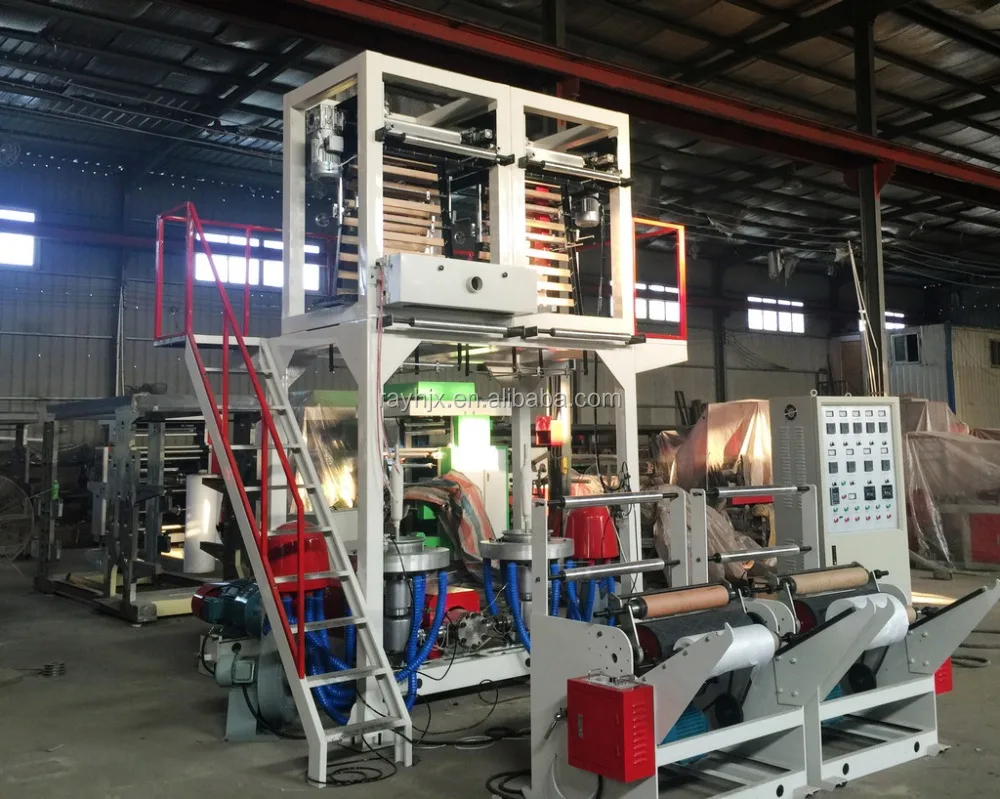

Single Screw Double Die Head PE Film Blown Machine
two take-up, two winders, so it can do high output and use little power.
Single Screw Double Die Head PE Film Blown Machine
Uses:
It is used for blowing the various plastic film of low density polyethylene(LDPE) and high density polythylene(HDPE) colour striped plastic film, etc.
Which are widely used for packing food, fruit, garments, textile, dailly necessities and other civil and industral products.
Characteristics:
1. It use one screw stem to extrude, and two head die to putout the film, adopts two take-up, and two winders, so it can do high output and use little power.
2. The screw stem and cylinder are made of 38CRMOALA high quality alloy steel affer fine finishing and nitrided treatment, which has high hardness, strong resistance to corrosion, durable service.
3. The die head is plated with hard chrome, of screw mandrel type structure with even and smooth discharging, the blown plastic film has fine finishing; The blower is of labyrinth structure with even air output.
4. The coiling unit adopts pressure rewinding or center rewinging, which is driven by torque motor, with even and easy roll changing.
Main Technical Parameters:
Model type | SJ-65 | SJ-75 |
Diameter of Screw Stem | 65mm | 75mm |
Major Diameter Ratio of Screw Stem | 28: 1 | 28: 1 |
Thickness of Products | 0.005-0.05 | 0.005-0.05 |
Folding Width of Products | 200-500mm | 200-600mm |
Main Motor Power | 18.5kw | 30kw |
Heating Power | 23kw | 25kw |
Rational Speed of Screw Stem | 10-120rpm | 10-120rpm |
Specification of Die Head | 55mm*2 | 60mm*2 |
Output | 40-60kg/h | 50-70kg/h |
Machine Weight | 2300kg | 2500kg |
Overall Dimensions(L*W*H) | 4200*3500*3900mm | 4500*3600*4100mm |
Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
If need know more about our machines/price/service:
Phone/WhatsApp: +86-13396972488
Wechat: 65295224
