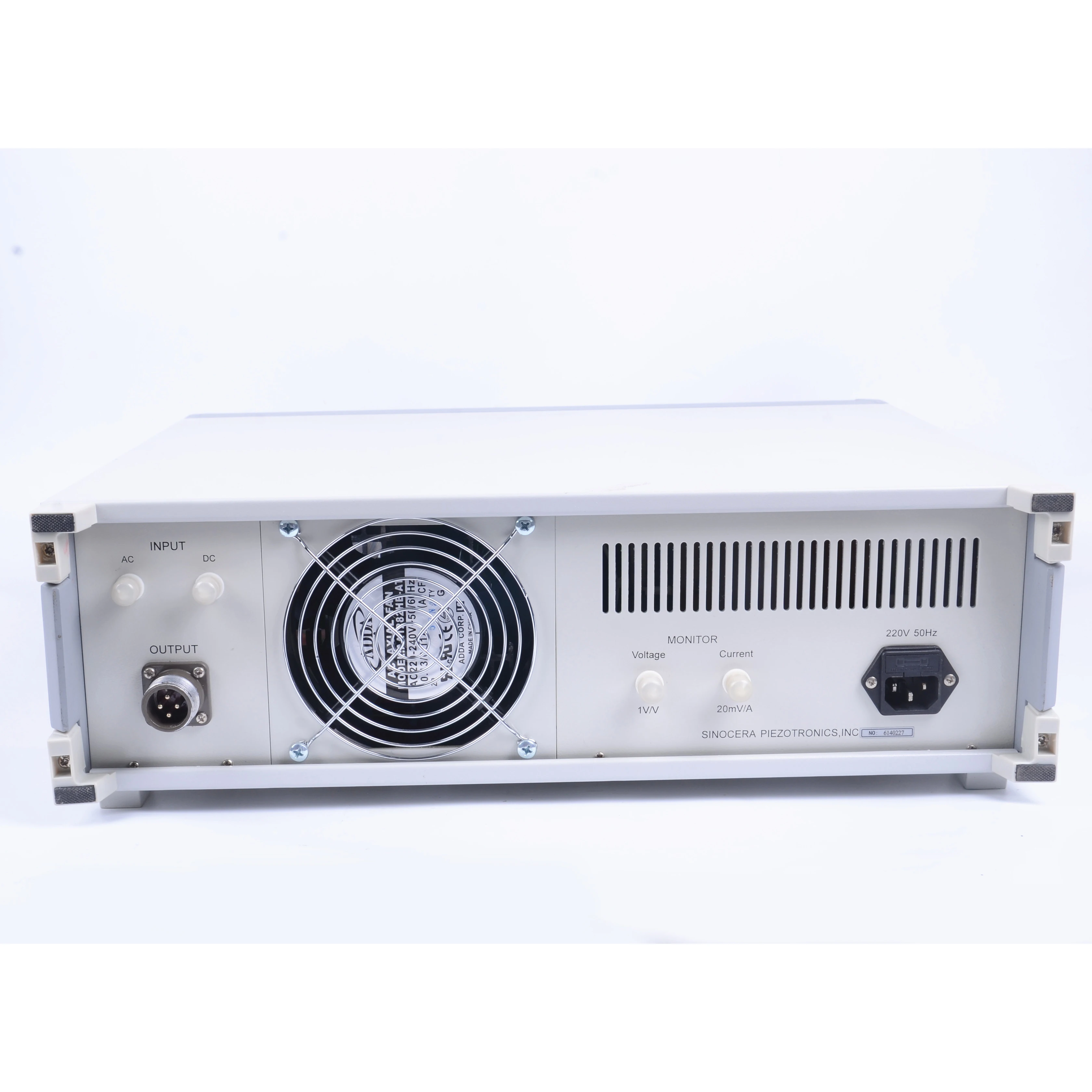

200W power amplifier for JZK 10 100N modal shaker modal test
- Category: Other Electronic Measuring Instruments >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (60429535722):
Product Overview
Description
Product Description

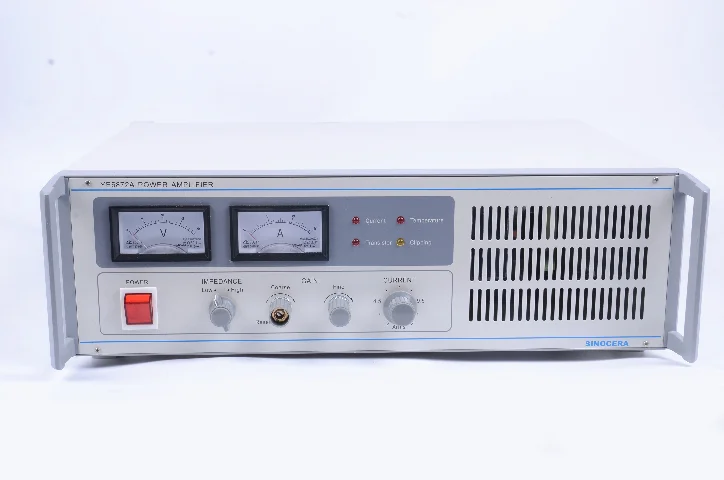

Power Amplifier (200W) |

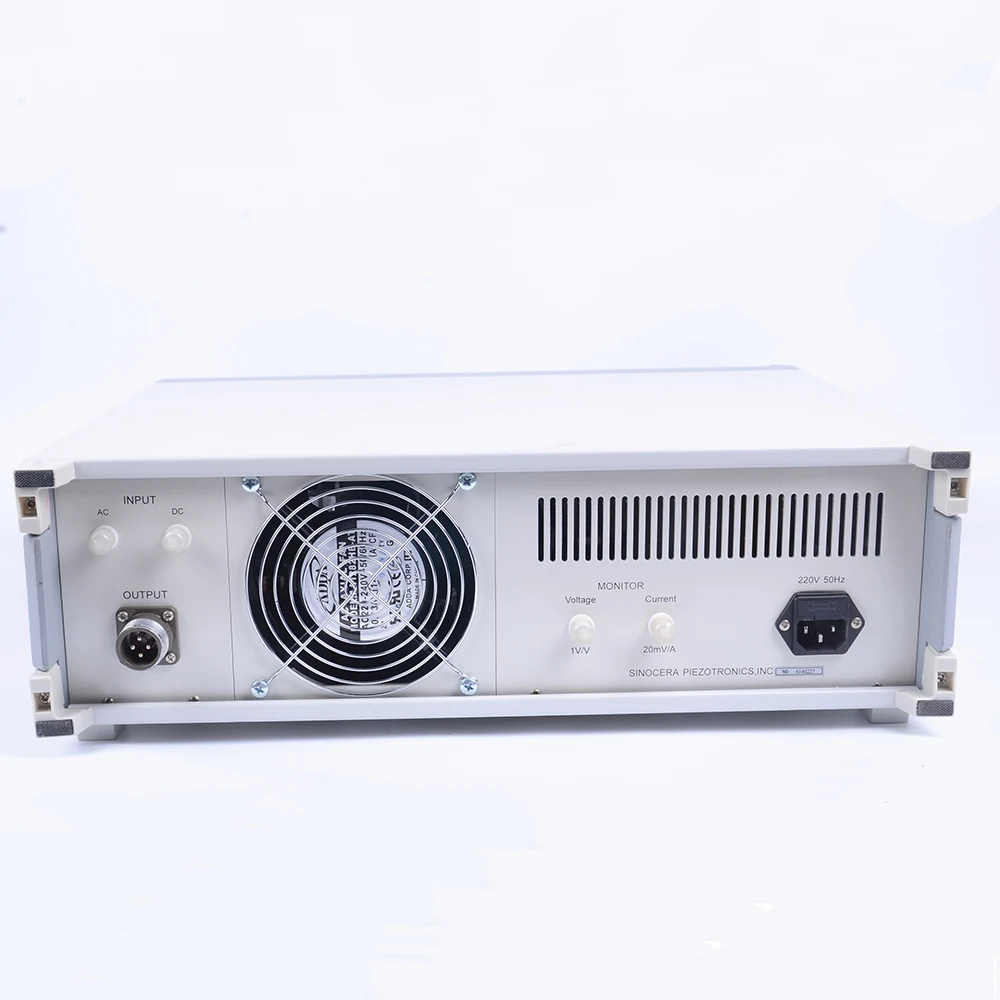

Model: YE5872A |
Features:
· Indicator for voltage and current output
· Indicator for output signal
· Output current can be adjusted from 2A to 10A
· Hot protect for output transistor
· Indicator for output transistor invalidation
· Constant current and constant voltage output method
· For vibration test to drive JZK-20 modal shaker
Specifications:
Input | |
Input impedance | ≥10kΩ |
Output | |
Rated power output | 200VArms |
Rated voltage output | 14Vrms |
Rated current output | 15Arms |
Non-linearity distortion | <1% |
Signal / Noise rate | Constant Voltage≥70dB;Constant Current≥60dB |
Indicator meter Tolerance | < ± 8% |
Environmental Characteristics | |
Temperature | Operating: 0°C to 70°C; Storage: -55°C to 85°C |
Moisture | Maximum 90%R.H. |
Frequency Characteristics | |
Frequency Range (Hz) | DC input 0 to15kHz±0.5dB;AC input 20 to 50kHz±1dB Full power 5-10kHz, half power 0-50kHz |
PROTECT | |
Current output limited | 3-15Arms (modifiable) |
Hot limit of transistor | ≤85℃±5℃ |
Dimensions | 400mm(W)*166mm (H)*320mm (D) |
Weight | About 15Kg |
Gain | |
Constant voltage type | 5V/V±2dB (1kHz) |
Constant current type | 8A/V±2dB (1kHz) |
Power Supply | |
Power source | AC220V(+5%~-10%)50Hz 3A |
Accessories | |
Input cable | One 2m double-BNC cable |
Output cable | One 4-core cable |
Power supply cable | One AC supply cable |
Fuse | Four 5A(6mm×30mm) |
Our Services
We can customized.
If you have any requirements,please feel to let me know.
