Automatic Rocker Switch Assembly Machine

Product Overview

Description

 Automatic Rocker Switch Assembly Machine

Introduction

1. This automatic rocker switch assembly machine manufactured to implement from components loading, feeding, locating, inserting, riveting, cutting, pressing, testing, sorting to final unloading.

2. Designed with excellent compatibility that could be a solution for a series of rocker switch in different model and size.

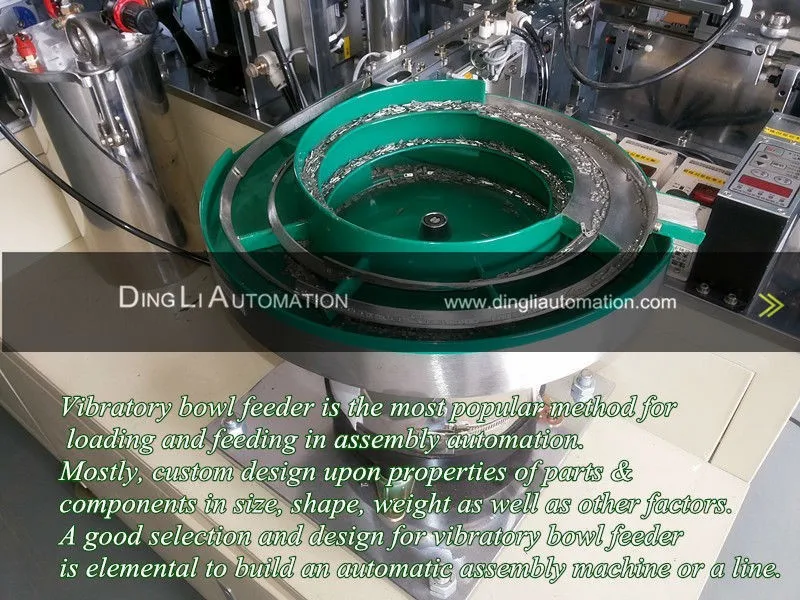

3. Custom-design vibratory bowl feeders keep each kind of material supply in time separately

4. Well performed control system consist of PLC and touch panel ensure equipment working stable and reliable

5. Providing after sale service both domestic and overseas



Assembly Flow

1. Terminal loading and feeding.

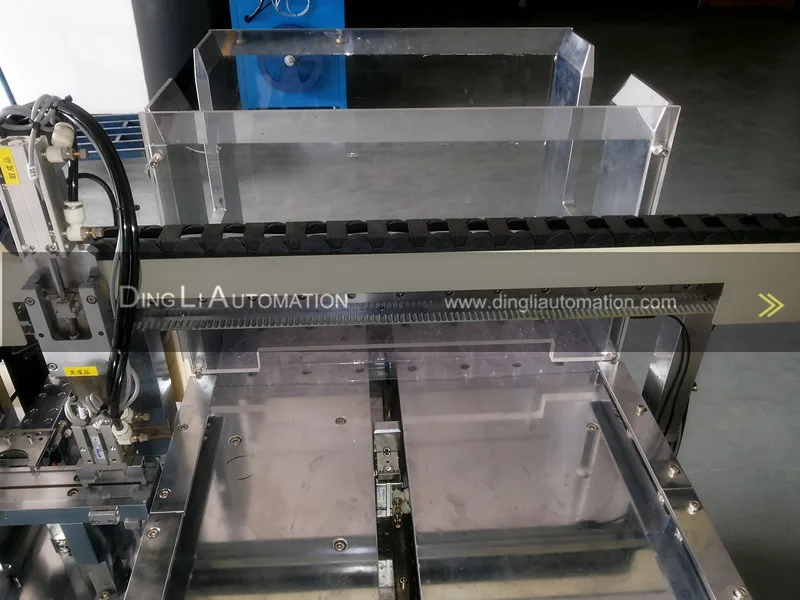

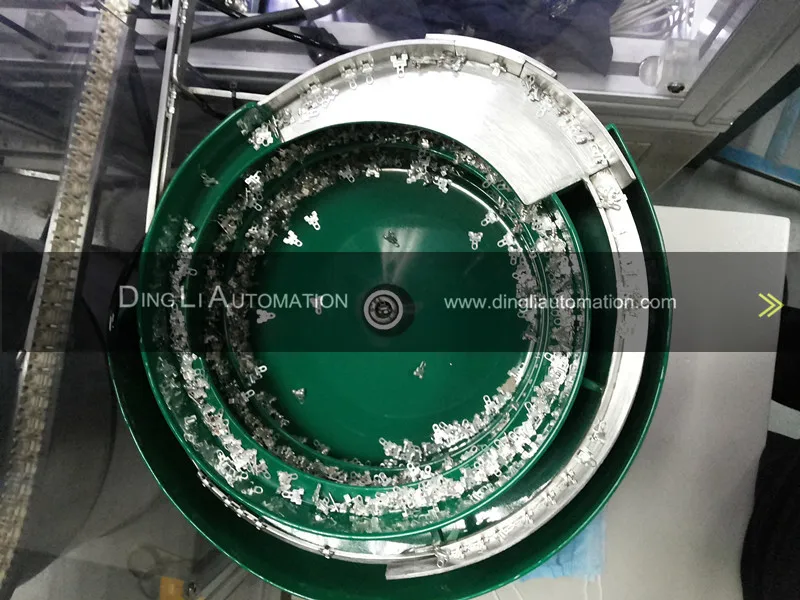

Terminal with silver contact riveted are conveyed through vibratory bowl feeder and enter into workstation orientated

2. Plastic housing loading and feeding

A custom selector is mounted on vibratory bowl ensure the plastic housing conveying to the designated position and await assemble

3. Terminal insertion and cutting

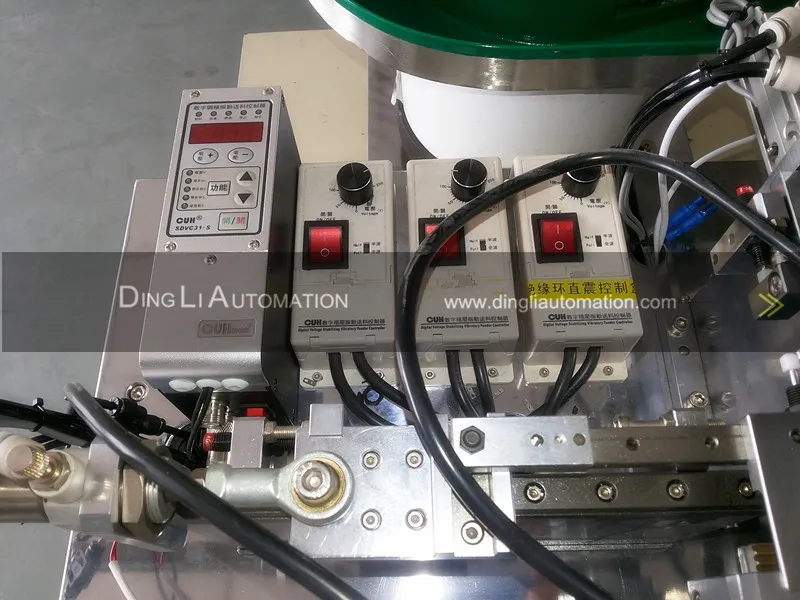

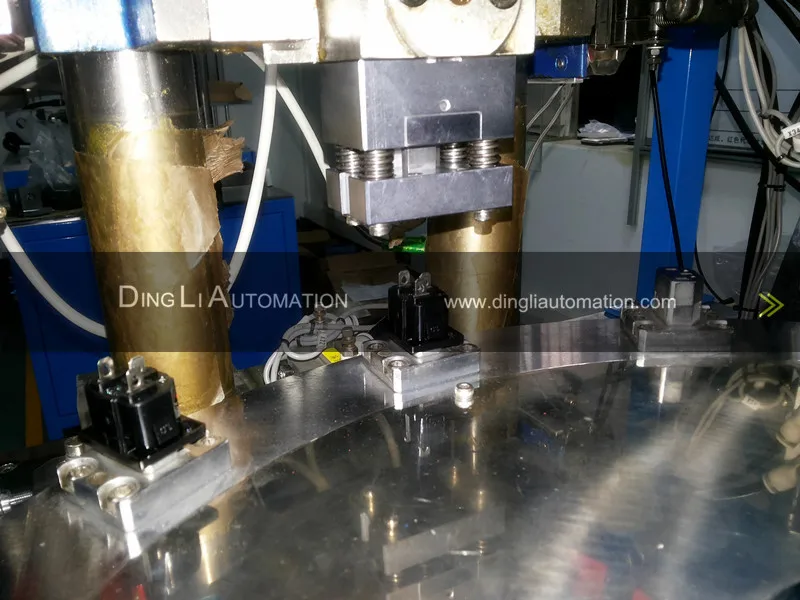

Terminal will be inserted to the plastic housing through a special press and insertion mechanism. After insertion, the special made cutting device will perform cutting process.

4. Contact sheet loading and assembly

The contact sheet of rocker switch conveying slide way from vibratory bowl to the assembly flow, and then assemble with the plastic housing which inserted terminals

5. Spring loading and assembly

A custom designed vibratory bowl is introduced to convey the spring orderly, when spring move to the designated position, the second assembly process will performed and assembly with the semi-product mentioned above.

6. Button loading and assembly

Button conveyed through a special vibratory bowl and move to the assembly flow automatic and with the same orientation. The third assembly process will be implemented to finish the final rocker switch.

7. Testing and sorting

Conductivity testing and CCD visual inspection system perform the sorting mechanism and make division of rejects and accepts and unloaded separately





Features



1. All of automatic assembly motions in entire machine are designed with continuous interlock function, the machine will alert & shutdown in an automatic way if any abnormal occurred;

2. The Pneumatic component or parts are introduced with branded Air TAC,SMC ,Festo that enables the process more stable and accurate;
3. With the user-friendly human machine interface (HMI) and touch control panel, easy to operate and also protect the safe of the operator;

4. The branded Mitsubishi PLC, Skyworth or Winview HMI (human machine Interface) touch screen, Japan KEYENCE Optical Fiber are introduced.







WHY WORKS WITH DINGLI TECH

1. Most famous companies like Tyco, Amphenol, Molex,ZTE, CTZ, Defond, SOKEN, HUAGENG choose to cooperate with Dingli Tech because we have more flexible solution, and more mature technology in automatic assembly solution;

2. A professional team with more than 10 year’s experience in assembly engineering design will guarantee a high efficient automated assembly solution for customer’s product in a way of scientific design and engineering procedures;

3. Dingli Tech created a practical method to verify the assembly process of the designed automated assembly machines to answer for massive assembly & processing demand, mostly, a cost-effective solution will be generated and provided to our customer to improve assembly quality and increase productivity;

4. The transaction term of leading time will be reached in time and on time, which shall thanks to our manufacturing team that boost around more than 80 staffs, skilled mechanical and electricla workers ensure the quality of automated assembly machine;

5. Services: Engineers with passports will be available to perform on-site support in customer’s site to install, commission the automated assembly machine and train operators from customer;

Third party and agent service are also available depending on our agent in some regions.

6. Original Branded Components
All of the components and elements for the automated assembly machine such as pneumatic component
The original source for these branded components and parts can be guarantee through our purchasing department, fake or copied parts are not allowed to be introduced for the machines.

7.Available to concept, design, manufacture the single integral assembly machine or the assembly lines such as straight-line, or U-shaped assembly, which is more ergonomic and advanced.





Technical Specification

Machine name: Automatic Rocker Switch Assembly Machine

Machine Model: DL-SW-10X04

Overall Dimension: Approx. 950*760*980mm (variables due to custom design)

Gross Weight: Approx.300kg

Air pressure: >0.5Mpa

Productivity: 30pcs/min
