Used Tire Shredder Prices Machine Tire Shredding Plant For Rubber Blocks And Granules Pieces For Sale
Product Description

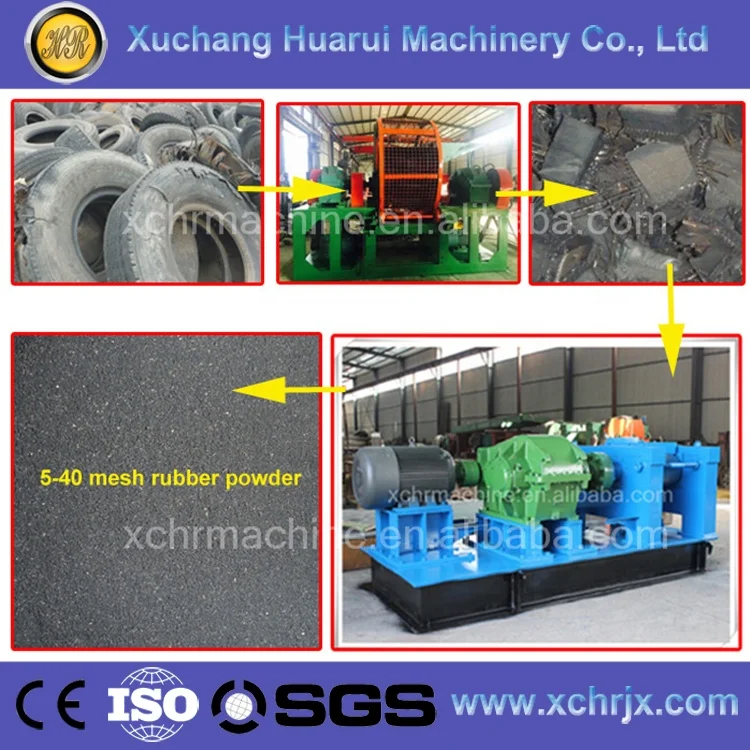

Working Process: Tire wire drawing machine-- tire cutting machine-- tire shredder-- tire crusher-- finished rubber powder.
Product Overviews

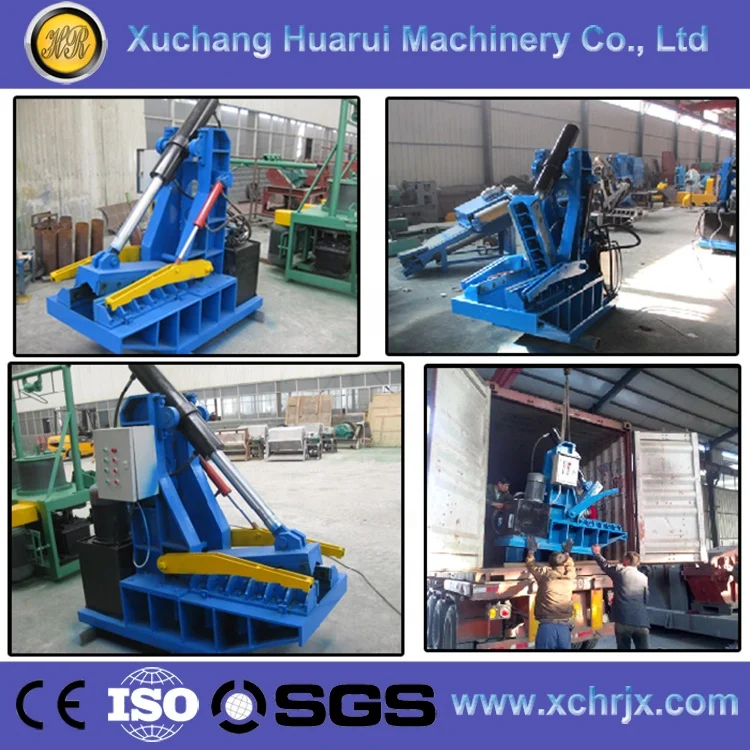

Step one: Tire wire drawing machine
Application: this machine is used to draw out the steel loops from the tire bead.
Model NO. | Feed size of tire | Capacity | Power | L*W*H | weight |
TD-1200 | ≤φ1300mm | 30-40tires/h | 11 KW | 4.7*0.9*1.7M | 1.8T |

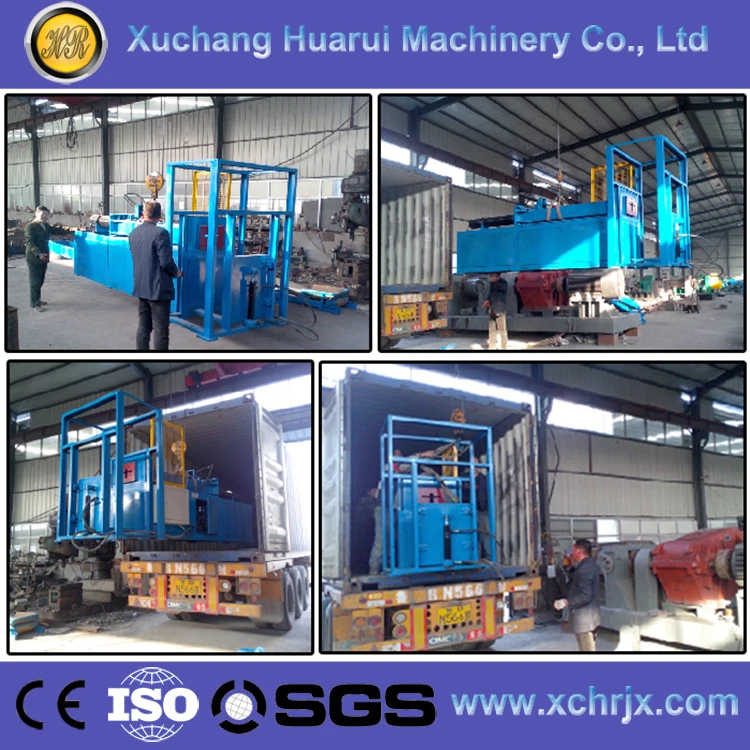

Step two: Tire cutting machine
Application: this machine is used to cut big tires to tree pieces or smaller pieces, if the tire diameter is bigger than 825mm.
Model NO. | Feed size of tire | Capacity | Power | L*W*H | weight |
TC-1200 | ≤φ1300mm | 30-40tires/h | 11 KW | 2.2*0.8*1.5M | 1.5T |

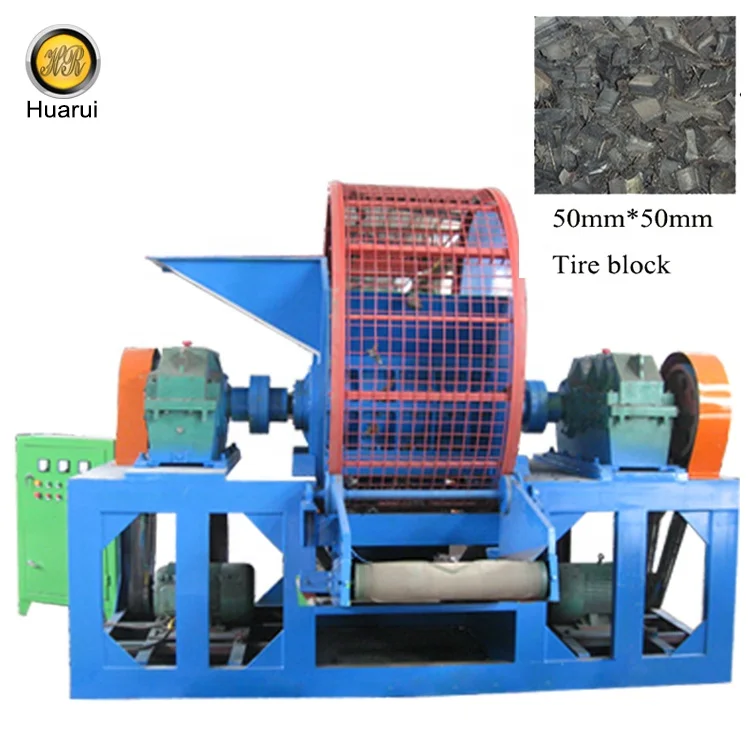

Step three: tire shredder
Application: is used for cutting whole tire to 50*50mm rubber block. (Including 2 conveyor belts)
Model No. | TS-800 | TS-1000 | TS-1200 |
Output(T/h) | 1-2ton | 2-4ton | 4-6ton |
Feed size of tire(mm) | ≤φ900 | ≤φ1000 | ≤φ1250 |
Output size(mm) | ≤50*50 | ≤50*50 | ≤50*50 |
Power(KW) | 22/30*2+4+1.5 | 45*2+4+1.5 | 75*2+5.5+1.5 |
Speed(r/min) | 15 | 14 | 14 |
Equipment weight | 9T | 12T | 15T |

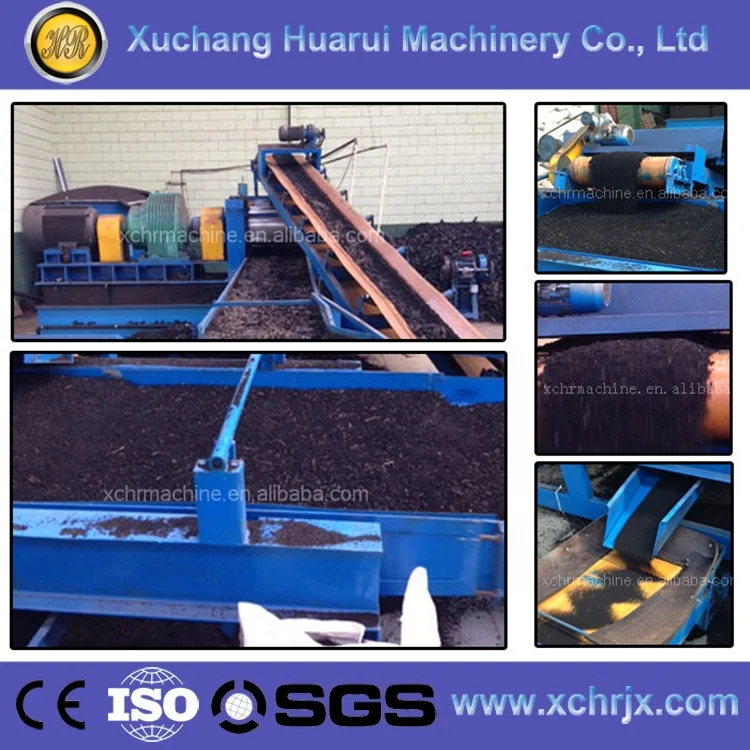

Step four: tire crusher
Application: It is used to grind the rubber blocks into smaller mesh powder through the vibrating screen as you need.
Model No. | XKP-450 | XKP-560 | XKP-560L |
Diameter of front roll | 450 mm (groove) | 560 mm (groove) | 560 mm (groove) |
Diameter of back roll | 450 mm (groove) | 510 mm (groove) | 560 mm (groove) |
Drum working length | 760mm | 800mm | 800mm |
Front roll liner speed | 38.0 m/min | 40.6m/min | 44m/min |
Roll ratio | 1:2.5 | 1:2.5 | 1:2.5 |
Max roller spacing | 10 mm | 10 mm | 10mm |
Motor power | 45KW /55KW | 75KW | 110 KW/132KW |
Motor revolution speed | 980 r/min | 980 r/min | 760 r/min |
Weight | 12 T | 13 T | 25T |
Step five: Magnetic separator (2 sets: the first magnetic separator is roughing separator and the second one is fine separator)
Application: It’s used for separating the steel wire from the rubber powder.
Sept six: TFS1000 Fiber separator
Application: it’s used to separate the fiber, nylon and small wire from both nylon waste tire and steel tires.
Model NO. | Motor power | Capacity | L*W*H | Weight |
TFS1000 | 5.5 KW | 800-1000kg/h | 0.5*1.5*3.4m | 1600 kg |
