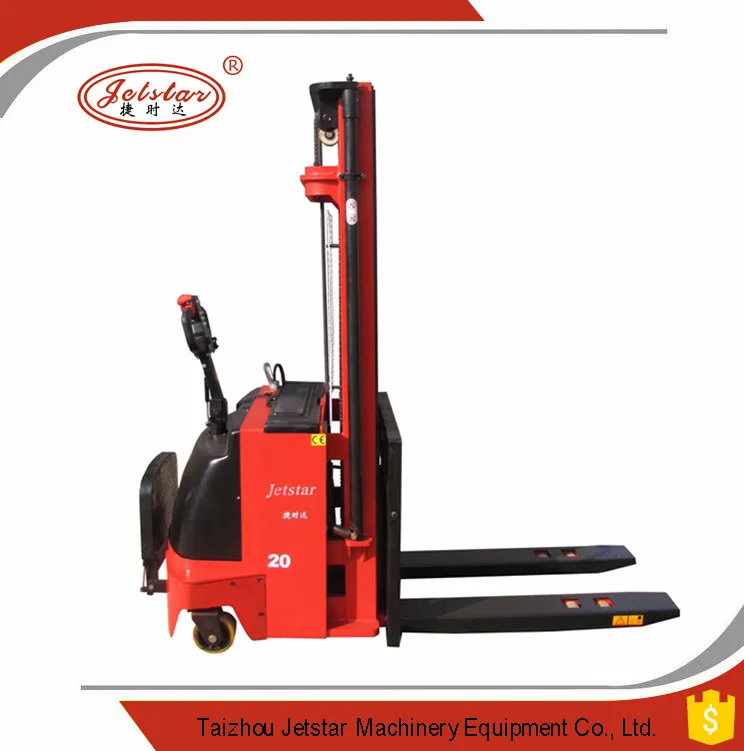

1.6m height 1 ton mini electric pallet fork lift jack stacker
1.6m height 1 ton mini electric pallet fork lift jack stackers are desing to operate in narrow passage and limited space and they are good helper to laod/unload and stack goods in stacking warehouse, supermarket and workshop etc,these trucks have following features and benefits, human system engineering design, continusous y variable drive, wide view mast assembly made of germany stell, maximum lifting height 6 meters, with optional standing plat.
Advantages
Electronic power steering system,low noise and safety.
three drop speed mode.
Drive unit floating bodies with patent design.
AC driving system,no carbon brush,maintenance free.
USA CURTIS controller.
Electromagnetic ,regenerative braking system.
Automatic lifting limit,proximity switch,long life.
Permanent warranty.

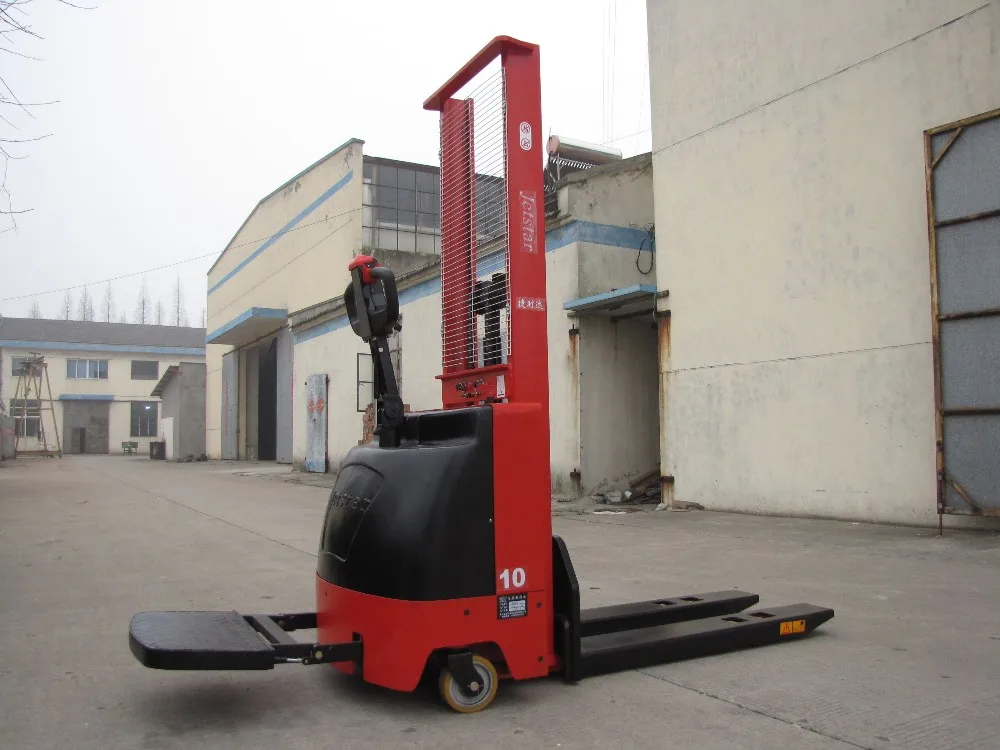

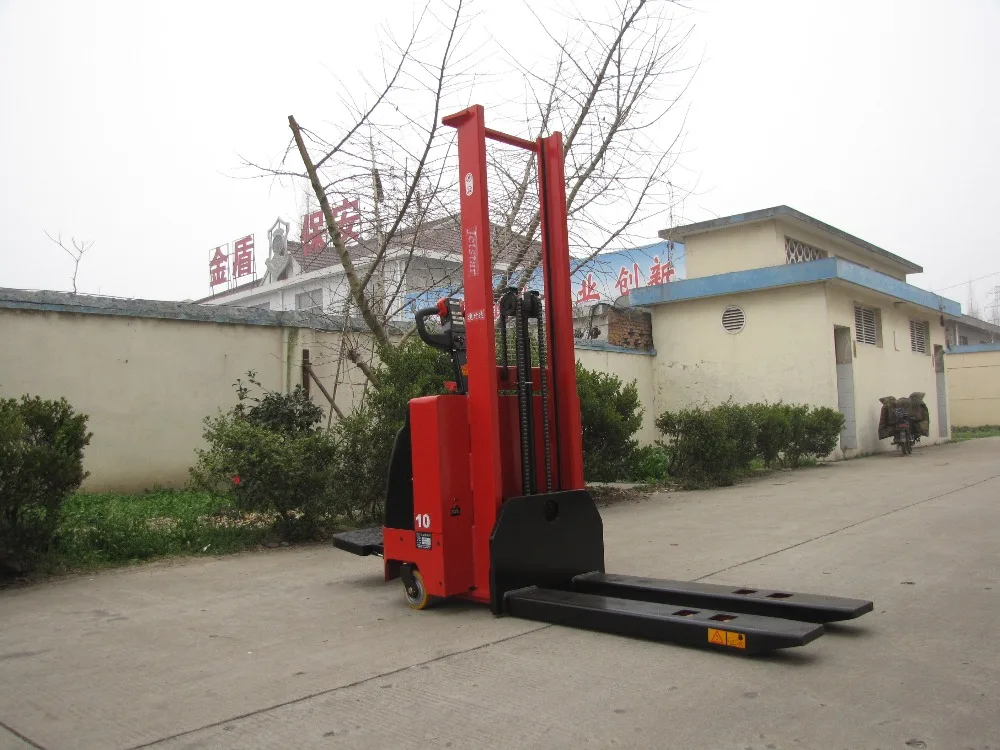

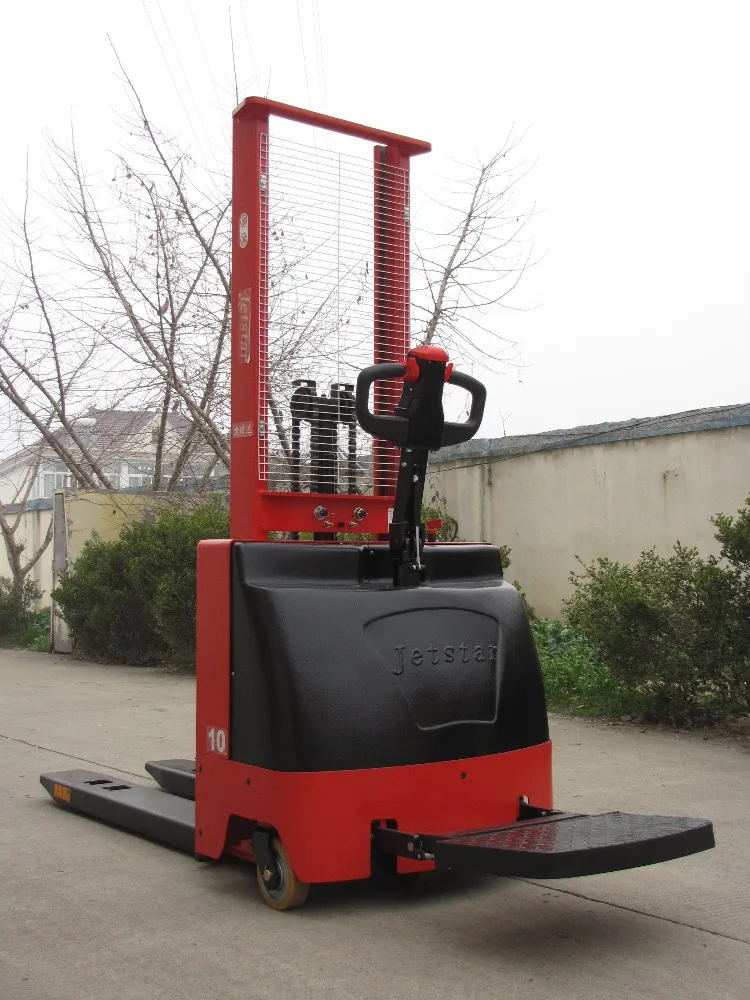

Pictures
Technical Data
General
Model
Unit
HL10
HL12
HL15
Rated load capacity
kg
1000
1200
1500
Power
Tractive-type battery
Operator type
Pedestrian / rider (pedal)
Characteristics
Maximum lifting height
mm
1600
1600
1600
Lowered height of fork
mm
≤90
≤90
≤90
Minimum turning radius
mm
1425
1425
1650
Minimum aisle width
mm
2300
2300
2500
Minimum ground clearance
mm
30
30
30
Standard fork length
mm
1150
1150
1150
Standard fork width
mm
160
175
175
Fork overall width
mm
560
570
570
Fork individual width
mm
240
220
220
Chassis
Overall length
mm
1800
1800
1988
Overall width
mm
850
850
1000
Mast extended height
mm
1975
1975
1975
Mast lowered height
mm
1975
1975
1975
Performance
Maximum traveling speed
Laden
km/h
4
4
4
Unladen
km/h
6
6
6
Maximum lifting speed
Laden
mm/h
80
80
80
Unladen
mm/h
130
130
130
Maximum lowering speed
Laden
mm/h
110
110
110
Unladen
mm/h
90
90
90
Gradeability
Laden
%
5
5
5
Unladen
%
8
8
8
Brake
Braking type
Electromagnetic
Wheel
Wheel type front/rear
Poly/Poly
Wheels
1×Driven wheel,2×Balance wheel,4×Front wheel
Balance wheel dimension
mm
Φ156×50
Φ156×50
Φ156×75
Axis space
mm
1228
1228
1450
Motor
Driving motor
kw
1.2
Lifting motor
kw
2.2
Battery
Battery(Voltage/Capacity)
V/Ah
12/120×2
12/165
24/210
Control
Control system
Curtis I207a
Weight
Weight
kg
650
690
690

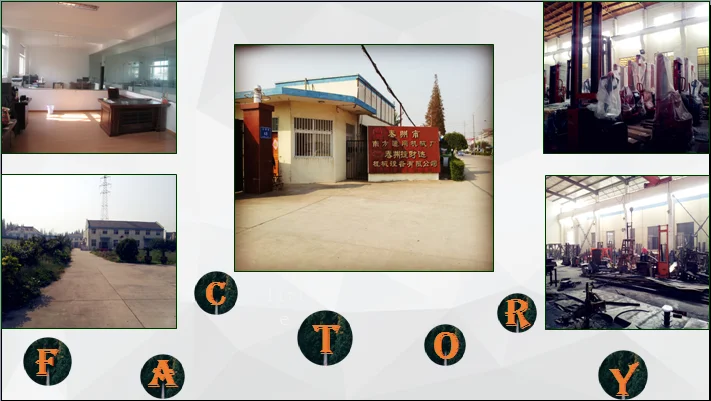

Company Information
