portable 12v electric jeep winch

Product Overview

Description

portable 12v electric jeep winch

 The winch completes the traction drive with human power or mechanical power driving a reel.

It can vertically lift or horizontally and obliquely draw heavy weights.

An electric winch consists of a motor, the coupling, the brake, the gear bos,

and the reel which are altogether installed on the machine frame.

The winch has such features as generality, compact structure, small volume,

 light dead weight, heavy lifting capacity and convenient

movement .



SPECIFICATION Line pull:4,309kgs/9,500lbs Motor: 12V/5.0HP Gear Train: Three stage Gear Ratio: 173:1 Freespooling Clutch: Rotating ring gear Wire Rope Size: Φ11/32"×100'(Φ8.7mm×30m) Wire Rope Type: Aircraft A7×19 Drum Size: Φ2.5"×9"(Φ63.5mm×229mm)

LINE PULL Layer of Wire Rope Max Line Pull 1 9,500lbs/4,309kgs 2 7,800lbs/3,500kgs 3 6,550lbs/2,977kgs 4 5,700lbs/2,578kgs

LINE SPEED AND AMP DRAW(1st layer of rope on the drum) Load Line Speed AMP Draw(12V) No Load 55.8FPM/17MPM 60 2,000lbs/907kgs 14.7FPM/4.5MPM 140 4,000lbs/1,814kgs 12.5FPM/3.8MPM 181 6,000lbs/2,722kgs 12FPM/2.7MPM 248 8,000lbs/3,650kgs 8.2FPM/2.5MPM 295 9,500lbs/4,309kgs 7.5FPM/2.3MPM 338

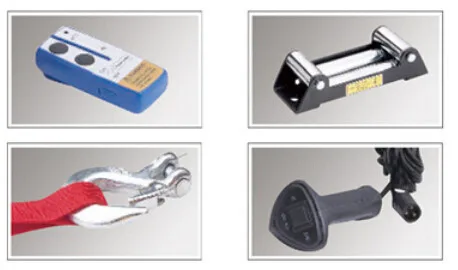

STANDARD ACCESSORIES

Controller                         TA-0906

Wire Rope With Hook

4 Way Roller Fairlead       TA-0903

Control Unit                      TA-0910

ey Block                       TA-0109

Handsaver Strap

PACKAGE

Winch weight : 48kgs/106lbs

Gross Weight : 50kgs/110lbs

Box Dimension :  647×198×440 mm(25.5"×7.8"×17.3")





Packaging and  dlivery  detail

Cartons or wooden cases,on pallets,and we can also make the packing according to buyers   request

15 day after payment



Outstand Service

We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
