Touch Screen Automatic Washer and Disinfector
- Category: Other Pharmaceutical Machinery >>>
- Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Share on (60439789736):
Product Overview
Description
Attention:
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description

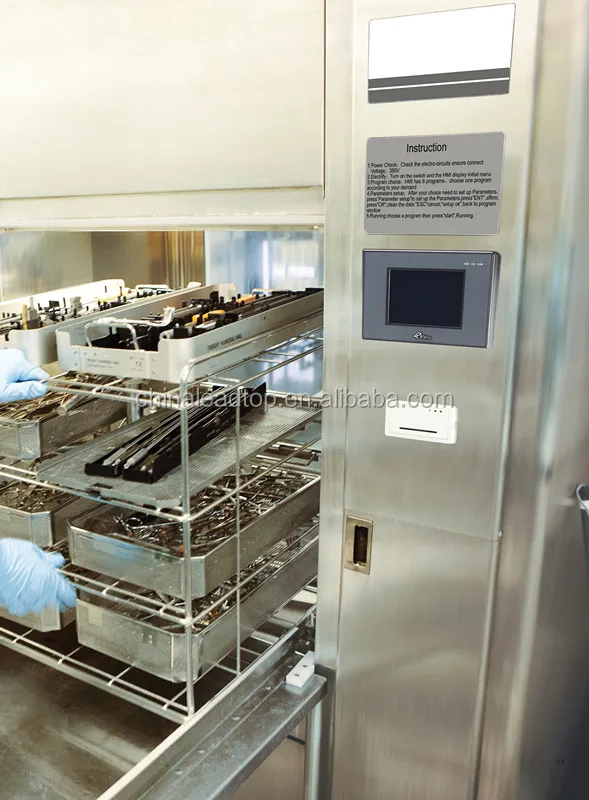

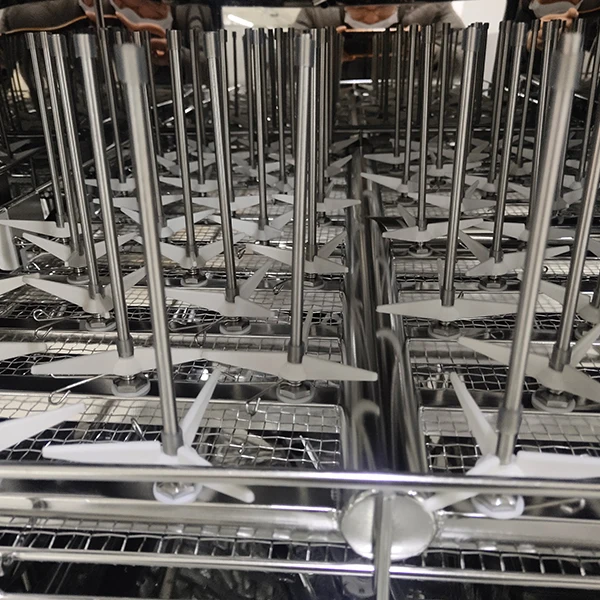

This machine is one full automatic machine for washing, disinfection and drying process. It is suitable for pharmaceutical companies, research institutions, university Laboratory customers to wash the laboratory glassware such as flasks, beakers, pipette, Petri dishes, wide mouth bottle, etc.
Technical Parameters
Model | LTLW420 |
Capacity （L） | 420 |
Power （V/Hz） | 220/50 |
Power Consumption （Kw） | 7 |
Outer Dimension(W x D x H）（mm） | 1100×900×2165 |
Programs （Set） | 6 |
Water Temp （℃） | RT～100 |
Water Heating Power （Kw） | 5 |
Drying Power （Kw） | 3.6 |
Fan Power （Kw） | 0.75 |
Water Consumption (L/CIRCLE) | 23 |
Noise dB(A) | ≤56 |
Washing Levels | 2 |

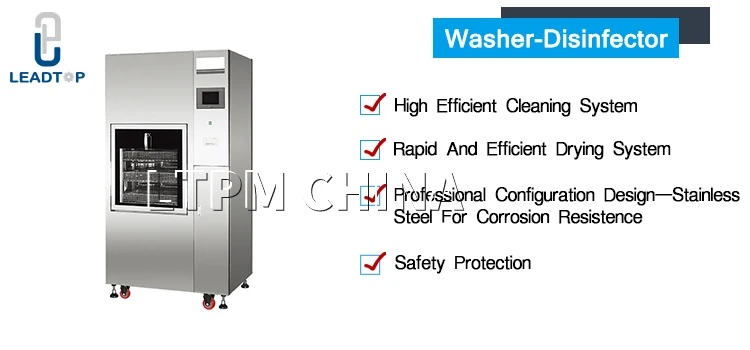

Features

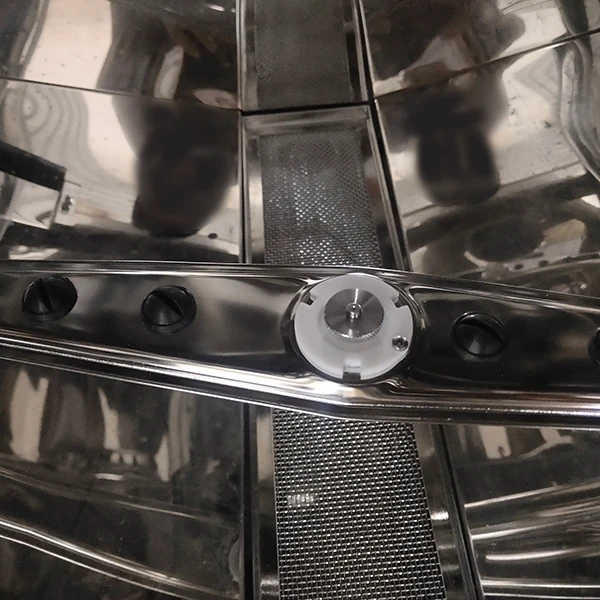

1.High Efficient Cleaning System, Designed With European Reliable Pump, Optimized Spray Arm And Nozzles, And Self-Cleaning Program.
2.Rapid And Efficient Drying System, Designed With Independent Air Heater,HEPA Filter And Thorough Drying Process
3.Professional Configuration Design—Stainless Steel For Corrosion Resistence
4.Two Inlets For Both Tap Water And Pure Water And One Outlet In Anti-Back Flow Design
5.Reinforced Glass Window Mounted To Achieve a Clear View On Washing Process

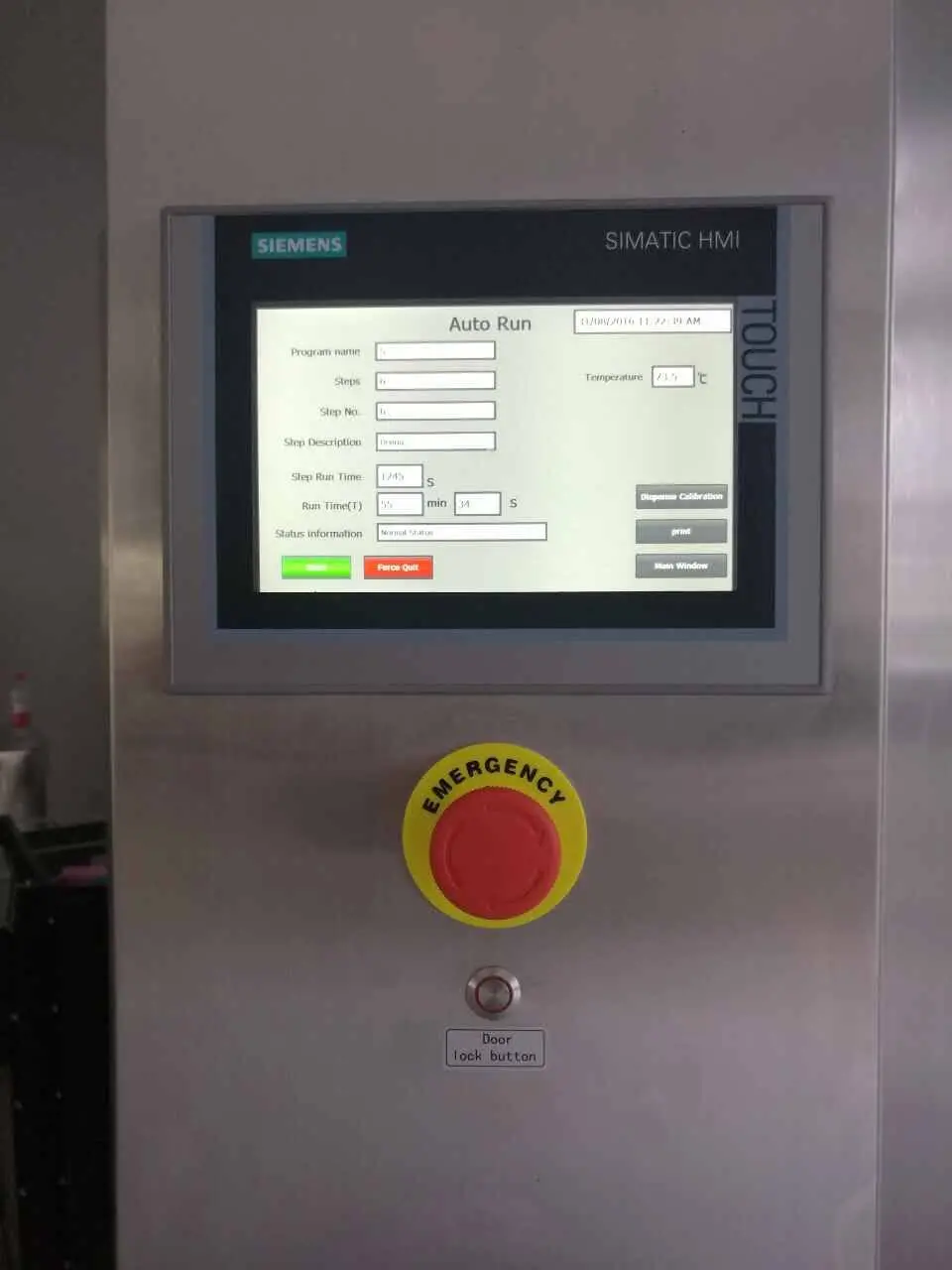

6.Excellent Control System—Plc Touch Screen Control With Preset
7.Programs(Including One Customized Program)To Monitor All The Operation Processes
8.Safety Protection—Electronic Security Door Lock To Prevent Unexpected Door Opening, Water & Drying Air Temperature Dual Control And Equipped With Emergency Switch
2.Rapid And Efficient Drying System, Designed With Independent Air Heater,HEPA Filter And Thorough Drying Process
3.Professional Configuration Design—Stainless Steel For Corrosion Resistence
4.Two Inlets For Both Tap Water And Pure Water And One Outlet In Anti-Back Flow Design
5.Reinforced Glass Window Mounted To Achieve a Clear View On Washing Process
6.Excellent Control System—Plc Touch Screen Control With Preset
7.Programs(Including One Customized Program)To Monitor All The Operation Processes
8.Safety Protection—Electronic Security Door Lock To Prevent Unexpected Door Opening, Water & Drying Air Temperature Dual Control And Equipped With Emergency Switch
Schematic Diagram
General Drawing
1.Screen
2.Front Door
3.Detergent/Neutralizer Area
4.Power Switch
Liquid Agent Add
Related Products
Company Profile

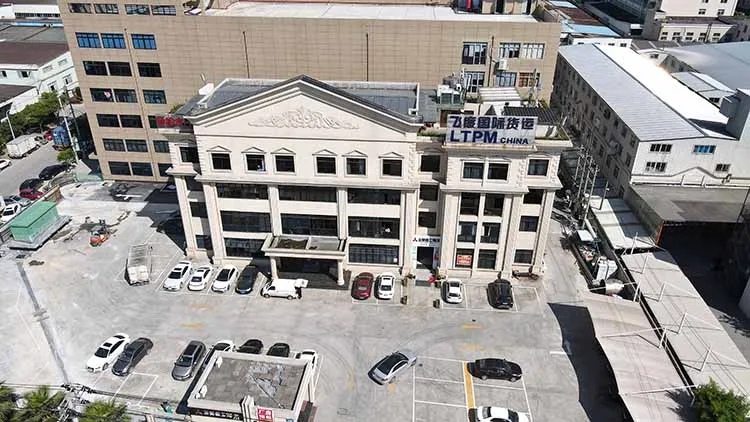

Our Company
China Ruian City LeadTop Pharmaceutical Machinery Co., LTD (LTPM) is recognized as a major pharmaceutical equipment manufacturer and supplier. Our company is founded in Ruian, China, with a base of 18 years of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines at competitive prices.

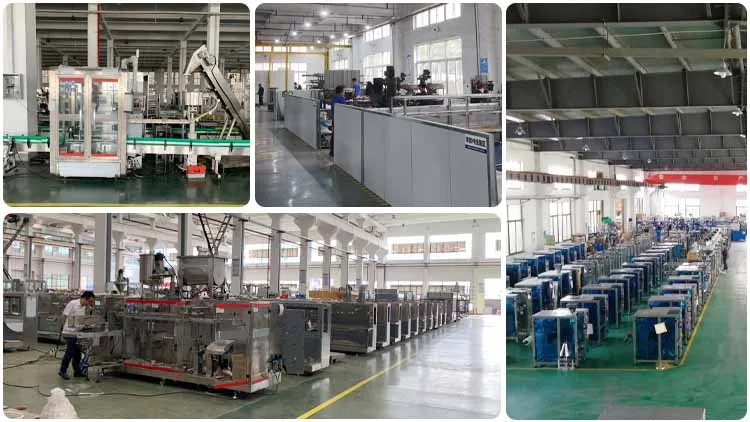

Our Machinery Manufacturing Workshop
