Датчик давления 300 кг 500 кг, датчик нагрузки, цена

Product Overview

Description



Range : 5kg ~ 5t

Hot sellings:100kg, 200kg, 250kg, 300kg, 500kg, 750kg, 1000kg







 Specifications:



1 Steel materials , internal filling plastic seals, oil, water , corrosion resistance , suitable for a variety of environments .

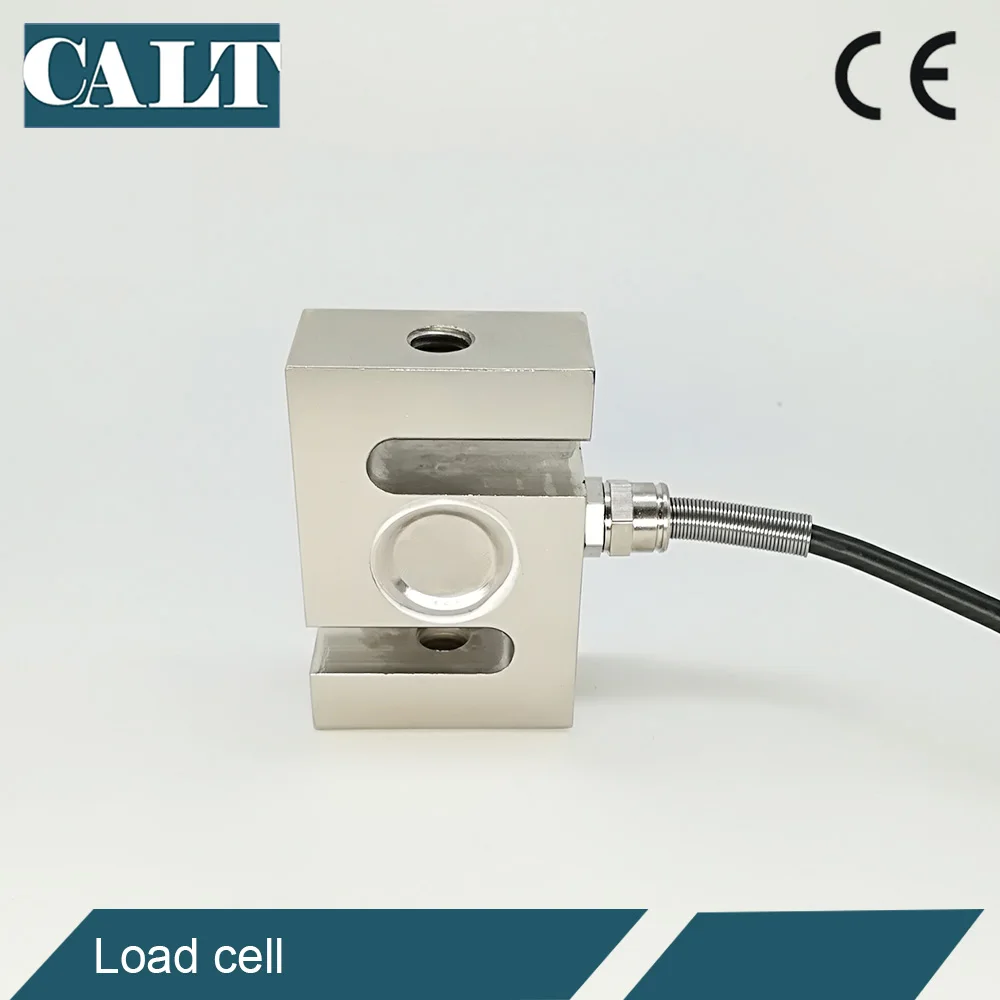

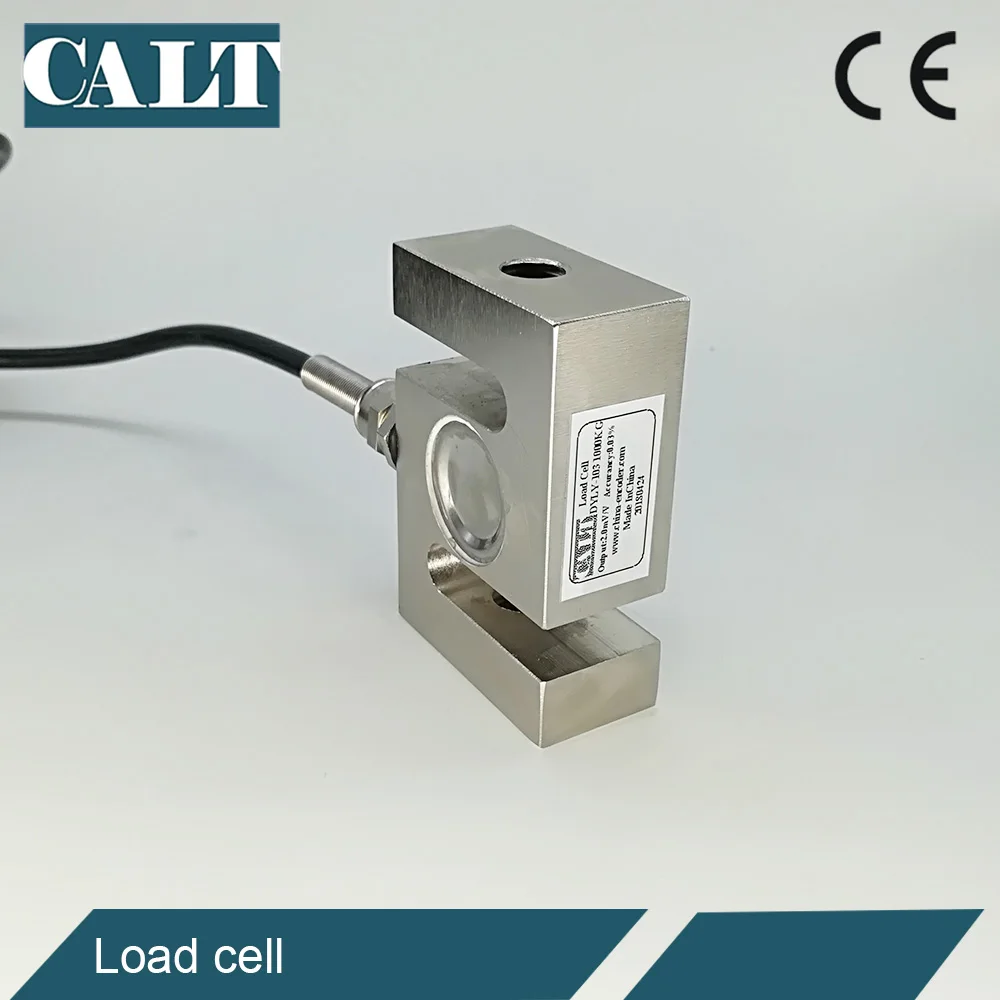

2.S -beam structural design, two-way tension and compression load , easy to install and flexible.

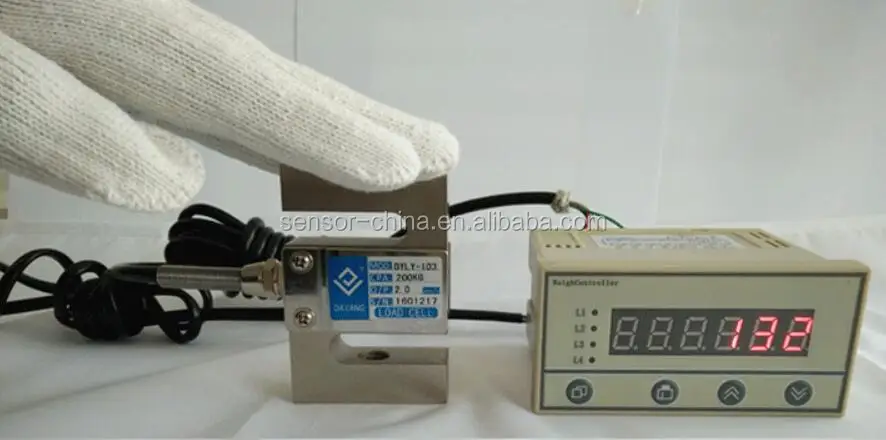

3 For crane scale , machine change scales, hopper scales and other electronic weighing devices.

4 Intrinsically safe products can be used in harsh environments and hazardous areas .



  Function:



Parameter	Unit	Technical Specifications	Parameter	Unit	Technical Specifications
Sensitivity	mV/V	2.0±0.05	Temperature coefficient of sensitivity	≤%F·S/10℃	±0.03
Nonlinear	≤%F·S	±0.03	Operating temperature range	℃	-20℃~+80℃
Hysteresis	≤%F·S	±0.03	Input resistance	Ω	350±20Ω
Repeatability	≤%F·S	±0.03	Output Resistance	Ω	350±5Ω
Creep	≤%F·S/30min	±0.03	Safe Overload	≤%F·S	150% F·S
Zero output	≤%F·S	±1	Insulation resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10℃	±0.03	Excitation voltage	V	10V-15V

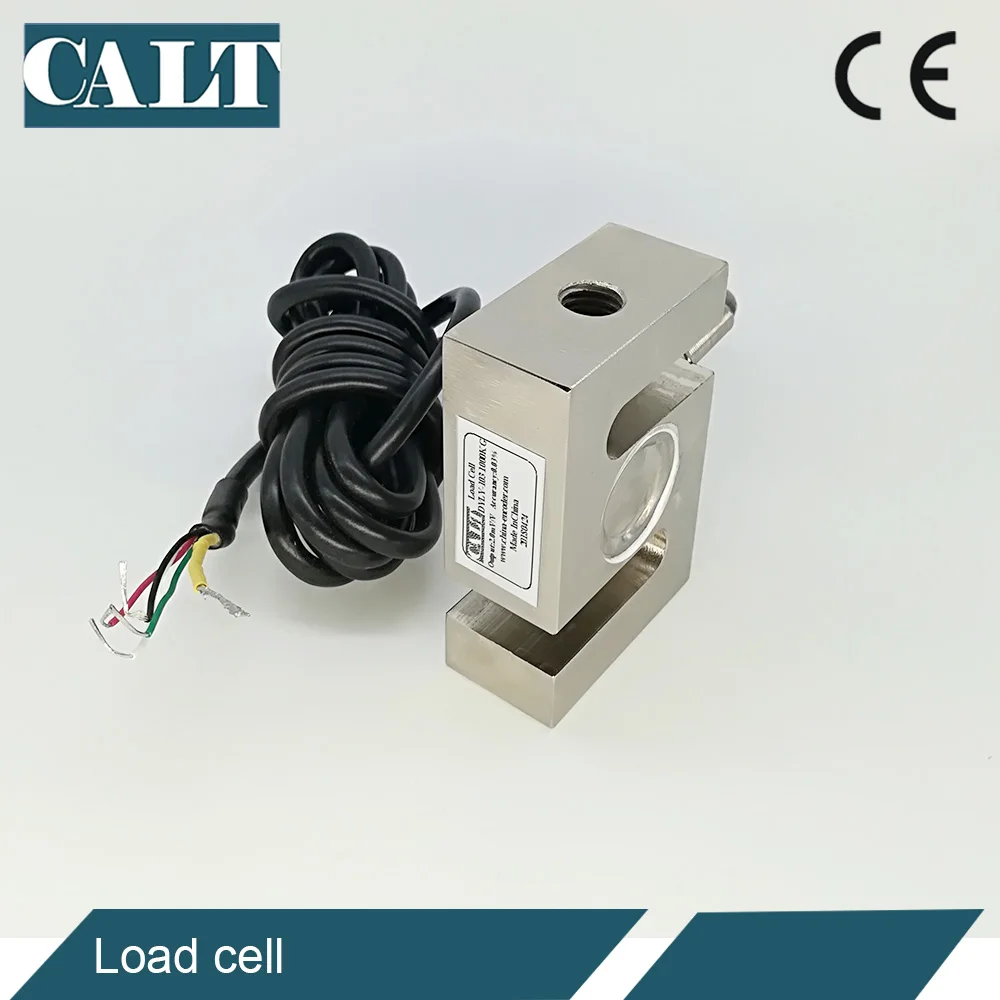

Wire color



Red(+E) Black(-E) Green(+S) White(-S)
